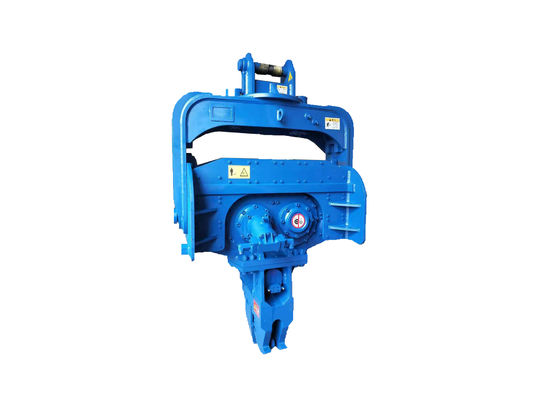

Huitong Hydraulic pilling hammer is using its high frequency vibration to vibrate pile body with high acceleration to pass the vertical vibration of mechanical produce to pile which leading to changes in the soil structure around the pile, strength decrease. Soil around the piles become liquefaction to reduce frictional resistance between side of the pile and the soil. Then using the excavator down force, vibrating pile hammer and pile body weight to sink pile into the soil. When extracting piles, in the condition of vibration to pull out the pile by using excavator lift force. Excitation force needed by pile driving machinery are comprehensive determined by site soil, soil condition, moisture content and type of pile, construction.
|
Model
|
Units
|
HT08
|
HT10
|
HT14
|
|---|---|---|---|---|
|
Excavator
|
Ton
|
20-30
|
30-40
|
40-45
|
|
Frequency
|
rmp
|
3000
|
2800
|
2800
|
|
Hz
|
50
|
45
|
45
|
|
|
Centrifugal Movement
|
kN
|
500
|
650
|
750
|
|
Eccentric Moment
|
Kgm
|
5
|
5
|
6
|
|
Oil Pressure
|
Bar
|
250
|
250
|
280
|
|
Oil Flow
|
L/min
|
160
|
180
|
210
|
• Lower cost of maintenance
• Outstanding workability and mobility.
• Easier operate in critical regions such as chaotic section of city, bridge area and
the vicinity of high-voltage wires
• Equipped with high-powered hydraulic piston motor and suitable bearing for
high frequency vibration.
• Install vibro isolating rubber for high frequency purpose.
• Easy connect and disconnect the hammer by the use of excavator’s breaker
hydraulic lines.
• The clamping lug can handle and move construction objects easily.
• Pile driving power 20% up compared to the existing equipments.
• Sufficient wear-resistant design and 360-degree revolution.
1. Before signing an official contract with our customers, we will help to analyze and provide professional solutions, recommdations based on the project information provided by customers.
2. An experienced tech-team are ready to meet your special requirements.
3. Your inquire related to our products or price will be replied in 24 hrs
4. Keeping our customers update about the orders' production process and arrange quality checking in the workshop is available if you want.
5. Online techinical supports are available for the whole product life. Oversea services are available with extra fees.
6. 12 Month warranty for pile hammer, beyond the warranty period, all spare parts are available for you in our cost price.
International standard pallet or wood case.
1. one 20GP can load about 12-14 pieces 1.0m3 or 1.2m3 buckets for 20ton excavator(Width less than 42 inches )
2. one 40HC can load about 26-28 pieces 1.0m3 or 1.2m3 buckets for 20ton excavator;
3. one 20GP can load about 8 pieces 1.6m3 buckets for 30ton excavator;
4. one 40HC can load about 16 pieces 1.6m3 buckets for 30ton excavator.
| PILE HAMMER | ||
|---|---|---|
| Item | HT-P30 | THT-P40 |
| Eccentric Moment | 40Nm | 85Nm |
| Centrifugal Force | 300kN | 570kN |
| Amplitude | 6.8mm | 14mm |
| Frequency | 2800rpm | 2800rpm |
| Pressure | 240-260kg/cm2 | 240-260kg/cm2 |
| Oil Flow | 155-200L/min | 200-255L/min |
| Turning Angle | 360degree | 360degree |
| Package Size | hammer with clamp:1450mm*1550mm*1650mm | hammer with clamp:1650mm*1700mm*1950mm |
| vice arm: 2700mm*800mm*1200mm | vice arm: 3350mm*850mm*1350mm | |
| Total: 7.41cube meters | Total: 8.81cube meters | |
| Net Weight | hammer with clamp: 2000kg | hammer with clamp: 2800kg |
| vice arm: 500kg | vice arm: 650kg | |
| Total: 2500kg | Total: 3450kg | |
| Suitable excavator | 20-35tons | 30-50tons |
