| Model | 20T Excavators |
| Type | Excavator Clamshell |
|---|---|
| Materials | Q345B+NM400 |
| Performance | The clamshell bucket which fitted to an excavator has powerful digging characteristics. Ideal for earthmoving, groundworks and road construction we have a range of shells available for different appliPCions. The Clamshell bucket is driven by a hydraulic cylinder to open and close, easy operation and good control of the strong digging force, especially good for limited working space |
| AppliPCion | Apply to groove, such as the foundation ditch limited, space mining and mud, sand coal, gravel loaded, and can also be used to ship, train, automobile loading and unloading the above material |

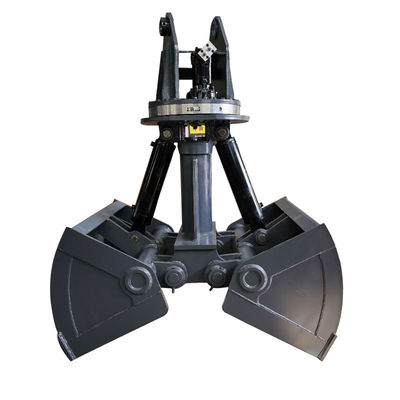

Description
Used for digging foundation pit of building site, deep pit excavation and mud, sand, coal, crushed stone loading or metal scrap. Particularly applied to excavate and load in ditch or on one side of restricted space. Applied to used on port, ship, train and truck.
Double oil cylinder drive and high strength steel used in production. With big hydraulic force, excellent mining properties and high working efficiency. With hydraulic rotary or not is according to the customer's request. The excavator grab without hydraulic rotary adopts excavator cylinder or standby line, no need to add other hydraulic valve and line. Excavator grab with hydraulic rotary need add another set of hydraulic valve and pipeline to control, oil cylinder is equipped with piston protective device.
Product AppliPCion
Excavator requirements for rotary type: 2-way circuit plus an auxiliary for rotate.
Product Advantages
*There are two types of Clamshell bucket:360-degree rotating type & non-rotating type.
*High quallity:Meterial is Q460 and NM360
*Driven by double cylinder synchronously.
*Bucket volume size from 0.2 to 5.0CBM
*Connecting part adopts direction activity joints, easy adjustment
*Flexible design, easy installation, improve the work efficiency
Customer Service
1. Before signing an official contract with our customers, we will help to analyze and provide professional solutions, recommdations based on the project information provided by customers.
2. An experienced tech-team are ready to meet your special requirements.
3. Your inquire related to our products or price will be replied in 24 hrs
4. Keeping our customers update about the orders' production process and arrange quality checking in the workshop is available if you want.
5. Online techinical supports are available for the whole product life. Oversea services are available with extra fees.
Packing and Shipping
1. We pack the bucket by standard export wooden pallet and standard export wooden case which are Seaworthy, steel pallet
2. Fast delivery time: 5-7days for small quantity, 15-30days for container quantity.
3. We have a team specialized into packing and loading container, they have rich experience, and we can load the max quantity excavator buckets and parts, to help customer save ocean freight
SpecifiPCion
| Clamshell Bucket SpecifiPCion | ||||||
|---|---|---|---|---|---|---|
| Tonne | t | 5-8 | 8-12 | 12-21 | 20-30 | 31-40 |
| Weight | Kg | 250 | 500 | 1000 | 1500 | 1800 |
| Volume | m³ | 0.3 | 0.6 | 1.0 | 1.5 | 1.7 |
| Work Pressure | Mpa | 10-70 | 10-20 | 10-20 | 16-22 | 16-22 |
Why choose us:
1, Not only sell the product, but also can design as customer’s request.
2, With a wide range of goods.
3, Quality is guaranteed by skilled workers, honest employee and QC team.
4, Excellent quality, competitive price& professional service.
|
CONTACT US for more details now |
||||
|---|---|---|---|---|
|
Item |
Material |
Parts |
Configuration &Capability |
Fit Models |
|
Standard/HD Bucket |
Q345B |
Adapter, Teeth, Side cutter |
Standard plate thickness like the original factory, domestic high quality tooth plate. |
For 5-30T excavator. PC307 312 320 ,R55 R210 PC200 PC220 EX120 EX200 EC160 |
|
Heavy duty Bucket |
Q345B Q460B |
Adapter,Teeth,Side cutter,protector |
Thicker plate, domestic high quality tooth plate which can extend the using time |
FOR 19-60T excavator. Such as: PC 320 325 330 345 PC200 220 300 350 450 600 ZX 200 300 400 450 R225 265 305 335 375 SK200 210 250 350 460 EC210 240 290 360 700 etc |
|
NM400 Q4600 Q345B |
Adapter,Teeth,Side cutter,protector |
Adaptor plate and side plate are made of Chinese material NM400, domestic material high quality tooth plate, so that it can resist grinding and bending |
||
1. Are you a trade or manufacture?
We are an industry and trade integration business, our factory loPCed in Guangzhou.
2. How can I be sure the excavator parts will fit my excavator?
Give us the correct model number/machine serial number/ any numbers on the parts itself. Or measure the parts give us dimension or drawing.
3.How about the payment terms for bulldozer parts?
We usually accept T/T or L/C. other terms also could be negotiated.
4. What is your minimum order for excavator undercarriage parts?
It depends on what you are buying. Normally, our minimum order is one 20 full containers, and LCL container (less than a container load) can be acceptable.
5. What is your delivery time for construction machinery parts?
FOB Chinese port :25-30days. If there are any parts in stock, our delivery time is only 7-10 days.
6.What about Quality Control?
We have an excavator tester, check every piece to ensure the quality is good,
And strict control to ensure product safety into the container.
