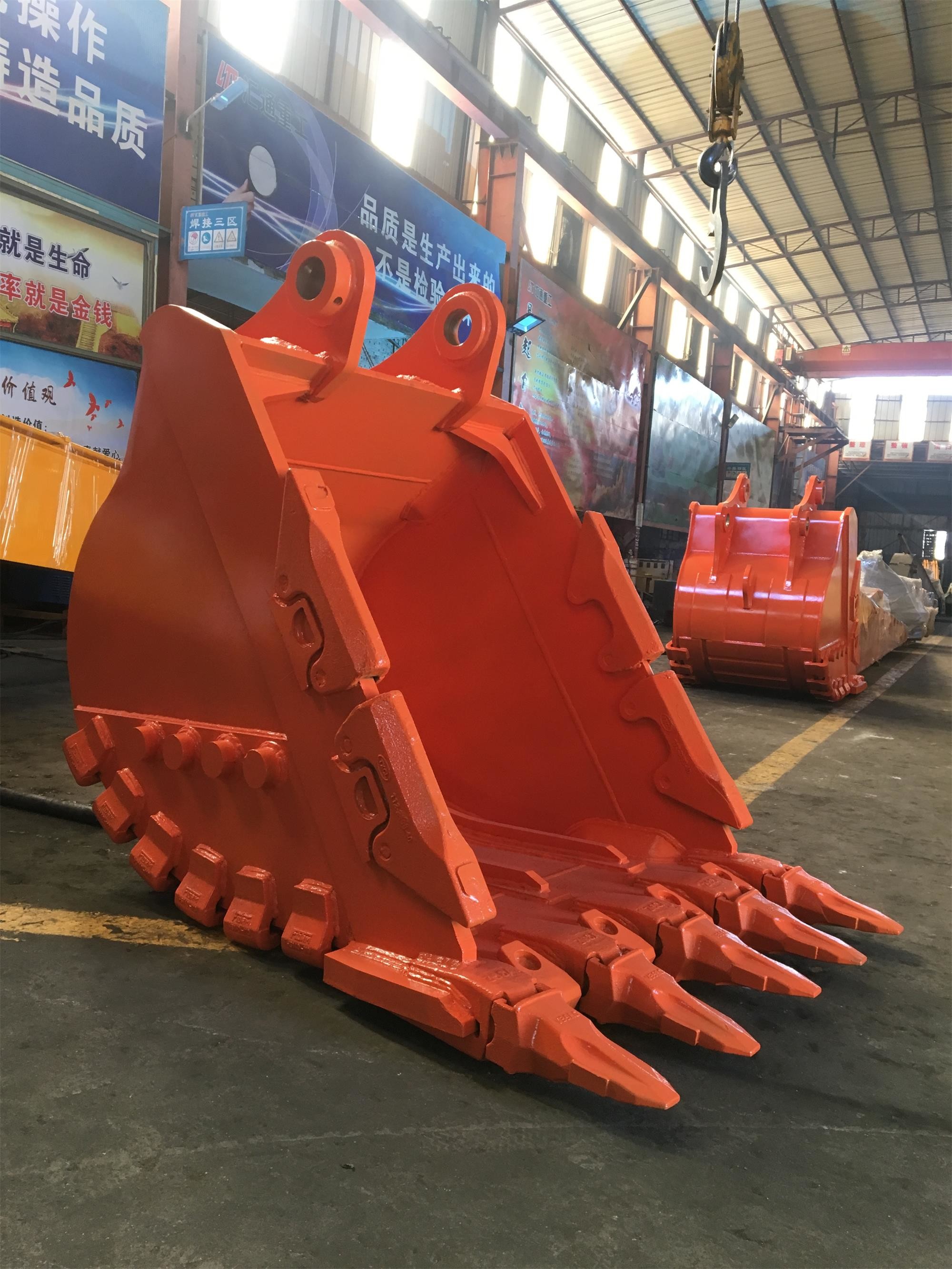

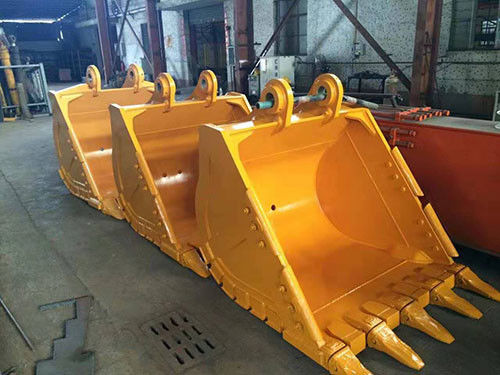

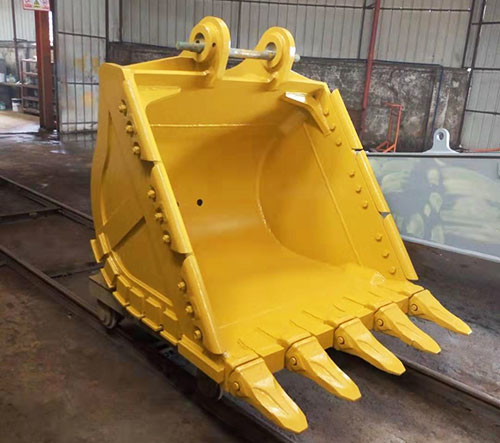

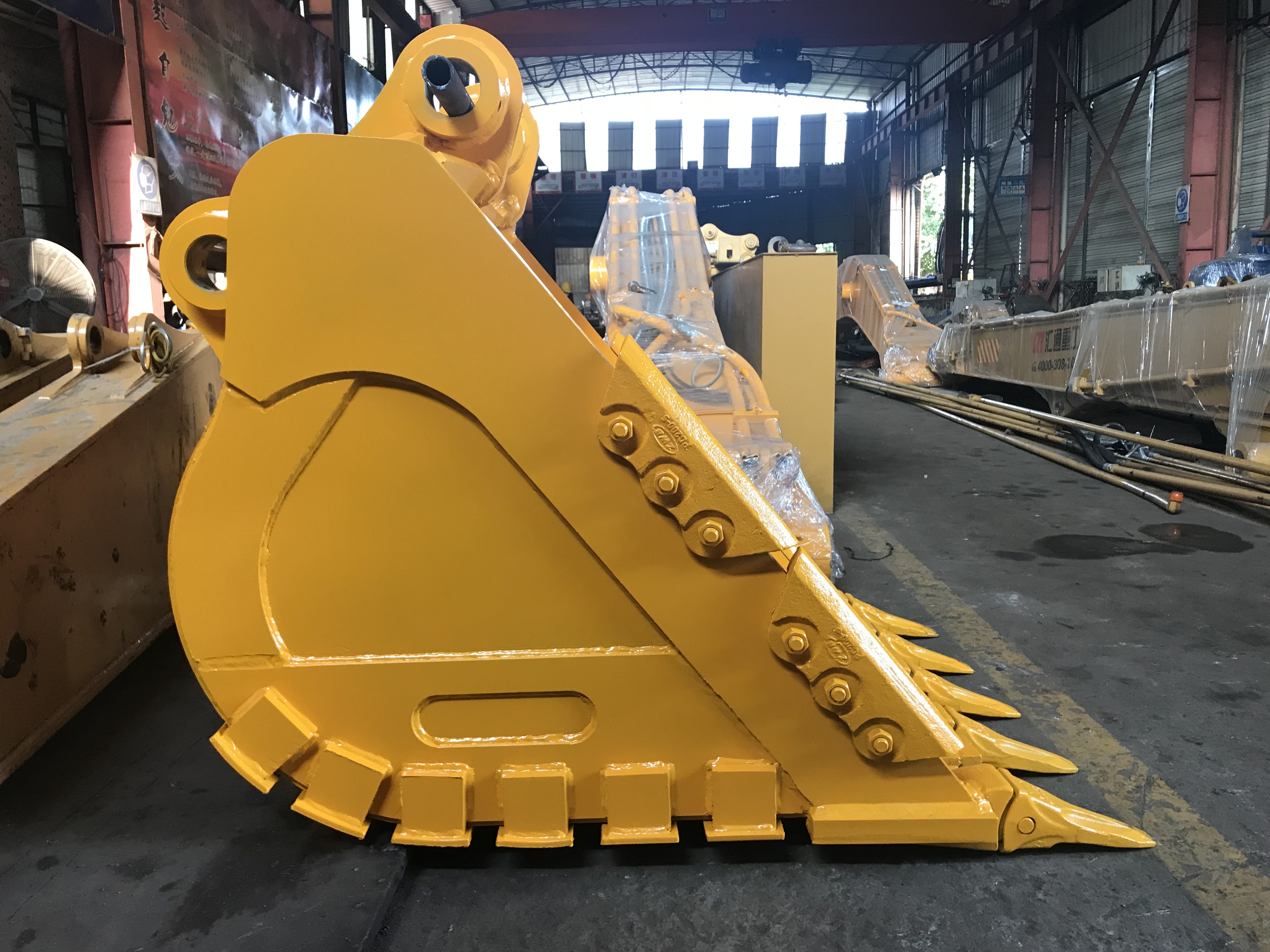

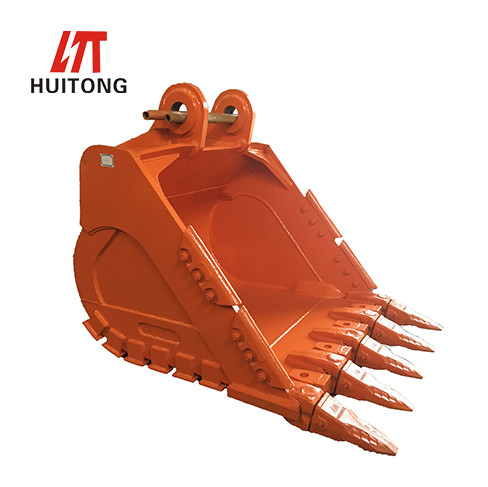

The “rock bucket” is used to ROCK HANDLING OPERATIONS, Huitong manufactures rock buckets for excavators starting from the 16-tonne class. We adopt Sweden-made HARDOX steel and advanced CNC Cutting Machine. All wear parts are made of HARDOX. The bucket body are made of 16MN.
It's our toughest series of all time. And we made it for the harshest working conditions, such as: hard digging, loading rocks, coal mining. etc.
Recommended for shot rock, stratified materials, or highly abrasive appliPCions.
1. 3 Levels of wear protection for more extreme appliPCions including internal wear straps, additional wear blocks (700 BHN) and side and blade shrouds.
2. All bucket components are 400 BHN or higher
3. Diamond folded section wear plate provides extra strength and wear protection
4. Bottom wear straps using 400BHN to increase wear resistance
5. Extra high side plate give higher strength and wear resistance in high wear areas
6. 4 reinforcing gussets are used to strengthen up machine fittings
|
Features of Our HD Buckets
|
|||
|---|---|---|---|
|
1. The prefect design of the HD bucket is helpful efficient digging, filling and bucket breakout force, making our HD buckets are widely welcomed by contractors while guaranteeing quality and longevity.
|
|||
|
2. Manufactured to any width and bucket capacity as required by customer.
|
|||
|
3. High quality materials, ex Q345B, NM360/400, HARDOX450/500
|
|||
|
4. OEM Standard Buckets.
|
|||
|
5. Strong and durable construction to withstand robust working conditions.
|
Technical parameters
| Operation Weight (Standard Configuration) (KN) | 25050 |
|---|---|
| Standard Bucket Capacity | 1.2 |
| Rated Power/Rotate Speed (KW/rpm) | 128.5/2100 |
| Transport Dimensionsmm | 9890*3180*3280 |
| Bucket Digging Force (KN) | 146 |
| Bucket Rod Digging Force (KN) | 106 |
| Maximum Traction (KN) | 217 |
RFQ
Q1. What is your best price?
A: We are direct factory will offer you best competition price.
Q2. How can I contact you? Am I should trust you?
A: You can choose Trade assurance as your payment way which can protect your benefits, we are Alibaba golden member three-star shop.
Q3. What is payment term?
A: Western union, T/T, trade assurance are acceptable.
Q4. Where is your factory?
A: No.1 Qiangang Street, Jinpen Industrial Park, Baiyun District, Guangzhou, Guangdong, China Welcome to visit our factory~
Q5: When would be your delivery date?
A: Usually 25-30 days after get your payment, and we will try our best to fill in your requirements. We focus on the management belief of "Quality first, Reputation significant, Customer based".
