Product Details:
Payment & Shipping Terms:
|
Brand Name: | HUITONG | After Warranty Servic: | Online Support, Field Maintenan |
---|---|---|---|
Marketing Type: | Hot Product 2019 | Showroom LoPCion: | Egypt, Canada, Turkey, United Kingdom |
Pressure: | 160-180kg/C㎡ | Flow: | 120-180L/min |
Color: | Customerized | Material: | Q345B/4140/haxdox 400/20CrMo |
Rate: | 350-500Bpm | Type: | Top |
High Light: | Q345B Excavator Hydraulic Hammer,20CrMo Excavator Hydraulic Hammer,Sany Hydraulic Breaker Hammer |

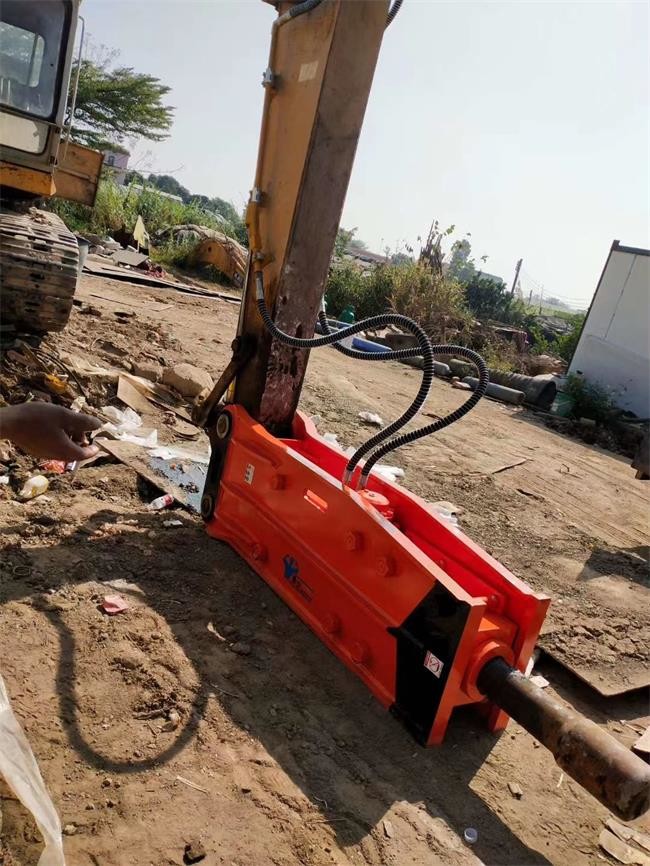

Chinese Manufacturer Excavator Hydraulic Breaker Hammer For Sany Excavator
Product AppliPCion
HUITONG Hydraulic Hammer is abbreviated as "Breaker".It is fit for various kinds of excavators.
The power source of the hydraulic breaker is the pressure provided by the excavator,loader or pumping station. It can crush stones and rocks more effectively in engineering construction and improve work efficiency. The principle of selecting a hydraulic breaker is to select the most suitable hydraulic breaker according to the model of the excavator and the operating environment.
Mining: Breaking ore rocks, Second time crushing, Screen crushing
Metallurgy: Steel ladle and slag cleaning, Fumace dismantling, Equipment foundation removal
Public road: Highway repair, Cement pavement broken, Foundation excavation
Railway: Mountain and tunnel excavation, Road and bridge demolition, Subgrade compaction
Building: Demolition of old buildings, Broken reinforced concrete
Ship repairing and Construction: Removing clam and rust
Others: Breaking ice, Breaking frozen soils, Sand mold Vibration
A. Heat resistance and abrasion resistance.
B. Low oil consumption design. This reduces the oil cylinder volume and lessens the fuel consumption under the condition of guaranteeing oil pressure invariable.
C. Made of high strength steel plate (Q345b),Chisel made by 42CrMo, provide very long operation life
D.Following Korean Technology and Design, guarantee low breakdown rate
3. Strong and mature "Hydraulic + Nitrogen" impact System
4.Easy control and easy installation make it more convenient for use
5 Tedy breaker can be compatible to all brands and models of excavators
Box Type Side Type Top Type
1.Reduce noise 1.Overall length shorter 1.Easy to loPCe and control
2.Protect the environment 2.Hook back things conveniently 2.More conducive to excavator
3.Maintenance-free 3.Weight lighter, lower risk of broken drill rod
Items
|
Unit
|
EDT100
|
---|---|---|
Body weight (incl. chisel)
|
kg
|
53
|
Total weight
|
kg
|
102
|
Size (L*W*H)
|
mm
|
1190*260*295
|
Hydraulic oil flow
|
l/min
|
15~25
|
Hydraulic pressure
|
kg/cm2
|
90~120
|
Blow frequency
|
bmp
|
800~1400
|
Chisel diameter
|
mm
|
40
|
Carrier weight
|
ton
|
0.8~2.5
|
Brand
|
Model
|
---|---|
PC
|
301.C 301.8C
|
KOMATSU
|
PC05-1/5 PC05-6
|
DOOSAN DAEWOO
|
SOLAR007/010
|
HYNUDAI
|
ROBEX15
|
HITACHI
|
EX8/12/15 UE10
|
VOLVO
|
EC14/15B
|
SUNWARD
|
SWE08
|
ZOOMLION
|
ZE15E
|
Terms & Conditions of Ordering:
1 .Payment Terms:
T/T (Telegraphic Transfer) or Western Union
2. Delivery Term:
Based on order quantity, normally it takes 25 days for production. Only 2 or 3 days if we have stock on your request size.
3. Transportation:
Sample order: we suggest Courier express or by air Bulk order: we suggest by air or by sea.
4.Quality & Service:
A. There will be strict inspection and testing for every order before shipping out. B Our sales team and Technical Support will response for your question within 24 hours (Holidays Excluded) through skype(johnnyyu64) and WhatsApp/Wechat: + 86 18805352098 C. Free replacement will provide once the failure confirmed caused or our product quality; Not satisfied with a refund
Contact Person: Tang
Tel: 86-18922117251
