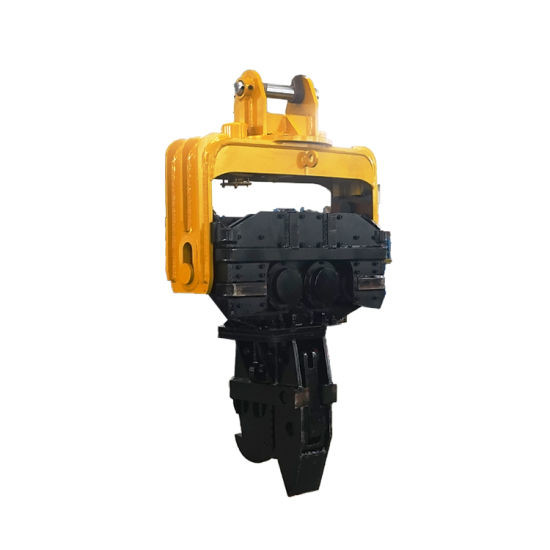

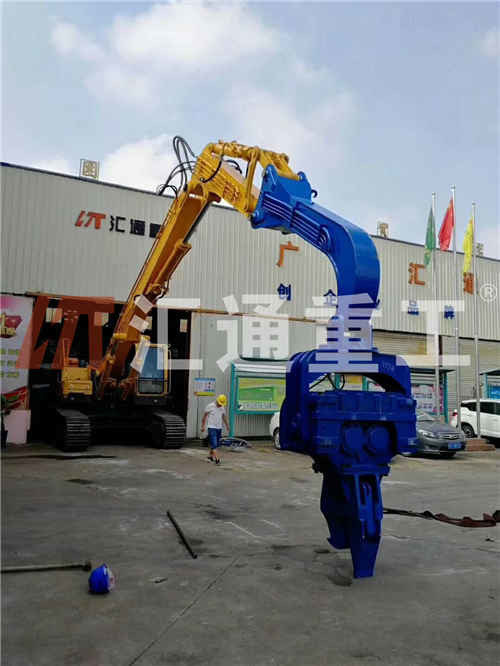

Excavator mounted hydraulic vibratory hammer V350 can be applied for a wide range of working environment because of its small size and simple operation procedure, such as drainage maintenance, river-bank maintenance and marshland working wherever onshore and offshore piling job.
Yongan has a series of excavator vibratory hammer HT250, HT300, HT350, HT400, HT450, built and designed for excavators weighting from 20 tons to 50 tons, and the clamp can be customized according to the pile size.
• Lower cost of maintenance
• Outstanding workability and mobility.
• Easier operate in critical regions such as chaotic section of city, bridge area and
the vicinity of high-voltage wires
• Equipped with high-powered hydraulic piston motor and suitable bearing for
high frequency vibration.
• Install vibro isolating rubber for high frequency purpose.
• Easy connect and disconnect the hammer by the use of excavator’s breaker
hydraulic lines.
• The clamping lug can handle and move construction objects easily.
• Pile driving power 20% up compared to the existing equipments.
• Sufficient wear-resistant design and 360-degree revolution.
1) 360 degrees rotation device of middle bracket
2) All kinds pile driving , sheet pile, tube pile, H beams, steel sheet.
3) Best mobility in narrow place compared with crane
4) High shear load of heavy duty elstomer cushion which prevent the transmission of vibration to excavator.
5) easy installation and control. Minimal noise which is appropriate various work sites, crowded area, under bridge, narrow road ways, urban renewal.
1. Before signing an official contract with our customers, we will help to analyze and provide professional solutions, recommdations based on the project information provided by customers.
2. An experienced tech-team are ready to meet your special requirements.
3. Your inquire related to our products or price will be replied in 24 hrs
4. Keeping our customers update about the orders' production process and arrange quality checking in the workshop is available if you want.
5. Online techinical supports are available for the whole product life. Oversea services are available with extra fees.
6. 12 Month warranty for pile hammer, beyond the warranty period, all spare parts are available for you in our cost price.
International standard pallet or wood case.
1. one 20GP can load about 12-14 pieces 1.0m3 or 1.2m3 buckets for 20ton excavator(Width less than 42 inches )
2. one 40HC can load about 26-28 pieces 1.0m3 or 1.2m3 buckets for 20ton excavator;
3. one 20GP can load about 8 pieces 1.6m3 buckets for 30ton excavator;
4. one 40HC can load about 16 pieces 1.6m3 buckets for 30ton excavator.
|
PILE HAMMER
|
||
|---|---|---|
|
Item
|
HTPH30
|
HTPH40
|
|
Eccentric Moment
|
40Nm
|
85Nm
|
|
Centrifugal Force
|
300kN
|
570kN
|
|
Amplitude
|
6.8mm
|
14mm
|
|
Frequency
|
2800rpm
|
2800rpm
|
|
Pressure
|
240-260kg/cm2
|
240-260kg/cm2
|
|
Oil Flow
|
155-200L/min
|
200-255L/min
|
|
Turning Angle
|
360degree
|
360degree
|
|
Package Size
|
hammer with clamp:1450mm*1550mm*1650mm
|
hammer with clamp:1650mm*1700mm*1950mm
|
|
vice arm: 2700mm*800mm*1200mm
|
vice arm: 3350mm*850mm*1350mm
|
|
|
Total: 7.41cube meters
|
Total: 8.81cube meters
|
|
|
Net Weight
|
hammer with clamp: 2000kg
|
hammer with clamp: 2800kg
|
|
vice arm: 500kg
|
vice arm: 650kg
|
|
|
Total: 2500kg
|
Total: 3450kg
|
|
|
Suitable excavator
|
20-35tons
|
30-50tons
|
Functions
• Lower cost of maintenance
• Outstanding workability and mobility.
• Easier operate in critical regions such as chaotic section of city, bridge area and
the vicinity of high-voltage wires
• Equipped with high-powered hydraulic piston motor and suitable bearing for high frequency vibration.
• Install vibro isolating rubber for high frequency purpose.
• Easy connect and disconnect the hammer by the use of excavator’s breaker hydraulic lines.
• The clamping lug can handle and move construction objects easily.
• Pile driving power 20% up compared to the existing equipments.
• Sufficient wear-resistant design and 360-degree revolution.
