Product Details:
Payment & Shipping Terms:
|
| Type: | Outdoor Heavy-duty | Step Width: | 600mm/ 800mm / 1000mm |
|---|---|---|---|
| Handrail Color: | Client's Requirements | AppliPCion: | Public Transport,Subway.airport.shopping Center |
| Material: | Metal | Landing Plate: | Etched Stainless Steel |
| Warranty: | 12 Months | ||
| High Light: | 25mm Mini Excavator Quick Hitch,1t Mini Excavator Quick Hitch,CX800B Excavator Quick Hitch |
||

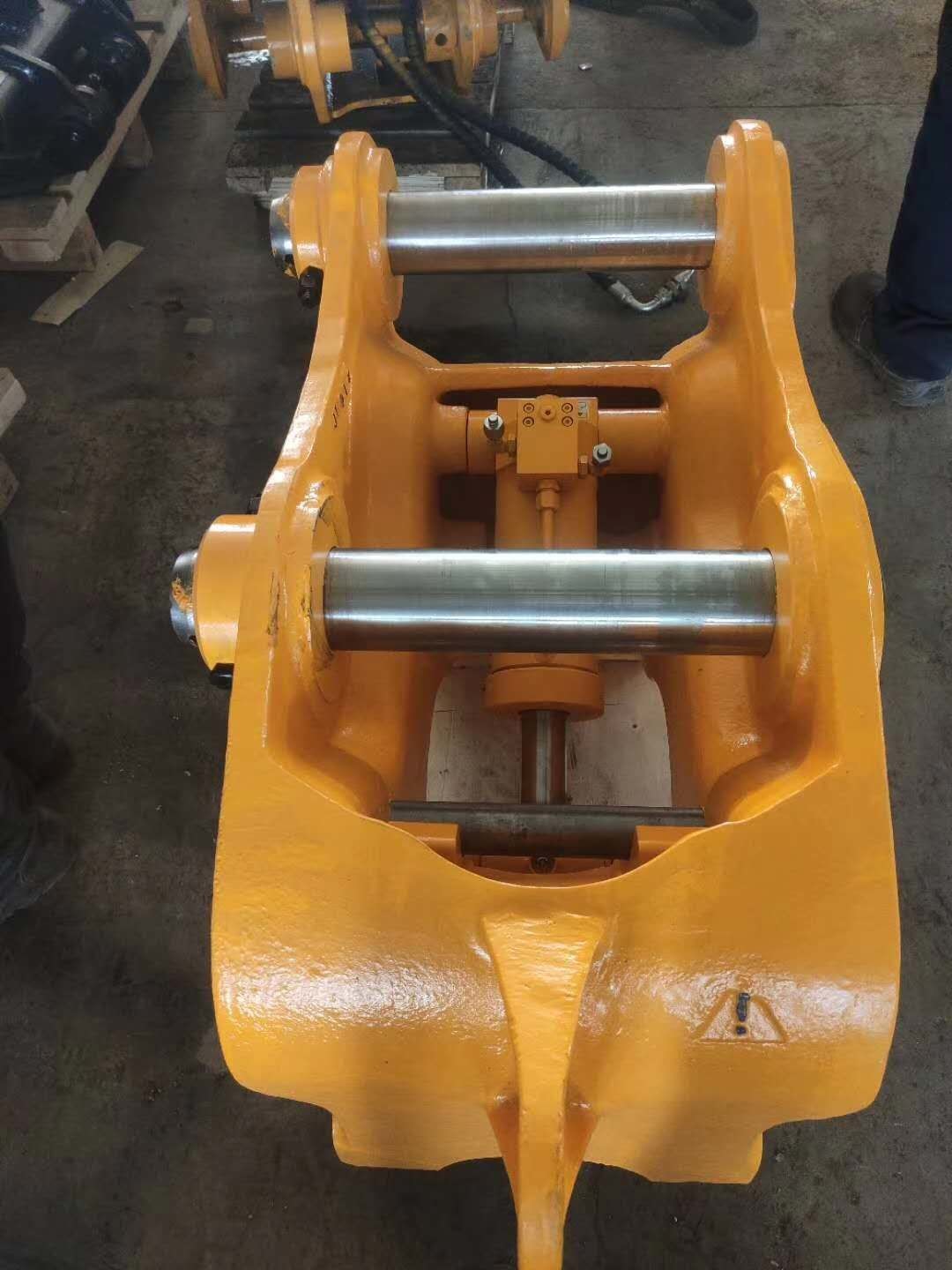

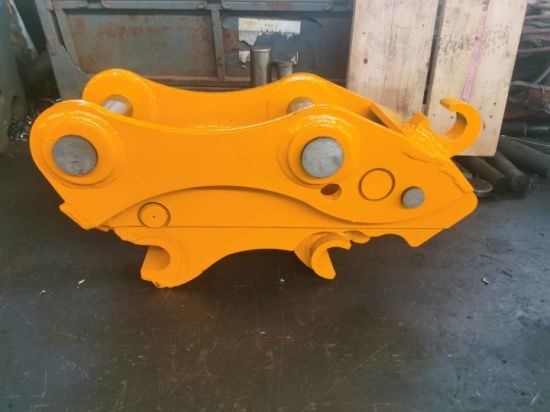

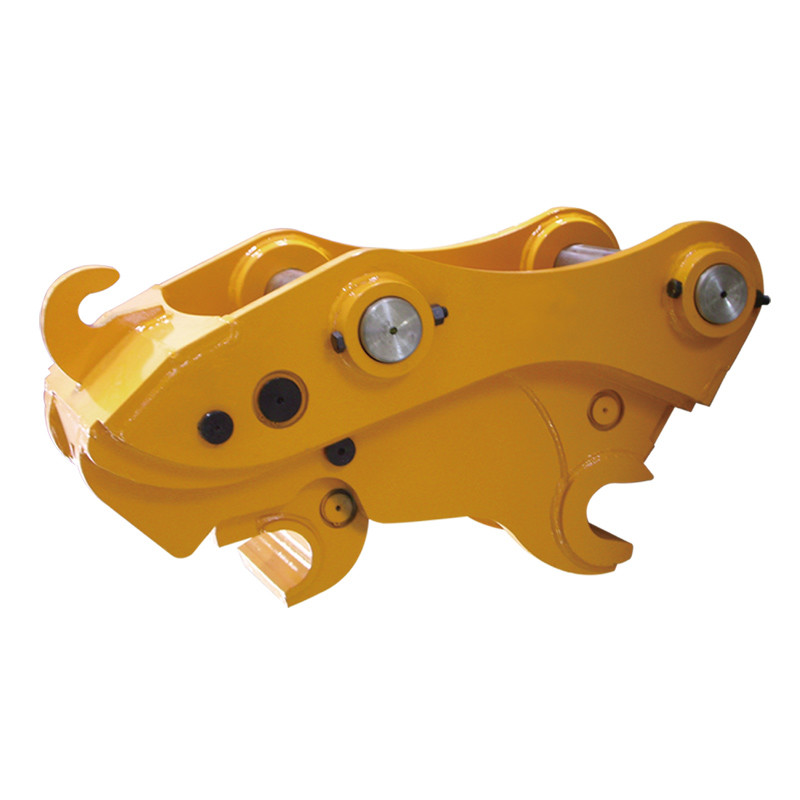

Mini Excavator Quick Hitch 1t 25mm Best Price For DH150 CX800B EW160C SK20UR
Product Description
Excavator quick hitch (also called quick couplers) are used with construction machines to allow the rapid
change of buckets and attachments on the machine.
They remove the need to use hammers to manually drive out and insert the mounting pins for attachments.
Excavator quick hitch can be used on excavator, mini excavator, backhoe loader and so on.
We can supply five types excavator quick hitch:
Quick coupler can greatly improve excavator performance. It can quickly connect each of special equipment and tools after assembling a quick coupler.
|
Model
|
|
HT-01
|
HT-02
|
HT-03
|
HT-04
|
HT-05
|
HT-06
|
DEHNmini
|
|
Carrier Weight
|
Ton
|
4-6
|
5-9
|
9-19
|
17-23
|
23-35
|
33-45
|
1.5-4
|
|
Pin Diameter
|
mm
|
45-50
|
50-55
|
60-70
|
70-80
|
80-90
|
90-120
|
25-40
|
|
Arm width
|
mm
|
155-170
|
180-200
|
232-315
|
306-340
|
325-350
|
416-469
|
80-140
|
|
Pin Center Distance
|
mm
|
230-270
|
290-360
|
380-420
|
460-480
|
473-540
|
550-620
|
80-150
|
|
Cylinder Scalling Distance
|
mm
|
205-270
|
340-450
|
340-486
|
256-590
|
413-590
|
520-590
|
170-206
|
|
Pressure
|
kg/cm2
|
40-380
|
40-380
|
40-380
|
40-380
|
40-380
|
40-380
|
40-380
|
|
Oil Flow
|
L/min
|
10-20
|
10-20
|
10-20
|
10-20
|
10-20
|
10-20
|
10-20
|
|
Weight
|
kg
|
50-60
|
80-90
|
120-130
|
280-290
|
450-530
|
450-580
|
25-30
|
1. Medium and high tensile steel is used throughout the body of the coupler making it very robust without adding unwanted weight.
2. With a tilt angle of ±45°
3. High quality material (Q345b) provide high steel toughness and good abrasive resistance.
4. Compact in design, virtually maintenance free,,Electric control system installed in cab , easy for operating.
5. Use security device of hydraulic control valve to ensure the safety.
6. Can change the accessories without disassembling the pin and axle
|
Part Name
|
Hydraulic quick coupler
|
|
Machine model
|
MKY6T
|
|
CertifiPCions
|
ISO9001:2008, SGS &CE
|
|
Type
|
MV06T, MV13T,MV20T
|
|
CertifiPCions
|
ISO9001:2008, SGS &CE
|
|
Material
|
Hardox400/Q345/Q460/NM360/NM400/WH60
|
|
Effects
|
Quick coupler can grreatly improve excavator performance. It can quickly connect each of special quipments and tools after assembling a quick coupler, such as buckets, rippers, hydraulic hammers, grapples, hydraulic cutters, etc.
|
|
AppliPCion
|
All brand excavators
|
