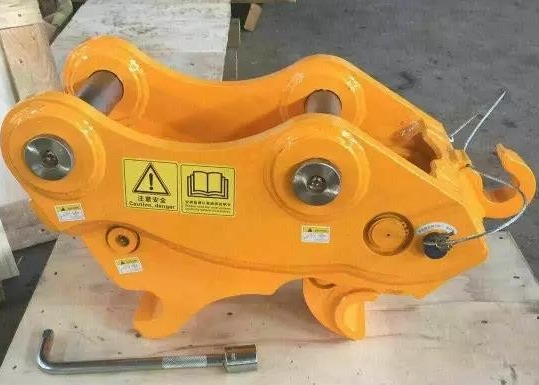

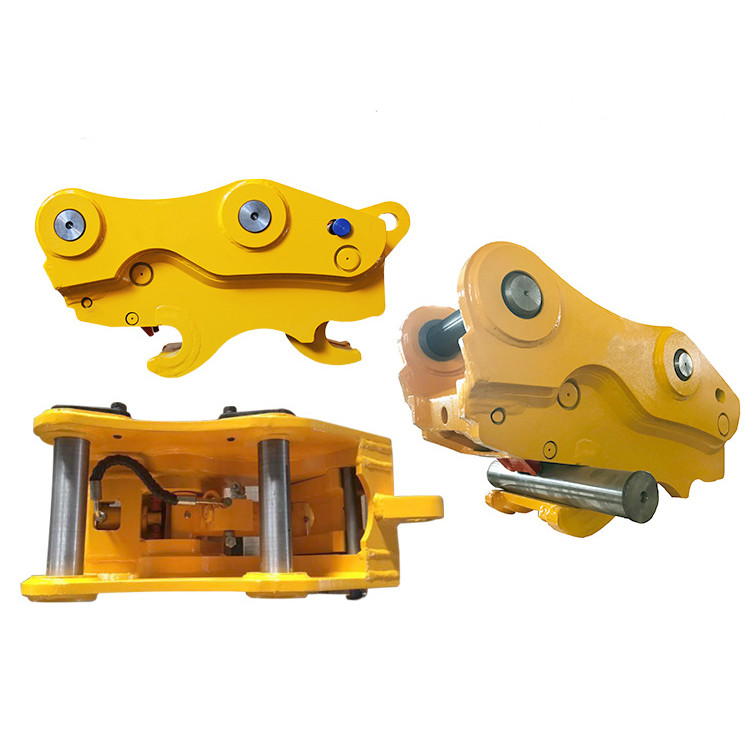

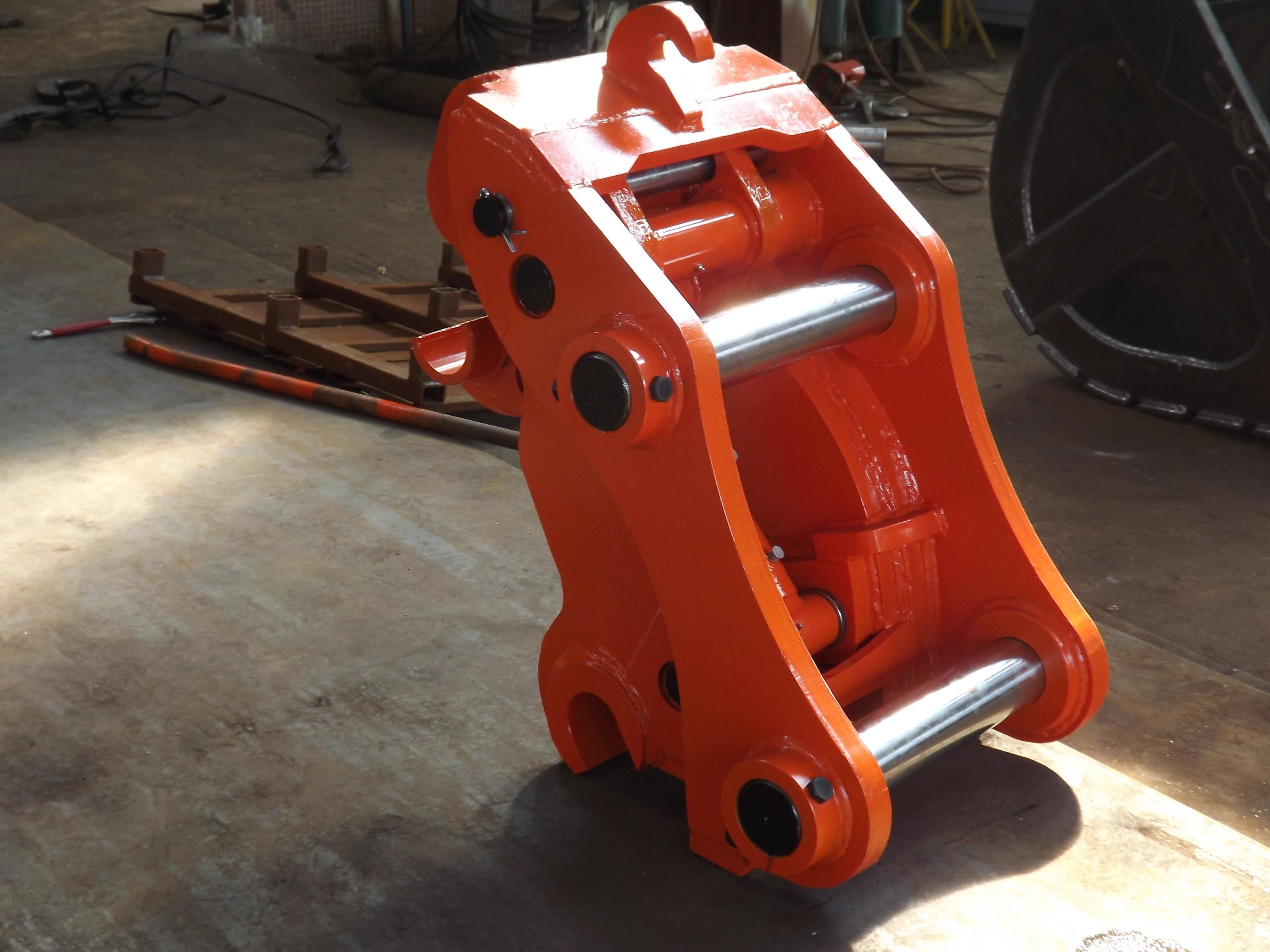

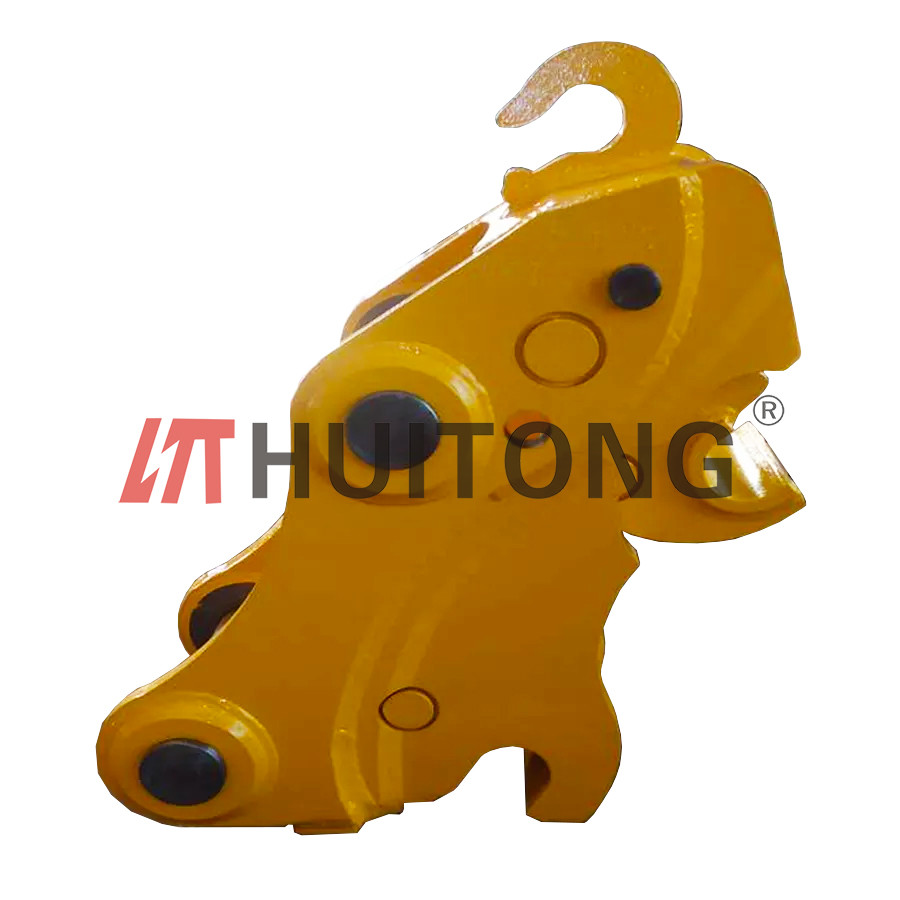

Mini Excavator Quick Coupler For Kubota Doosan Sany 1 - 100 Ton Excavator
product details:
Quick hitch can be used on the excavators or loader to change every accessory,such as bucket,breaker,shear.etc,easily and quickly,which has widened the use range of the excavators and saved a lot of time.
People do not need to use hammers to manually drive out and insert the mounting pins for attachments anymore. By installing the Huitong coupler to your hydraulic excavator you can turn it into a multi function piece of machinery and finish much more work in one day on the same site with one machine.
|
Model
|
Unit
|
HMB02
|
|
Operating Weight
|
Kg
|
50-75kg
|
|
Overall Length(C)
|
mm
|
520-542
|
|
Overall Height(G)
|
mm
|
312
|
|
Overall Width(B)
|
mm
|
260-266
|
|
Forearm Open Width(A)
|
mm
|
155-172
|
|
Retractable Distance Of Oil Cylinder
|
mm
|
200-300
|
|
Pin Diameter
|
mm
|
40-45
|
|
Top To Bottom Pin Distance(F)
|
mm
|
200-210
|
|
Pin To Pin Center Distance(D)
|
mm
|
220-275
|
|
Working Pressure
|
kg/cm²
|
30-400
|
|
Oil Flow
|
L/min
|
10-20
|
|
Carrier
|
Ton
|
4-6
|
Configuration and Performance:
Use hardness steel, make it quicker and more convenient.
AppliPCion:
Apply to excavator parts,such as bucket,ripper,hydraulic hammers and so on.It can enlarge the excavator working range and save time and improve the effiency.
