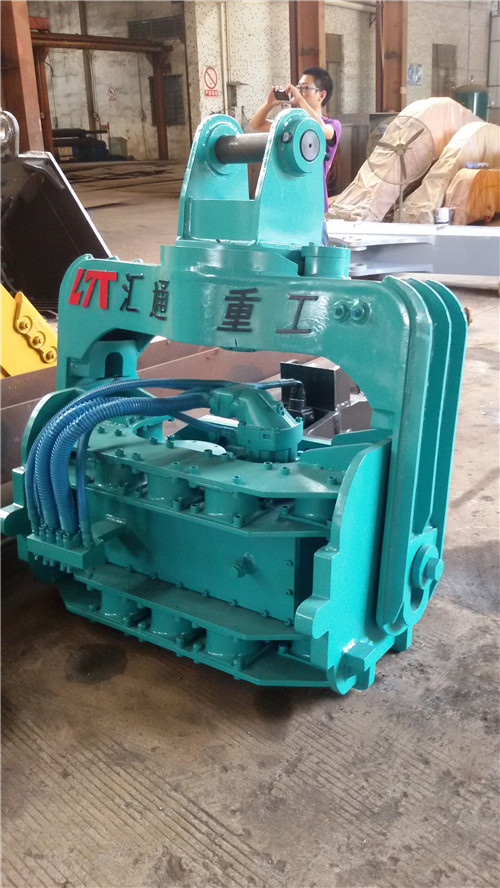

300 Bar Volvo EC360 Hydraulic Pile Driver Hammer

300 Bar Volvo EC360 Hydraulic Pile Driver Hammer
300 Bar Volvo EC360 Hydraulic Pile Driver Hammer
video play

Large Image :  300 Bar Volvo EC360 Hydraulic Pile Driver Hammer

Product Details:
Place of Origin: China,Guangzhou
Brand Name: HUITONG
Model Number: Pile Hammer
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: $10000
Packaging Details: Standard Packing
Delivery Time: 7-13 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200sets/month
Detailed Product Description
Condition: New AppliPCion: Pile Hammer
Efficiency: High Efficiency Warranty: 6 Months
Suitable: EC360 Excavator Type: Hydraulic
High Light:

EC360 Pile Driver Hammer

,

300 Bar Pile Driver Hammer

,

Volvo Hydraulic Pile Driver Hammer

Volvo EC360 Excavator Hydraulic Pile Driver Hammer For Building

Project
Product and technical parameters
V-350E
V-400D
V-450B
Revolutions per minute (Rpm)
3000
2600
2600
Exciting Force (T)
53.4
55.5
58
Hydraulic system working pressure (Bar)
300
300
300
Hydraulic system minium flow requirements (Lpm)

270

280




300
Main machine weight (T)
1.8
2.0
2.05
Suitable for excavator weight (T)
38-42
35-40
40-45
Clip mouth weight (Kg)
C15:455 ; C16E:530 ; C18E:578 ; C30B:455 ; C35B:530
Seconday arm weight (Kg)
A200:500 ; A250B:600 ; A350:900

Advantages

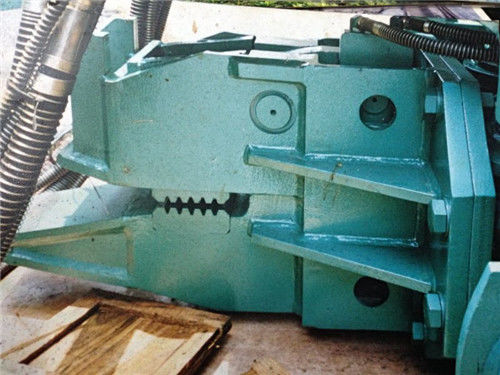

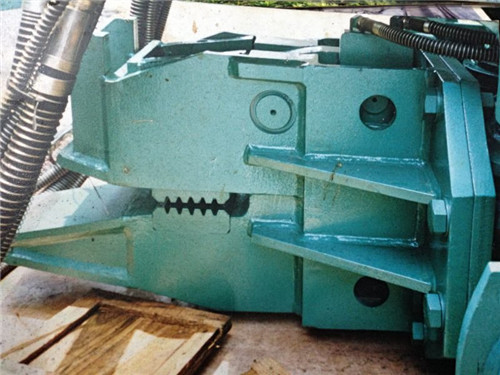

Pile hammer uses high-strength alloy clamping nozzle to optimize the structure of cylinder and swing arm.
The gearbox increases the ventilation and cooling circulation system, making the vibration hammer lower in temperature, more stable in performance, and prolonging the service life of the bearing


Products Description
The use of imported special hydraulic motor and solenoid valve is more efficient and environmentally friendly. Double oil replenishing device is added to the oil circuit, which is not easy to damage the motor and prolong the service life of the hydraulic motor.

300 Bar Volvo EC360 Hydraulic Pile Driver Hammer

300 Bar Volvo EC360 Hydraulic Pile Driver Hammer

300 Bar Volvo EC360 Hydraulic Pile Driver Hammer
