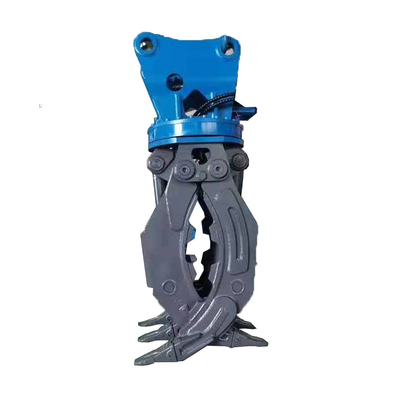

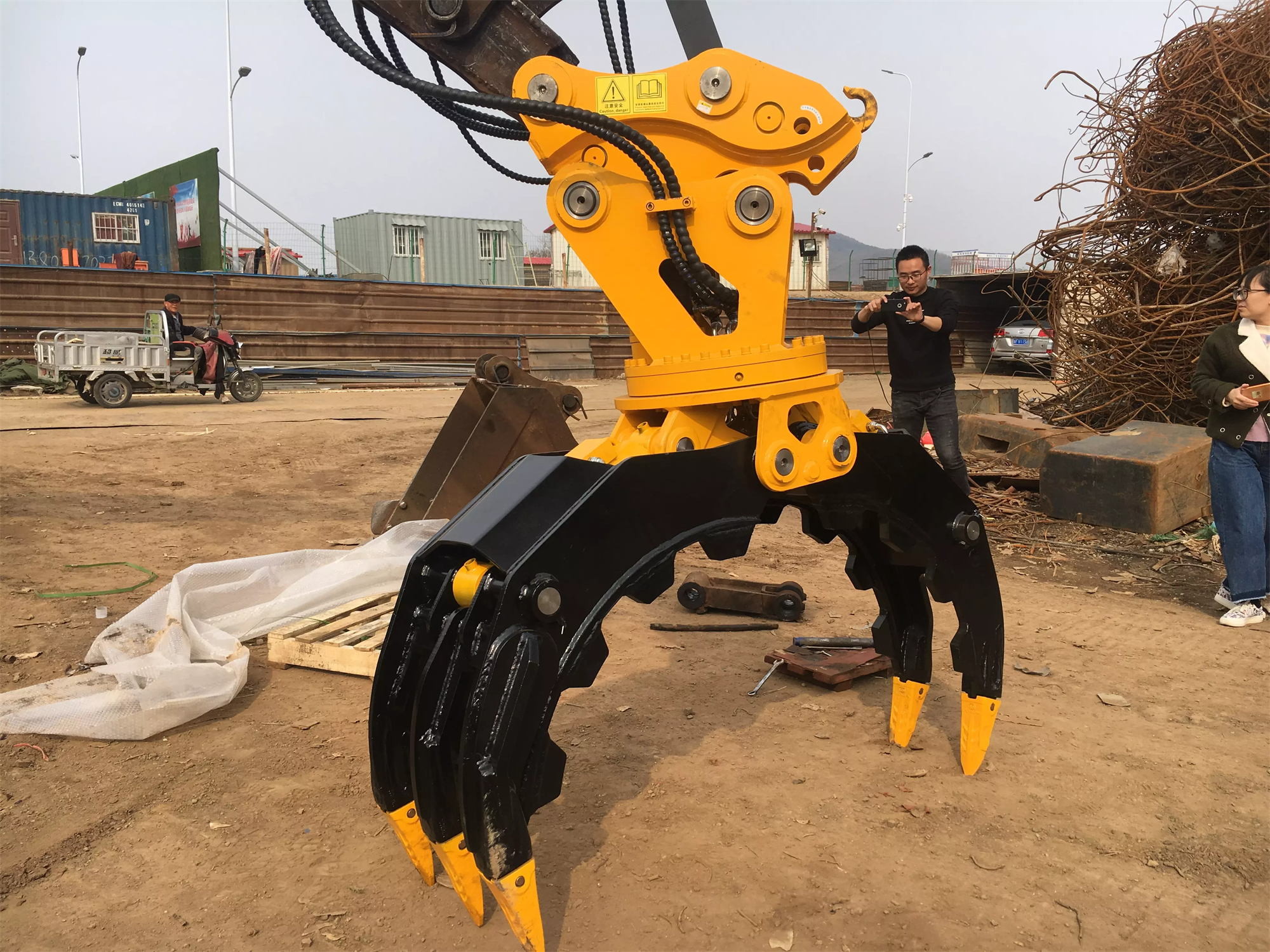

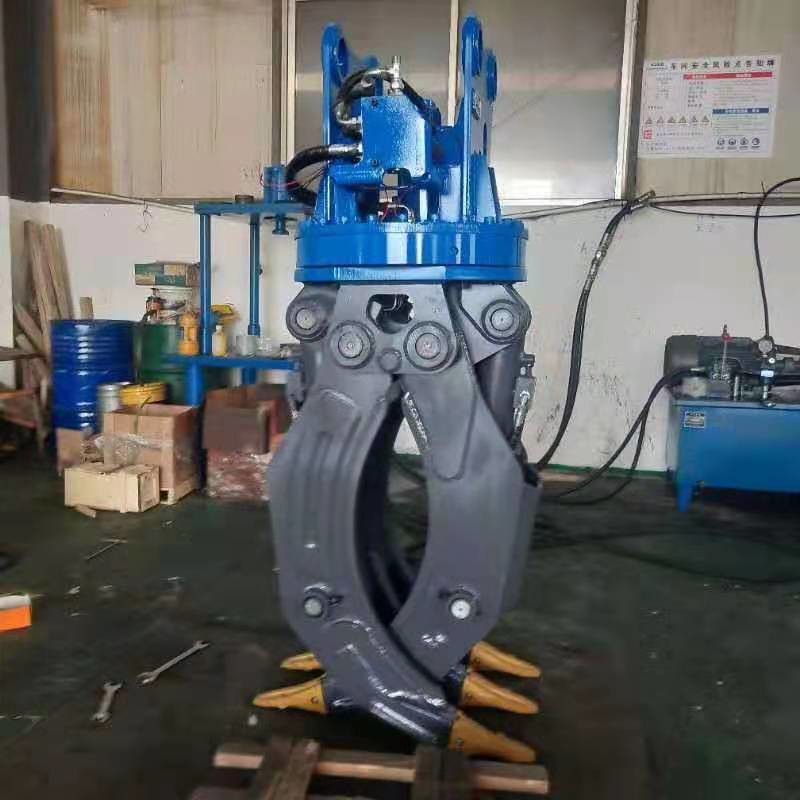

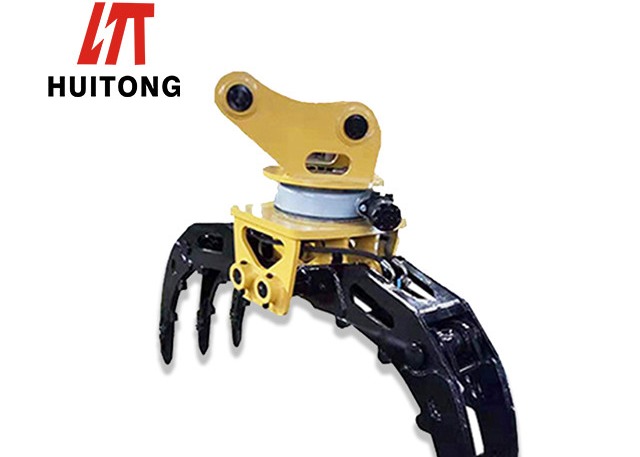

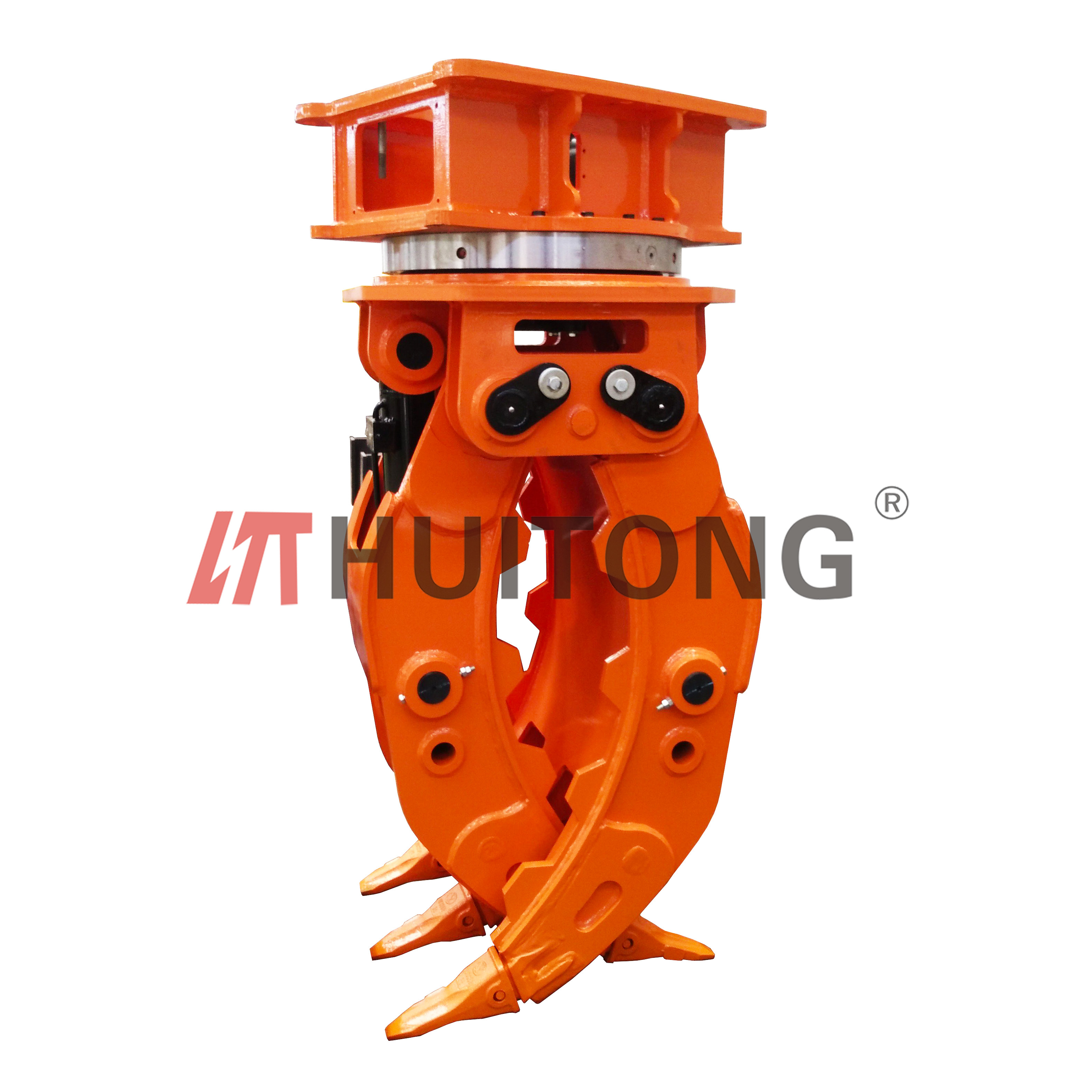

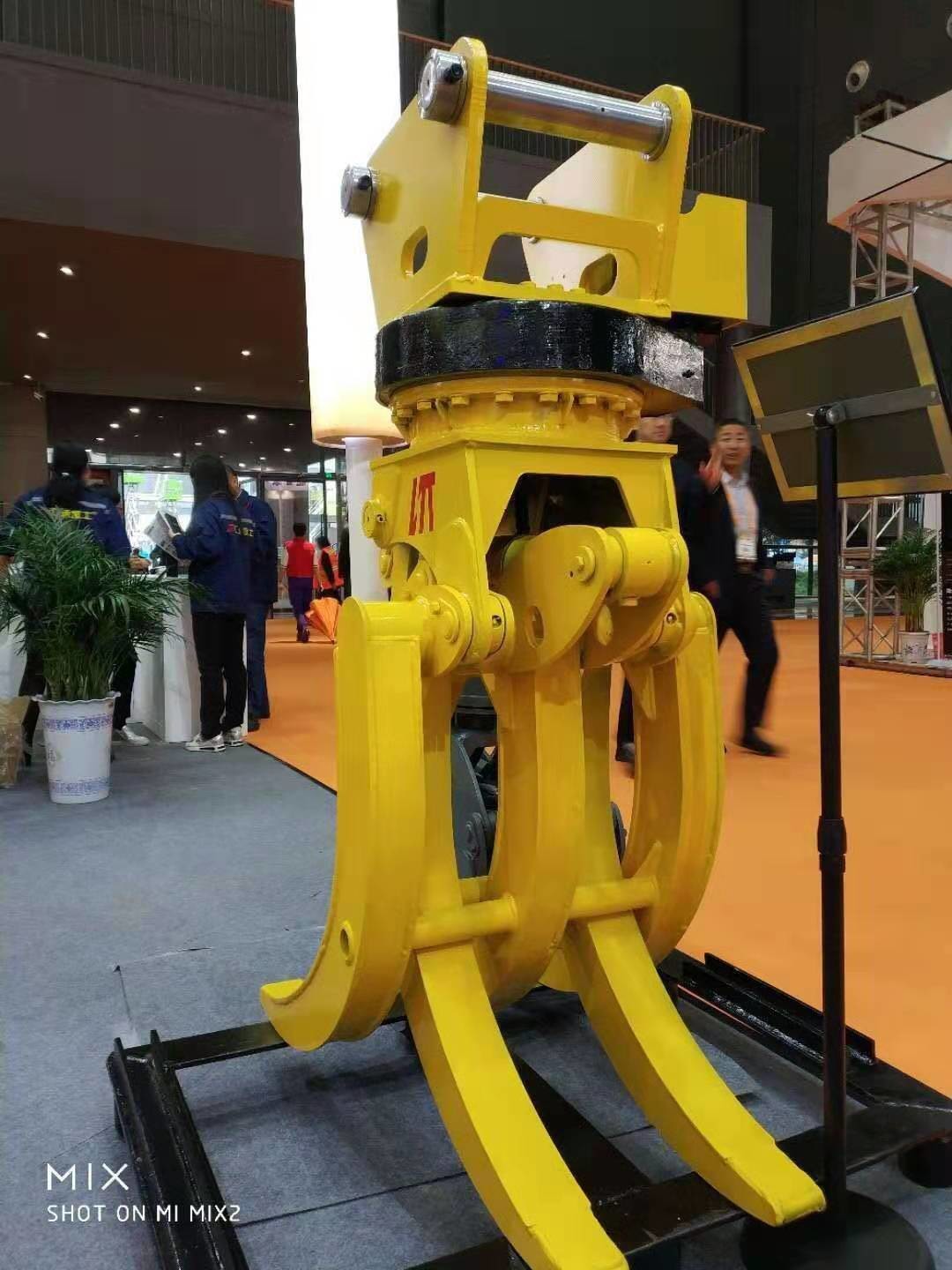

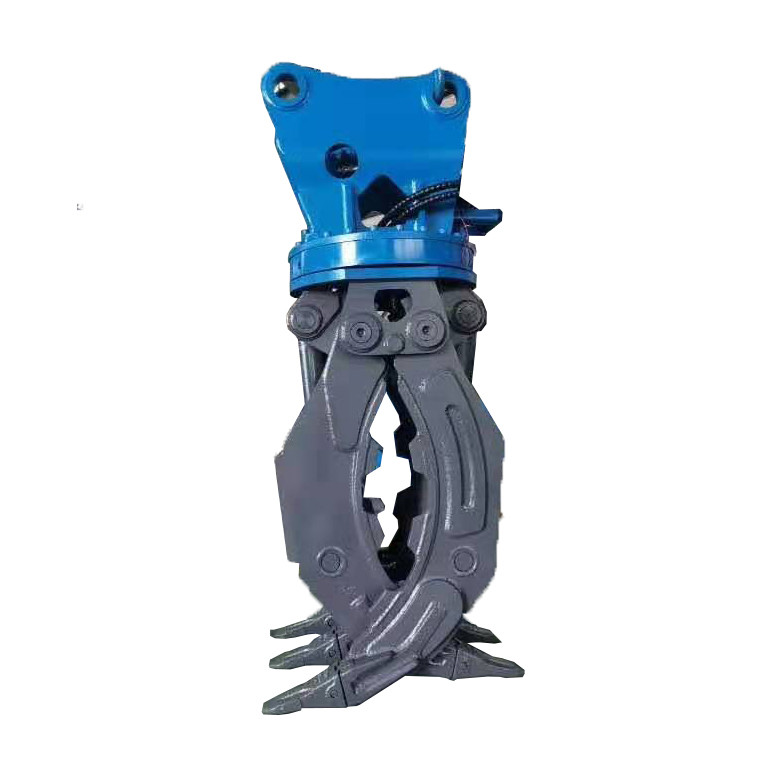

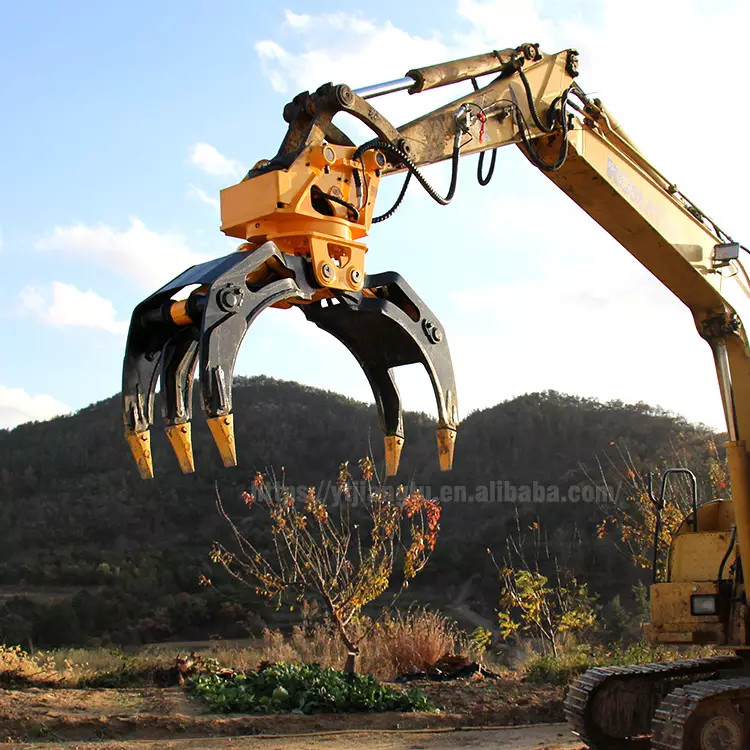

Mini Excavator Wood Grapple For Kato HD250 HD400

Mini Excavator Wood Grapple For Kato HD250 HD400
Mini Excavator Wood Grapple For Kato HD250 HD400
video play

Large Image :  Mini Excavator Wood Grapple For Kato HD250 HD400

Product Details:
Place of Origin: Guangzhou,China
Brand Name: Huitong
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pcs
Price: $980-2000/pcs
Packaging Details: standard package
Delivery Time: 8-16 workdays
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 pcs per mounth
Detailed Product Description
Color: Yellow Or Customized Warranty: 1 Year
Material: Q355b And Q690D AppliPCion: Grabing Wood, Waste, Tubes. Etc.
Oem: Avaliable Condition: 100%new
CertifiPCion: ISO9001 Suitable: Kato Excavator
High Light:

Mini Excavator Wood Grapple

,

HD250 Excavator Wood Grapple

,

HD400 Excavator Wood Grapple

Excavator Rotatory Grapple Mini Wood Grapple For Kato Excavator HD250 HD400
Production Description

Huitong Excavator Hydraulic Rotatory Grapple :

According to the function of Mingde grapple, it can be divided into sugarcane, round wood, stone grapple, and so on; according to
working priciple, it has hydraulic grapple and mechanical grapple; according to the teech, it has two teech, five teech and seven
teeth. It is widely used for handing, loading and unloading materials, such as sugarcane, wood, stone, steel slag, grabbing
garbage, scrap metal and other special operations.

Motor:
1) Motor drive adopts the design of symmetrical double support,strong shcok resistance, avoiding axle breakage and oil leakage.
2) Pedestal adopts sealed type design, better protect the rotary drive.
3) Output Torque:4 kN.m-8.5kN.m(6272lbf.ft)
Holding Torque 38kN.m-105kN.m(78000lbf.ft)
Moment Torque 26kN.m-203kN.m(150,000lbf.ft)
Production Details

Model
Unit
HT 03
HT 04
HT 06
HT 08
HT 10
HT 14
HT 20
Weight
Kg
240
390
740
1380
1700
1900
2100
Jaw opening
mm
1300
1400
1800
2300



2500
2500
2700
Working pressure
Kg/cm²
110-140
120-160
150-170
160-180
160-180
180-200
180-200
Setting pressure
Kg/cm²
170
180
190
200
210
250
250
Oil flow
l/m
30-55
50-100
90-110
100-140
130-170
200-250
250-320
Cylinder
ton
4.0 x 2
4.5 x 2
8.0 x 2
9.7 x 2
12 x 2
12 x 2
14 x 2
Carrier
ton
4 - 6
7 - 11
12-16
17-23
24-30
31 -40
41-50

Mini Excavator Wood Grapple For Kato HD250 HD400Mini Excavator Wood Grapple For Kato HD250 HD400Mini Excavator Wood Grapple For Kato HD250 HD400Mini Excavator Wood Grapple For Kato HD250 HD400
