900-1200 mm Width Excavator Tilting Bucket For Excavator JCB60 JCB80
Production Descrption
Huitong Excavator Tilt Buckets are designed for ditch cleaning and sloping grading.With 2 x 45 ° swivel angle and round vessel shape - ideal for Excavation, material installation and grave Broaching.Selectively pivoting device with 2 or 1 hydraulic cylinder or with hydraulic rotary motor. With lateral water drainage holes. Double cutting edges: reducing the wear to the bottom of the bucket.
Huitong Excavator Tilt Bucket, Cutting edge and side cutters are 400 HB steel. Robust, wear-resistant blades and side cutters. Good Plane properties by smooth, stable base of 400 HB steel. Compact bucket shape for narrow trenches and for excavation along walls and houses.All bucket profile in rigid version available.
Features:
A: Double cutting edges:
These reduce the wear to the base of your bucket and help strengthen it against damage and caving in.
B: High quality cylinder and hydraulic lock:
Increasing the safty and prevent oil reveal.
C: Reasonable plate design:
increasing the longevity of the bucket
| Model | HT 10 | HT 30 | HT 60 | HT 80 | HT 120 | HT 200 | HT 300 | HT 400 | HT500 | |
| Weight | Kg | 110 | 160 | 340 | 396 | 720 | 1320 | 1730 | 1850 | 2280 |
| Width | mm | 900 | 1000 | 1200 | 1200 | 1500 | 1800 | 2000 | 2000 | 2000 |
| Operating Pressure | Bar | 80-110 | 100-120 | 110-140 | 120-160 | 150-170 | 160-180 | 160-180 | 180-200 | 180-200 |
| Set Up Pressure | Kg/m² | 120 | 150 | 170 | 180 | 190 | 200 | 210 | 250 | 250 |
| Operating Flux | L/Min | 20-35 | 25-40 | 30-55 | 50-100 | 90-110 | 100-140 | 130-170 | 200-250 | 250-320 |
| Suitable excavator | Ton | 1-2 | 3 | 4-6 | 7-11 | 12-16 | 17-23 | 24-30 | 31-40 | 41-50 |

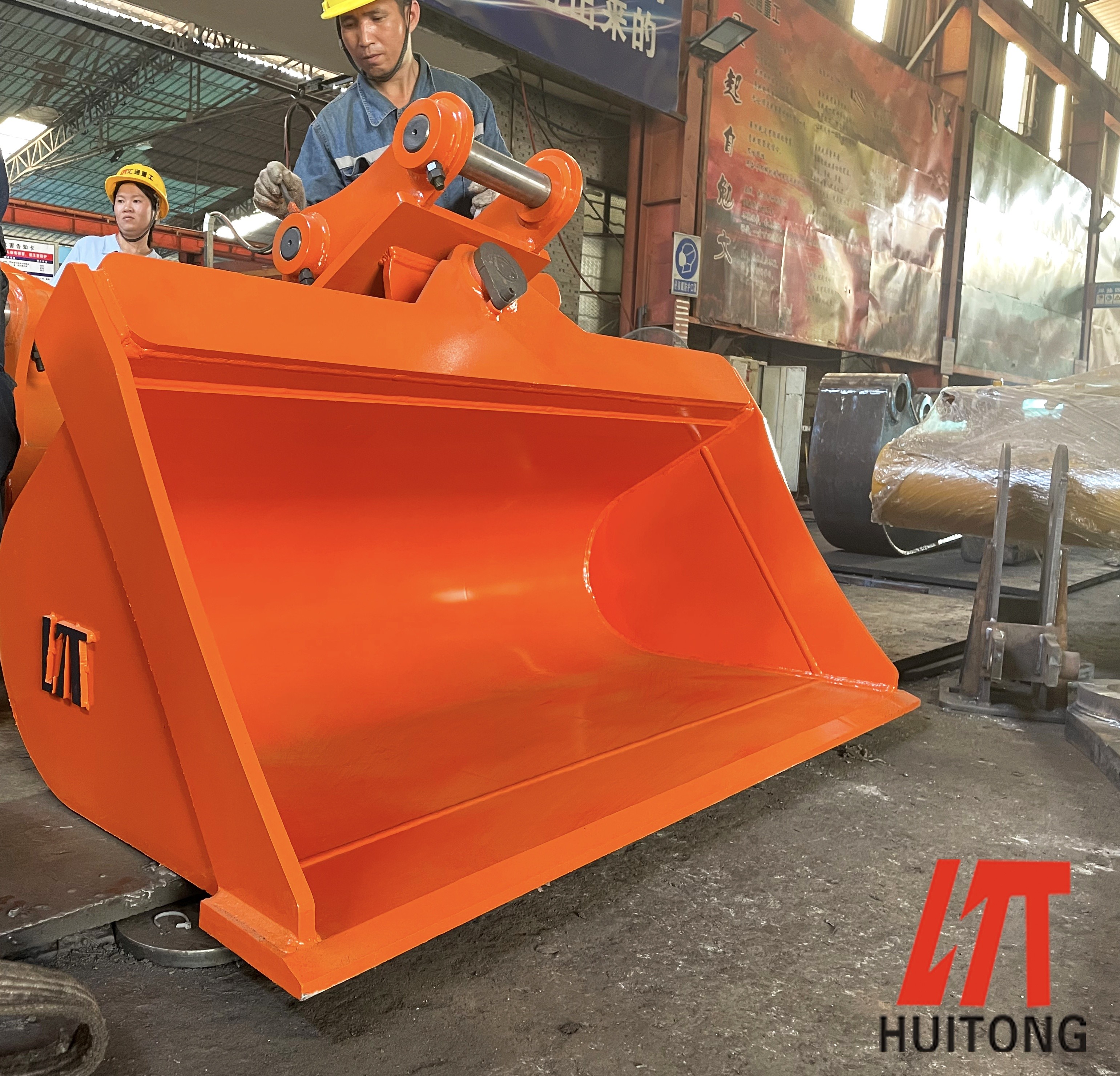

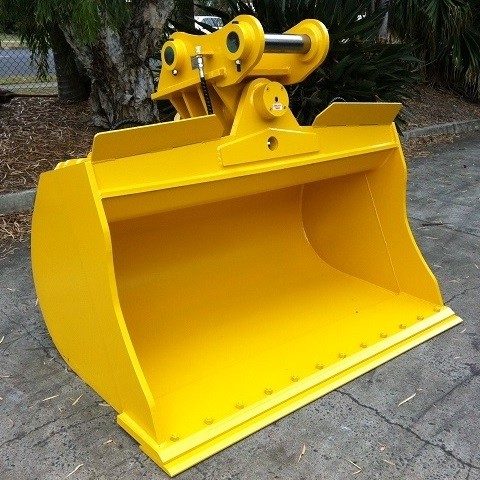

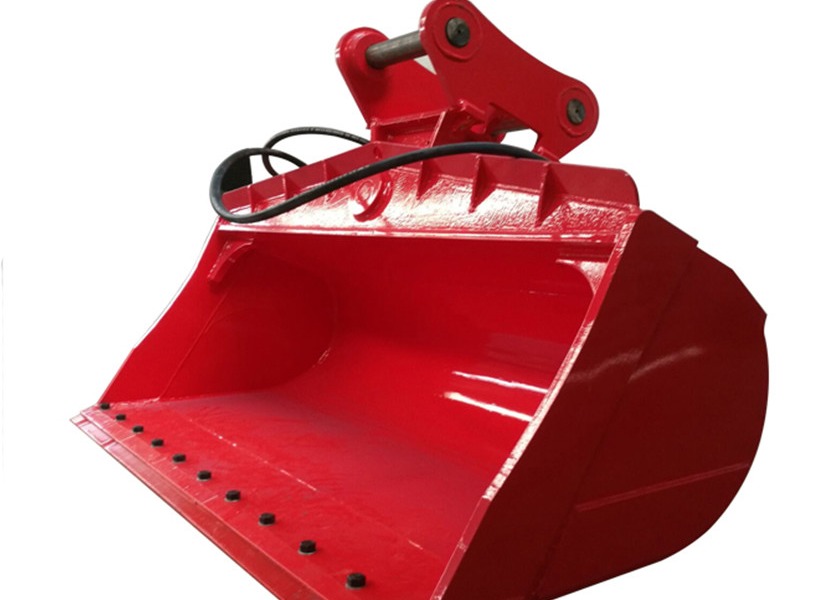

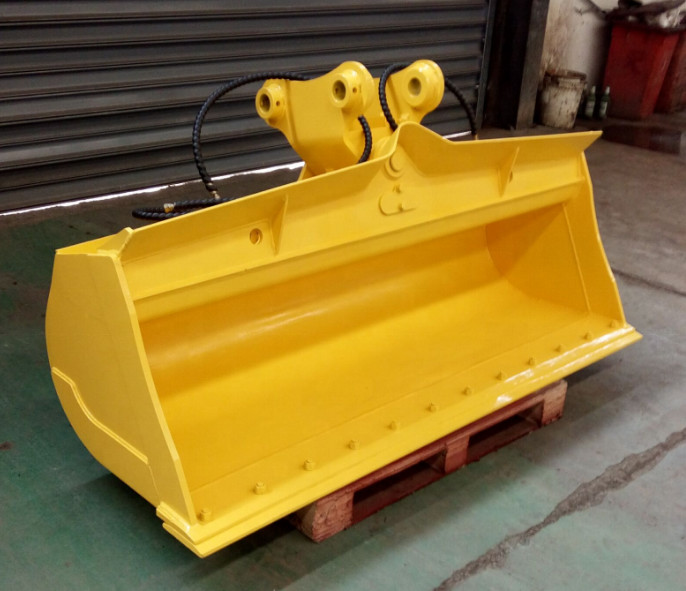

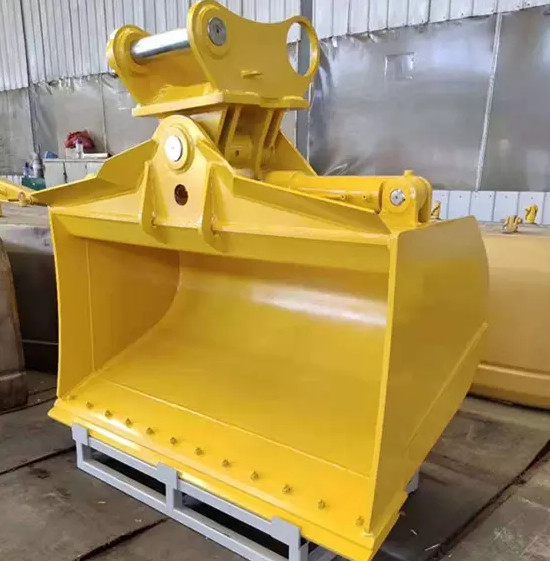

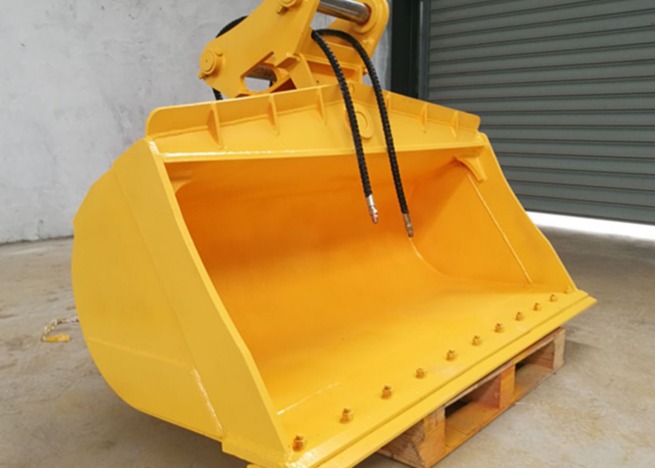

Production Details
