1) Better protect the Hydraulic system and extend service life.
2) Providing more power to the motion of arm and boom
3) Excellent anti-corrosion and anti-rust ability

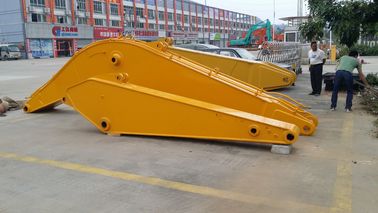

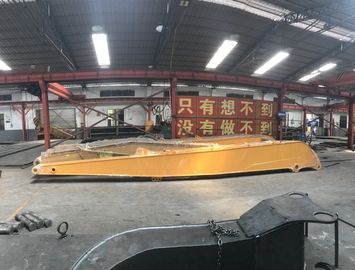

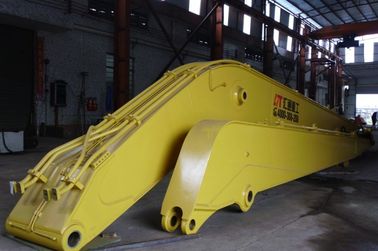

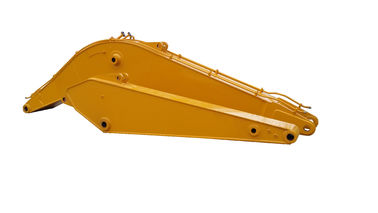

1. Applicable for all the make and model of excavator.
2. Standard supply include:boom and arm,oil pipe/hose,lubriPCing system.
3. Many different material such as Q345B,Q690D, HD785 are optional to suit to your application.
4. Big boom can be two jointed pcs to make it fittable into container to save shipping cost.
5. All the seam are 45 degree tapered before welding.
6. Six month warranty
7. Some parts can be consolidated using thicker plate or overlapping another plate for heavy-duty appliPCion.
8. Boom cylinder,bucket cylinder , arm cylinder ,bucket and link assembly can also be supplied if customer want.
9. Extra pipeline can be added to suit to some extra appliPCion.
Phosphating tube:
1) Better protect the Hydraulic system and extend service life.
2) Providing more power to the motion of arm and boom
3) Excellent anti-corrosion and anti-rust ability
Copper Sets:
1) Copper Sets are 6X durable than steel sets. Extend service life.
2) Better protect the Boom.
Great Welding:
1) All welding are done by experienced worker with, at least, four years of excavator attachment welding experience.
| Standard Boom and Arm | ||||||
| Machine Tonnage | Total Length of Boom and Arm(mm) | Bucket Capacity(m³) | Weight(kg) | Max.Digging Height(mm) | Max.Digging Depth(mm) | Overall Height(mm) |
| 6T | 5935 | 0.2 | 5300 | 5850 | 3800 | 2550 |
| 12T | 7720 | 0.5 | 12000 | 8610 | 5520 | 2175 |
| 20T | 9425 | 0.8 | 19900 | 10000 | 6620 | 3040 |
| 30T | 11100 | 1.4 | 31200 | 10210 | 7380 | 3280 |
| 35T | 11140 | 1.6 | 33000 | 10210 | 7380 | 3280 |
| 40T | 11940 | 2.0 | 42100 | 10925 | 7790 | 3400 |
| 45T | 12040 | 2.1 | 45125 | 10925 | 7790 | 3400 |
