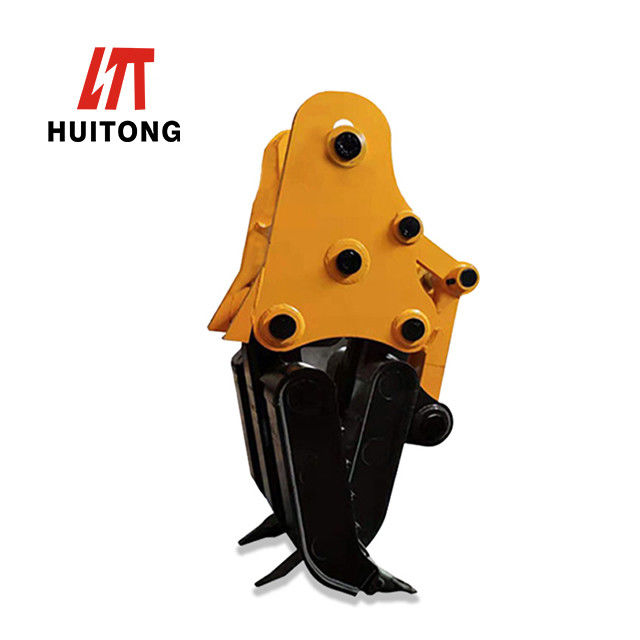

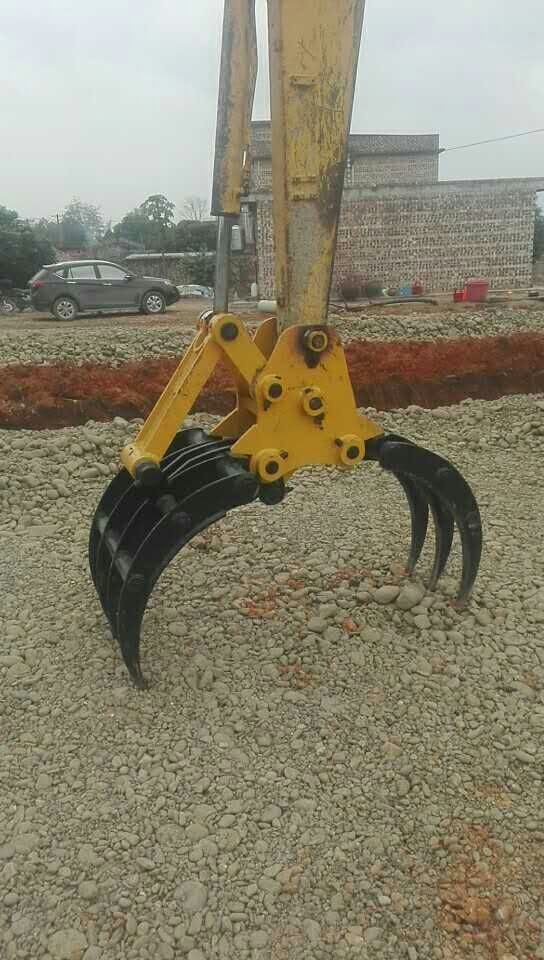

Wood and other large scraps handling, moving, laoding and orgnizing. Light duty job like waste handling cleaning and orgnizing.
1. Light weight with wide opening jaws show outstanding performance of grabbing as well as maximizing operating efficiency.
2. Throttle, pressure reducing valve, relief valve(all the valves are USA SUN brand) are in electical and hydraulic control system, making it safer and much more stable and durable in use.
3. custom service is available.
1. Material:
1) Entire jaw structure is manufactured of quenched and tempered Q690 High Strength alloy steel, 130,000-psi min. yield 360-440BHN.
2) The tine tips are 175,000-psi min. yield 450-550 BHN. Chromium plating.
2.Motor:
1) Motor drive adopts the design of symmetrical double support,strong shcok resistance, avoiding axle breakage and oil leakage.
2) Pedestal adopts sealed type design, better protect the rotary drive.
3) Output Torque:4 kN.m-8.5kN.m(6272lbf.ft)
Holding Torque 38kN.m-105kN.m(78000lbf.ft)
Moment Torque 26kN.m-203kN.m(150,000lbf.ft)
3. Strengths:
1) Sealed type rotary drive solve the oil leakage problem, only required light greasing(80g of grease) once 6 months(unlike most
of the product on the market needed greasing everyday) and better protect the product.
2) Motor drive adopted symetrical double support design, reducing the bearing load and extend service life.
3) The jaw structure is manufactured of Q690 High Strength Alloy Steel, lighter weight with twice of the strength comparing with
Q345(normally used on the market)
1. Before signing an official contract with our customers, we will help to analyze and provide professional solutions, recommdations based on the project information provided by customers.
2. An experienced tech-team are ready to meet your special requirements.
3. Your inquire related to our products or price will be replied in 24 hrs
4. Keeping our customers update about the orders' production process and arrange quality checking in the workshop is available if you want.
5. Online techinical supports are available for the whole product life. Oversea services are available with extra fees.
1.Packing:standard export wooden pallet or export wooden cases
2.Delivery time:10-15 working days after receiving your advance payment
3.We have a team specialized into packing and loading container,they have rich experience,and we can load the max.quantity excavator buckets and parts,to help customer save ocean freight.
| Grapple | ||||
| Machine Tonnage | Description | Max.Opening ranging(in) | Weight(lbs) | Material |
| 6-10T | Rotating/non-rotating | 57.1 | 1430/1562 | Q345B+NM360 |
| 11-16T | Rotating/non-rotating | 66.9 | 1760/1914 | Q345B+NM361 |
| 17-20T | Rotating/non-rotating | 74.8 | 2134/2310 | Q345B+NM362 |
| 21-24T | Rotating/non-rotating | 80.7 | 2354/2530 | Q345B+NM363 |
| 25-30T | Rotating/non-rotating | 86.6 | 2640/2860 | Q345B+NM364 |
| 31-35T | Rotating/non-rotating | 90.6 | 3080/3344 | Q345B+NM365 |
| 36-40T | Rotating/non-rotating | 94.5 | 3630/3938 | Q345B+NM366 |
| 41-45T | Rotating/non-rotating | 98.4 | 4268/4620 | Q345B+NM367 |
| 65T | Rotating/non-rotating | 98.4 | 8140/9240 | Q345B+NM368 |
| Material | Code | Related Chemical Composition | Hardness(HB) | Extension(%) | Drag and extension intensity (N/mm2) | Bend Intensity (N/mm2) | ||||
| C | Si | Mn | P | S | ||||||
| Alloy | Q355B | 0.18 | 0.55 | 1.4 | 0.03 | 0.03 | 163-187 | 21 | 470-660 | 355 |
| Chinese High-Strength alloy | NM360 | 0.2 | 0.3 | 1.3 | 0.02 | 0.006 | 360 | 16 | 1200 | 1020 |
| High-Strength alloy | HARDOX-500 | 0.2 | 0.7 | 1.7 | 0.025 | 0.01 | 470-500 | 8 | 1550 | 1300 |
1. ARE YOU A FACTORY OR TRADING COMPANY?
We are a factory based in Guangzhou, China. And we've gained the export certifiPCion. Feel free to let our sales know ahead, if you planed for paying a visit to our factory.
2. DO YOU ACCPET OEM? WHAT'S YOUR MOQ? ANY EXPERIENCE FOR OEM?
We accept OEM for every product that we produce; There is no MOQ for any of our product if you wanted a OEM; We've been doing OEM ever since the year we established our factory, which is 2010
3. IS YOUR DELIVERY ALWAYS ON TIME?
We can't promise about the freight but what we can do is shortening our lead time while keep the same quality level. So there will not be any problem even if the sea freight delay for a couple days.
4. WHY DON'T YOU HAVE A CE CERTIFIPCIONS?
Ce certifiPCion is for one product, not the whole factory, and we have way too many product lines to registered CE for, but our customers from Europe said it's easy to solve the CE problem. And we are working on the CE certifiPCions registration process, in order to save our customers' time in the furture.
5. HOW AM I START ORDERING?
Of course, unlike others who might hide their production process, our production process are totally open for our customers. Feel free to inform our sales about your needs.
