High Power Mechanical Grapple Non Rotatable Simple Structure Low Failure Rate

1 Set
MOQ
Negotiable
Price
High Power Mechanical Grapple Non Rotatable Simple Structure Low Failure Rate
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 6 Month
After-sales Service Provided: Video Technical Support, Online Support Through Whole Product Life
Suitable Excavator(ton): 7-70
AppliPCion: Grab Wood
Material: Q345B+NM400
Port: Guangzhou/Huangpu/Nansha
Highlight:

excavator hydraulic grapple

,

mechanical grab

Basic Infomation
Brand Name: Huitong
Model Number: Mechanical Grapple
Payment & Shipping Terms
Packaging Details: Standard Package
Delivery Time: 5-8days
Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 Set per Month
Product Description

Excavator non-rotatable High Power Grapple



Product Description

Grapple is a lifting appliance which depends on jaw opening and closing crawl and unloading bulk material.



Excavator wood grapple has two jaws, left and right sides, two to five claws or even more, by working on both sides of the opening and closing to grab material, shaped like two forks, as named " Fork excavator gripper."



Huitong mechanical/manual grapple have regular type and stronger type, no matter what kind of your working condition, they will meet your needs !

Product Features

1. Long work time:

a. using special steel material with high ductility and high abrasion resistance

b. the simpler structure,the lower failure rate



2. Excellent performance:

a. the widest open width in the same level,

b. the most excellent performance but the lightest weight



3. Easy operation :

easy to be installed,drived by the excavator hydraulic systerm



4. most economic choice:

much cheaper than the hydraulic log grapple in the same level



5. OEM service:

a.both rotating type and stationary type can be supplied

b.Free design depends on your requirements to suitable for different work conditions



6. Versatile appliPCions: handling of stones, pipes, logs,timbers,woods,waste metal,renewable



Product Advantages

1. Material:
1) Entire jaw structure is manufactured of quenched and tempered Q690 High Strength alloy steel, 130,000-psi min. yield 360-440BHN.
2) The tine tips are 175,000-psi min. yield 450-550 BHN. Chromium plating.

2.Motor:
1) Motor drive adopts the design of symmetrical double support,strong shcok resistance, avoiding axle breakage and oil leakage.
2) Pedestal adopts sealed type design, better protect the rotary drive.
3) Output Torque:4 kN.m-8.5kN.m(6272lbf.ft)
Holding Torque 38kN.m-105kN.m(78000lbf.ft)
Moment Torque 26kN.m-203kN.m(150,000lbf.ft)



3. Strengths:
1) Sealed type rotary drive solve the oil leakage problem, only required light greasing(80g of grease) once 6 months(unlike most
of the product on the market needed greasing everyday) and better protect the product.
2) Motor drive adopted symetrical double support design, reducing the bearing load and extend service life.
3) The jaw structure is manufactured of Q690 High Strength Alloy Steel, lighter weight with twice of the strength comparing with
Q345(normally used on the market)



Customer Service

1. Before signing an official contract with our customers, we will help to analyze and provide professional solutions, recommdations based on the project information provided by customers.



2. An experienced tech-team are ready to meet your special requirements.



3. Your inquire related to our products or price will be replied in 24 hrs



4. Keeping our customers update about the orders' production process and arrange quality checking in the workshop is available if you want.



5. Online techinical supports are available for the whole product life. Oversea services are available with extra fees.



Shipping

1.Packing:standard export wooden pallet or export wooden cases



2.Delivery time:10-15 working days after receiving your advance payment



3.We have a team specialized into packing and loading container,they have rich experience,and we can load the max.quantity excavator buckets and parts,to help customer save ocean freight.



SpecifiPCions

Grapple
Machine Tonnage Description Max.Opening ranging(in) Weight(lbs) Material
6-10T Rotating/non-rotating 57.1 1430/1562 Q345B+NM360
11-16T Rotating/non-rotating 66.9 1760/1914 Q345B+NM361
17-20T Rotating/non-rotating 74.8 2134/2310 Q345B+NM362
21-24T Rotating/non-rotating 80.7 2354/2530 Q345B+NM363
25-30T Rotating/non-rotating 86.6 2640/2860 Q345B+NM364
31-35T Rotating/non-rotating 90.6 3080/3344 Q345B+NM365
36-40T Rotating/non-rotating 94.5 3630/3938 Q345B+NM366
41-45T Rotating/non-rotating 98.4 4268/4620 Q345B+NM367
65T Rotating/non-rotating 98.4 8140/9240 Q345B+NM368

Material Code Related Chemical Composition Hardness(HB) Extension(%) Drag and extension intensity (N/mm2) Bend Intensity (N/mm2)
    C Si Mn P S
Alloy Q355B 0.18 0.55 1.4 0.03 0.03 163-187 21 470-660 355
Chinese High-Strength alloy NM360 0.2 0.3 1.3 0.02 0.006 360 16 1200 1020
High-Strength alloy HARDOX-500 0.2 0.7 1.7 0.025 0.01 470-500 8 1550 1300





Detail Images

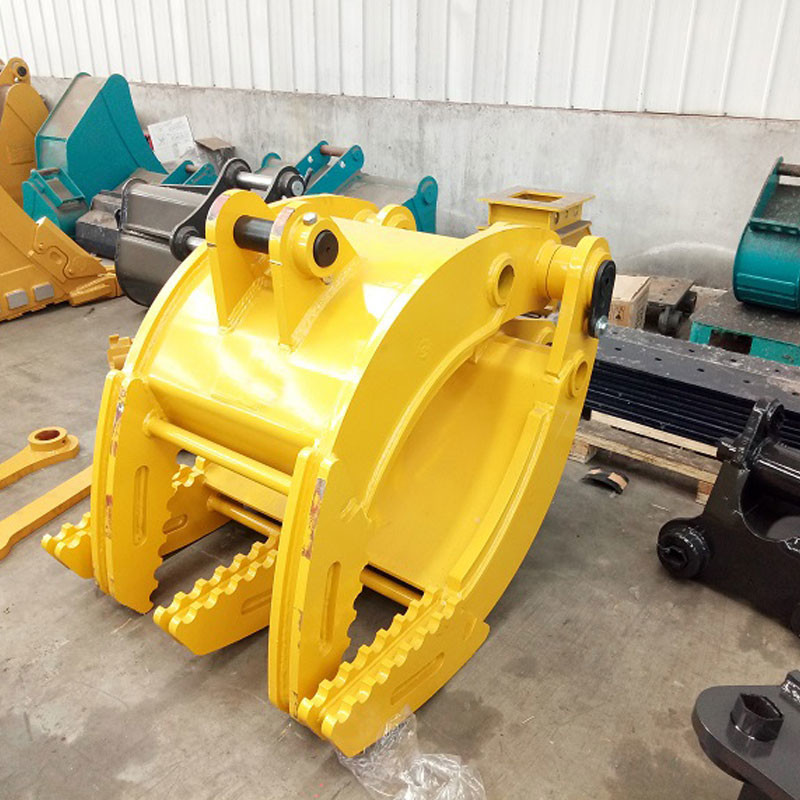

High Power Mechanical Grapple Non Rotatable Simple Structure Low Failure Rate 0

A. excellent struvture



B.perfect welding



C.tough sawtooth



D.wear-resistant plate



E.the gap is less than 15mm in hte closed state



F.reinfoced plate







FQA



1. ARE YOU A FACTORY OR TRADING COMPANY?

We are a factory based in Guangzhou, China. And we've gained the export certifiPCion. Feel free to let our sales know ahead, if you planed for paying a visit to our factory.



2. DO YOU ACCPET OEM? WHAT'S YOUR MOQ? ANY EXPERIENCE FOR OEM?

We accept OEM for every product that we produce; There is no MOQ for any of our product if you wanted a OEM; We've been doing OEM ever since the year we established our factory, which is 2010



3. IS YOUR DELIVERY ALWAYS ON TIME?

We can't promise about the freight but what we can do is shortening our lead time while keep the same quality level. So there will not be any problem even if the sea freight delay for a couple days.



4. WHY DON'T YOU HAVE A CE CERTIFIPCIONS?

Ce certifiPCion is for one product, not the whole factory, and we have way too many product lines to registered CE for, but our customers from Europe said it's easy to solve the CE problem. And we are working on the CE certifiPCions registration process, in order to save our customers' time in the furture.



5. HOW AM I START ORDERING?

First, talk to our sales about your machine medel, working conditions, special needs, deadlines. Then, our sales will provide the details you need. All inquiry will be responed within 24 Hours.

6. CAN YOU KEEP ME UPDATE ABOUT MY ORDERS' PRODUCTION PROCESS?

Of course, unlike others who might hide their production process, our production process are totally open for our customers. Feel free to inform our sales about your needs.
