Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | After-sales Service Provided: | Video Technical Support, Online Support Through Whole Product Life， Replacement |
|---|---|---|---|
| Service: | Online Technical Support, Oversea Installation Support Are Available. | Application: | Piling Construction Work |
| Material: | Alloy Steel | Port: | Guangzhou/Huangpu/Nansha |
| High Light: | hydraulic vibratory hammer,excavator vibro hammer |
||

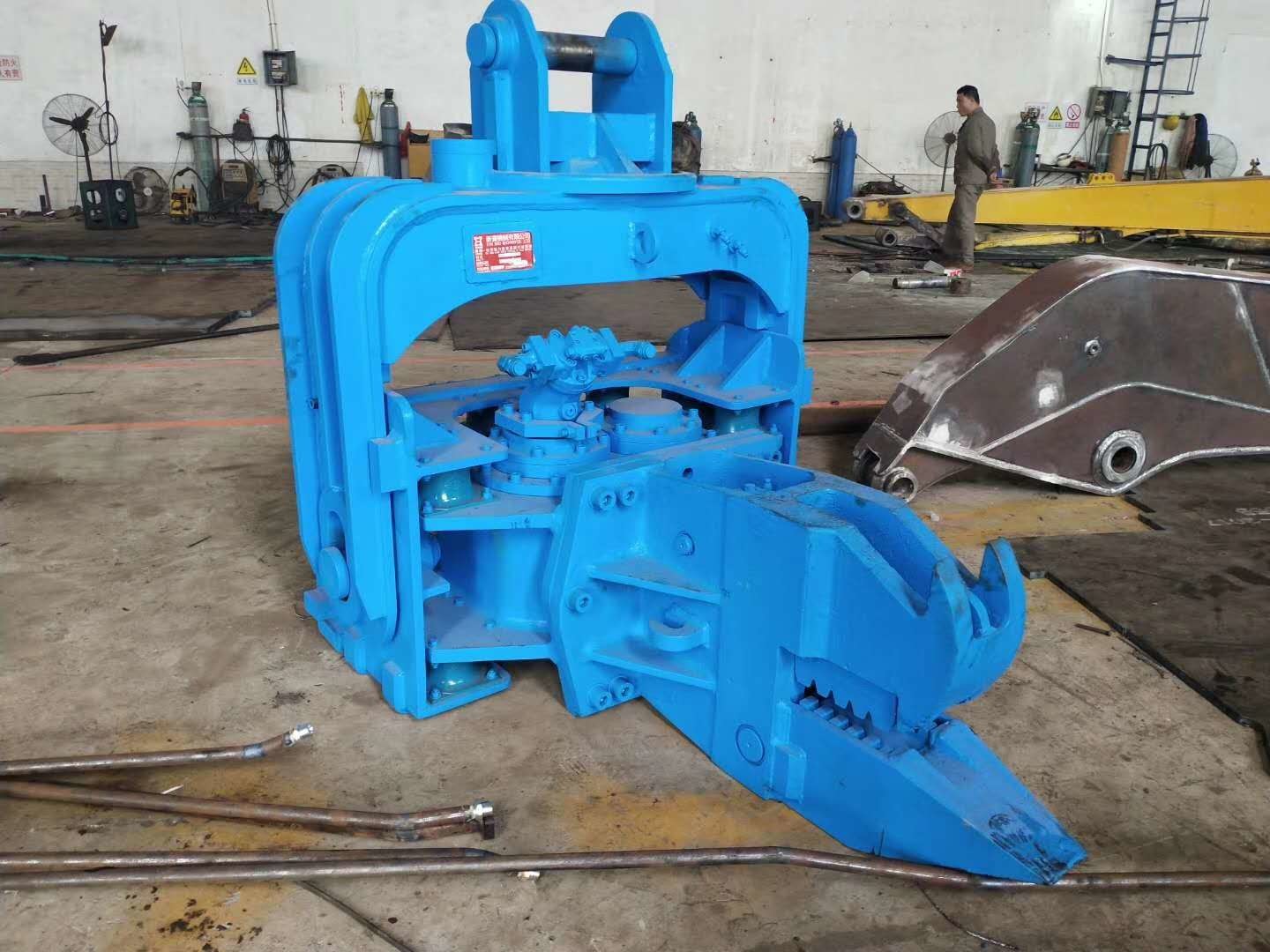

1. Applied to driving and pulling steel plate, cement pile, steel rail, round pipe, steel H-pile, Lasson pile
2. fast conversion between driving and pulling work
3. less tension when pulling piles
4. no damage to the bottom or top of steel plate and steel rail pile
5. No damage to the buildings even working frequently nearby
6. Silent work and short construction period, overcome environmental problems
1. Before signing an official contract with our customers, we will help to analyze and provide professional solutions, recommdations based on the project information provided by customers.
2. An experienced tech-team are ready to meet your special requirements.
3. Your inquire related to our products or price will be replied in 24 hrs
4. Keeping our customers update about the orders' production process and arrange quality checking in the workshop is available if you want.
5. Online techinical supports are available for the whole product life. Oversea services are available with extra fees.
6. 12 Month warranty for pile hammer, beyond the warranty period, all spare parts are available for you in our cost price.
1. We pack the products by simple pallet or case which is seaworthy.
2. Fast delivery time: 7-10 days for small quantity, and 20-30 days for container quantity.
3. We have a team specialized in packing and loading container, they have rich experience, and can load the max quantity products, which can help customer save the ocean freight.
| Factor | Product and Technical Parameters | ||||||
| V-250D | V-300E | V-330E | V-350E | V-400D | V-450E | V-500A | |
| Revolutions per min (Rpm) | 2800 | 3000 | 3000 | 3000 | 2600 | 2600 | 2600 |
| Exciting Force (T) | 39.5 | 48 | 51 | 53.4 | 55.5 | 58 | 63 |
| Hydraulic system working pressure (Bar) | 300 | 300 | 300 | 300 | 300 | 300 | 300 |
| Hydraulic system minium flow requirements (Lpm) | 175 | 240 | 270 | 270 | 280 | 300 | 320 |
| Main machine weight (T) | 1.55 | 1.65 | 1.65 | 1.8 | 2 | 2.05 | 2.1 |
| Suitable for excavator weight (T) | 20-24 | 24-30 | 30-35 | 38-42 | 35-40 | 40-45 | 48Above |
| Clip mouth weight (Kg) | C15: 455kg; C15E:530kg; C18E:578kg; C30B:455kg; C35B:530kg | ||||||
| Secondary arm weight (Kg) | A200:500kg; A250:600kg; A350:900kg | ||||||
| Host Model Number | External Dimensions of Main Engine (Take C16E as Exampel) |
||
| A | B | C | |
| V-250D | 2279 | 1245 | 737 |
| V-300E | 2279 | 1245 | 737 |
| V-330E | 2359 | 1255 | 880 |
| V-350E | 2359 | 1255 | 880 |
| V-400D | 2369 | 1460 | 980 |
| V-450B | 2369 | 1460 | 980 |
| V-500A | 2369 | 1460 | 980 |
1. ARE YOU A FACTORY OR TRADING COMPANY?
We are factory based in Guangzhou, China. And we've gained the export certification. Feel free to let our sales know ahead, if you planed for paying a visit to our factory.
2. DO YOU ACCPET OEM? WHAT'S YOUR MOQ? ANY EXPERIENCE FOR OEM?
We accept OEM for every product that we produce; There is no MOQ for any of our product if you wanted a OEM; We've been doing OEM ever since the year we established our factory, which is 2010
3. IS YOUR DELIVERY ALWAYS ON TIME?
We can't promise about the freight but what we can do is shortening our lead time while keep the same quality level. So there will not be any problem even if the sea freight delay for a couple days.
4. WHY DON'T YOU HAVE A CE CERTIFICATIONS?
Ce certification is for one product, not the whole factory, and we have way too many product lines to registered CE for, but our customers from Europe said it's easy to solve the CE problem. And we are working on the CE certifications registration process, in order to save our customers' time in the furture.
5. HOW AM I START ORDERING?
Contact Person: Tang
Tel: 86-18922117251
