|Part Name:||Vibratory Hammer/Hydraulic Vibratory Hammer/Piling Hammer||Service:||Online Technical Support, Oversea Installation Support Are Available.|
|Application:||Piling Construction Work||Material:||Alloy Steel|
2800Rpm Excavator Mounted Pile Hammer,
Construction Work Vibratory Pile Hammer

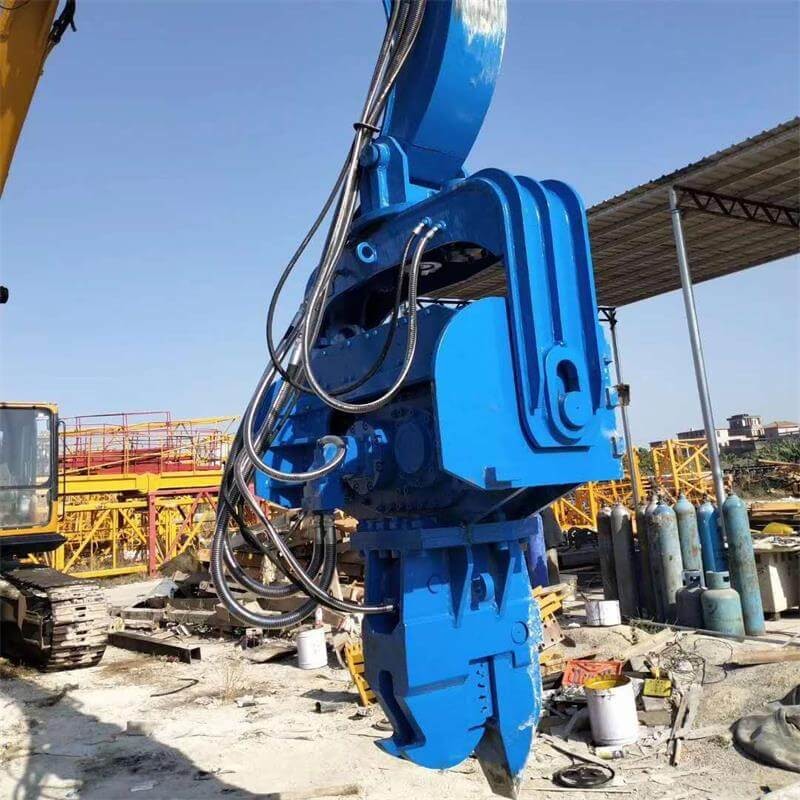

Excavator Mounted Vibratory Pile Hammer High Power For Piling Construction Work
Huitong Hydraulic pile driver is using its high frequency vibration to vibrate pile body with high acceleration to pass the vertical vibration of mechanical produce to pile which leading to changes in the soil structure around the pile, strength decrease. Soil around the piles become liquefaction to reduce frictional resistance between side of the pile and the soil. Then using the excavator down force, vibrating pile hammer and pile body weight to sink pile into the soil. When extracting piles, in the condition of vibration to pull out the pile by using excavator lift force. Excitation force needed by pile driving machinery are comprehensive determined by site soil, soil condition, moisture content and type of pile, construction.
1.Hydraulic motor driven turntable
The latest inner gear design, effectively avoid the dirt and collision, gear is changeable, stable and durable, very reliable!
Ensure the gear box pressure balance,stable heat removal.
3.Adopts highly efficient imported damping rubber block.
Stable quality, long service life!
4.Adopts original imported hydraulic motor.
Double efficiency, superior quality!
5.Powerful hydraulic cylinder,Super durable tooth piece.
Strong and never loose clip mouth is the first condition of safety construction.
We specially add the double pressure protection device, firmly lock the system pressure and then ensure the stability and reliability of the clamping plate pile.
6.Precision oil system
Special designed according to driver functions and features and effectively increase the use of the pile driver efficiency.
7.Well designed circuit control box
Adopts safety and reliable spaceflight joint, sufficient protects the stability of the circuit. The whole circuit system, not only easy to install but also maintenance is convenient.
8.Adopts original imported control handle
Multifunctional integration, beautiful and practical, easy reliable installation , high reliability.
9.Detachable lazy arm and flip axis
Accurate matching with small gap, easy maintenance with no worries.
1. Before signing an official contract with our customers, we will help to analyze and provide professional solutions, recommdations based on the project information provided by customers.
2. An experienced tech-team are ready to meet your special requirements.
3. Your inquire related to our products or price will be replied in 24 hrs
4. Keeping our customers update about the orders' production process and arrange quality checking in the workshop is available if you want.
5. Online techinical supports are available for the whole product life. Oversea services are available with extra fees.
6. 12 Month warranty for pile hammer, beyond the warranty period, all spare parts are available for you in our cost price.
1. We pack the products by simple pallet or case which is seaworthy.
2. Fast delivery time: 7-10 days for small quantity, and 20-30 days for container quantity.
3. We have a team specialized in packing and loading container, they have rich experience, and can load the max quantity products, which can help customer save the ocean freight.
|Factor||Product and Technical Parameters|
|Revolutions per min (Rpm)||2800||3000||3000||3000||2600||2600||2600|
|Exciting Force (T)||39.5||48||51||53.4||55.5||58||63|
|Hydraulic system working pressure (Bar)||300||300||300||300||300||300||300|
|Hydraulic system minium flow requirements (Lpm)||175||240||270||270||280||300||320|
|Main machine weight (T)||1.55||1.65||1.65||1.8||2||2.05||2.1|
|Suitable for excavator weight (T)||20-24||24-30||30-35||38-42||35-40||40-45||48Above|
|Clip mouth weight (Kg)||C15: 455kg; C15E:530kg; C18E:578kg; C30B:455kg; C35B:530kg|
|Secondary arm weight (Kg)||A200:500kg; A250:600kg; A350:900kg|
|Host Model Number||External Dimensions of Main Engine
(Take C16E as Exampel)
1. ARE YOU A FACTORY OR TRADING COMPANY?
We are factory based in Guangzhou, China. And we've gained the export certification. Feel free to let our sales know ahead, if you planed for paying a visit to our factory.
2. DO YOU ACCPET OEM? WHAT'S YOUR MOQ? ANY EXPERIENCE FOR OEM?
We accept OEM for every product that we produce; There is no MOQ for any of our product if you wanted a OEM; We've been doing OEM ever since the year we established our factory, which is 2010
3. IS YOUR DELIVERY ALWAYS ON TIME?
We can't promise about the freight but what we can do is shortening our lead time while keep the same quality level. So there will not be any problem even if the sea freight delay for a couple days.
4. WHY DON'T YOU HAVE A CE CERTIFICATIONS?
Ce certification is for one product, not the whole factory, and we have way too many product lines to registered CE for, but our customers from Europe said it's easy to solve the CE problem. And we are working on the CE certifications registration process, in order to save our customers' time in the furture.
5. HOW AM I START ORDERING?
It depends, some of the products has the price above average. We're not salling the most expensive products in the market. Instead, we try to sale the products that could lower your maintenance cost and save your time spending on after-sales problems.
