Wholesale Bucket Excavator Heavy Duty Rock Bucket Rock Bucket For Sale

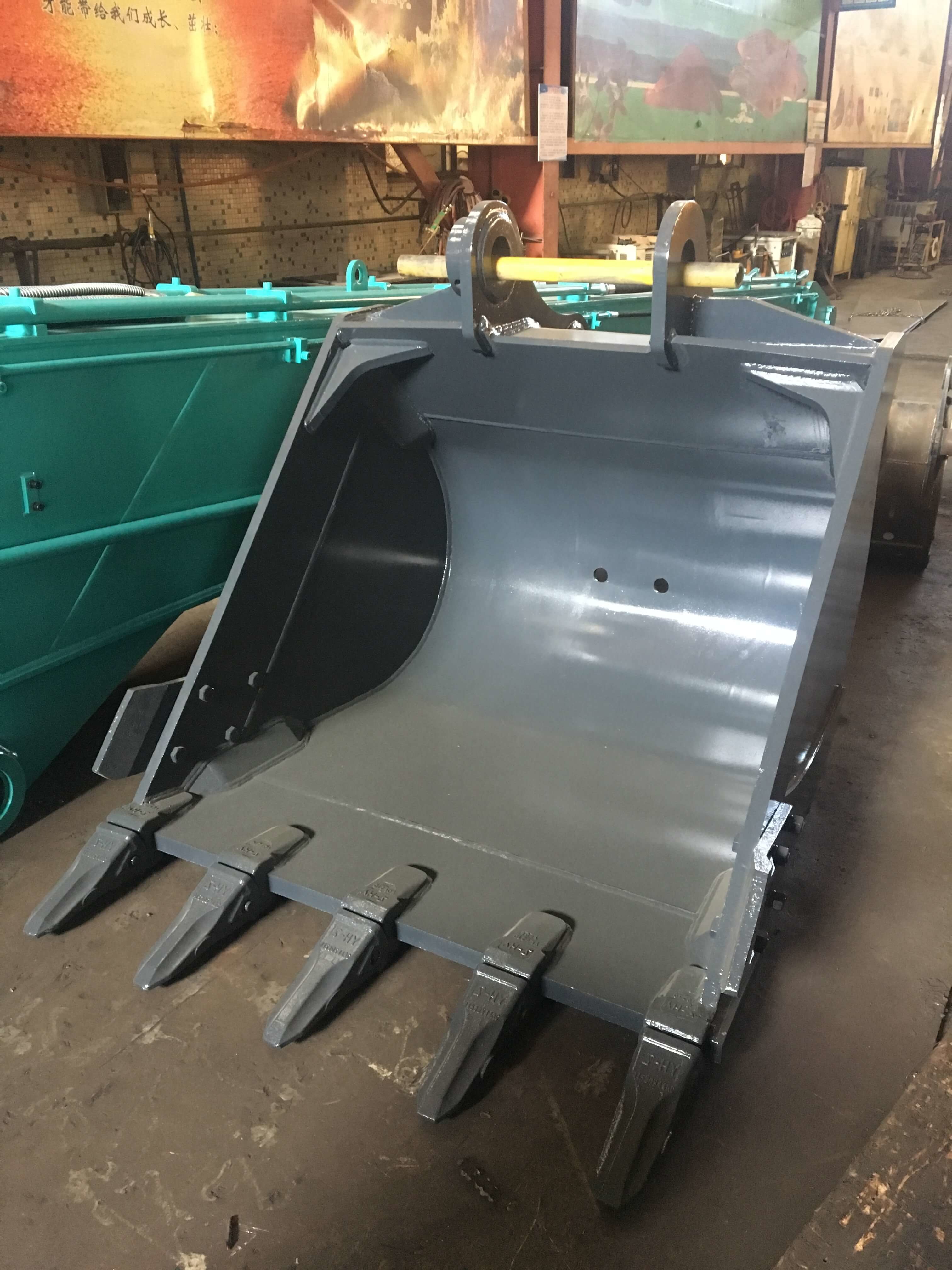

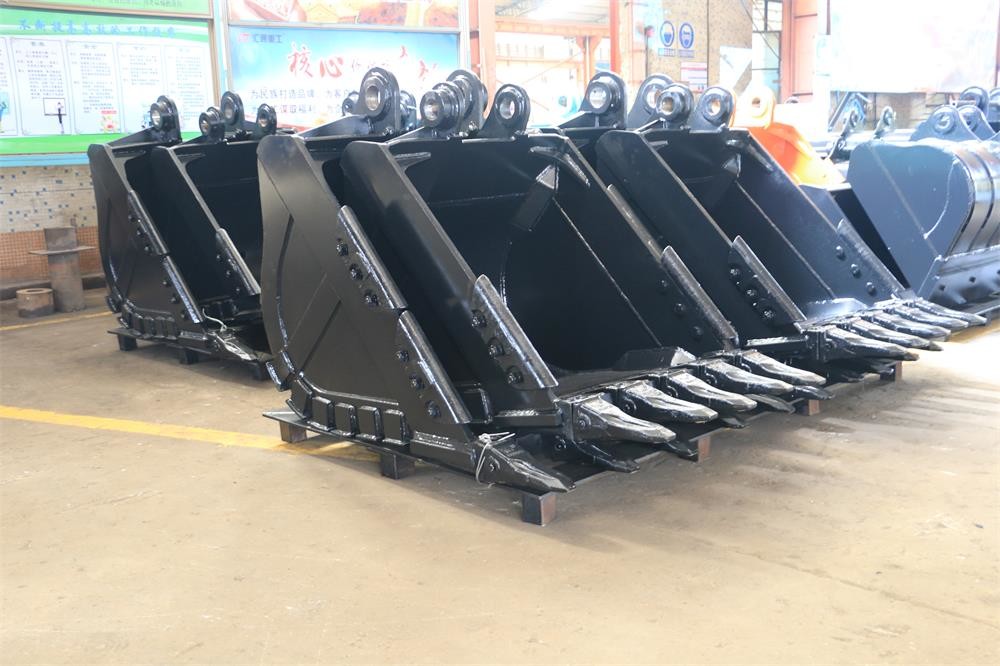

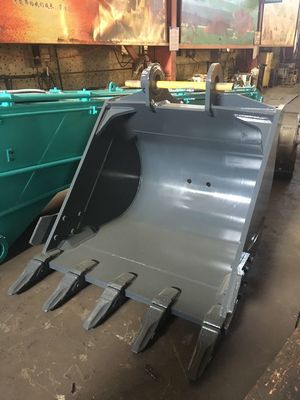

The “rock bucket” is used to ROCK HANDLING OPERATIONS, Huitong manufactures rock buckets for excavators starting from the 16-tonne class. We adopt Sweden-made HARDOX steel and advanced CNC Cutting Machine. All wear parts are made of HARDOX. The bucket body are made of 16MN.
It's our toughest series of all time. And we made it for the harshest working conditions, such as: hard digging, loading rocks, coal mining. etc.
Recommended for shot rock, stratified materials, or highly abrasive appliPCions.
Bucket | |||
---|---|---|---|
Material | Q345B | Volume | 0.34 CBM |
Color | Yellow or costomer's request | N.W. | 2.15 kgs |
Logo | Yassian or costomer's request | Width | 600 mm |
Suitable machine | PC; Komatsu; JCB; Hyundai; Doosan | Packing | Plywood pallet |
MOQ | 1 pc | CertifiPCe | ISO9001: 2015; SGS |
Delivery time | 30-35 days | Loading Port | Ningbo; Shanghai; Guangzhou; Yiwu... |
Warranty | 24 months | Payment | Ali Trade Assurance; T/T; L/C |
Three types of SF Buckets
1. Standard bucket
Main Feature: the normal thickness of the plate, excellent domestic teeth and adaptor
AppliPCion: applied to the light working environment, such as excavating clay, sand and loamy gravel
2. Heavy-Duty bucket
Main Feature: Thicker plate, higher quality tooth plate which can last the using time. choose domestic wear-resistant plate as cutting edge and side cutters, to reach high abrasion and bending ability
AppliPCion: AppliPCion to the heavy environment, such as the excavating and loading of hard soil, soil rock, second hard rock, weathered granite
3. Rock bucket
Main Feature: add a strengthen plate in the bottom, add side protective plate, and protective plate.to reach high abrasion and bending ability. and choose domestic bucket teeth and adaptor for the bucket
AppliPCion: applicable to heavy environment, such as the loading of hard stone and ore after the blasting
1. Before signing an official contract with our customers, we will help to analyze and provide professional solutions, recommdations based on the project information provided by customers.
2. An experienced tech-team are ready to meet your special requirements.
3. Your inquire related to our products or price will be replied in 24 hrs
4. Keeping our customers update about the orders' production process and arrange quality checking in the workshop is available if you want.
5. Online techinical supports are available for the whole product life. Oversea services are available with extra fees.
Bucket Series SpecifiPCion | ||
Bucket Series | Description/AppliPCion | Features |
Heavy Duty Bucket | HT HD Bucket are designed to survive in the harsh working conditions. Recommended appliPCions: abrasive soils, compact or dense clay, loose rock and gravel |
1. Heavy duty with bottom wear plate 2. Vertical shrouds added 3. Thickening plate 4. Optional weld-on lip shrounds |
Severe Duty Bucket (Rock Bucket) | HT Rock Bucket (SD Bucket) are the toughest series. Our Rock Bucket are designed not only to survive but also to thrive the harsh working conditions that you faced. Recommended appliPCions: shot rocks, Stratified Materials, Quarry, dense clay, etc. |
1. Using Q355 for the body + Hardox 400/NM360 for all the wear plate 2. Vertical shrounds added 3. Thickening plate 4. Weld-on lip shrounds added 5. Corner heel shrounds 6. Bottom wear strips added |
SpecifiPCion For Bucket Size | |||||||||||
GP/HD BUCKET | |||||||||||
Capacity(m³) | 0.8 | 1 | 1.2 | 1.5 | 1.8 | 2 | 2.5 | 3 | 4 | 5 | 7 |
Length(") | 42.5 | 46.5 | 46.5 | 51.2 | 51.2 | 53.1 | 59.1 | 66 | 67.3 | 73.6 | 82.7 |
Width(") | 39.4 | 45.3 | 49.2 | 51.9 | 59.8 | 59.8 | 61 | 62.2 | 66.9 | 70.9 | 89.4 |
High(") | 27.6 | 29.9 | 31.5 | 33.9 | 35.8 | 38.6 | 40.9 | 44.5 | 53.1 | 57.9 | 57.9 |
Teeth(Optional) | PC200 | PC200 | PC200 | PC300 | PC400 | PC400 | PC400 | PC650 | PC650 | PC650 | PC1000 |
Lip(") | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 |
Available Model
Brand |
Model NO. |
Rock |
Standard |
Model NO. |
Rock |
Standard |
Model NO. |
Rock |
Standard |
---|---|---|---|---|---|---|---|---|---|
PC |
PC55 |
0.18 |
0.2 |
PC70 |
0.28 |
0.37 |
PC110 |
0.42 |
0.5 |
PC130 |
0.46 |
0.53 |
PC200 |
0.8 |
0.93 |
PC210 |
0.91 |
1 |
|
PC220 |
1 |
1.17 |
PC240 |
1.17 |
1.3 |
PC300 |
1.4 |
1.6 |
|
PC360 |
1.6 |
1.8 |
PC400 |
1.8 |
2.1 |
PC450 |
2 |
2.2 |
|
PC650 |
3.1 |
4 |
PC1250 |
6.7 |
7.6 |
|
|
|
|
ZX |
ZX60 |
0.2 |
0.24 |
ZX70 |
0.33 |
0.4 |
ZX110 |
0.48 |
0.53 |
ZX120 |
0.5 |
0.6 |
ZX135 |
0.52 |
0.66 |
ZX160 |
0.6 |
0.7 |
|
ZX200 |
0.8 |
0.93 |
ZX210 |
0.9 |
1 |
ZX240 |
1.2 |
1.3 |
|
ZX270 |
1.3 |
1.5 |
ZX330 |
1.4 |
1.5 |
ZX360 |
1.4 |
1.6 |
|
ZX400 |
1.6 |
1.9 |
ZX450 |
1.8 |
2.2 |
ZX470 |
2 |
2.4 |
|
ZX670 |
3 |
3.5 |
ZX870 |
3.5 |
4.3 |
EX1200 |
6.5 |
7.8 |
|
SK |
SK55 |
0.18 |
0.2 |
SK60 |
0.28 |
0.32 |
SK75 |
0.3 |
0.4 |
SK200 |
0.8 |
0.93 |
SK210 |
0.9 |
1 |
SK230 |
1 |
1.2 |
|
SK250 |
1.2 |
1.3 |
SK260 |
1.3 |
1.4 |
SK330 |
1.4 |
1.6 |
|
SK350 |
1.6 |
1.6 |
SK450 |
2 |
2.2 |
SK460 |
2.2 |
2.5 |
1. Are you a manufacturer?
Yes, Our factory is loPCed in Guangzhou, Guangdong Province.
2. Can you produce according to customers' design?
Sure, OEM / ODM service available. We are professional manufacturer for hydraulic breaker.
3. What's the MOQ and payment terms?
MOQ is 1 set. Payment via T/T, Western Union accepted, other terms can be negotiated.We will provide high quality products
with competitive price.
4. How about delivery time?
3-7 working days from the date of receiving full payment.
5. After-sale Service
12 months warranty for hydraulic breakers. 24 hour prompt after-sales service to meet your demands.
6. Impact Test
Every hydraulic breaker will do impact test before sale .
