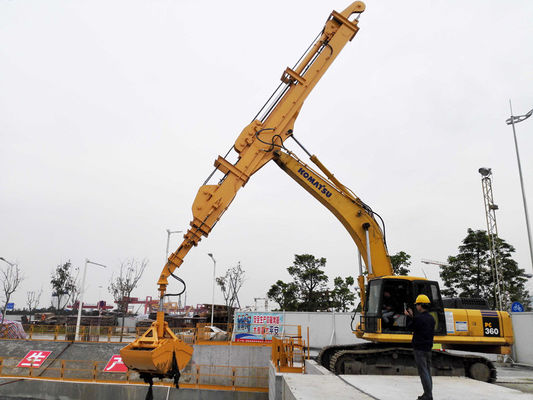

The telescopic arm is also called a barrel arm could be Sup-plied by HUITONG. Make Perfect Fit is always Our Team 's Aim. With Over Ten Years Welding Experience Welders and Machining Workers Striving for Perfection on Every Details, HUITONG Keep Providing a Large Quantities of Strong Long Reach Boom & Arm with Best Cost Performance Globally
* Quick and convenient city vertical solid construction tooling is convenient for small and solid construction space.
*Widely used in the deep foundation pit of the bridge . Metro and Metro Covered excavation ,dredging excavation works.
*Easy maintenance , low cost and high yield ; Reliable telescopic structure of steel wire rope , largely improving the wire ropes service life.
*Design in strict accordance with the safety standard of EU EN16228,satisfying the requirements of dynamic and static stability ,ensuring the construction safety.
|
Engine
|
|
|---|---|
|
Model
|
CUMMINS
|
|
Type
|
Six-cylinder,water-cooled, turbocharged,mechanical injection
|
|
Rated power
|
166KW
|
|
Rated speed
|
2200rpm
|
|
Main Technical SpecifiPCion
|
|
|
Operating weight
|
33000Kg
|
|
Standard bucket capacity
|
1.53m3
|
|
Slewing speed
|
11rpm
|
|
Stick digging force
|
104KN
|
|
Bucket digging force
|
137KN
|
|
Travelling System
|
|
|
Travelling speed
|
2.9-5.1km/
|
|
Grade ability
|
65％
|
|
Ground pressure
|
0.069MPa
|
|
Dimensions
|
|
|
Overall length
|
11140mm
|
|
Overall width
|
3280mm
|
|
Overall height of boom
|
3540mm
|
|
Overall height of cab
|
3010mm
|
|
Engine cover height
|
2650mm
|
|
Counterweight clearance
|
1235mm
|
|
Ground clearance
|
470mm
|
|
Upperstructure width
|
2960mm
|
|
Rear-end length/Slewing radius
|
3215mm
|
|
Overall track length
|
4690mm
|
|
Track length on ground
|
3780mm
|
|
Track gauge
|
2580mm
|
|
Track width
|
600mm
|
Obtained more than 40 patents and exported to more than 40 countries.
Customer Service
1. Before signing an official contract with our customers, we will help to analyze and provide professional solutions, recommdations based on the project information provided by customers.
2. An experienced tech-team are ready to meet your special requirements.
3. Your inquire related to our products or price will be replied in 24 hrs
4. Keeping our customers update about the orders' production process and arrange quality checking in the workshop is available if you want.
5. Online techinical supports are available for the whole product life. Oversea services are available with extra fees.
6. Shipment support is provided for our customer.
You may also like
|
TYPE
|
ASSEMBLY
|
APPLIPCION
|
|---|---|---|
|
Telescopic Arm
|
Clam Shell bucket*1, Telescopic Arms(Quantity and Size Depends on the Total Length Requires), Pipes & Hoses
|
It's generally used in excavators for deep pits or high-altitude operations.
|
|
Extension Arm
|
Extension Arm*1,Bucket*1,H-link & I-link * 1 set,Pins,Pipes & Hoses
|
The size arm of the original car can achieve the purpose of quickly expanding the working range of the excavator, And can be used
|
