PERFORMANCE

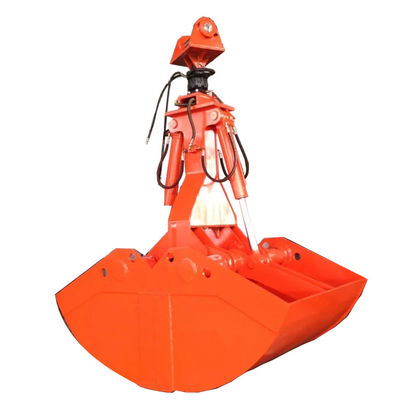

The Clamshell Bucket which fitted to an excavator have powerful digging characteristics.Ideal for earth moving, ground works and road construction we have a range of shells available for different appliPCions.The Clamshell Bucket is driven by hydraulic cylinder to open and close, easy operation and good control of the strong digging force, especially good for limited working space.
APPLIPCION
Apply to groove, such as the foundation ditch limited, space mining and mud, sand, coal, gravel loaded, and can also be used o ship, train, automobile, loading and unloading the above materials.
Product AppliPCion
Excavator requirements for rotary type: 2-way circuit plus an auxiliary for rotate.
Product Advantages
*There are two types of Clamshell bucket:360-degree rotating type & non-rotating type.
*High quallity:Meterial is Q460 and NM360
*Driven by double cylinder synchronously.
*Bucket volume size from 0.2 to 5.0CBM
*Connecting part adopts direction activity joints, easy adjustment
*Flexible design, easy installation, improve the work efficiency
Customer Service
1. Before signing an official contract with our customers, we will help to analyze and provide professional solutions, recommdations based on the project information provided by customers.
2. An experienced tech-team are ready to meet your special requirements.
3. Your inquire related to our products or price will be replied in 24 hrs
4. Keeping our customers update about the orders' production process and arrange quality checking in the workshop is available if you want.
5. Online techinical supports are available for the whole product life. Oversea services are available with extra fees.
Packing and Shipping
1. We pack the bucket by standard export wooden pallet and standard export wooden case which are Seaworthy, steel pallet
2. Fast delivery time: 5-7days for small quantity, 15-30days for container quantity.
3. We have a team specialized into packing and loading container, they have rich experience, and we can load the max quantity excavator buckets and parts, to help customer save ocean freight
SpecifiPCion
|
Technical SpecifiPCion of KM Telescopic Excavator Boom
|
|||
|---|---|---|---|
|
Type
|
HT150
|
HT220
|
HT260
|
|
System
|
Hydraulic cylinder&Wire rope
|
Hydraulic cylinder &Wire rope
|
Hydraulic cylinder&Wire rope
|
|
Weight
|
3.6t
|
4.6t
|
5.6t
|
|
Bucket Capacity
|
0.3m³
|
0.6m³
|
1.2m³
|
|
Max. Digging Depth
|
15200mm
|
22490mm
|
27180mm
|
|
Max. Digging Radius(Reach Max. Digging Depth)
|
4670mm
|
5845mm
|
6400mm
|
|
Max.Vertical Digging Radius
|
6430mm
|
7445mm
|
8530mm
|
|
Max. Digging Depth(Reach Max. Vertical Digging Radius)
|
11825mm
|
19920mm
|
22370mm
|
|
Max. Operating radius
|
7950mm
|
9835mm
|
11250mm
|
|
Max. Hoisting Height
|
2870mm
|
4465mm
|
5770mm
|
|
Min. Operating Radius
|
3980mm
|
4485mm
|
5460mm
|
|
Max. Operating Height
|
9475mm
|
13580mm
|
16675mm
|
|
Overall Transport Length
|
6908mm
|
10685mm
|
12390mm
|
|
Weight of Bucket
|
520Kg
|
990Kg
|
1600Kg
|
|
Recommended excavator capacity
|
≥15ton
|
≥23ton
|
≥36ton
|
Why choose us:
1, Not only sell the product, but also can design as customer’s request.
2, With a wide range of goods.
3, Quality is guaranteed by skilled workers, honest employee and QC team.
4, Excellent quality, competitive price& professional service.
Advantages of Eumess Excavator Hydraulic Clamshell Grab Bucket
1. Handling of scrap, rock, wood chips, garbage, etc.
2. Sorting, placement of rocks and bulky and irregular shaped items.
3. Multiple tine design depending on the appliPCion.
4. Both hydraulic and mechanical designs available.
5. High quality material and parts used for minimum downtime and low maintenance.
6. Protective cover on cylinders.
7. Optional rotating design (for hydraulic version only).
