Best Customized 360 degree Orange Peel Grapple Excavator Hydraulic Scrap Grapple Excavator Sleeper Grab

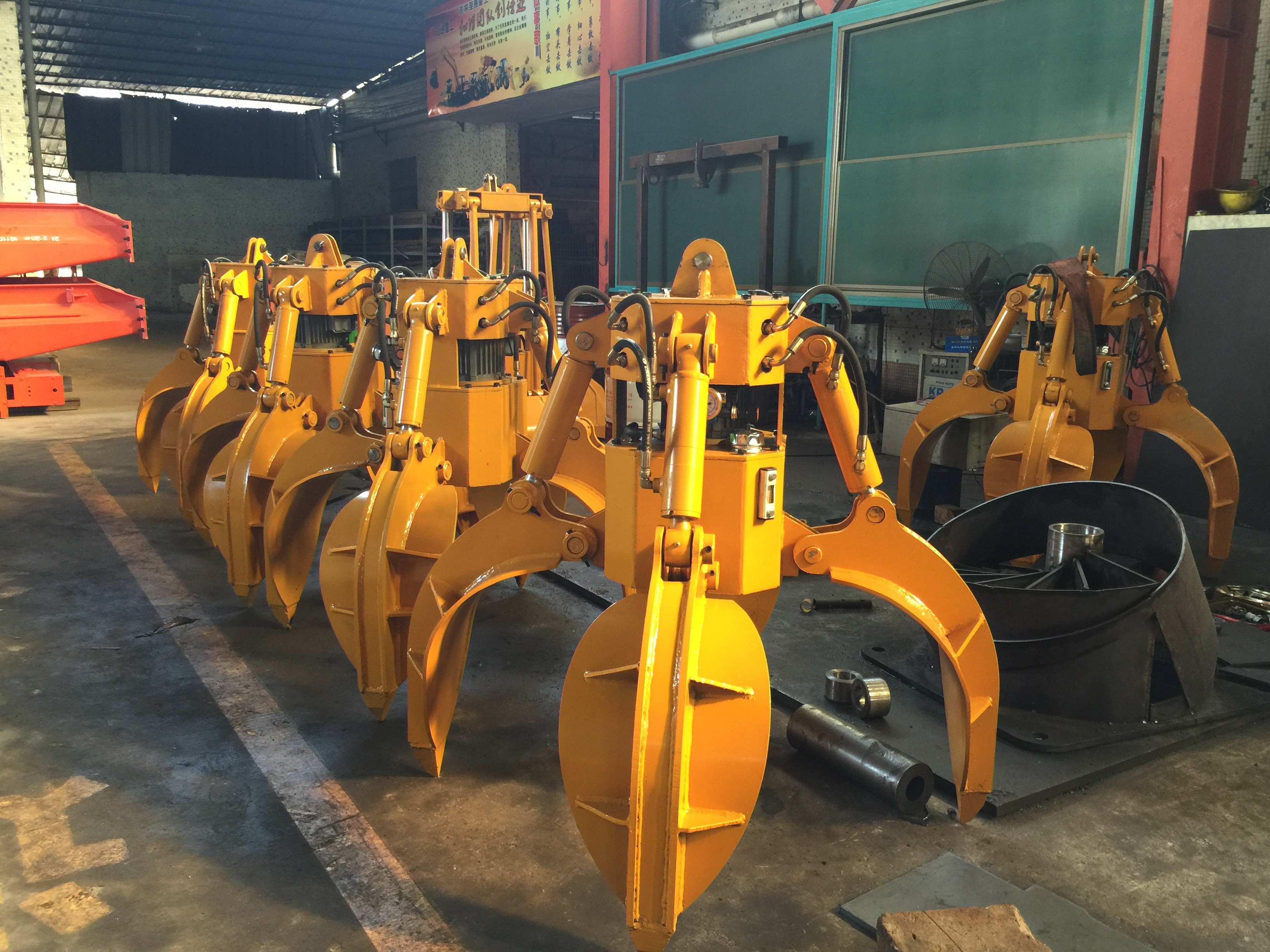

Huitong Excavator Rotating Orange Peel Grab
1. Driven by hydraulic cylinder. Every grab is driven by a separate cylinder.
2. Excavating constsruction foundation, deep hole or load soil, sand, waste. etc.
3. Excavating and loading on the limited space. (Usualaly work with telescopic boom)
4. Loading, stacking and transportation waste steel, scrape steel, crushed aggregates, saw dust, ballast in iron and steel enterprises, port, wharf, railway station, storage. etc.
Huitong Excavator Rotating Orange Peel Grab
| volume | M3 | 0.5 | 1 | 1.5 | 0.75 |
| Type | Heavy | Heavy | Medium | Heavy | |
| Proportion of materials | t/m3 | 1.2 | 1.6-2 | 1.7-1.8 | 1.2 |
| Capturing the materials | t | 1.3 | 1.3-1.73 | 2.1-2.3 | 1.3 |
| Percentage of pulley | 4 | 4 | 4 | 4 | |
| The diameter of steel wires | mm | 9.2 | 19 | 19.5 | 9.2 |
| The diameter of pulley | mm | 250 | 260 | 260 | 250 |
| Tons of the match hoist crane | t | 3 | 5 | 5 | 3 |
| Self-weight of grab | t | 0.93 | 2.35 | 3.1 | 1.53 |
| Total height of grab | mm | 1860 | 1941 | 2720 | 2250 |
| Notes | Design as customer’s demand | ||||
| Above information just for reference, detail parameter based on different lifting weight. | |||||
| Electric current | 380V 50HZ Three-phaze | ||||
| Width of Trail | 30-70mm | ||||
| Operation method | Cabin control,wireless control | ||||
| Lifting mechanism | Electric winch trolley | ||||
| Power supply | 220v/240v/380V/400v,50/60HZ,3P | ||||
Two Types Excavator Orange Peel Grab
