Product Details:
Payment & Shipping Terms:
|
Warranty: | 6 Months-12months | Color: | Customer Required |
---|---|---|---|
Material: | Q345B/Q460/Q460+Q345B | Type: | Excavator Rake |
After-sales Service Provided: | Online Support,Video Technical Support | AppliPCion: | Rock,Digging Mud,Land Clearing And Site Preparation |
Condition: | 100%new | Size: | Customized |
Oem: | Support | ||
High Light: | Mini Excavator Brush Rake,Q460 Excavator Brush Rake |

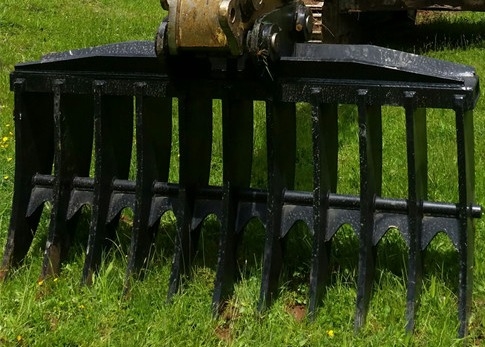

Excavator Rake Attachment Mini Excavator Brush Rake Customization Digger Rakes
Height:customized
Core Components:Engine
Product name:Excavator Rake Attachment
AppliPCion:Land Clearing
Material:Q355/NM400
COLOR:Customer Required
Keyword:1-120Ton Excavator Rake
MOQ:1 Pcs
Feature:Model Dozer
Package:Standard Exported Pallet
Delivery:7-15 Days
Excavator Rake
|
||||||
Size | Width(mm) | Number of Tine | Distance between tines(mm) | Thickness of tine(mm) | Weight(kgs) | |
1-3T |
HT-01
|
700 | 6 | 125 | 12 | 72 |
3T |
HT-03
|
850 | 7 | 123 | 16 | 118 |
1000 | 8 | 125 | 16 | 136 | ||
5T |
HT-05
|
1000 | 8 | 125 | 16 | 150 |
1200 | 9 | 132 | 16 | 176 | ||
8-12T |
HT-08
|
1500 | 9 | 165 | 20 | 266 |
12-15T |
HT-12
|
1800 | 10 | 172 | 25 | 558 |
20T |
HT-20
|
1600 | 11 | 127 | 30 | 780 |
25T | HT-25 | 2000 | 10 | 180 | 35 | 1010 |
30T |
HT-30
|
2200 | 10 | 200 | 40 | 1220 |
30-40T | HT | 2200 | 11 | 154 | 60 | 2439 |
Features:
1,Made of high strength steel plate, easy to install ,easy to use.
2,Installed with high strength ripper teeth, strong digging capacity;
3,Convenient for digging and loading at the same time,high efficiency.
4,Suitable for shoving hard substances such as hard rocks,frozen ground,stone and weathered granite to facilitate later operation.
Contact Person: Mr. Tang
Tel: 86-18922117251
