Hitachi Excavator Long Reach Boom Lengan Long Reach Boom Excavator
Long reach excavators work in the harshest conditions you can imagine. Our ultimate goal is to extend the dependable service life of the product. All long reach fronts are shot blasted to ensure that the surface is thoroughly clean and free from contaminants and rust. In addition, this process presents the steel with a surface texture that provides excellent adhesion for the prime coat of paint.

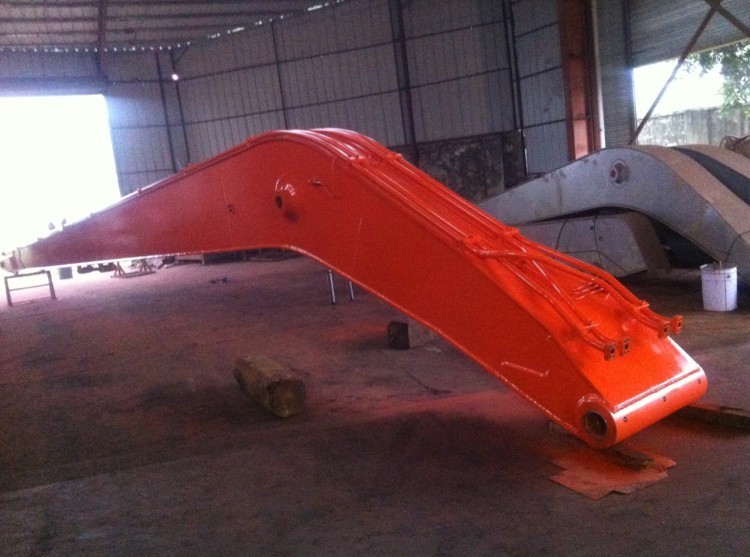

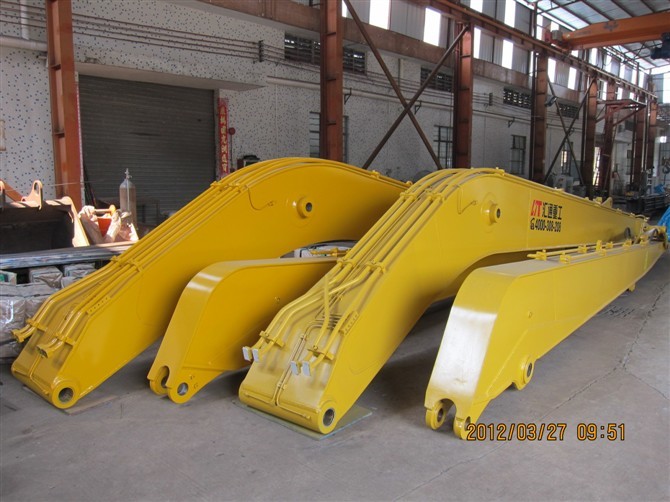

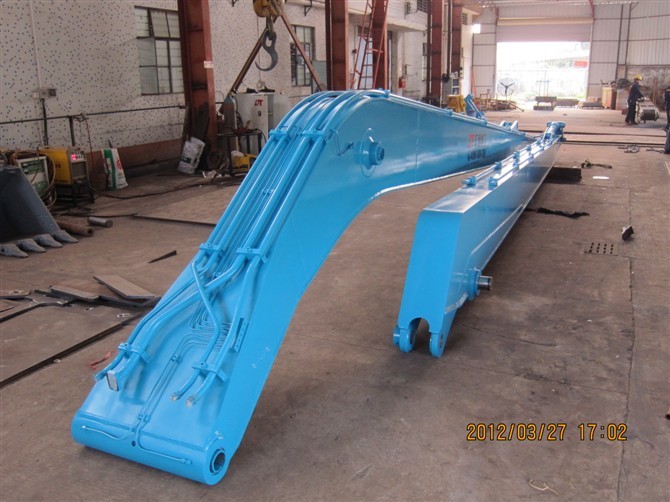

The boom and arm, being critical components of an excavator, require tight tolerance and precision. They are bored with a state-of-the-art CNC line-bore machine to ensure perfect alignment at the highest attainable precision for every piece we produce. Every time!
Long reach front is an ideal solution for river and sea dredging either on land or barge, pond excavation and maintenance, deep foundation excavation, drainage construction, distant digging, etc. There is no customized component/part used in our attachment, we design it with commonly available off the shelf components where customers can easily obtain from their local dealers. Each long reach package come standard with the following items:
| Excavator Operating Weight | Length | A Max. Reach |
B Max. Depth |
C Max. Height |
D Boom Height |
Bucket Capacity (approximately) |
||||||
| m | ft | m | ft | m | ft | m | ft | m | ft | Yard3 | m3 | |
| 12 – 14 ton (26,400 – 30,8000 lb) |
12.0 13.0 |
39' 43' |
12.00 13.00 |
39'4" 42'8" |
8.30 9.00 |
27'2" 29'6" |
10.50 10.90 |
34'5" | 2.10 2.10 |
6'11" 6'11" | 0.52 0.39 |
0.4 0.3 |
| 15 – 16 ton (33,000 – 35,200 lb) |
14.0 | 46' | 14.00 | 45'11" | 10.70 | 35'0" | 11.80 | 38'8" | 2.30 | 7'6" | 0.52 | 0.4 |
| 20 -22 ton (44,000 - 48,400 lb) |
15.5 16.5 |
50' 54' |
15.50 16.50 | 50'10" 54'2" |
11.46 12.16 |
37'7" 39'11" | 13.7 14.40 |
45'3" 47'3" | 2.50 2.50 |
8'3" 8'3" |
0.65 0.52 |
0.50 0.40 |
| 23 - 27 ton (50,600 - 55,000 lb) |
17.0 18.0 |
56' 59' |
17.00 18.00 |
55'9" 59'0" |
12.80 14.00 | 41'11" 45'11" | 14.95 15.85 |
49'0" 51'9" | 2.70 2.70 |
8'11" 8'11" | 0.65 0.52 |
0.50 0.40 |
| 28 - 30 ton (61,600 - 66,000 lb) |
18.0 19.0 |
59' 62' |
18.00 19.00 | 59'0" 62'3" |
13.8 14.0 |
45'1" 45'11" | 15.20 15.50 |
49'10" 50'10" | 3.10 3.10 |
10'2" 10'2" | 0.78 0.65 | 0.60 0.50 |
| 33 - 35 ton (72,600 - 77,000 lb) |
18.5 20.0 |
60' 65' |
18.50 20.00 |
60'5" 65'6" |
14.50 16.00 |
47'6" 52'6" | 15.10 15.60 |
49'6" 51'3" | 3.40 3.40 |
11'0" 11'0" | 0.91 0.78 |
0.70 0.60 |
| 40 - 45 ton (88,000 - 99,000 lb) |
21.0 22.0 |
68' 72' |
21.00 22.00 |
68'10" 72'2" |
15.30 16.25 |
50'2" 53'4" | 15.58 15.92 |
49'3" 52'3" | 3.70 3.70 |
12'2" 12'2" | 1.04 1.04 | 0.80 0.80 |
| 50 - 55 ton (110,000 - 121,000 lb) |
21.0 22.0 |
68' 75' |
21.00 22.00 |
68'10" 72'2" |
15.00 15.80 |
49'3" 51'10" | 15.95 16.05 |
52'4" 52'8" | 3.95 3.95 |
12'11" 12'11" | 1.30 1.17 |
1.00 0.90 |
| 60 - 65 ton (132,000 - 143,000 lb) |
23.0 | 75' | 23.00 | 75'5" | 17.50 | 57'4" | 17.50 | 57'5" | 4.10 | 13'6" | 1.56 | 1.20 |
| 70 - 75 ton (154,000 - 165,000 lb) |
24.0 | 79' | 24.00 | 78'8" | 18.10 | 59'3" | 19.00 | 62'4" | 4.60 | 15'1" | 1.82 | 1.40 |
| 80 - 85 ton (176,000 - 187,000 lb) |
25.0 | 82' | 25.00 | 82'0" | 18.60 | 61'0" | 19.20 | 62'11" | 4.70 | 15'5" | 1.95 | 1.50 |
| 100 - 110 ton (220,000 - 242,000 lb) |
27.0 28.0 |
88' 92' |
27.00 28.00 |
88'7" 91'9" |
20.00 21.00 |
65'7" 68'10" | 1900 20.00 |
62'4" 65'7" | 5.00 5.00 |
16'5" 16'5" | 2.08 1.82 |
1.60 1.40 |
| 120 - 130 ton (264,000 - 286,000 lb) |
28.0 29.0 |
92' 95' |
28.00 29.00 | 91'9" 95'1" |
21.00 22.00 | 68'10" 72'2" | 20.00 20.50 |
65'7" 67'3" | 5.50 5.50 |
18'1" 18'1" | 2.08 1.82 |
1.60 1.40 |
