0.3-0.65cbm Excavator Skeleton Bucket Mini Seive Bucket For Excavator Sany
Production Description
Product features:

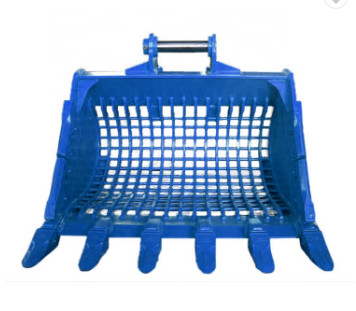

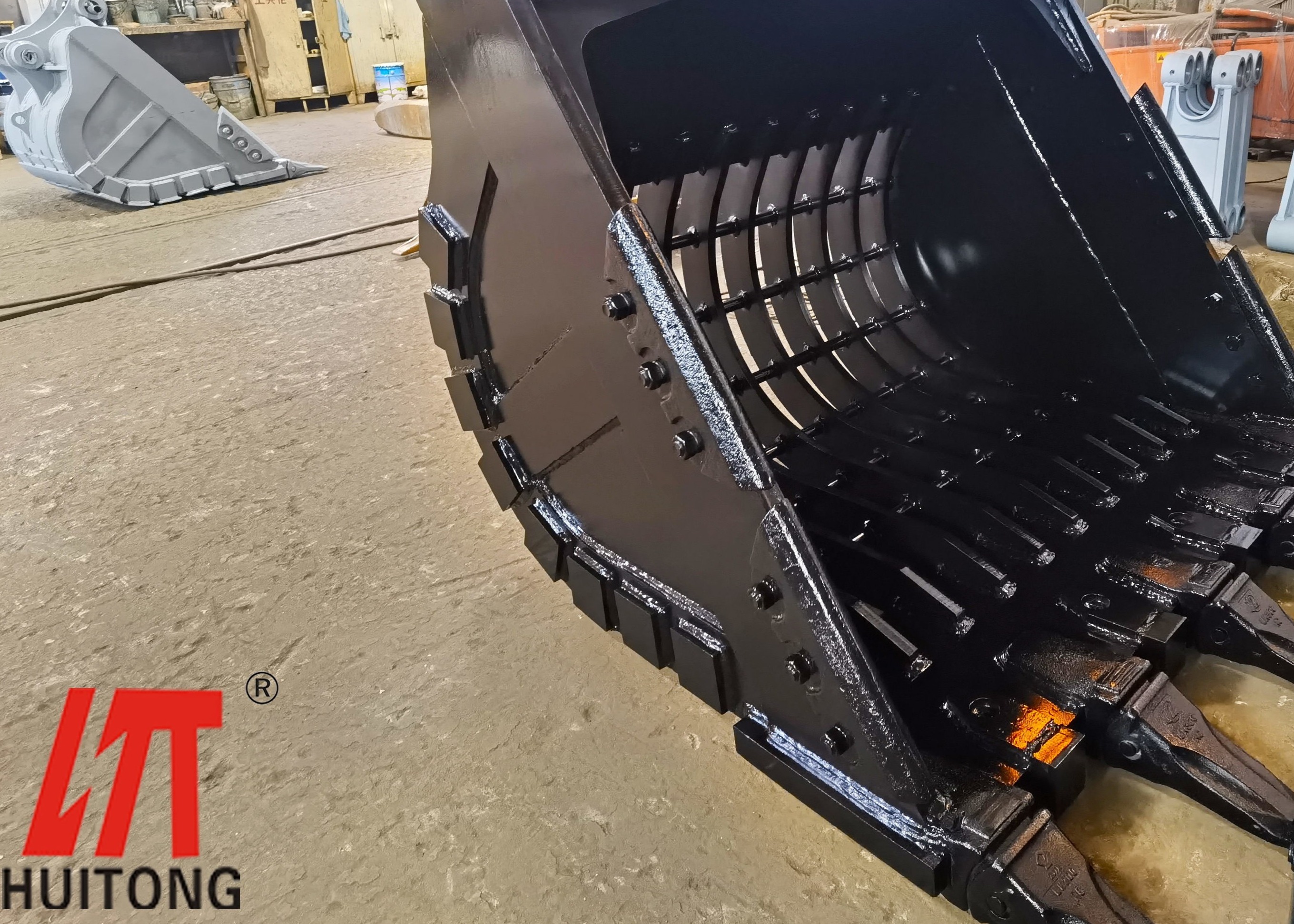

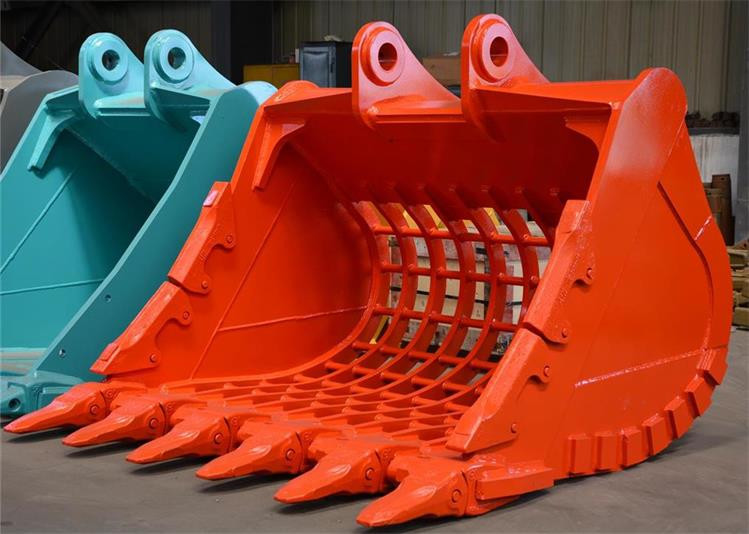

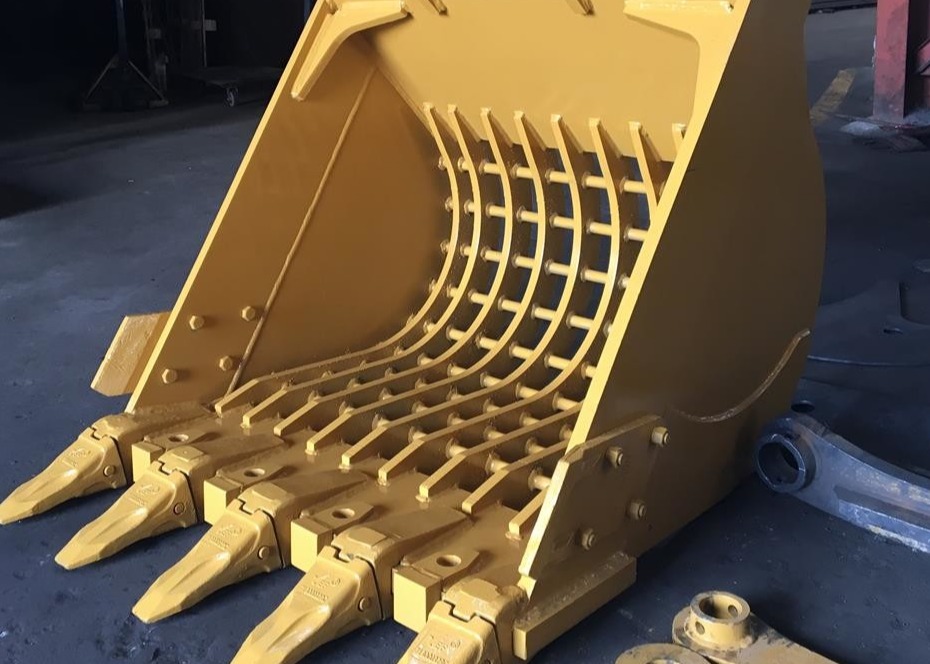

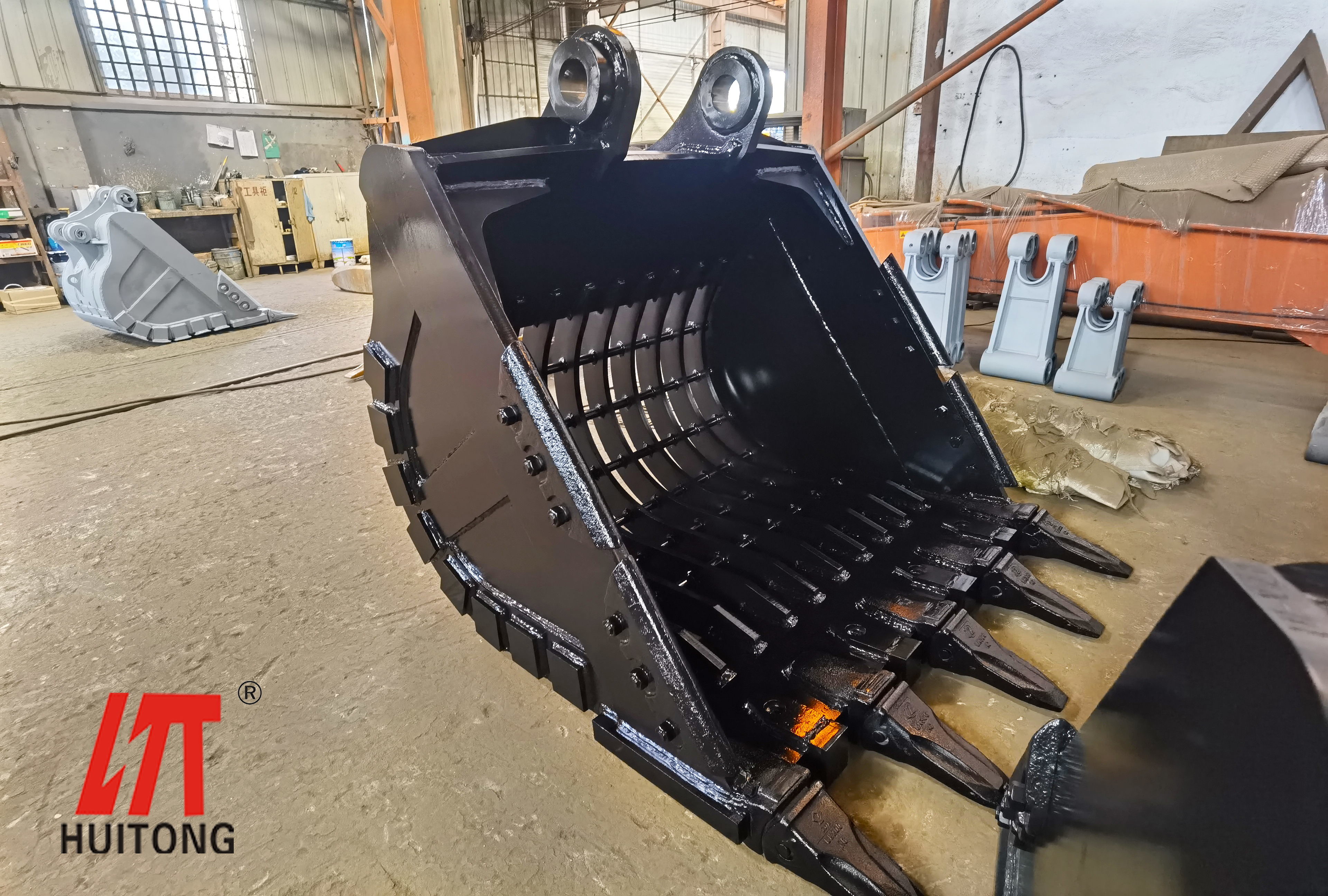

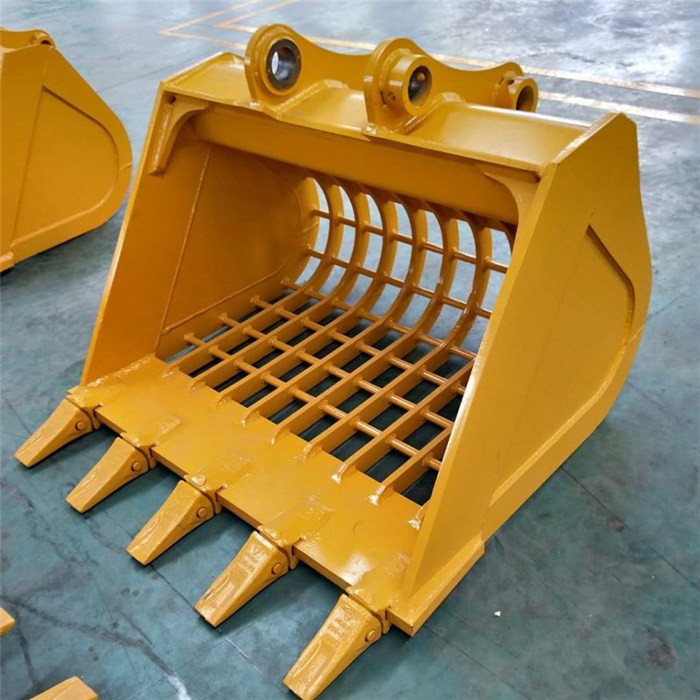

Excavator skeleton bucket is great for sifting out rocks in soil, effectively mining and sorting rock and removing other debris without the soil. It is available in many different sizes, widths, and even custom rib spacing configurations, too.
Production Details
|
Model
|
HT 50 | HT 80 | HT 120 |
HT 200
|
HT300 | HT400 |
| Pin Diameter (mm) | 45 | 50 | 60/65 |
80
|
90/100 | 110/120 |
| Ears Distance (mm) | 170 | 220 | 260 | 340 | 390 | 400 |
| Pin to Pin Center(mm) | 260 |
310
|
360 | 465 | 530 | 550 |
| Width(mm) | 1200 | 1500 | 1500 | 1800 | 2000 | 2200 |
| Apply to(ton) | 4-6 | 6-8 | 12-16 |
20-24
|
25-36 | 38-42 |
