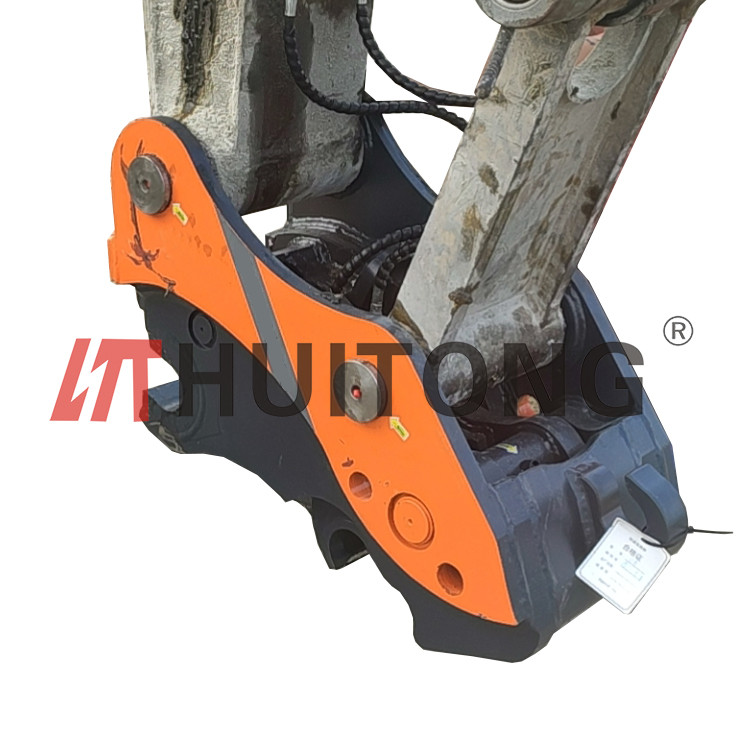

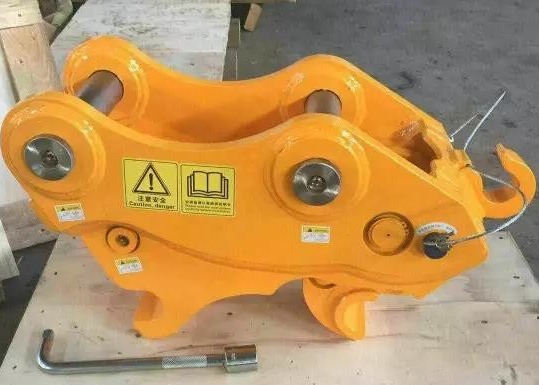

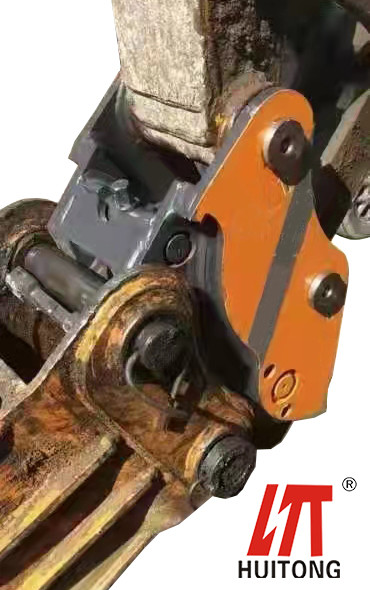

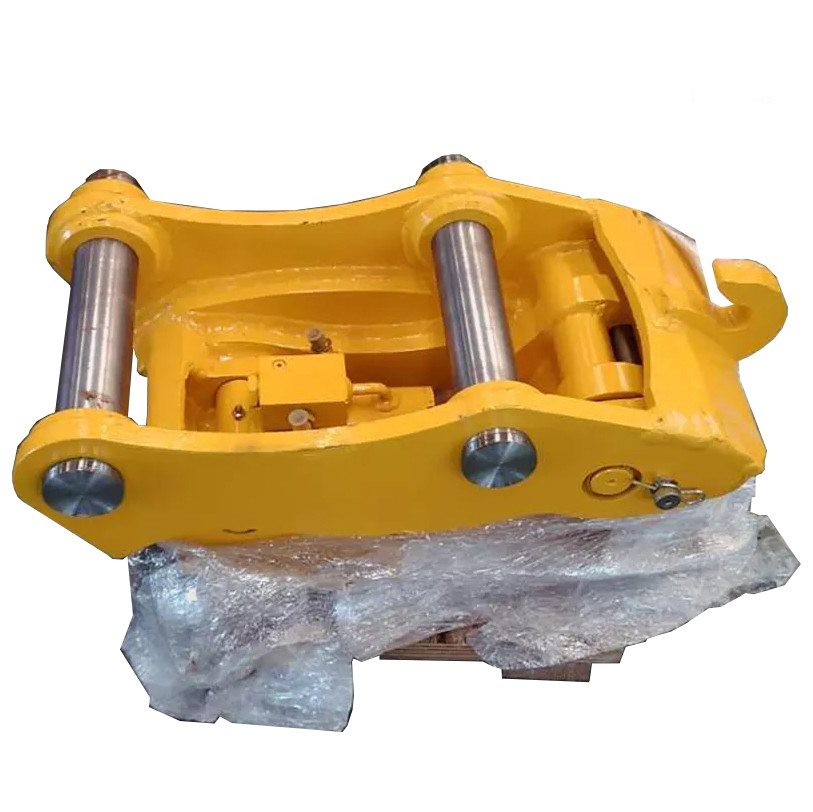

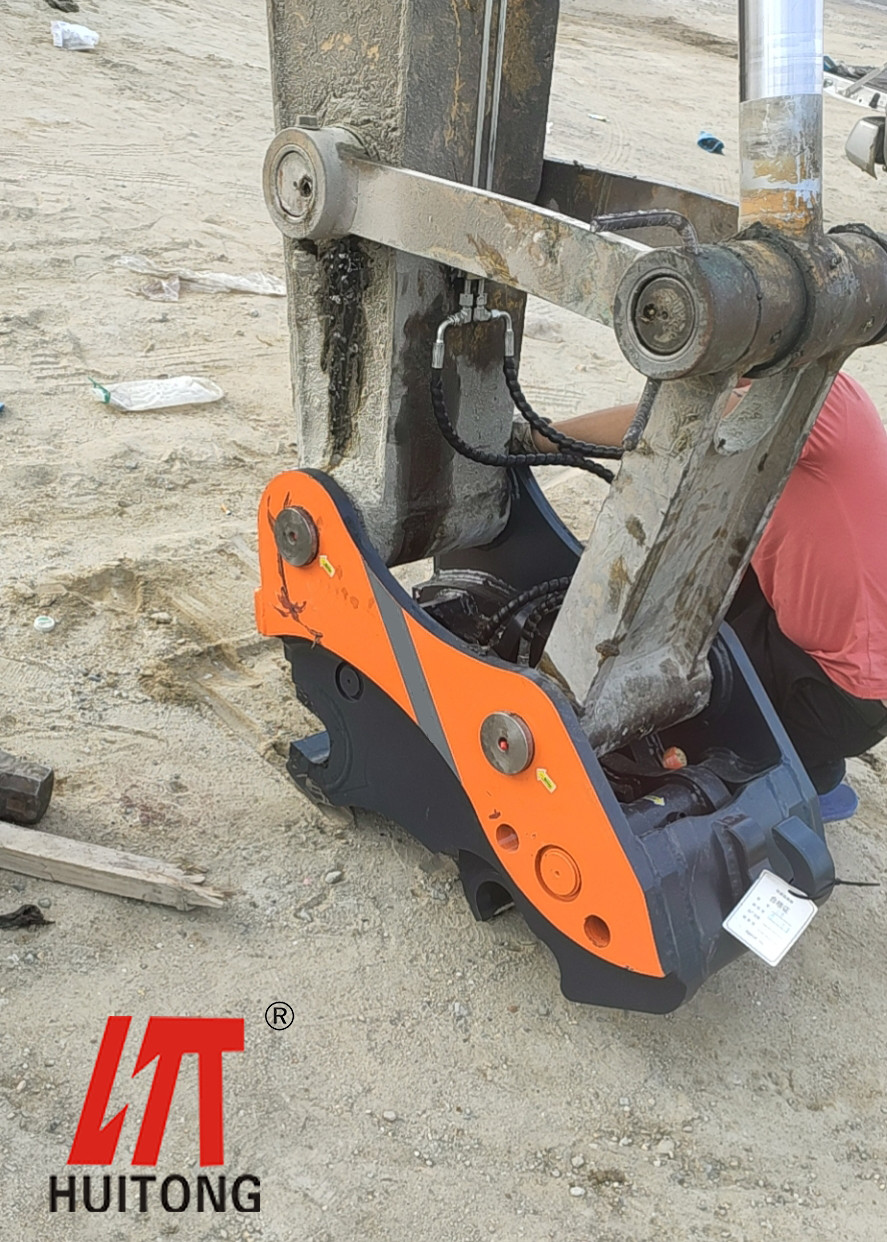

Mini Excavator Quick Coupler For Kubota 30t Excavator Quick Coupler Hydraulic
product details:
|
Type
|
Quick Hitch Coupler
|
|
Color
|
Yellow, Blue,Orange,Black,Customized
|
|
Material
|
Q345B
|
|
Suitable Brand
|
All Brands Excavators
|
|
AppliPCion
|
excavating machinery
|
|
Warranty
|
1 Year
|
|
Features
|
Full Automatic Double Safety System
|
|
One Body Design
|
|
|
Versatility, convenient and reliable
|
|
|
Suitable for all brands excavators
|
| Model Contents |
MINI | 02 | 04 | 06 | 08 | 10 | 17 | |
| Operating Weight | T | <4 | 4-6 | 7-8 | 12-18 | 19-24 | 25-32 | 33-40 |
| Overall Length(L) | mm | 306-475 | 534-545 | 600 | 765 | 924-944 | 983-1050 | 1006-1173 |
| Overall Height(H) | mm | 230-268 | 307 | 310 | 388 | 492 | 574 | 558-610 |
| Overall Width(W) | mm | 175-242 | 258-263 | 270-280 | 353-436 | 449-483 | 543-568 | 606-663 |
| Arm Width(W1) | mm | 86-185 | 155-170 | 180-200 | 232-315 | 306-340 | 375-411 | 416-469 |
| Installation width(W2) |
mm | 82 | 151-164 | 176-196 | 256 | 328 | 397 | 397 |
| Equpping Distance(L2) |
mm | 90-140 | 208-315 | 340-450 | 340-486 | 256-390 | 413-590 | 520-590 |
| Pin Diameter(D) | mm | 25-40 | 45-50 | 50 | 50-70 | 70-80 | 80-90 | 90-120 |
| Offset Height(H1) | mm | 159-165 | 150 | 195 | 220 | 275 | 300 | 360 |
| Working pressure | Kgf/cm2 | 40-380 | 40-380 | 40-380 | 40-380 | 40-380 | 40-380 | 40-380 |
| Oil flow | l/min | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 |
