Home /Products/Excavator Rotating Grapple/NM400 Excavator Rotating Grapple For 5-20 Tons Komatsu PC160 PC200

NM400 Excavator Rotating Grapple For 5-20 Tons Komatsu PC160 PC200

1 Pcs
MOQ
$880-1400/pcs
Price
NM400 Excavator Rotating Grapple For 5-20 Tons Komatsu PC160 PC200
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Year
Material: Q355b+NM400
Oem: Avaliable
Packing: Wooden Pallet Or Customized
Type: Hydraulic Grapple
CertifiPCion: ISO9001
Suitable: 5-20 Tons Excavator
Model: Komatsu Excavator
High Light:

NM400 Excavator Rotating Grapple

,

PC160 Excavator Rotating Grapple

,

PC200 Excavator Rotating Grapple
Basic Infomation
Place of Origin: Guangzhou,China
Brand Name: Huitong
CertifiPCion: ISO9001
Payment & Shipping Terms
Packaging Details: standard package
Delivery Time: 8-16 workdays
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 pcs per mounth
Product Description

Excavator Hydraulic Rotating Grapple For 5-20 Tons Komatsu Excavator PC160 PC200





Production Description



HT Excavator Rotating Grapple, also called "Excavator Log Grab, Timber Grab", adopts Q690 High Strength Steel and advance rotating motor.
We provide customized rotating type and fixed type wood / Stone Grapple for 0.8ton-40ton excavator.

The adapter will be customized according to the size of your excavator. Sealed type rotary drive solve the oil leakage problem, only required light greasing(80g of grease) once 6 months(unlike most of the product on the market needed greasing everyday) and better protect the product.

Huitong Grapple Motor:
1) Motor drive adopts the design of symmetrical double support,strong shcok resistance, avoiding axle breakage and oil leakage.
2) Pedestal adopts sealed type design, better protect the rotary drive.
Features
1, Material: Q355B Mn plate.
2, Original EATON brand motor, Taiwan Winner valve core, quick-plug integrated wiring harness.
3, Unlimited clockwise and anti-clockwise 360° rotary swing bearing system
4, Pin and bush heat-treated, increase strength and wear-resistance.
5, Brake valve make it safer from inertia or accident.
6, Welders with ten years of experience, the welding process removes the hard force, and there will be no welding cracks.



PCegory
Unit
HT-02
HT-04
HT-06
HT-08
HT-10
 HT-12 HT14
Max Jaw Opening
mm
1247
1470
1650
2375

 2493

 2562 2595
Motor Pressure
kg/cm²
110-120
110-120
120-140
120-140
120-140
 140-160 140-160
Necessary Flow
lpm
30-55
30-55
40-70
40-70
40-70
 40-70 40-70
Oil Cylinder Pressure
kg/cm²
160-200
160-200
180-230
180-230
200-250
 250-280 270-290
Oil Cylinder FORCE
ton
7
8
14
22
27.5
 28.5 28.5
Suitable Carrier
ton
4-6
6-9
12-16
20-26
29-36
 35-41 40-45



Production Details

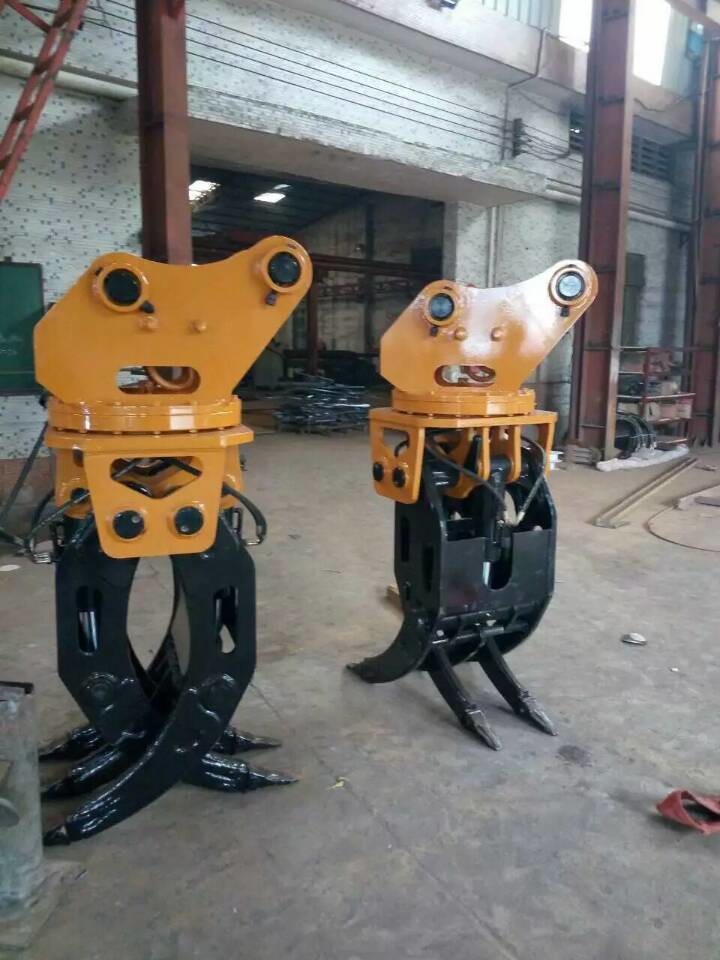

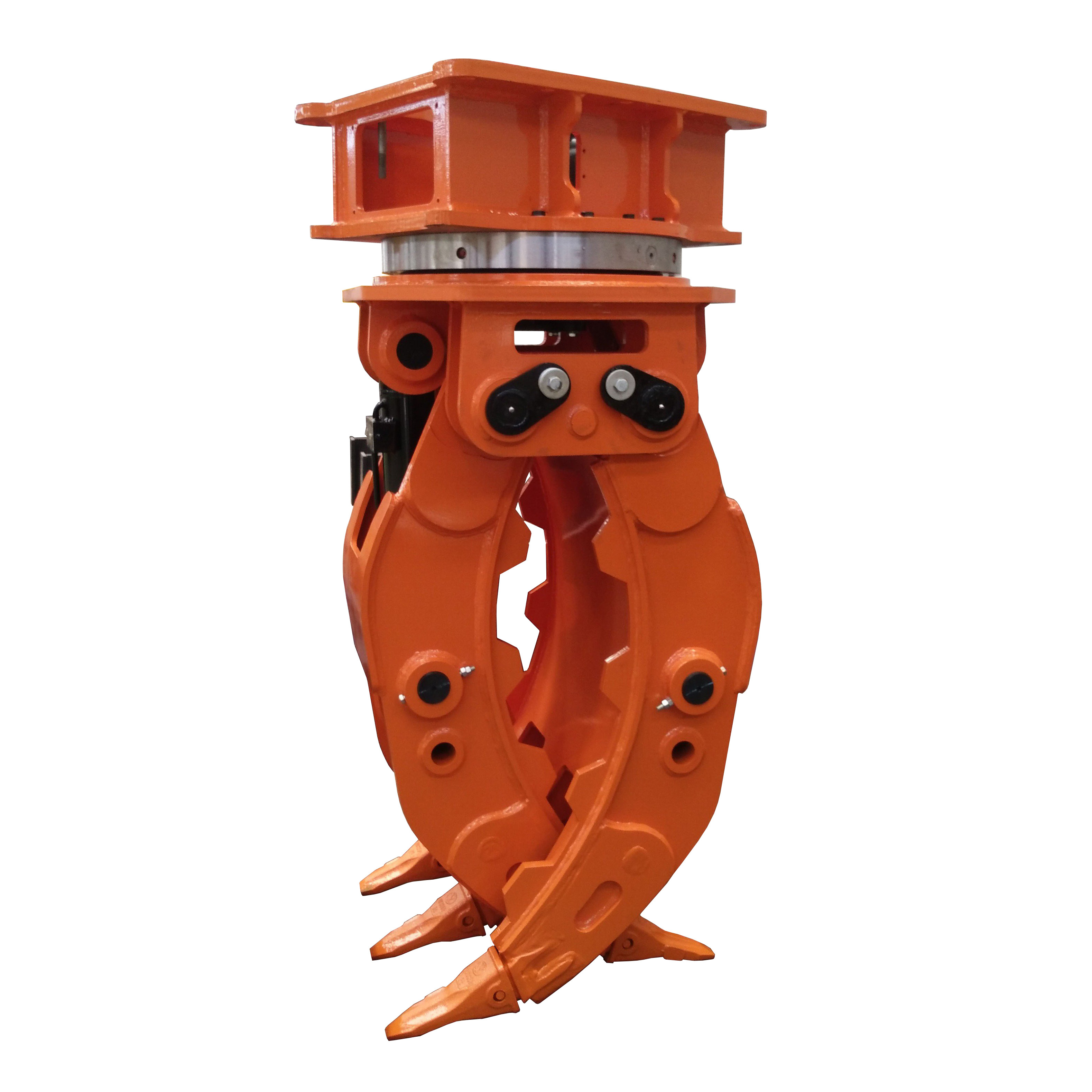

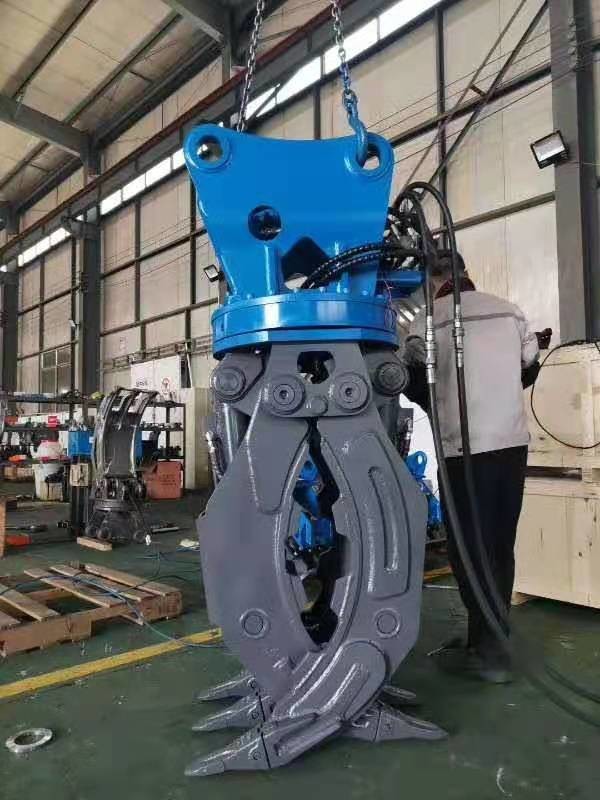

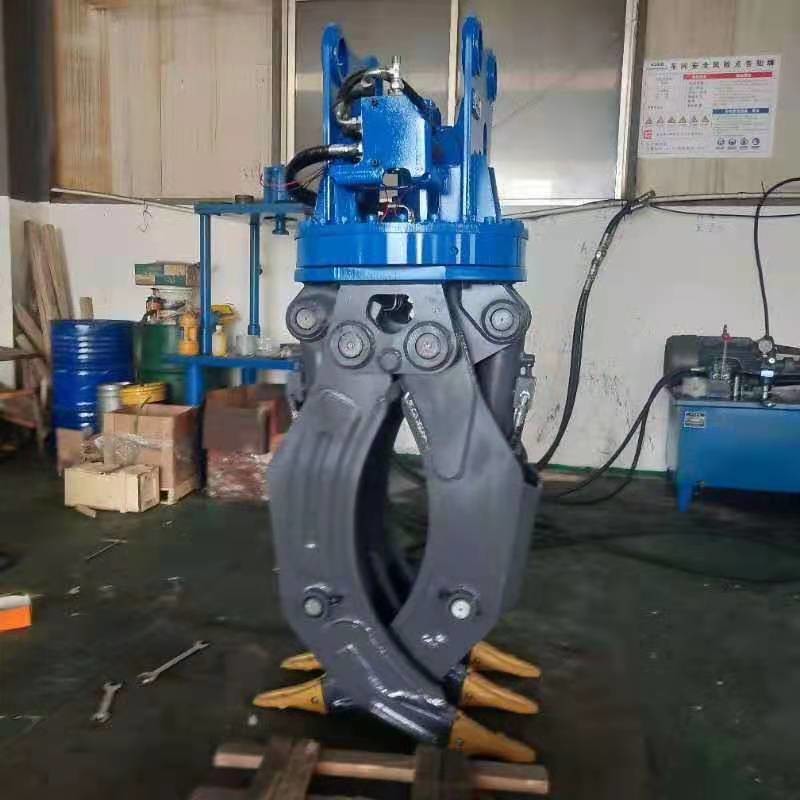

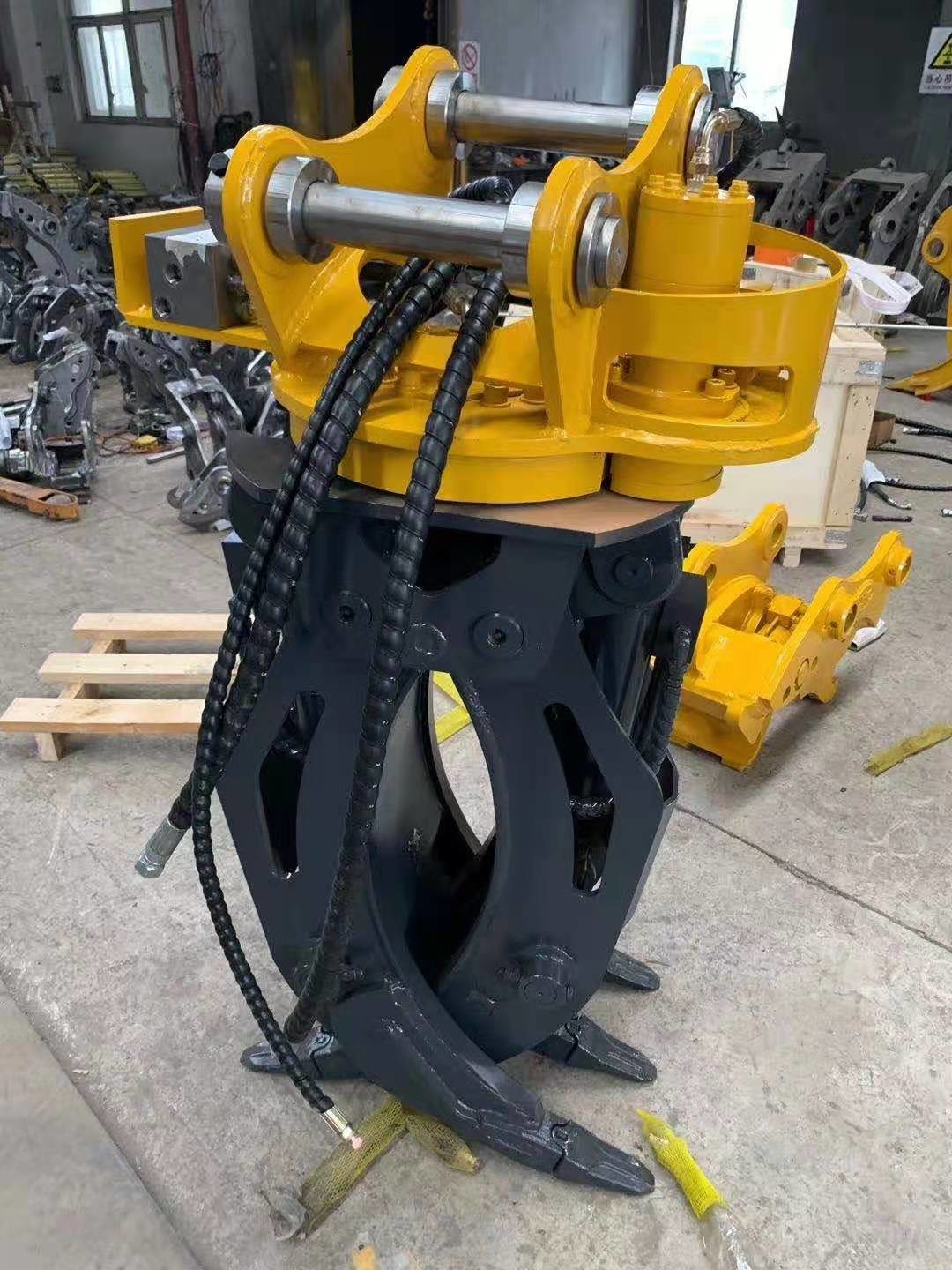

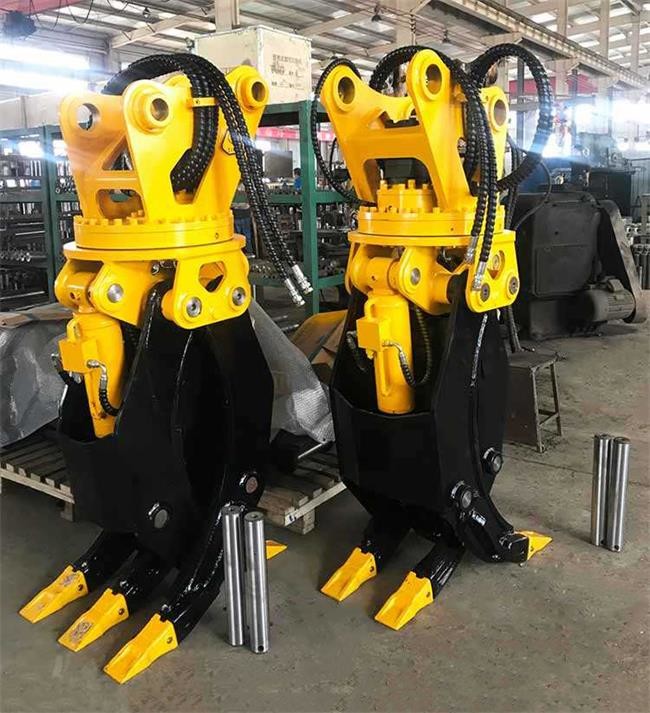

NM400 Excavator Rotating Grapple For 5-20 Tons Komatsu PC160 PC200 0



NM400 Excavator Rotating Grapple For 5-20 Tons Komatsu PC160 PC200 1NM400 Excavator Rotating Grapple For 5-20 Tons Komatsu PC160 PC200 2NM400 Excavator Rotating Grapple For 5-20 Tons Komatsu PC160 PC200 3NM400 Excavator Rotating Grapple For 5-20 Tons Komatsu PC160 PC200 4
