Excavator Wood Grapple / Log Grapple For 20-50 Tons Excavator Kobelco SK300 SK350
Production Description

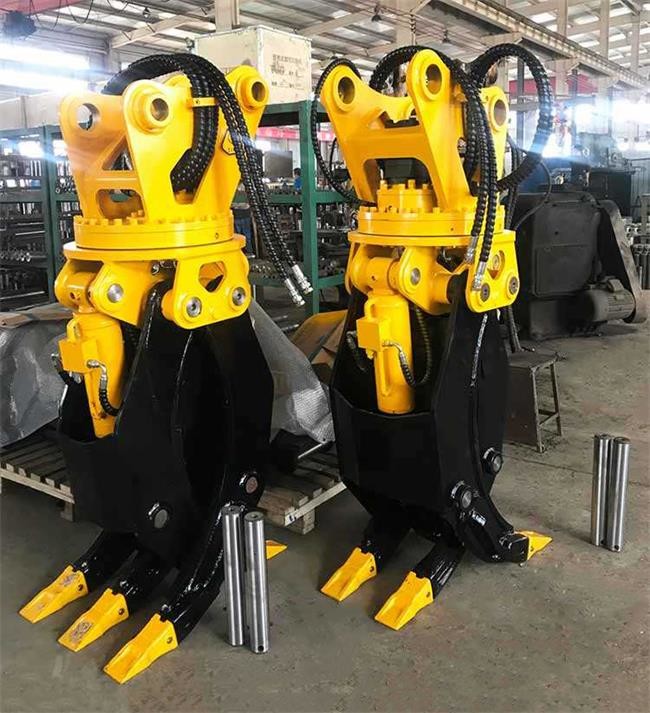

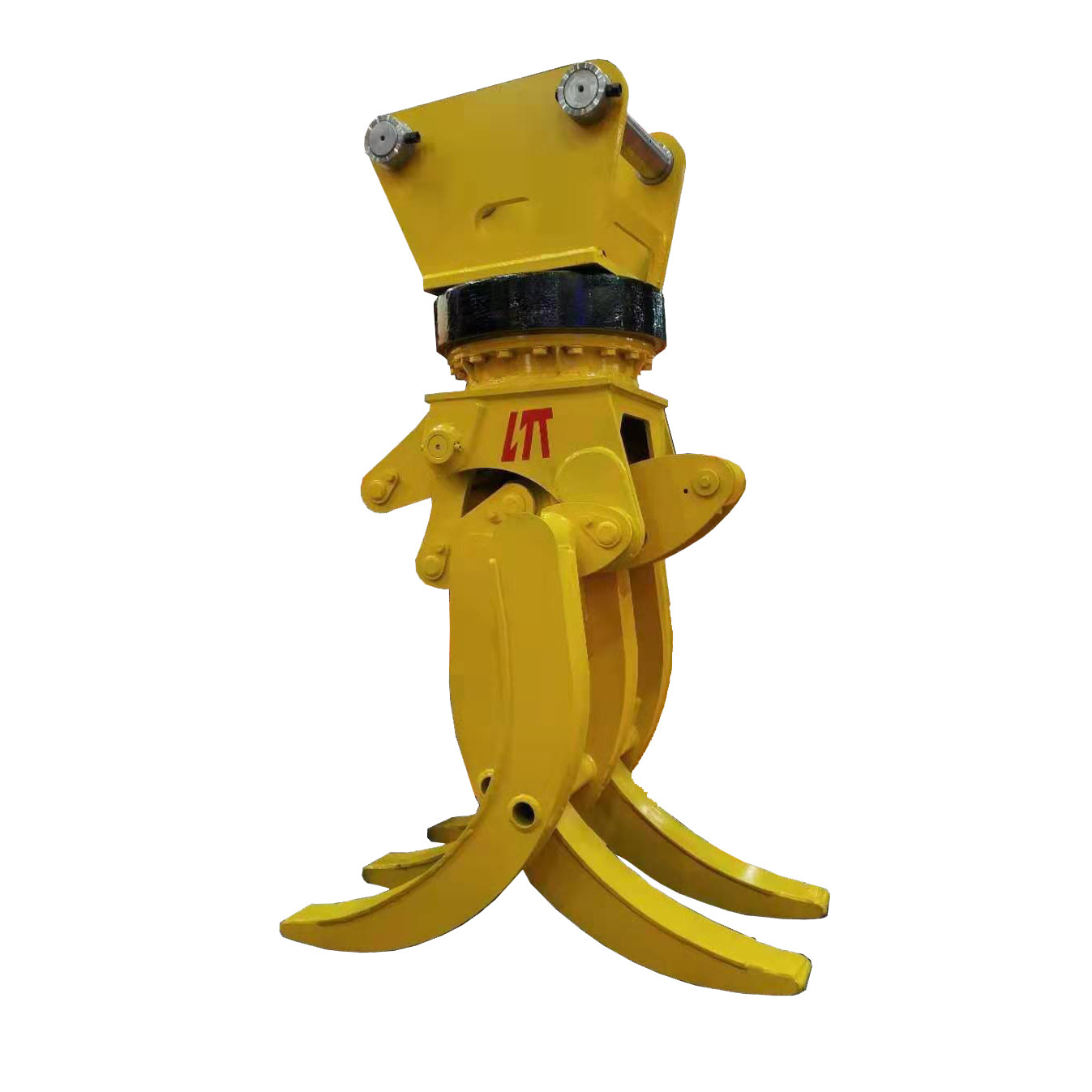

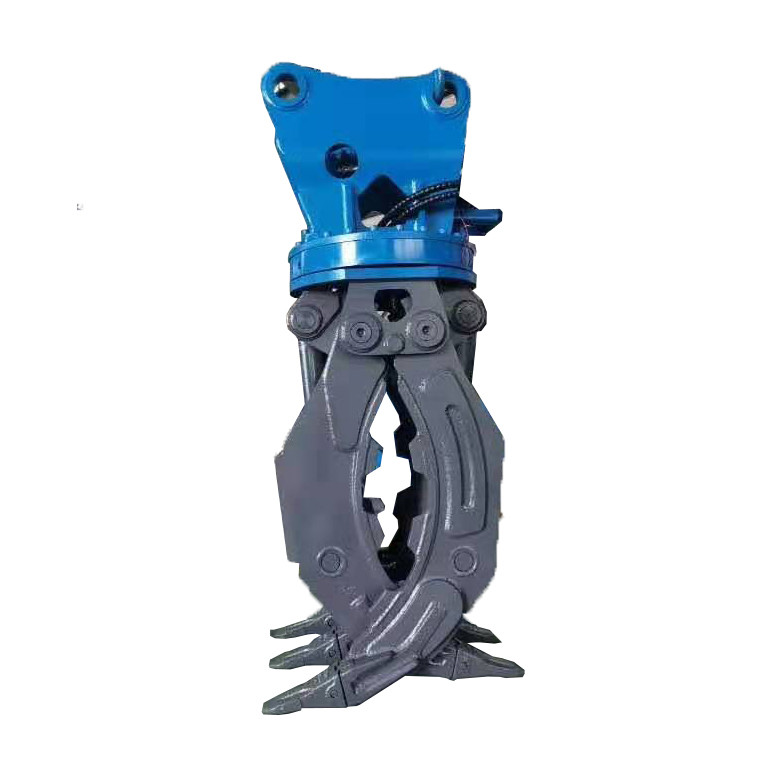

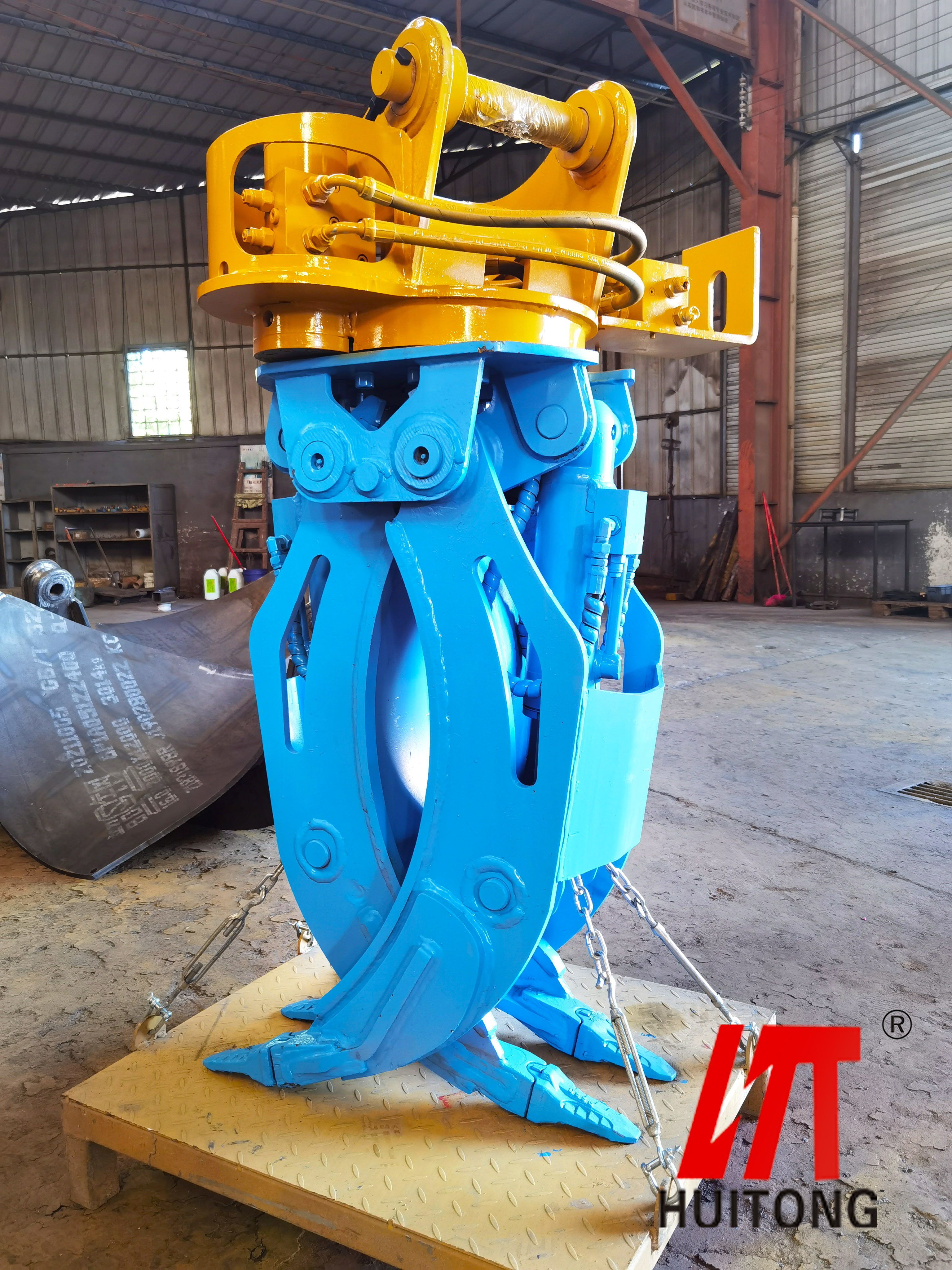

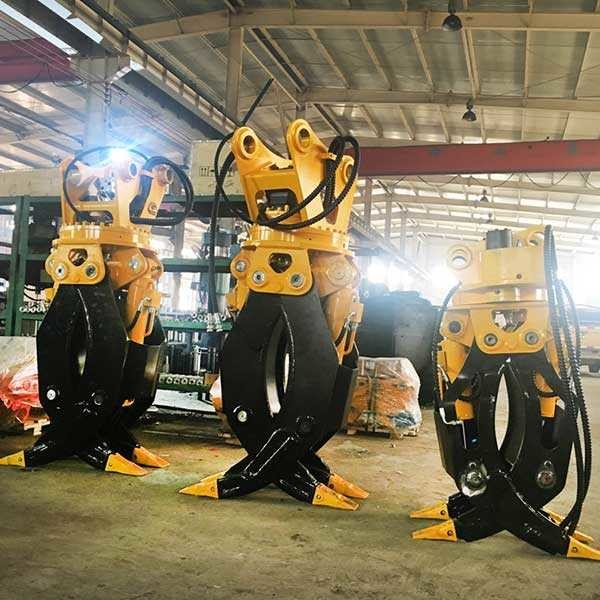

Huitong Excavator Log Grapple 360-degree clockwise or anticlockwise rotation and the rotation speed can be controlled by operator, special rotary gears are used to prolong lifespan and lower the cost, fit for all operations

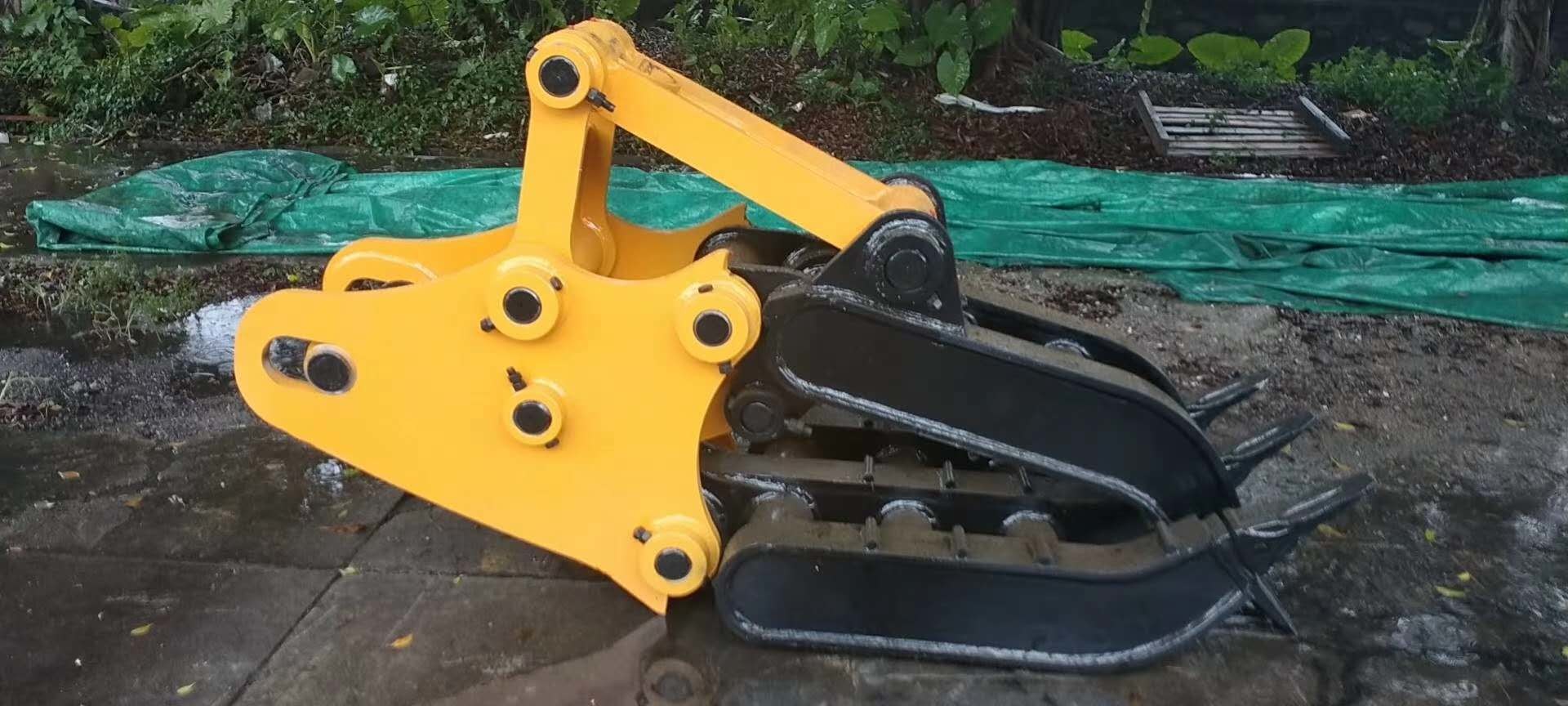

Huitong Demolition Grapple can be used to breakdown material or for handling and loading bulky and uneven materials. It is ideal for rock handling, refuse handling and light demolition work. It is a great tool to have on the job site
Features:
1. Different sizes of grabing materials in bulk.
2. Abrasion resistant steel, more durable.
3. Driven by branded motor with break safety valve.
4. 360 rotating system, make work more effectively.
5.Motor drive adopted symetrical double support design, reducing the bearing load and extend service life.
6.The tine tips are 175,000-psi min. yield 450-550 BHN. Chromium plating.
7.Output Torque:4 kN.m-8.5kN.m(6272lbf.ft)
Holding Torque 38kN.m-105kN.m(78000lbf.ft)
Moment Torque 26kN.m-203kN.m(150,000lbf.ft)
Production Details
|
Huitong Excavator Hydraulic Grapple
|
||||||||||
|
Item/Model
|
Unit
|
HT-02
|
HT-04
|
HT-06
|
HT-08
|
HT-10 | HT-12 | HT-18 | HT-16 | |
|
Suitable excavator
|
Tons
|
4-6
|
6-9
|
10-15
|
18-25
|
26-35 | 36-45 | 45-55 | 56-65 | |
|
Weight
|
kg
|
280
|
350
|
950
|
1680
|
1800 | 1950 | 2010 | 2800 | |
|
Opening
|
mm
|
1150
|
1200
|
1550
|
2103
|
2400 | 2600 | 2780 | 2950 | |
|
Height
|
mm
|
860
|
860
|
1100
|
1964
|
2030 | 2320 | 2500 | 2800 | |
|
Oil pressure
|
Bar
|
110-140
|
120-160
|
150-180
|
160-180
|
160-180 | 180-200 | 180-200 | 200-250 | |
|
Operating Flow
|
Lpm
|
30-55
|
50-100
|
90-110
|
100-140
|
140-170 | 170-190 | 190-210 | 200-240 | |
