5-25 Tons Excavator Grapple Mini Hydraulic Rotating Grapple For Hitachi EX200 EX250
Production Description

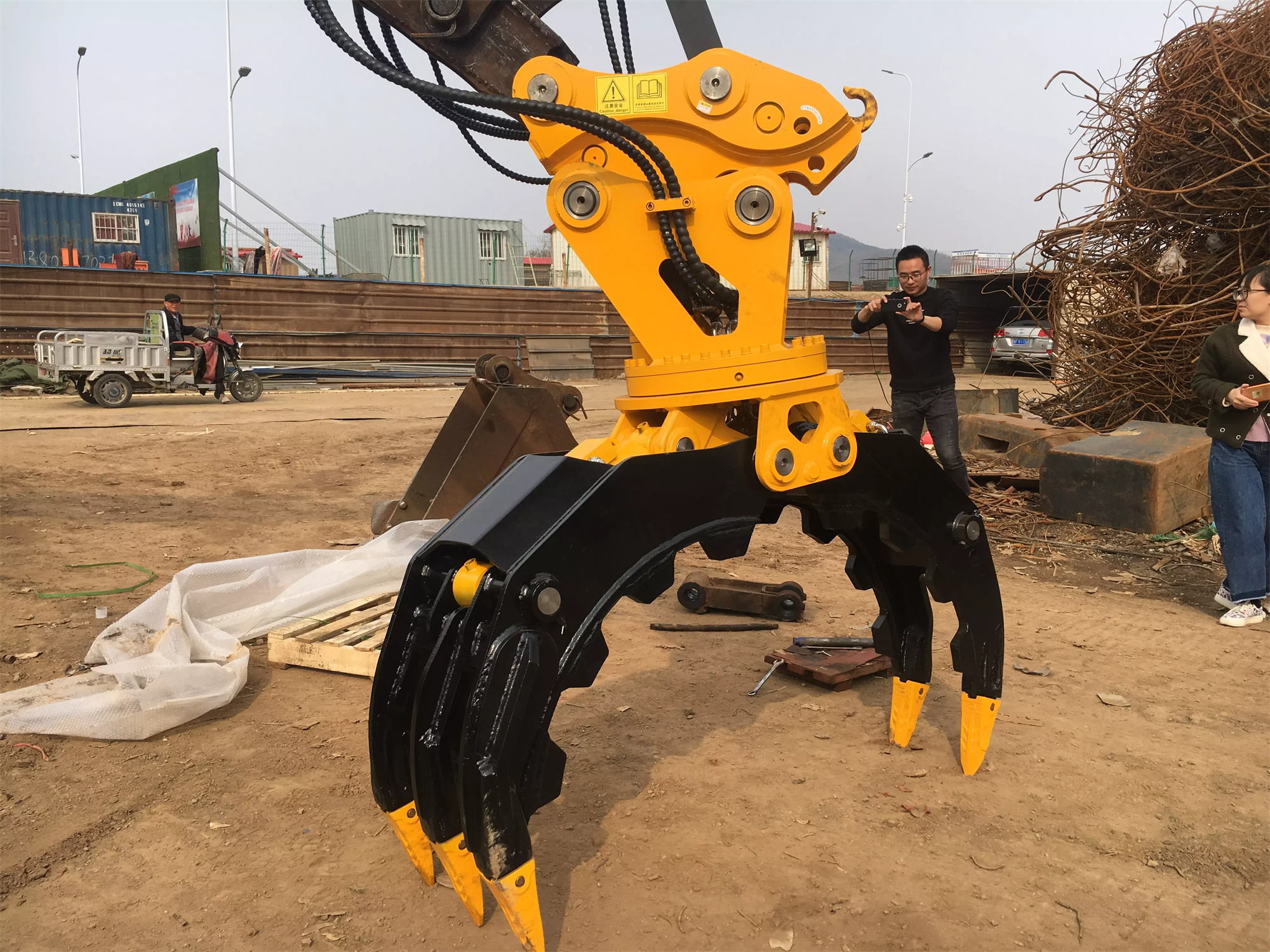

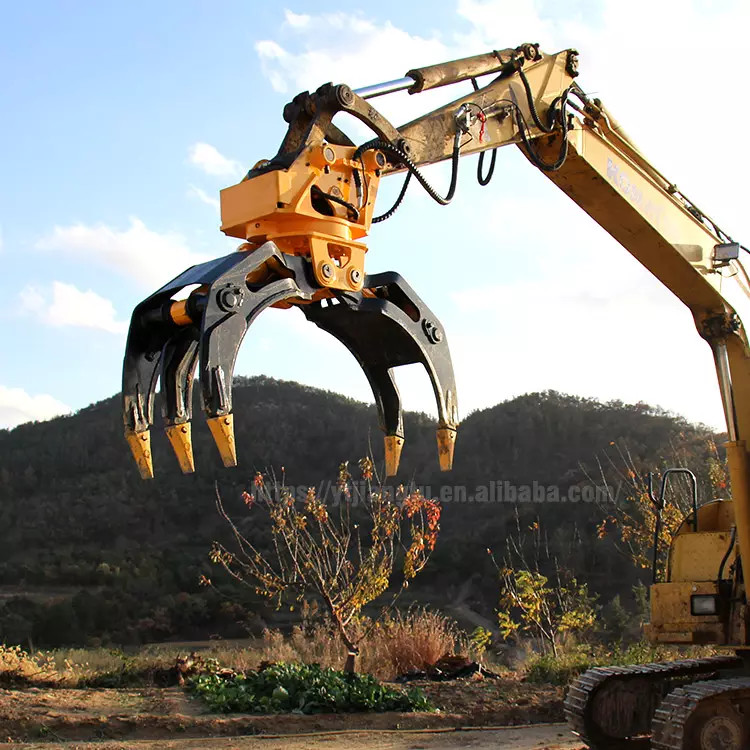

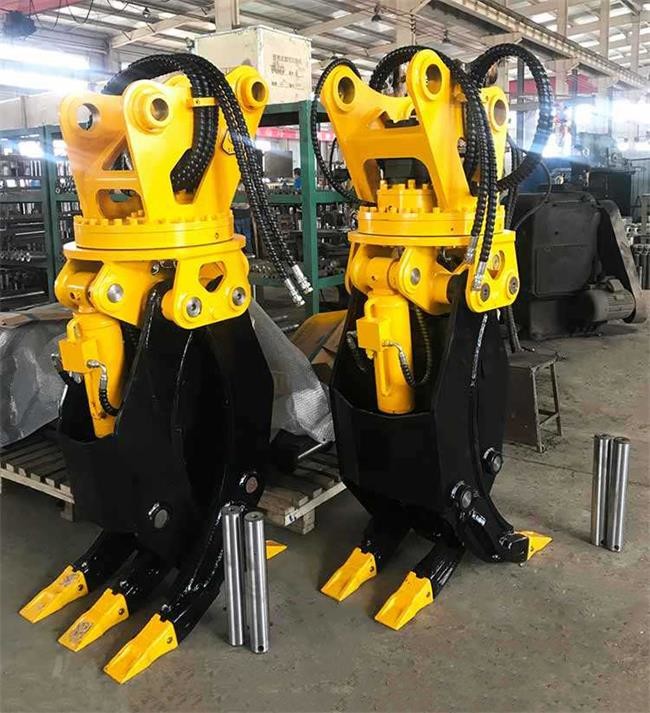

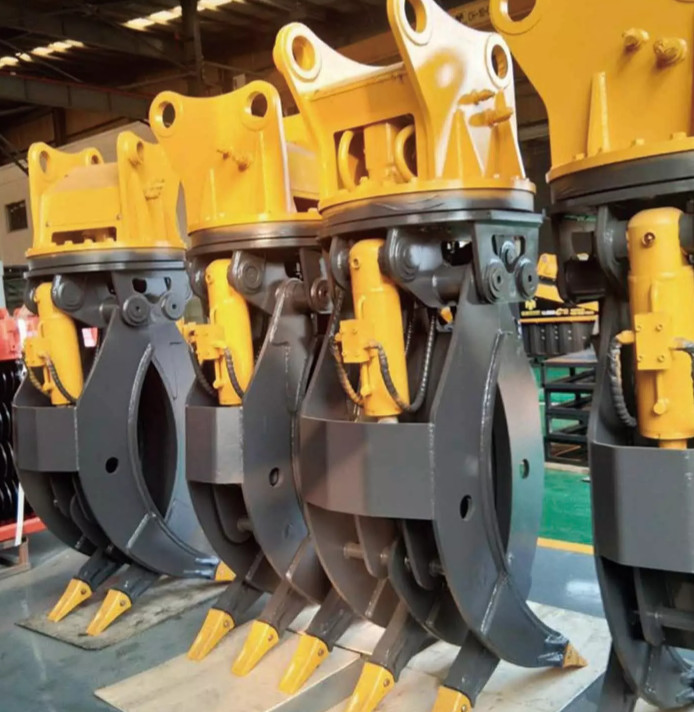

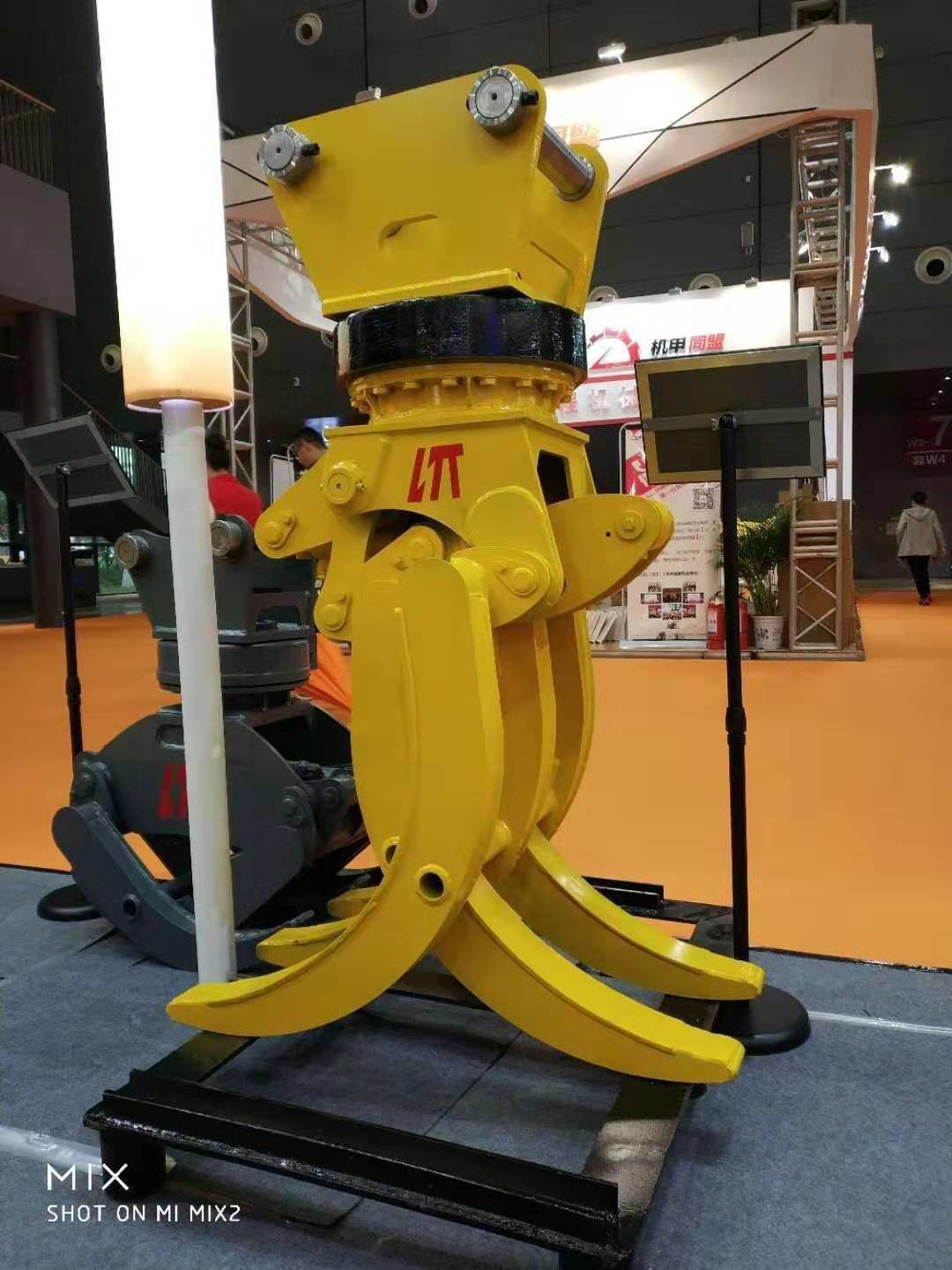

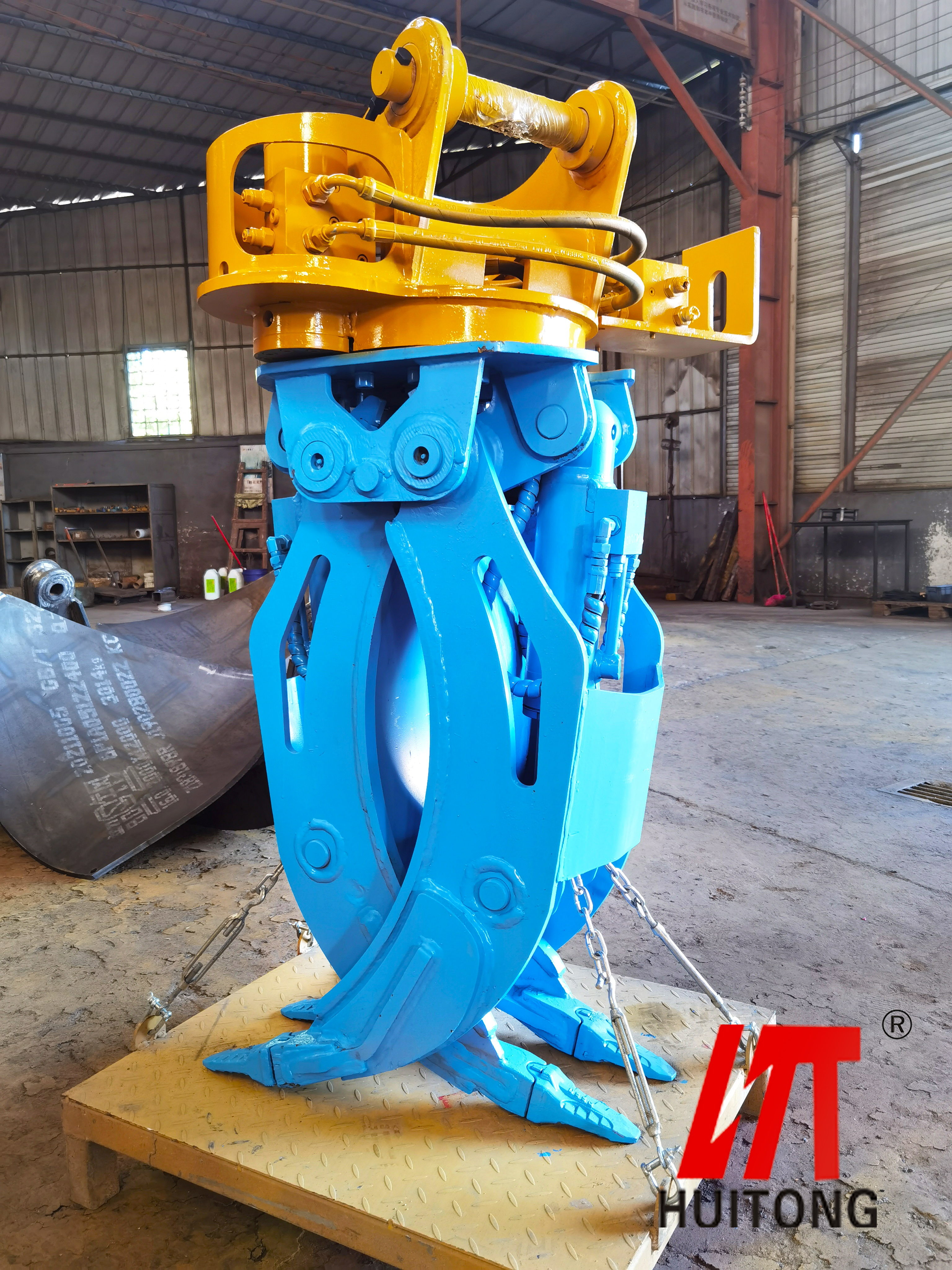

Huitong Excavator Rotory Grapple fit for all operations where there need grappling and loading, such as stone, timber, waste, tube operations, garden and stone laying projects.HT Grapple also called plum grapples, grasping forceps , hydraulic claws , grasping steel device. Both rotating and non-rotating types are available.
Features:
1. Unlimited clockwise and anti-clockwise 360 degree rotatable. Special designed swing bearing for durability and big cylinder for more power
2. Check valve is embedded for better safety shock value enclosed for better safety from damage
3. Wear resistant special solid steel is used and no extra reinforcement is requirement.
4. The wide opening width with light weight, not only outstanding performance handling the iron bar but also maximize his operation efficiency with light weight.
5. Minimized hydraulic trouble which may occur during rotating works.
Production Details
|
Unit
|
HT 02
|
HT 04
|
HT 06
|
HT 08
|
HT 10
|
HT 14
|
|
|
Suitable Excavator
|
ton
|
4-6
|
7-11
|
12-16
|
17-23
|
24-30
|
31-40
|
|
Weight
|
kg
|
320
|
390
|
740
|
1850
|
1950
|
2200
|
|
Max Jaw Opening
|
mm
|
1300
|
1400
|
1600
|
2100
|
2300
|
2800
|
|
Oil Pressure
|
kg/cm2
|
110-140
|
120-160
|
150-170
|
160-180
|
160-180
|
180-200
|
|
Set Up Pressure
|
kg/cm2
|
170
|
180
|
190
|
200
|
210
|
250
|
|
Operating Flux
|
L/min
|
35-55
|
50-100
|
90-110
|
100-140
|
130-170
|
200-250
|
|
Cylinder Volume
|
ton
|
4.0*2
|
4.5*2
|
8.0*2
|
9.7*2
|
12*2
|
12*2
|
