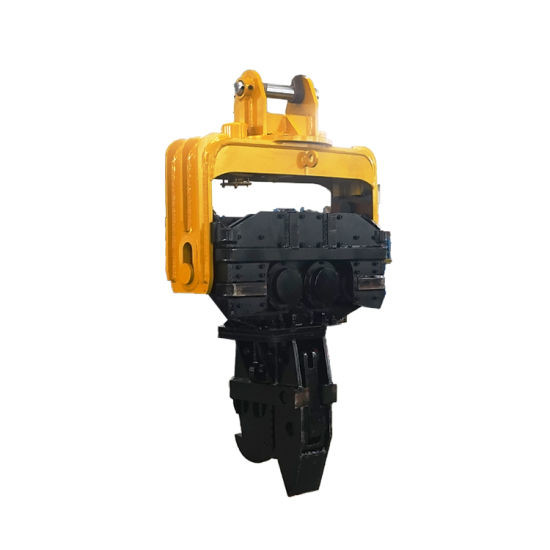

25 Tons Excavator Mounted Vibratory Hammer V250 Hammer For PC250 R250 SY250
Production Descrption
Huitong Excavator mounted vibratory hammer can be applied for a wide range of working enviroment because of its small size and simple operation procedure, such as drainage maintenance, river-bank maintenance and marshland working wherever onshore and offshore piling job.
High frequency hydraulic vibratory pile driver internally installed two eccentric shaft. It adopts hydraulic motor to drive and produce high-speed revolution and vertical vibration force. Through the damping rubber block to maintain a certain amplitude to cope with various types of soil and pile driving. Sheet Pile Vibro Hammer can be applied for a wide range of working enviroment because of its small size and simple operation procedure, such as drainage maintenance, river-bank maintenance and marshland working wherever onshore and offshore piling job.
Features:
can be installed on all kinds of excavators and make efficient, flexible and accurate pile driving in many sites.
Suitable for different site and soil conditions
Suitable for a wide range of piles including sheet piles, H-beams, tubular steel piles, timber piles, pre-concrete piles
|
Huitong Excavator Vibro Hammer
|
||
|
Model
|
V250
|
V300
|
|
Eccentric moment (Nm)
|
40
|
85
|
|
Amplitude (mm)
|
6.8
|
14
|
|
Oil Flow (L/min)
|
155~200
|
200~255
|
|
Pressure (kg/cm2)
|
240~260
|
240`260
|
|
Frequency (rpm)
|
2800
|
2800
|
|
Max. Centrigufal Force (kN)
|
300
|
570
|
|
Max. rotation angle
|
360 degrees
|
360 degrees
|
|
Vibro hammer with clamp (LxWxH) (mm)
|
1300x1400x1400
|
1500x1550x1700
|
|
Vice arm (LxWxH) (mm)
|
2600x650x1050
|
3200x650x1150
|
|
Total Packaging Volume
|
6.97m3
|
9.28m3
|
|
Net Weight of Vibro Hammer( kg)
|
2000
|
2800
|
|
Net Weight of Vice arm (kg)
|
500
|
650
|
|
Total net weight (kg)
|
2500
|
3450
|
|
Matched Excavator (Ton)
|
20~35
|
35~50
|

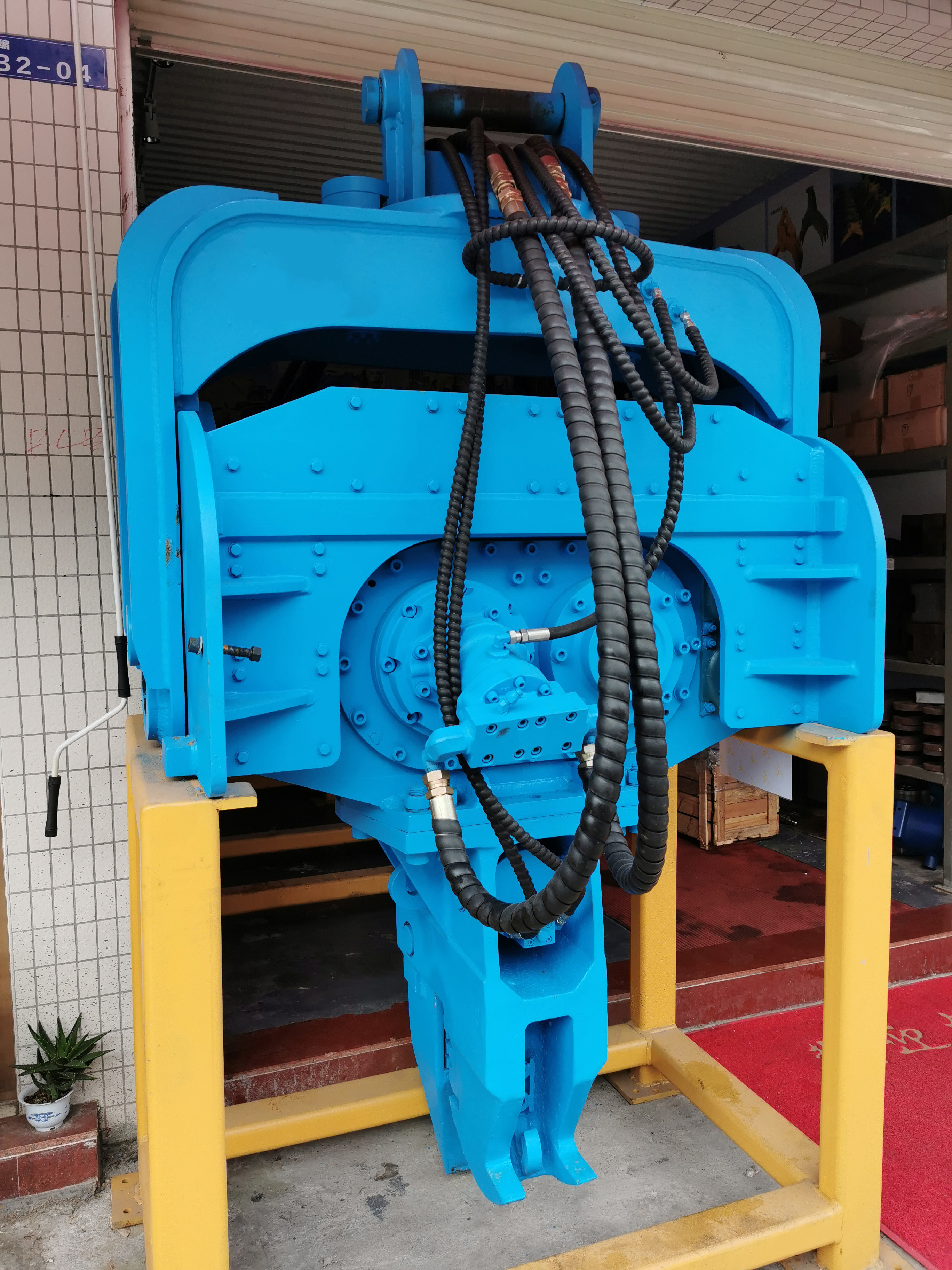

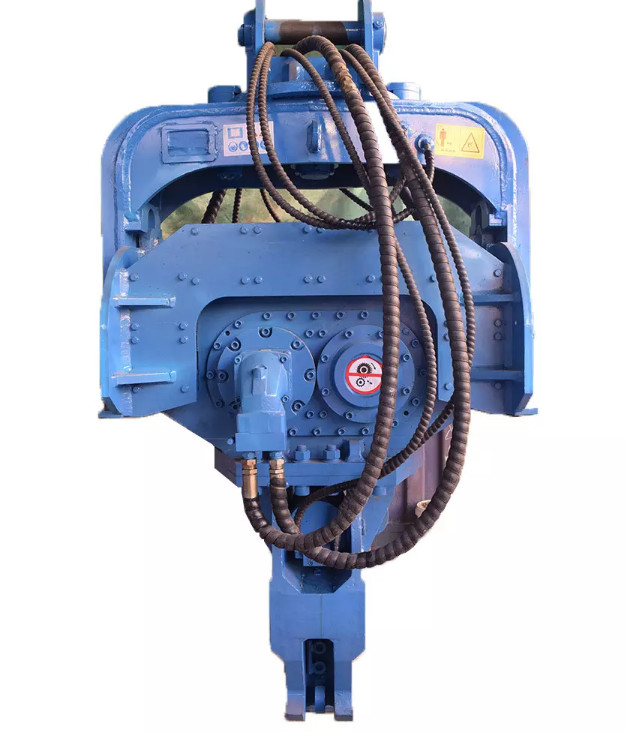

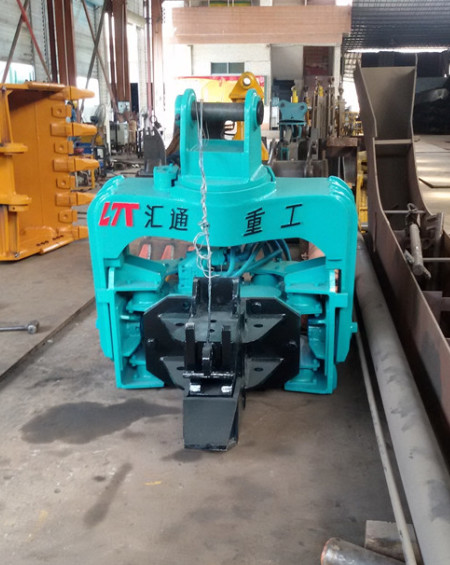

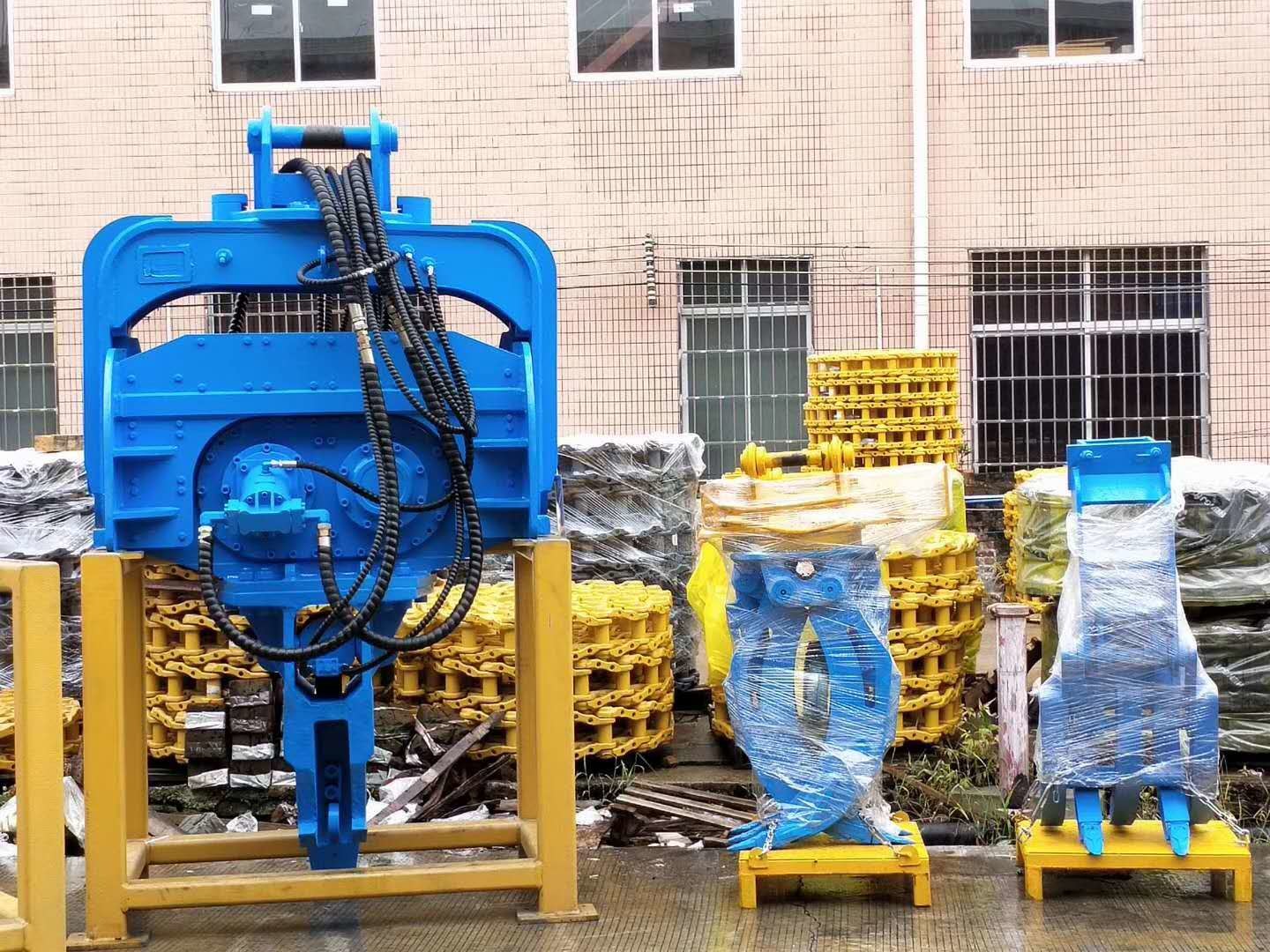

Prosuction Details
