Product Details:
Payment & Shipping Terms:
|
Product Name: | Excavator Pile Hammer | Material: | Q355b+NM400 |
---|---|---|---|
Efficiency: | High Efficiency,2800rmp | AppliPCion: | Building Foundation |
Color: | Customer's Requirement | Working Pressure: | 9~17Mpa |
Warranty: | 6 Months | Suitable: | 40 Tons Excavator |
High Light: | 22 Meter Excavator Pile Hammer,SWE300 Excavator Pile Hammer,DH350 Hydraulic Pile Hammer |

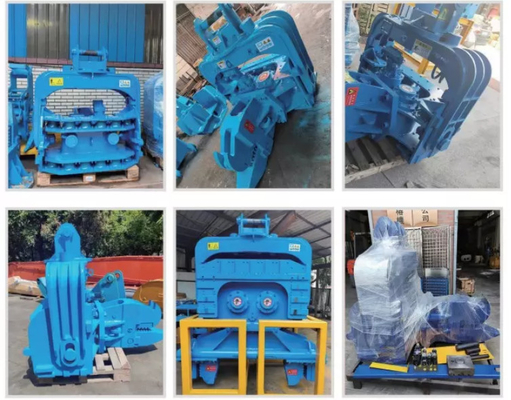

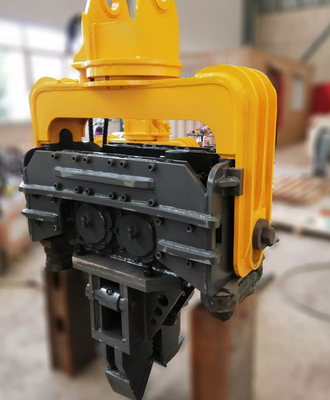

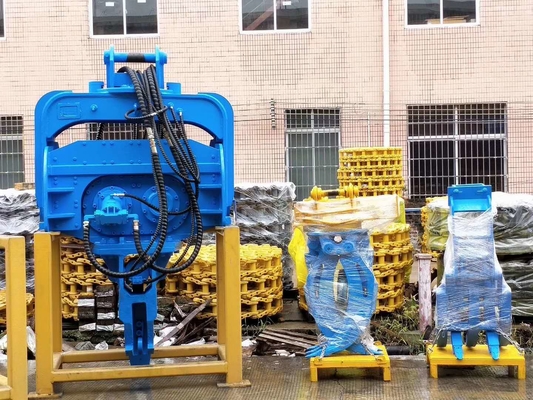

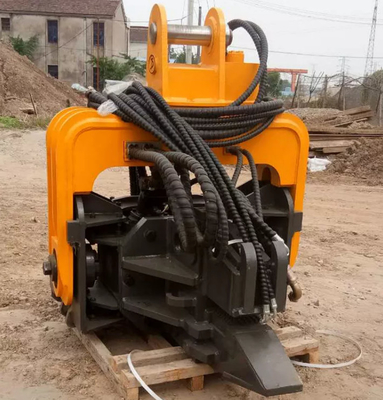

Excavator Vibratory Hammer Pile 10-22 Meter Pile Hammer For R300 DH350 SWE300
Production Descrption

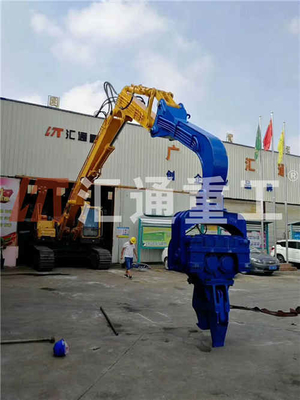

Huitong hydraulic mini excavator pile driver is the vibratory driving piling equipment which is use more among a wide variety of foundation projects.Apart from driving and pulling pilessuch as sheet piles and pipes, excavator vibro hammer are also used for soil densifying or vertical drainage, especially suitable for municipal, bridges, cofferdam, building foundation, etc.
Hydraulic pile driver for mini excavator is using its high frequency vibration to vibrate pile body with high acceleration to pass the vertical vibration of mechanical produce to pile which leading to changes in the soil structure around the pile, strength decrease. Soil around the piles become liquefaction to reduce frictional resistance between side of the pile and the soil.
Features:
1. fast conversion between driving and pulling work, less tension when pulling piles
2. Powerful hydraulic cylinder,Super durable tooth piece, add the double pressure protection device to ensure the safety
3. no damage to the bottom or top of steel plate and steel rail pile
4. No damage to the buildings even working frequently nearby
5. Silent work and short construction period, overcome environmental problems
Item/Model
|
Unit
|
HT 150
|
HT 250
|
HT 330
|
HT 350
|
HT 450
|
|
Sunitable Excavator
|
ton
|
12-17
|
18-25
|
30-40
|
40-50
|
40-65
|
|
Eccentric Moment
|
Nm
|
32
|
36
|
50
|
65
|
85
|
|
Frequency
|
rpm
|
2500
|
2800
|
2800
|
2800
|
2800
|
|
Centrifugal Force
|
kN
|
172
|
265
|
420
|
580
|
750
|
|
Working pressure
|
bar
|
300
|
300
|
320
|
320
|
320
|
|
Working flow
|
lpm
|
120
|
155
|
168
|
210
|
255
|
|
Max Turning
|
degree
|
180
|
180
|
180
|
180
|
180
|
|
weight
|
Main body
|
kg
|
1300
|
1900
|
2650
|
2900
|
3000
|
Extension Boom
|
|
260
|
400
|
650
|
650
|
650
|
|
Total Weight
|
kg
|
1560
|
2300
|
3300
|
3550
|
3650
|
Prosuction Details
