900-1200mm Width Excavator Tilt Bucket For Case CX130 CX160

Certification
Good quality Heavy Duty Excavator Bucket for sales
We tried our first order in 2018, which was two years after I exchange my business card with Alice in 2016 Bauma conexpo India. Our supplier didn't finish our order on time, and it will cause around 100,000 USD lose to us. That's when we tried Huitong the first time. Huitong is good at dealing with rush orders, and the quality is very good.

—— Mr.Varun, Dealer, India

I work with Huitong the first time when I started my importing business. I've got tons of market insights from Jeremy. He is such a good friend being very tolerant to my bad temper. In 2017, Jeremy helped me handle a problem of bill of lading, which is caused by me. Huitong always emphasize that we should deal with the problem as soon as it occurs.

—— Mr.Stanislav Lilov, Bulgaria

We started cooperated with Huitong from 2017, they are honest, professional, always help us slove problems at the first step, we buy excavator attachments from Huitong in one stop, we share market insights like a good friend. Love Their Work.

—— Sony

I'm Online Chat Now

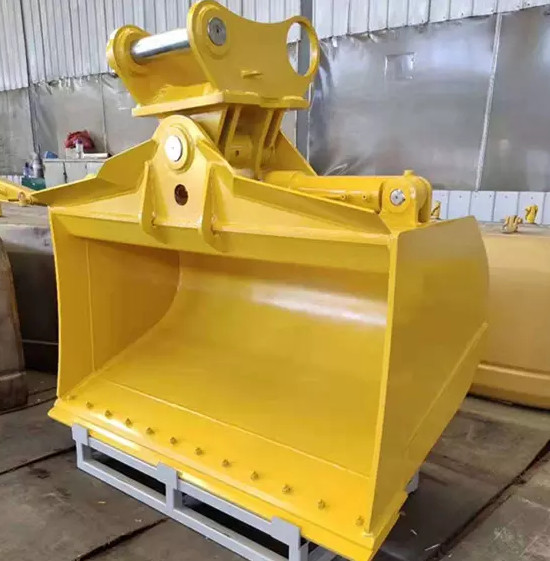

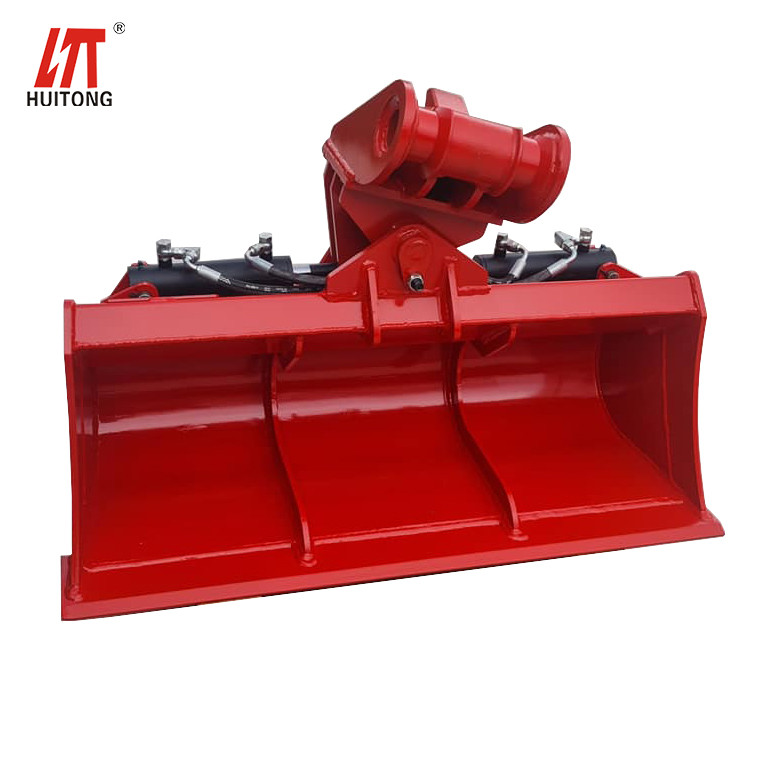

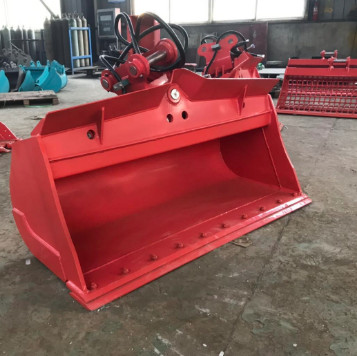

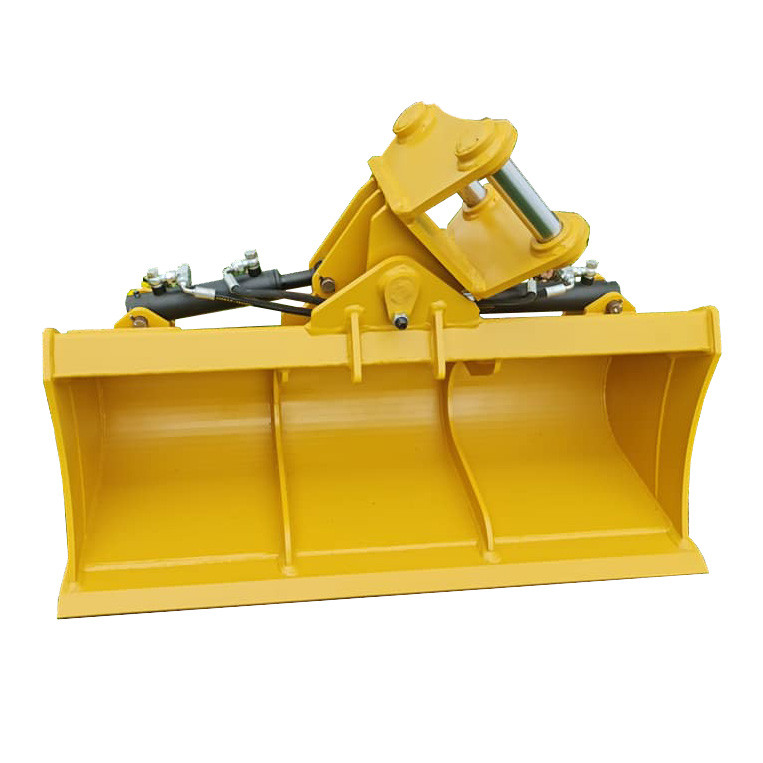

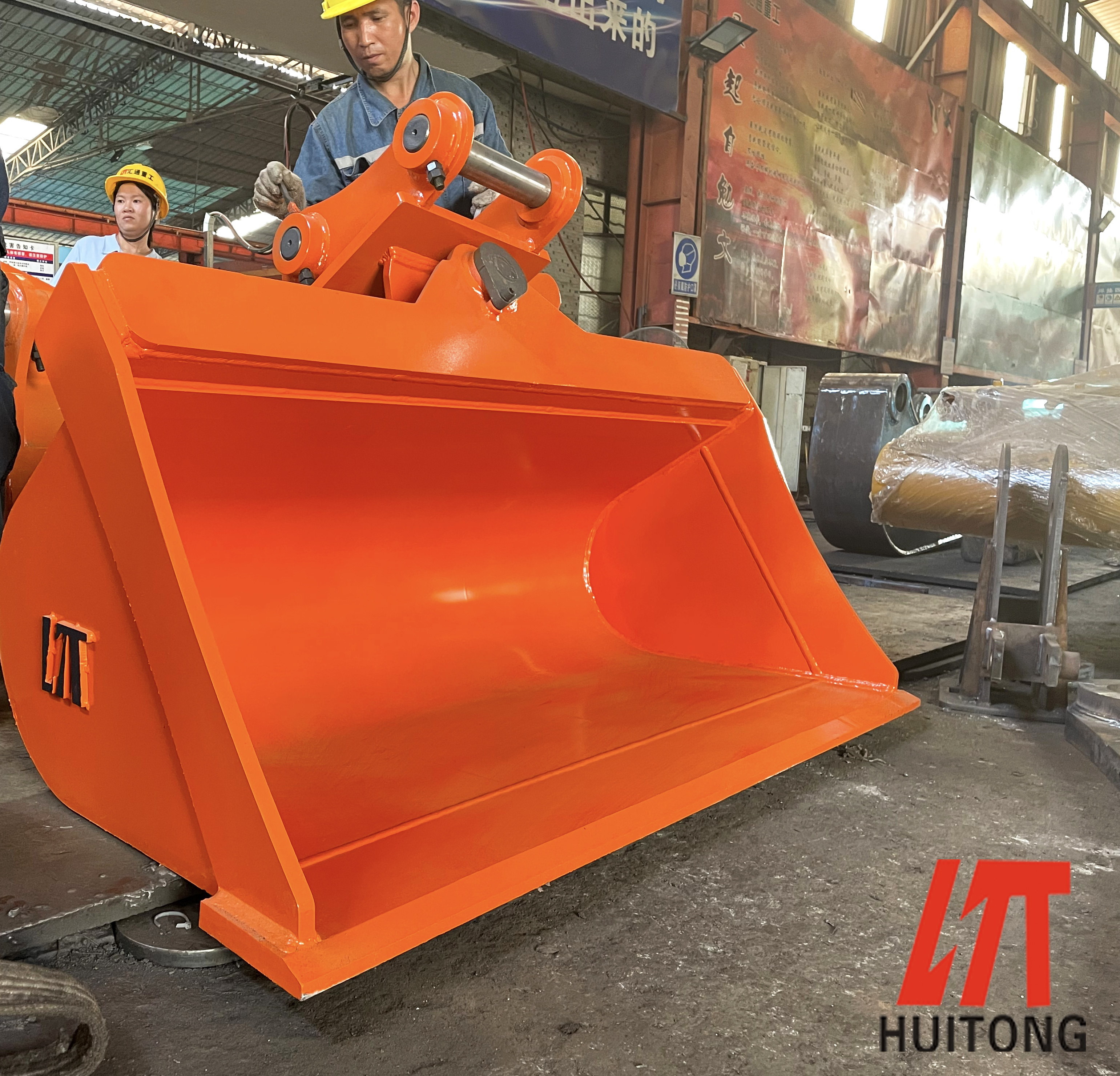

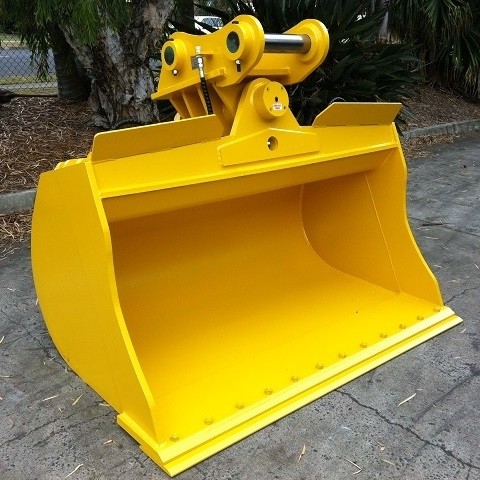

900-1200mm Width Excavator Tilt Bucket For Case CX130 CX160

900-1200mm Width Excavator Tilt Bucket For Case CX130 CX160
900-1200mm Width Excavator Tilt Bucket For Case CX130 CX160
video play

Large Image :  900-1200mm Width Excavator Tilt Bucket For Case CX130 CX160

Product Details:
Place of Origin: Guangzhou,China
Brand Name: Huitong
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pcs
Price: $680-1100/pcs
Packaging Details: standard package
Delivery Time: 8-16 workdays
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 pcs per mounth
Detailed Product Description
CertifiPCion: ISO9001 Condition: New
Product Name: Excavator Tilting Bucket Weight: 680kg-3800kg
Suitable: Case Excavator Type: Tilt Cleaning Bucket
AppliPCion: Handling Of Stone Oem: Available
High Light:

1200mm Width Excavator Tilt Bucket

,

CX130 Excavator Tilt Bucket

,

CX160 Excavator Tilt Bucket

900-1200mm Width Excavator Tilting Bucket Rotating Bucket For Case CX130 CX160





Production Descrption



Huitong tilting bucket also designed with double cylinders and with double cutting edges( Single cylinder design is also available).

With 2 x 45 ° swivel angle and round vessel shape - ideal for Excavation, material installation and grave Broaching.It has pressure-retaining valve for safety.



A Tilt Bucket is a very Flexible and Versatile Solution and is Designed to Tilt Laterally in Both Directions.The Tilt Function Facilitates Cleaning and Leveling Along Ditches and Banks in an Easy Way, and Allows the Machine to Work Parallel to the Ditch.



Features:
1: Reasonable plate design, Increasing the longevity of the bucket.

2: Tapered Sides, This is to help while digging at a tilted angle by reducing ground contact.
3: Protector guard,  tilting bucket equip with protective guard, it can protect cylinder.

4.Cutting edge and side cutters are 400 HB steel. Robust, wear-resistant blades and side cutters.

5.With 2 x 45 ° swivel angle and round vessel shape - ideal for Excavation, material installation and grave Broaching.

Tilting Bucket
Ton Range
Model
Width(mm)
Bore(mm)
Bucket capacity(m3)
Weight(kg)
Remark
0T-3T

 HT mini

900
50
0.12
270

single cylinder
3T-5T
HT 30
1050
50
0.15
320
4T-6T
HT 50-
1200
50
0.2
420





double cylinders and changeable cutting edges
8T-12T
HT 80
1500
63
0.3
630
12T-16T
HT 120-1500
1500
63
0.55
700
16-18 T
HT 120-1600
1600
63
0.57
820
18T-23T
HT 200-1800
1800
80
0.9
895
23T-29T
HT 250-1800
2000
80
1.51
1390







Production Details

 900-1200mm Width Excavator Tilt Bucket For Case CX130 CX160

900-1200mm Width Excavator Tilt Bucket For Case CX130 CX160900-1200mm Width Excavator Tilt Bucket For Case CX130 CX160

900-1200mm Width Excavator Tilt Bucket For Case CX130 CX160900-1200mm Width Excavator Tilt Bucket For Case CX130 CX160
