3-8 Tons Excavator 1200-1500mm Wide Hydraulic Tilting Bucket
Production Descrption
Huitong Excavator Tilting Bucket is used for ditch cleaning and sloping grading. Double cylinder design and single cylinder design are both available.With 2 x 45 ° swivel angle and round vessel shape - ideal for Excavation, material installation and grave Broaching.Tilting bucket can change the angle of the bucket without changing the position of the excavator to operate, thus reduce the wear loss and oil cost and improves the work efficiency.
A: Double cutting edges: These reduce the wear to the base of your bucket and help strengthen it against damage and caving in.
B: High quality cylinder and hydraulic lock: Increasing the safty and prevent oil reveal.
C: Reasonable plate design: Increasing the longevity of the bucket.
D: Tapered Sides:This is to help while digging at a tilted angle by reducing ground contact.
E: Protector guard: Huitong tilting bucket equip with protective guard, it can protect cylinder.
F: Hydraulic valve and valve protective guard
It design can prevent oil reveal and extend the valve service life.
PCegory | Unit | HT-mini | HT-02 | HT-04 | HT-06 | HT-08 |
Rotation angle | 360 | 360 | 360 | 360 | ||
Oil pressure | bar | 80-120 | 110-140 | 120-160 | 150-170 | 160-180 |
Operating flow | lpm | 25-40 | 30-55 | 50-100 | 90-110 | 100-140 |
Excavator weight | ton | 1.5-3 | 4-6 | 6-9 | 12-16 | 17-23 |
Weight | kg | 120 | 163 | 240 | 730 | 1260 |

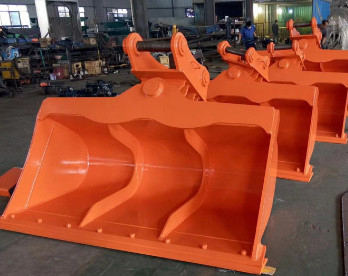

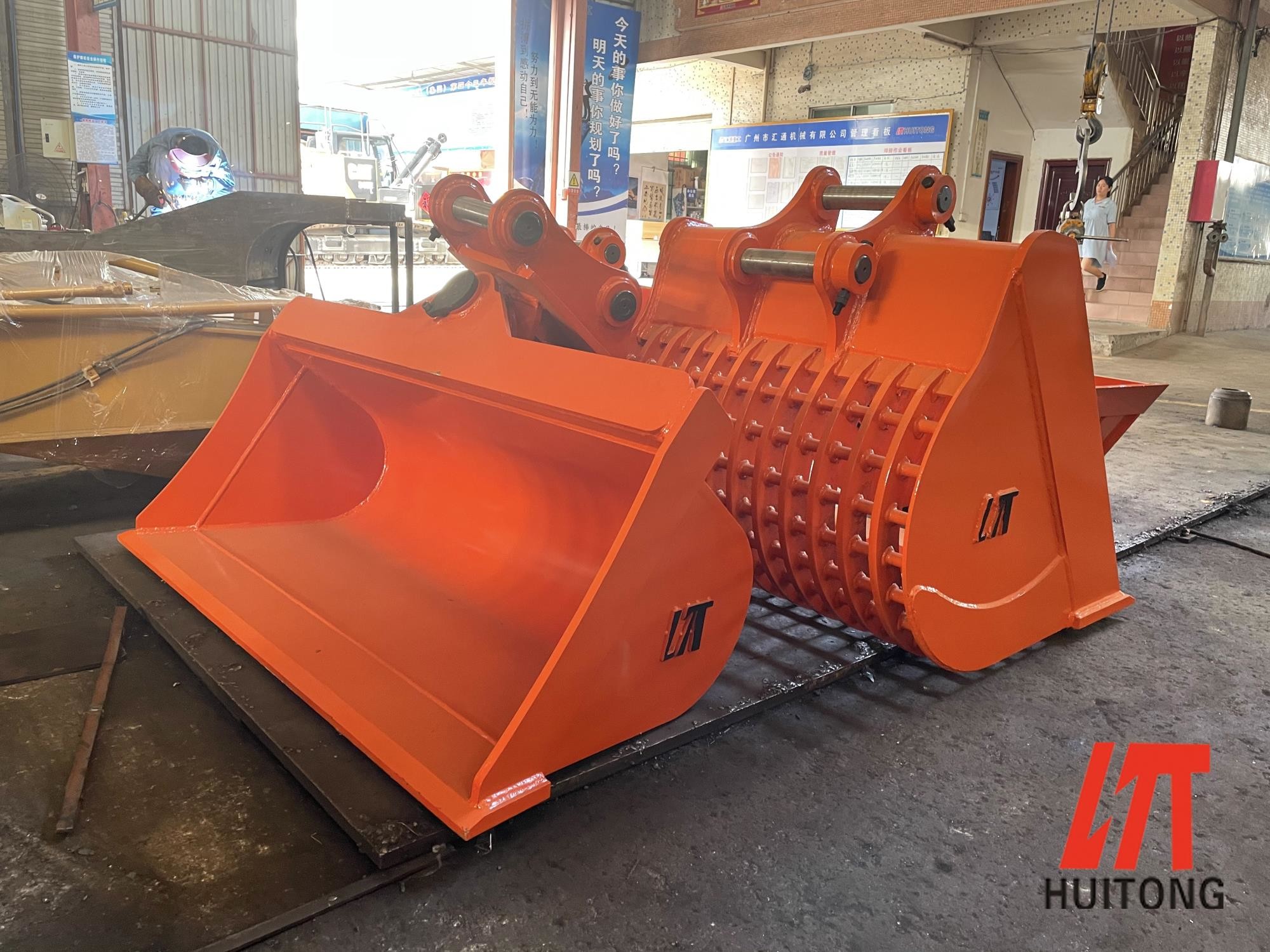

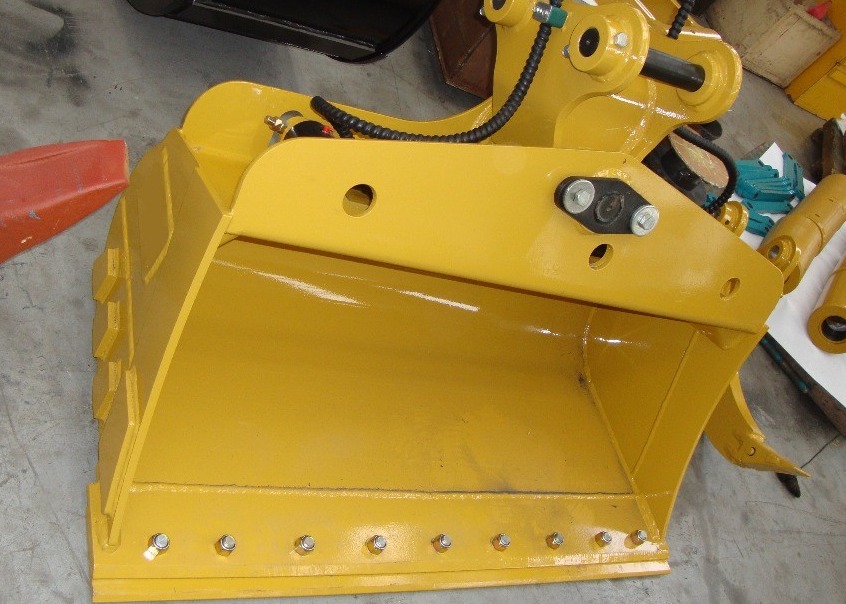

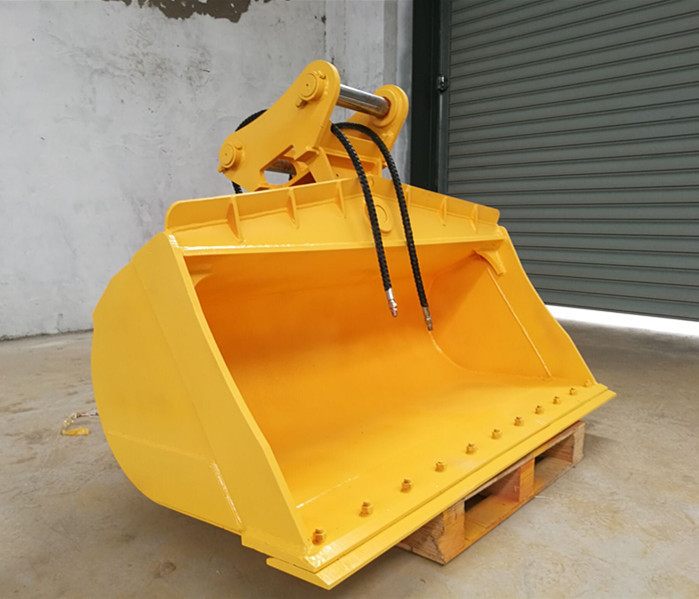

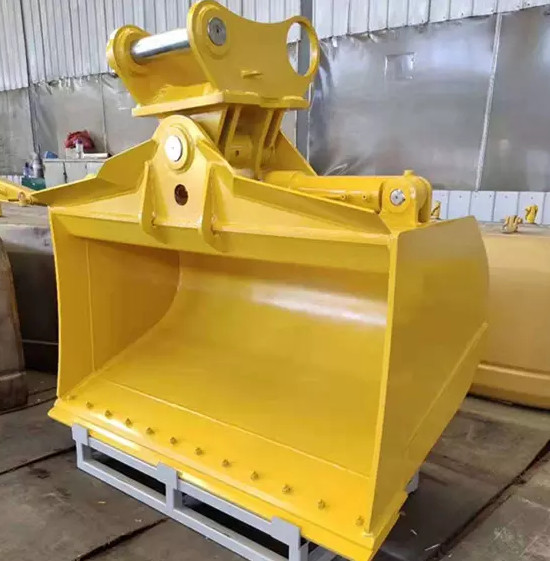

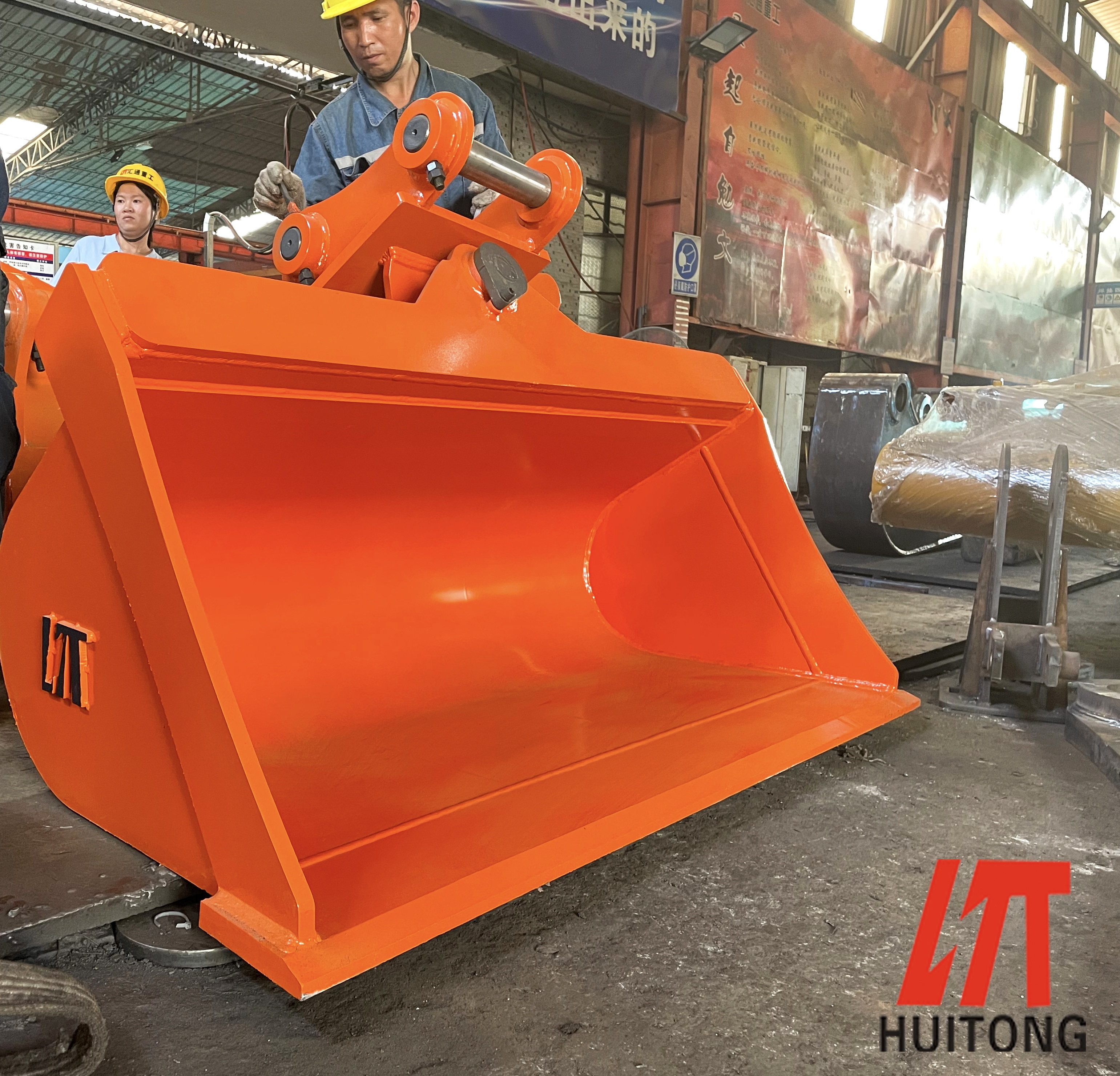

Production Details
