0.8-1.3 Cbm Hydraulic Tilt Bucket DH220 DH250 Mud Bucket for Excavator
Production Descrption
Huitong Excavator Tilt bucket use the Q345B+NM400, Hardox400/500 materials, use strengthen plate in the bottom, add side protective plate, wearing strip, wearing block, original or domestic adapter and tooth to reach high abrasion and bending ability, applying to different working
environments .
All hoses are arranged well, the only thing you need to do is to install our tilting bucket with your spare hoses in excavator.Selectively pivoting device with 2 or 1 hydraulic cylinder or with hydraulic rotary motor.It has pressure-retaining valve for safety.
Features:
1: Double cutting edges: These reduce the wear to the base of your bucket and help strengthen it against damage and caving in.
2: High quality cylinder and hydraulic lock: Increasing the safty and prevent oil reveal.
3: Reasonable plate design: Increasing the longevity of the bucket.
4: Tapered Sides:This is to help while digging at a tilted angle by reducing ground contact.
|
Model
|
HT 50
|
HT 80
|
HT 120
|
HT 200
|
HT 00
|
|
Pin Diameter(mm)
|
45
|
50
|
60/65
|
80
|
90/100
|
|
Ears Distance(mm)
|
170
|
220
|
260
|
340
|
390
|
|
Pin to Pin Center(mm)
|
245
|
310
|
360
|
465
|
530
|
|
Dimensions(mm)
|
1200*788*916
|
1400*869*1008
|
1700*1074*1210
|
1900*1195*1478
|
2030*1362*1729
|
|
Apply to(ton)
|
5
|
6-8
|
12-18
|
20-24
|
25-36
|

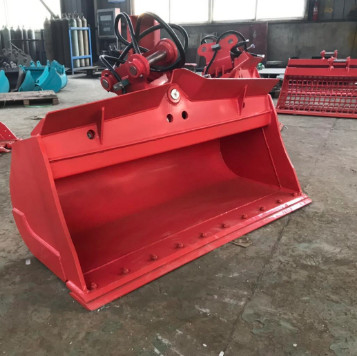

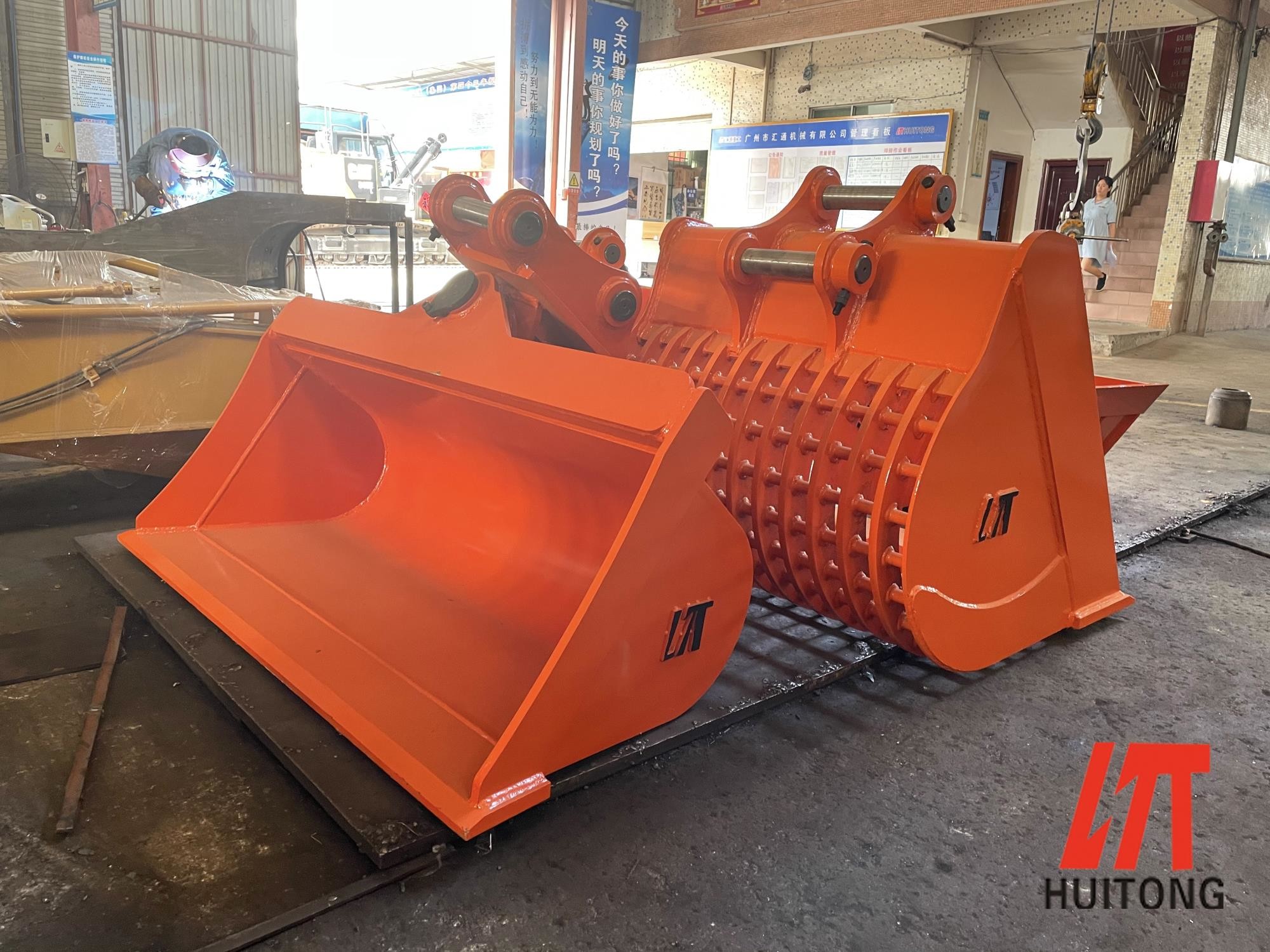

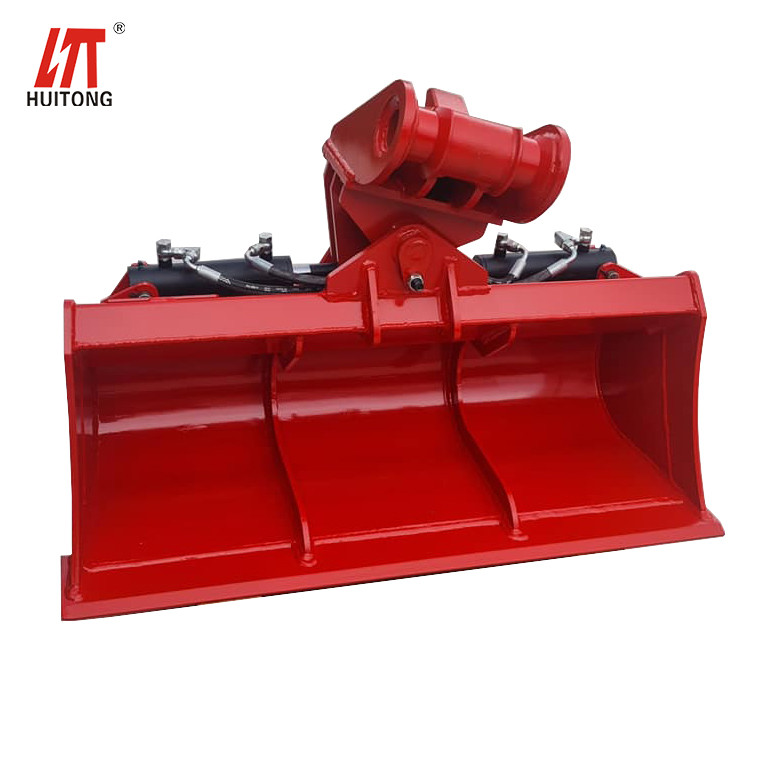

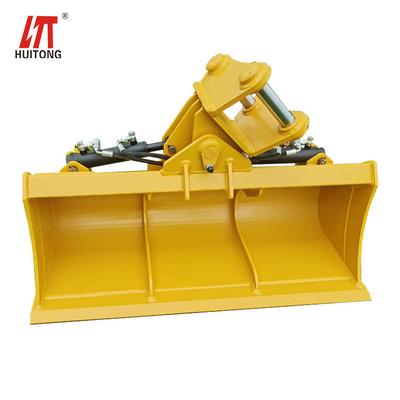

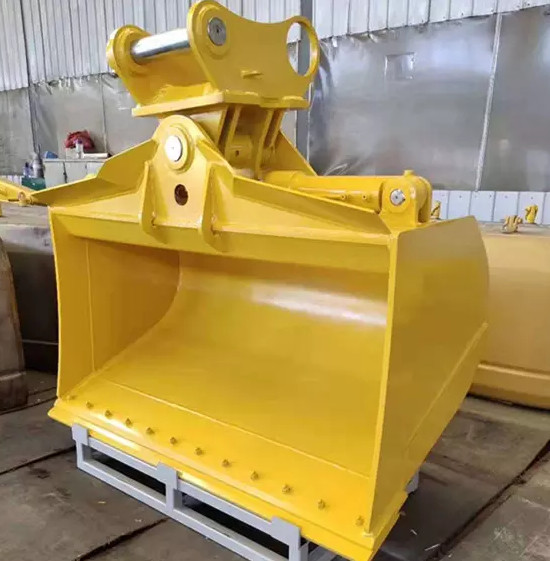

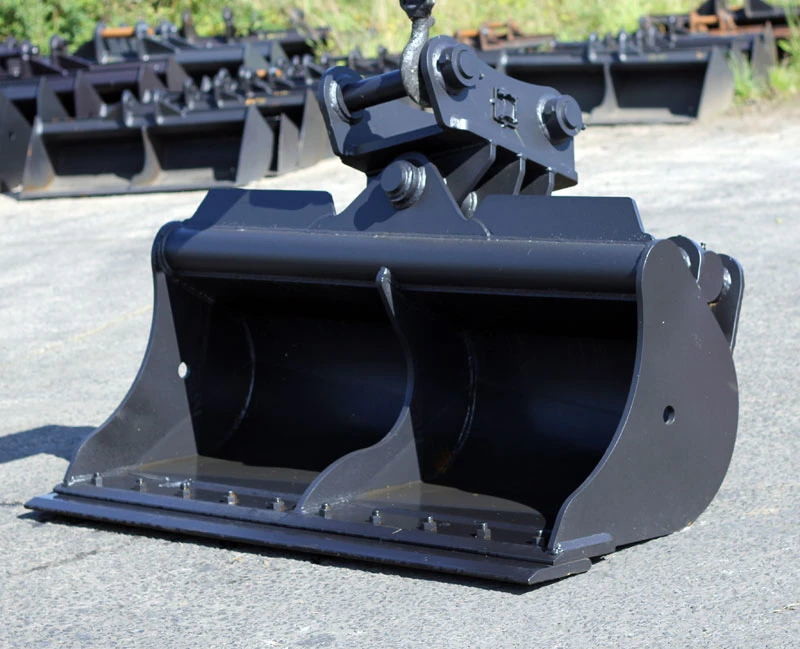

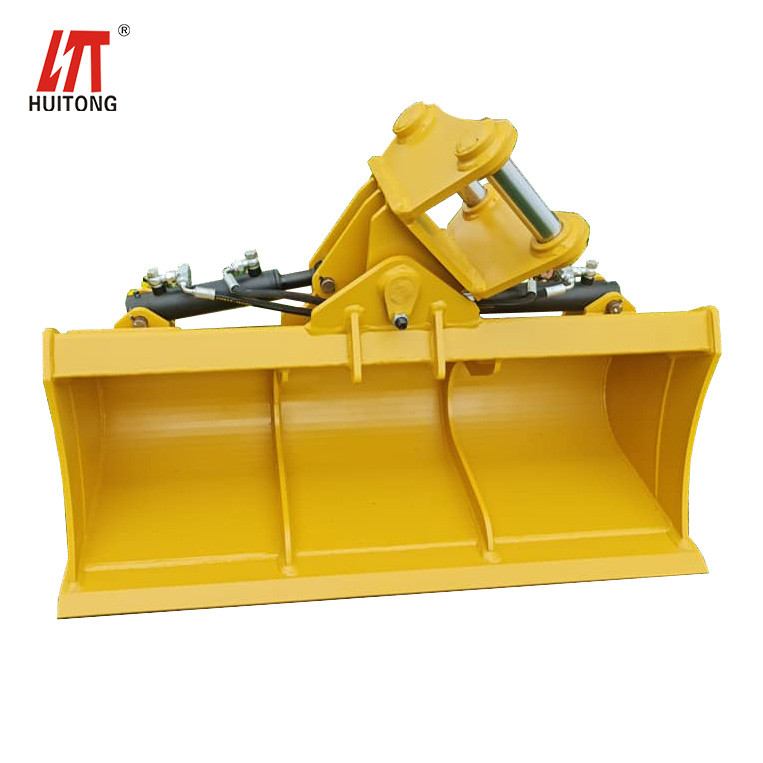

Production Details
