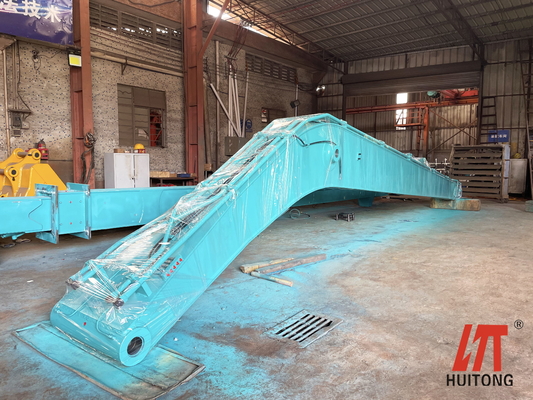

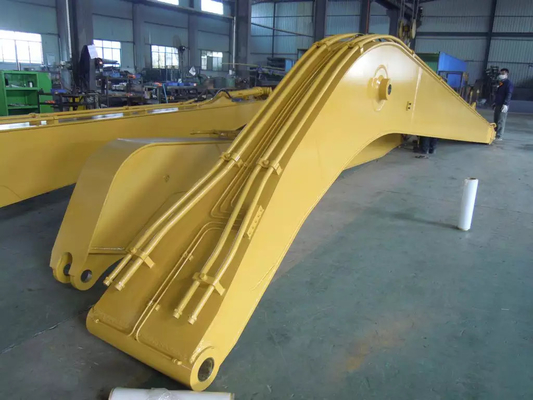

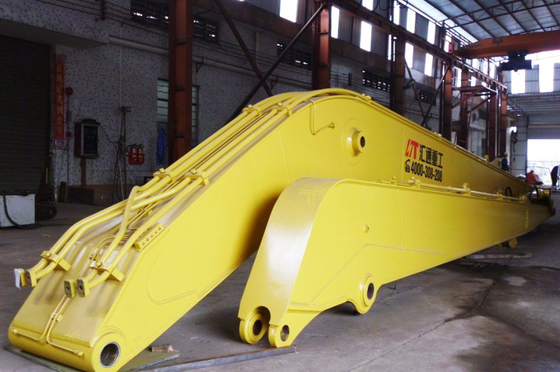

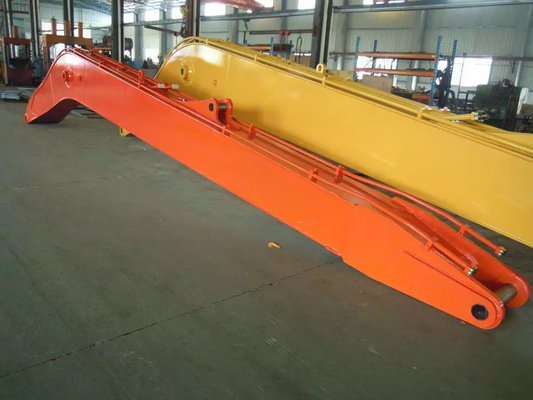

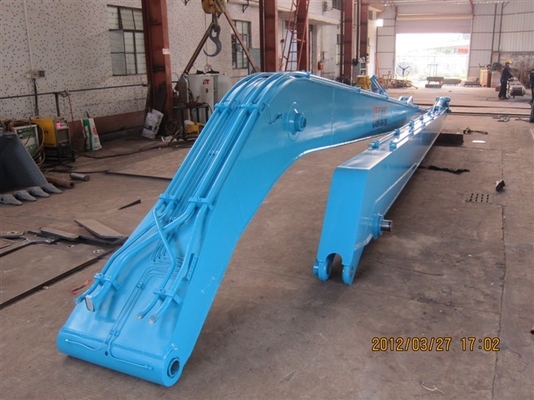

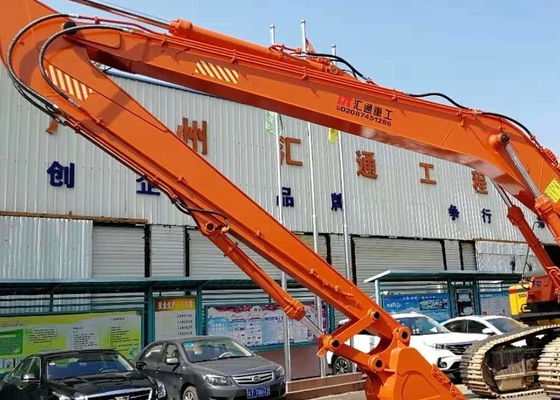

22 Tons Excavator 18 Meters Long Boom And Arm For PC220 SK220 EX220
Production Descrption
Huitong Two-segment Long Reach Boom and Arm can be mainly used in the purpose of river dredging, port construction, subway construction, construction base excavation, with high working efficiency. Huitong Excavator Long reach front is an ideal solution for river and sea dredging either on land or barge, pond excavation and maintenance, deep foundation excavation, drainage construction, distant digging, etc.
Huitong is a Excavator Long Reach Boom Manufacturer with 11years of manufacturing Excavator Long Reach Boom, and it's technology and quality have been recognized by customers.Huitong is professional Excavator Long Reach Fronts manufacturers and suppliers in China, specialized in providing high quality products.
Features:
1) All steels came from CSG, top level steel maker in China.
2) The tube are all Phosphating tube with excellent anti-corrosion and anti-rust ability, unlike the normal steel tube which is widely used on the market, to better protect the hydraulic system, and provide more power to the work.
3) Cooper sets have been used on the connector instead of normal steel sets that widely been used on the market.
|
Model
|
HT 120
|
HT 200-1
|
HT 200-2
|
HT 300
|
HT 350-1
|
HT 350-2
|
|
Total length(mm)
|
13000
|
15380
|
18000
|
18000
|
20000
|
22000
|
|
Total self weight(kg)
|
3000
|
4150
|
4400
|
5200
|
6000
|
6500
|
|
Max reach(mm)
|
12500
|
15100
|
17600
|
17600
|
19600
|
21600
|
|
Max cut depth(mm)
|
9000
|
11340
|
12200
|
12200
|
14500
|
16100
|
|
Max cut height(mm)
|
11300
|
12510
|
13500
|
13720
|
14920
|
16100
|
|
Folding height(mm)
|
2900
|
2980
|
3040
|
3210
|
3210
|
3400
|
|
Bucket volume(m3)
|
0.3
|
0.6
|
0.4
|
0.4
|
0.5
|
0.6
|
|
Excavator tonnage(ton)
|
10-15
|
16-22
|
20-24
|
25-33
|
30-36
|
30-40
|
