Product Details:
Payment & Shipping Terms:
|
OEM: | Support | Alloy: | High Strength Steel |
---|---|---|---|
Type: | Standard Bucket | Material: | 16Mn |
Suitable: | All Brands Excavator | Condition: | 100%new |
High Light: | 16Mn Steel General Purpose Bucket,1.5cm3 General Purpose Bucket |

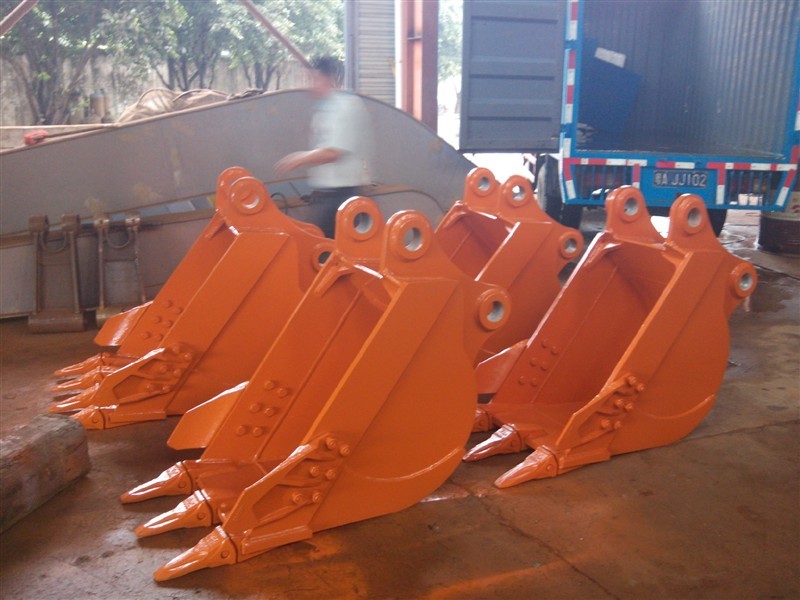

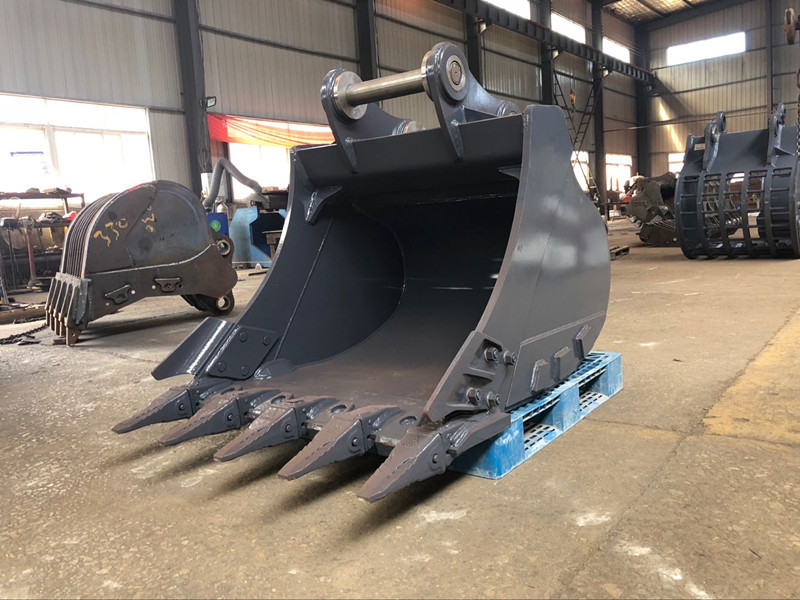

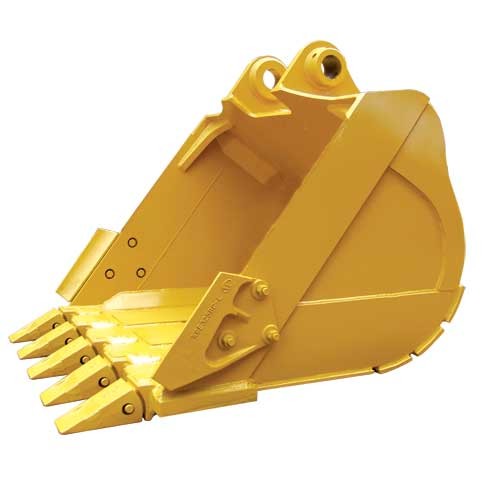

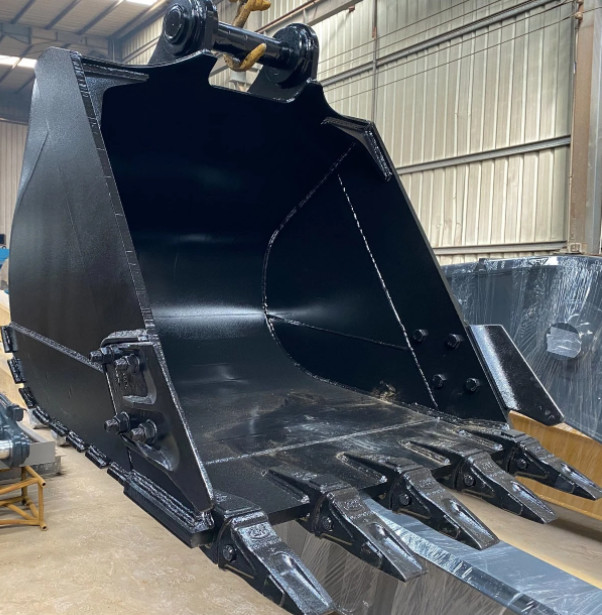

Large Capacity 1.5cum 16Mn Steel Standard Bucket For Excavator
Product Material
Material
|
Code
|
Hardness(HB)
|
Extension(%)
|
Bend Intensity
|
Alloy Steel
|
Q355B
|
163-187
|
21
|
355(N/mm2)
|
Chinese High-Strength alloy
|
NM400
|
400
|
16
|
1020(N/mm2)
|
High-Strength alloy
|
HARDOX-500
|
470-500
|
8
|
1300(N/mm2)
|
Description
Excavator tonnage | T | 20-25t | 30-36T | |||
Total length | mm | 1520 | 1800 | 1800 | 2000 | 2200 |
Max digging radius | mm | 1500 | 1730 | 1730 | 1920 | 2100 |
Max cut depth | mm | 1030 | 1250 | 1260 | 1450 | 1600 |
Max cut depth vertically | mm | 950 | 1160 | 1170 | 1360 | 1520 |
Max cut height | mm | 1260 | 1530 | 1530 | 1730 | 1850 |
Max unloading height | mm | 1030 | 1300 | 1300 | 1500 | 1600 |
Min rotate radius | mm | 475 | 510 | 510 | 620 | 620 |
Boom length | mm | 910 | 1050 | 1050 | 1150 | 1250 |
Stick max cut force(ISO) | KN | 83 | 65 | 118 | 95 | 80 |
Bucket max cut force(ISO) | KN | 150 | 99 | 153 | 153 | 153 |
Advantages
1. Welded with mixed gas between argon and carbon dioxide. Argon content:80%.Carbon dioxide content:20%.
2. The surface of the workpiece can obtain a certain degree of cleanliness and different roughness, so that the mechanical properties of the workpiece surface are improved
3. Increasing the adhesion between it and the coating, and prolonging the coating film.
4. Durability, good for paint leveling and decoration.
