Product Details:
Payment & Shipping Terms:
|
Condition: | 100%new | Warranty: | 1 Year |
---|---|---|---|
After-sales Service Provided: | Online Support,Video Technical Support | Operating Weight: | 24300kg,12200kg,9000kg,23100kgs,22ton |
Color: | Customer's Request | Material: | Q345B+Q460D |
Type: | Standard Or Enhanced Boom Arm | ||
High Light: | PC200 Extended Long Reach Boom,PC400 Extended Long Reach Boom |

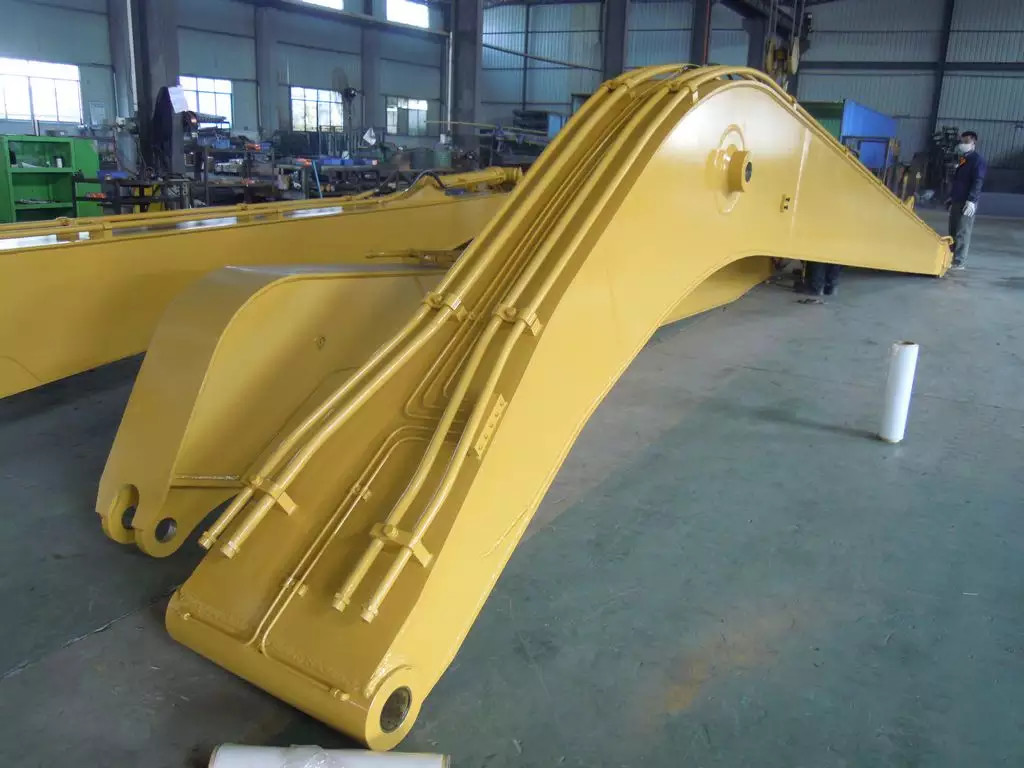

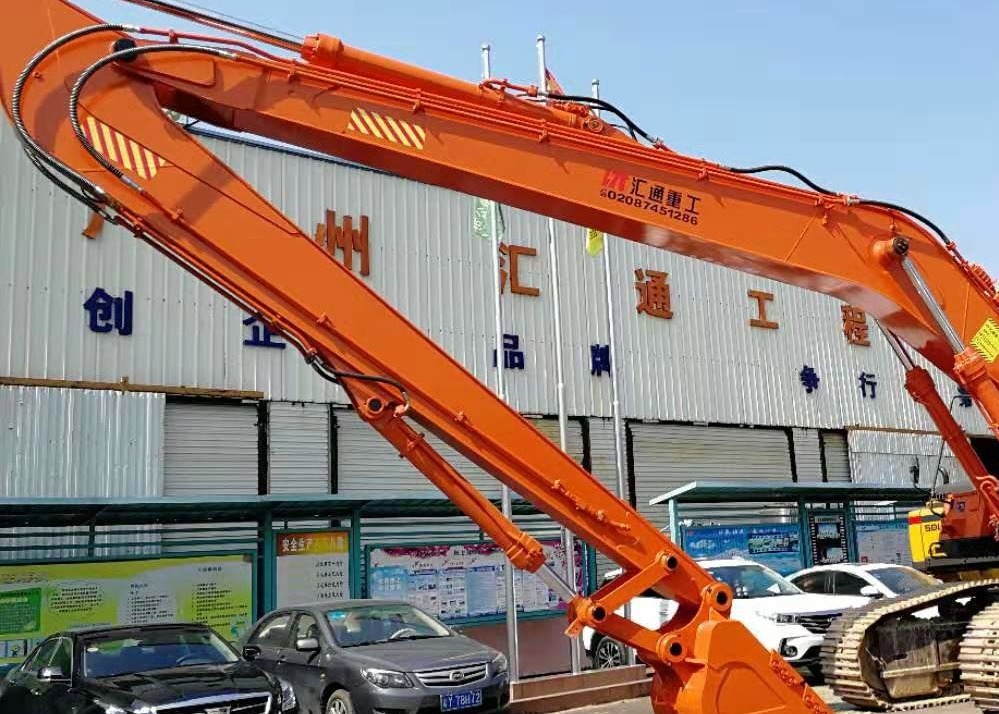

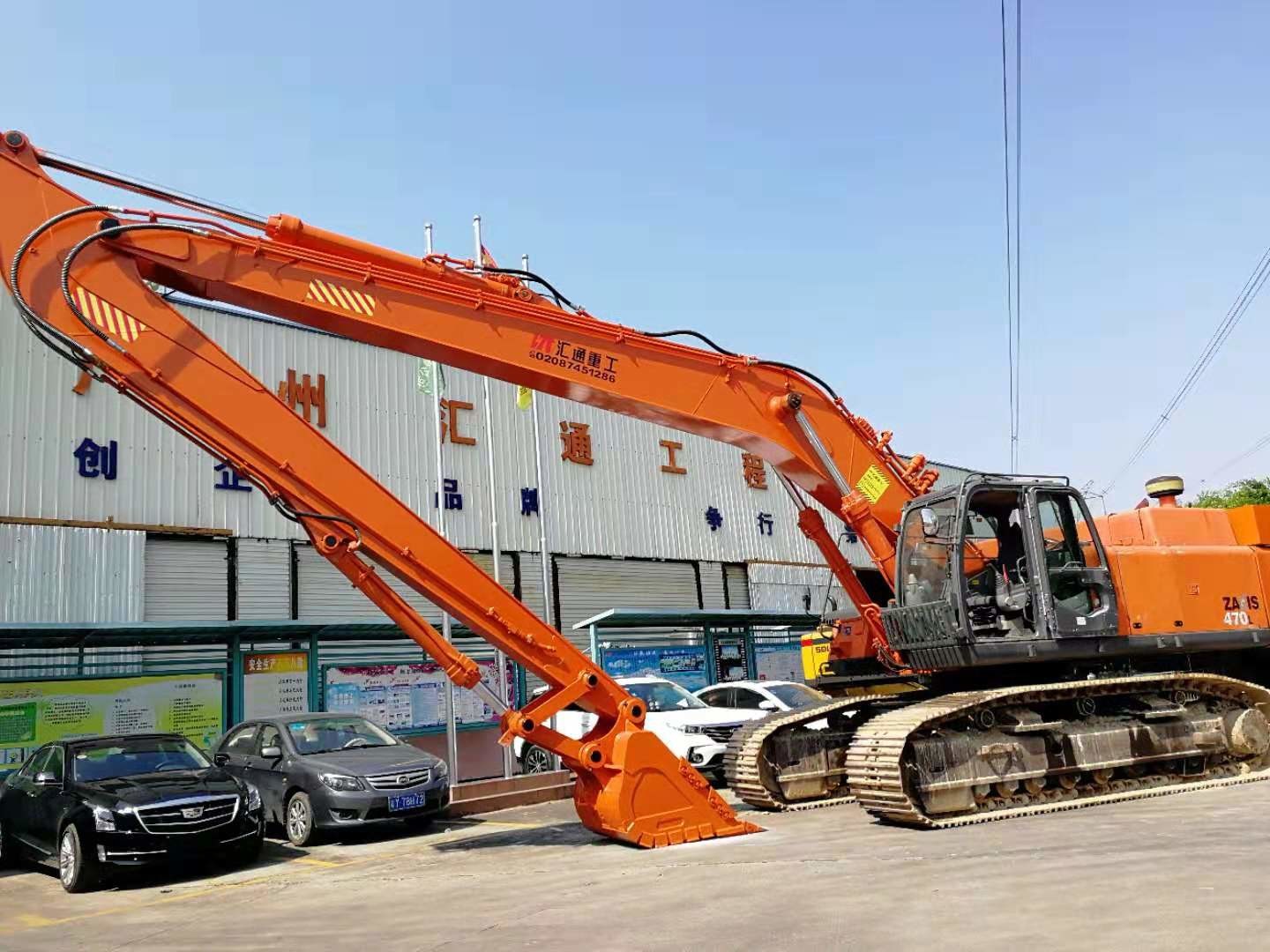

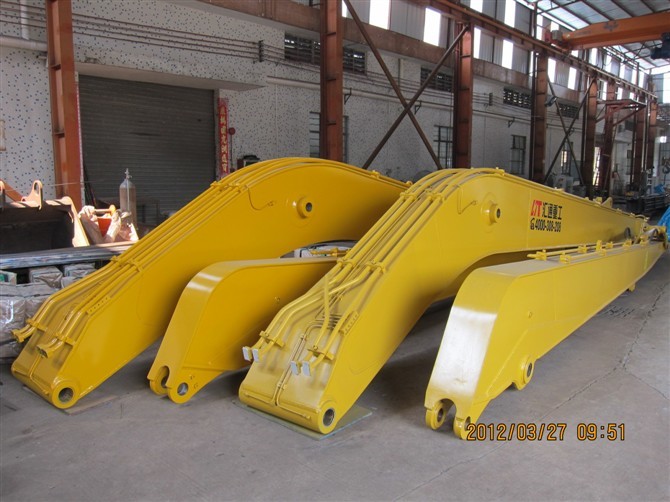

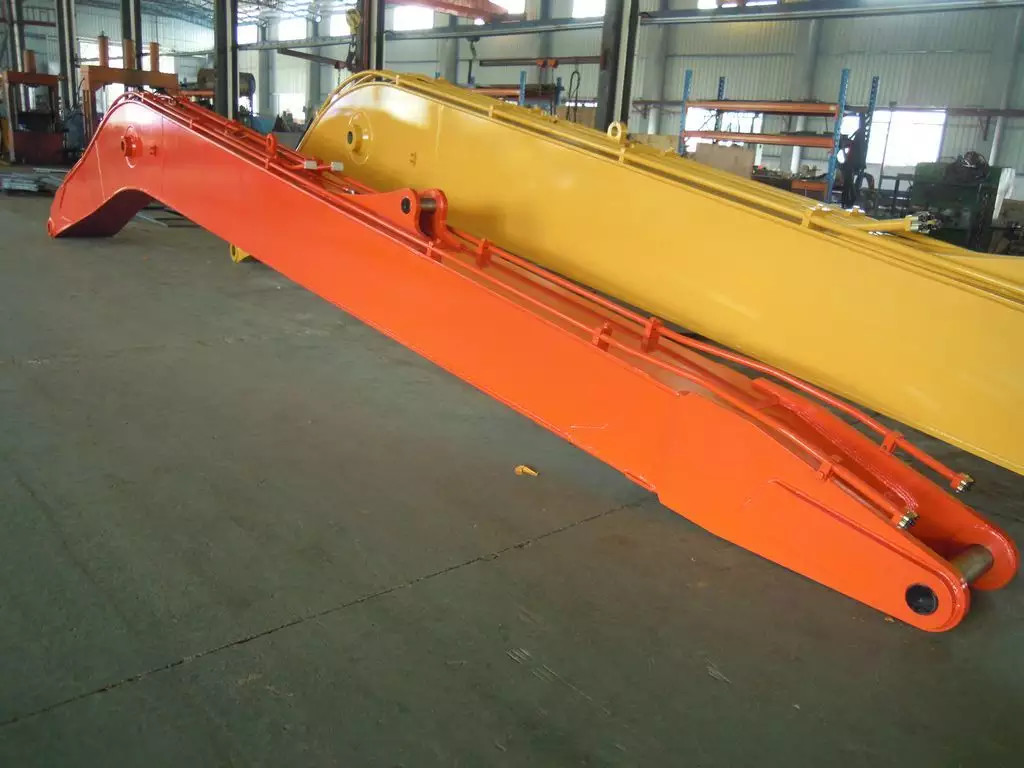

Extended Long Reach Boom and Arm with bucket cylinder for PC200 PC400
Product Detail
Welding
A.) Welded with mixed gas between argon and carbon dioxide. Argon content:80%.Carbon dioxide content:20%.
B.) Welded by auto-welding machine .
A.) The surface of the workpiece can obtain a certain degree of cleanliness and different roughness, so that the mechanical properties of the workpiece surface are improved, thus improving the fatigue resistance of the workpiece, increasing the adhesion between it and the coating, and prolonging the coating film. Durability, also good for paint leveling and decoration.
Excavator Tonage (Ton) | 12-20 | 20-25 | 30-36 | ||
---|---|---|---|---|---|
Total Boom Arm Length (m/'') | 13/42.7'' | 15.4/50.5'' | 18/59.1'' | 18/59.1'' | 20/65.6'' |
Bucket Capacity (M3) | 0.3 | 0.5 | 0.4 | 0.9 | 0.7 |
Max. Digging Radius (m/'') ( A ) | 12.5/41'' | 15/49.2'' | 17.3/56.8'' | 17.3/56.8'' | 19.2/63'' |
Max. digging depth (m/'') ( B ) | 8.6/28.2'' | 10.3/33.8'' | 12.1/39.7'' | 12.1/39.7'' | 14/45.9'' |
Max. vertically digging depth (m/'') ( C ) | 8.1/26.6'' | 9.4/30.8'' | 11.2/36.7'' | 11.2/36.7'' | 13.1/43'' |
Max cutting Height (m/'') ( D ) | 11.3/37.1'' | 12.8/42'' | 15.3/50.2'' | 15.3/50.2'' | 16.6/54.5'' |
Max. unloading height (m/'') ( E ) | 9.8/321.5'' | 10.2/33.5'' | 12.2/40'' | 12.2/40'' | 13.5/44.3'' |
Min. Rotary radius (m/'') | 4/13.1'' | 4.72/15.5'' | 5.1/16.7'' | 5.1/16.7'' | 13.5/44.3'' |
Boom Length (m/'') | 7.1/23.3'' | 8.6/28.2'' | 9.9/32.5'' | 9.9/32.5'' | 11/36.1'' |
Arm Length (m/'') | 5.9/19.4'' | 6.8/22.3'' | 8.1/26.6'' | 8.1/26.6'' | 9/29.5'' |
Stick Max. cutting force(KN) | 82 | 82 | 64 | 115 | 94 |
Bucket Max. cutting force (KN) | 151 | 151 | 99 | 151 | 151 |
Folding Length (mm) ( F ) | 10/32.8'' | 12.6/41.3'' | 14.3/46.9'' | 14.3/46.9'' | 15.3/50.2'' |
Folding Height (m/'') ( G ) | 3/9.8'' | 3.34/11'' | 3.48/11.4'' | 3.545/11.6'' | 3.57/11.7'' |
Counterweight (ton) | 0 | 0 | 1.5 | 0 | 3 |
