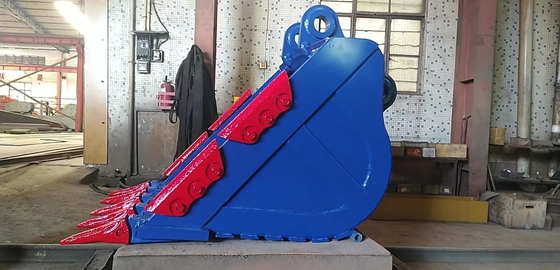

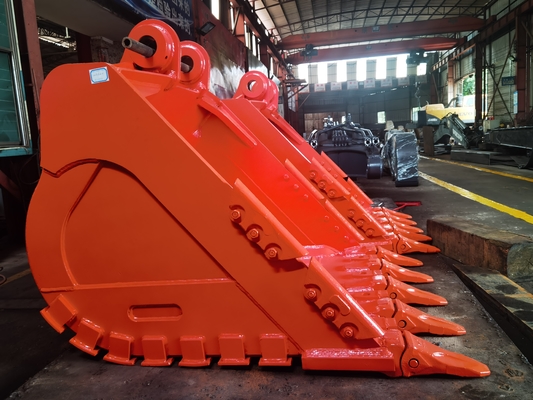

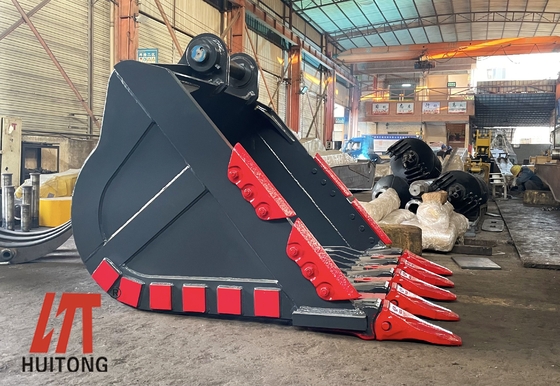

48 Inches Wide 1.6 m3 Capacity Rock Bucket for Kobelco Volvo Excavator
Excavator Rock Bucket
Adaptor plate and side plate are made of Chinese material NM400, domestic material high quality tooth plate, so that it can resist grinding and bending. Add fixed plate on the bottom and side guard plates, install protection plates; the tooth adapters adopt rock-specific products, featuring strong wear resistance and bending resistance.
Excavator Rock Bucket Parameter
Capacity | 0.8 | 1 | 1.2 | 1.5 | 1.8 | 2 | 2.5 | 3 | 4 | 5 | 7 |
---|---|---|---|---|---|---|---|---|---|---|---|
Length | 42.5 | 46.5 | 46.5 | 51.2 | 51.2 | 53.1 | 59.1 | 66 | 67.3 | 73.6 | 82.7 |
Width | 39.4 | 45.3 | 49.2 | 51.9 | 59.8 | 59.8 | 61 | 62.2 | 66.9 | 70.9 | 89.4 |
High | 27.6 | 29.9 | 31.5 | 33.9 | 35.8 | 38.6 | 40.9 | 44.5 | 53.1 | 57.9 | 57.9 |
Teeth | PC200 | PC200 | PC200 | PC300 | PC400 | PC400 | PC400 | PC650 | PC650 | PC650 | PC1000 |
Lip | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 |
