Name: Huitong Excavator Flail Mower for 6-10 Ton Excavators, Roadside/Ditch Maintenance/Forestry
Brand: Guangzhou Huitong Machinery Co., Ltd.
SKU: HT332
Price: 1,000.00 USD
Availability: InStock

Huitong Excavator Flail Mower for 6-10 Ton Excavators, Roadside/Ditch Maintenance/Forestry

1 SET

MOQ

$2000-$2010 1set

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Origin: China

Tractor Compatibility: Excavators

Color: Orange/Black/others

Use: Clearing The Land

Machinery Test Report: Provided

Model: Excavator Flail Mower

OEM: 100% OEM

Certification: CE

Basic Infomation

Place of Origin: China

Brand Name: huitong

Certification: CE

Model Number: HT332

Payment & Shipping Terms

Packaging Details: PALLET/WOODEN BOX

Delivery Time: 7-15days

Payment Terms: T/T

Gallery

Huitong Excavator Flail Mower for 6-10 Ton Excavators, Roadside/Ditch Maintenance/Forestry

Product Description

Huitong Excavator Flail Mower for 6-10 Ton Excavators, Roadside/Ditch Maintenance/Forestry 0

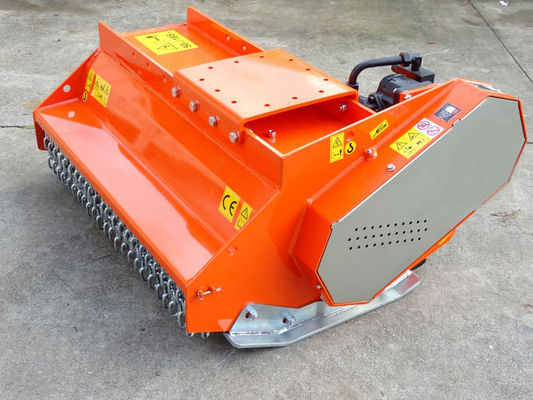

Excavator Flail Mower

The flail mowers are primarily used for grass mowing in verges, ditches, dikes and slopes. Hedge trimming of smaller branches is also no challenge for these versatile machines.
The Integrated Airflow system is one of the main features of the FR series. The space between the rotor and the shield is purposely designed to increase the air velocity so the cut-off material exits the mower as quickly as possible. It creates a natural vacuum that sucks the grass into the mower. This
increases the capacity of the flail head and reduces the power requirement.

Huitong Excavator Flail Mower for 6-10 Ton Excavators, Roadside/Ditch Maintenance/Forestry 5

The machines are manufactured in Strenx 700 high strength steel which is one of the most durable steel types in the world. It is the same material that is used for chassis in the automotive industry. The flails are adapted to the rotor to stop breakage and damage from happening. These measures keep the maintenance costs at a low level.

TECHNICAL DATA	HTFM 122	HTFM 162
Working width	1.2 m (3'11")	1.6 m (5'3")
Branch thickness	4 cm (1.57")	4 cm (1.57")
Driving speed up to	5 - 7 km/h (3.11 - 4.35 mph)	5 - 7 km/h (3.11 - 4.35 mph)
Required hydraulic connections	1 x double acting + 1 x drain	1 x double acting + 1 x drain
Required oil flow	85 l/min @ 230 bar (22.5 gpm @ 3336 psi)	85 l/min @ 230 bar (22.5 gpm @ 3336 psi)
Required oil flow	85 l/min @ 315 bar (22.5 gpm @ 4569 psi)	85 l/min @ 315 bar (22.5 gpm @ 4569 psi)
Weight	320 kg (705 lb)	360 kg (794 lb)

Huitong Excavator Flail Mower for 6-10 Ton Excavators, Roadside/Ditch Maintenance/Forestry 6

Huitong Excavator Flail Mower for 6-10 Ton Excavators, Roadside/Ditch Maintenance/Forestry 7

Huitong Excavator Flail Mower for 6-10 Ton Excavators, Roadside/Ditch Maintenance/Forestry 8

Huitong Excavator Flail Mower for 6-10 Ton Excavators, Roadside/Ditch Maintenance/Forestry 9

Huitong Excavator Flail Mower for 6-10 Ton Excavators, Roadside/Ditch Maintenance/Forestry 10
