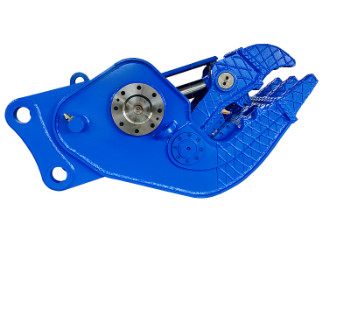

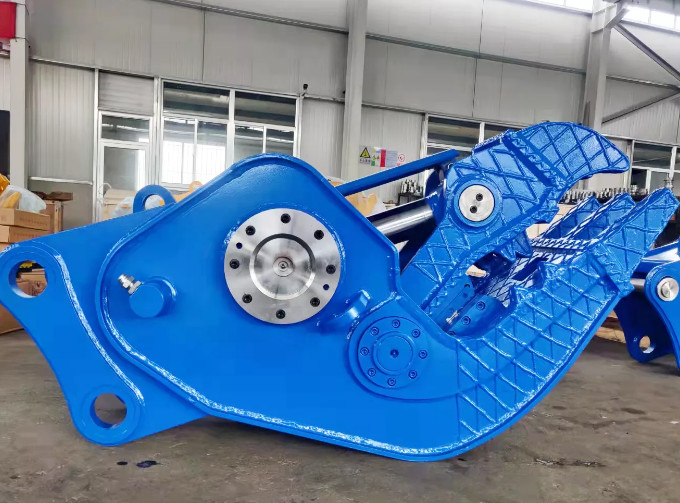

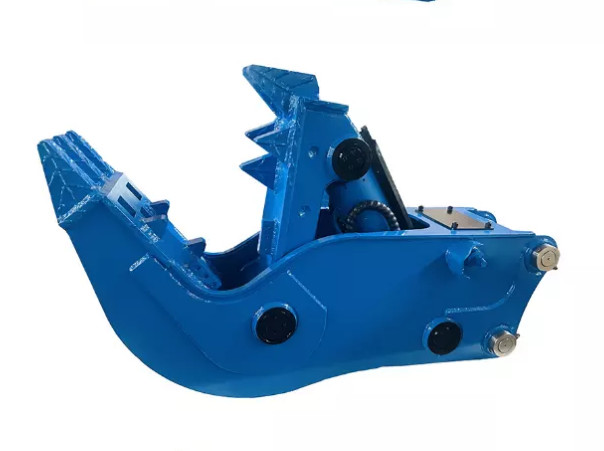

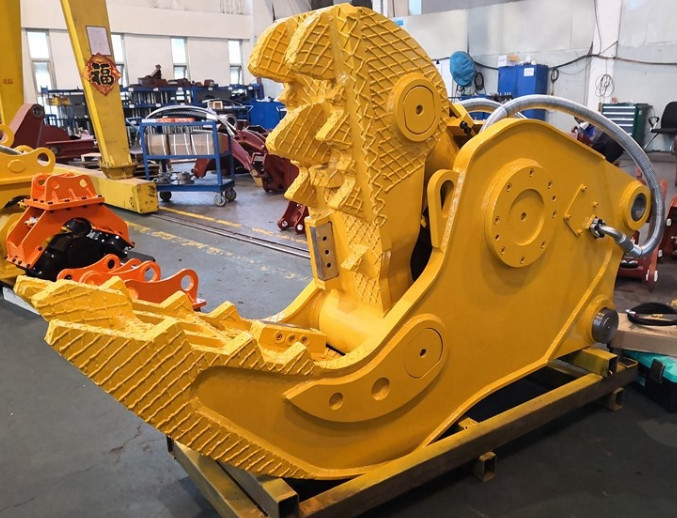

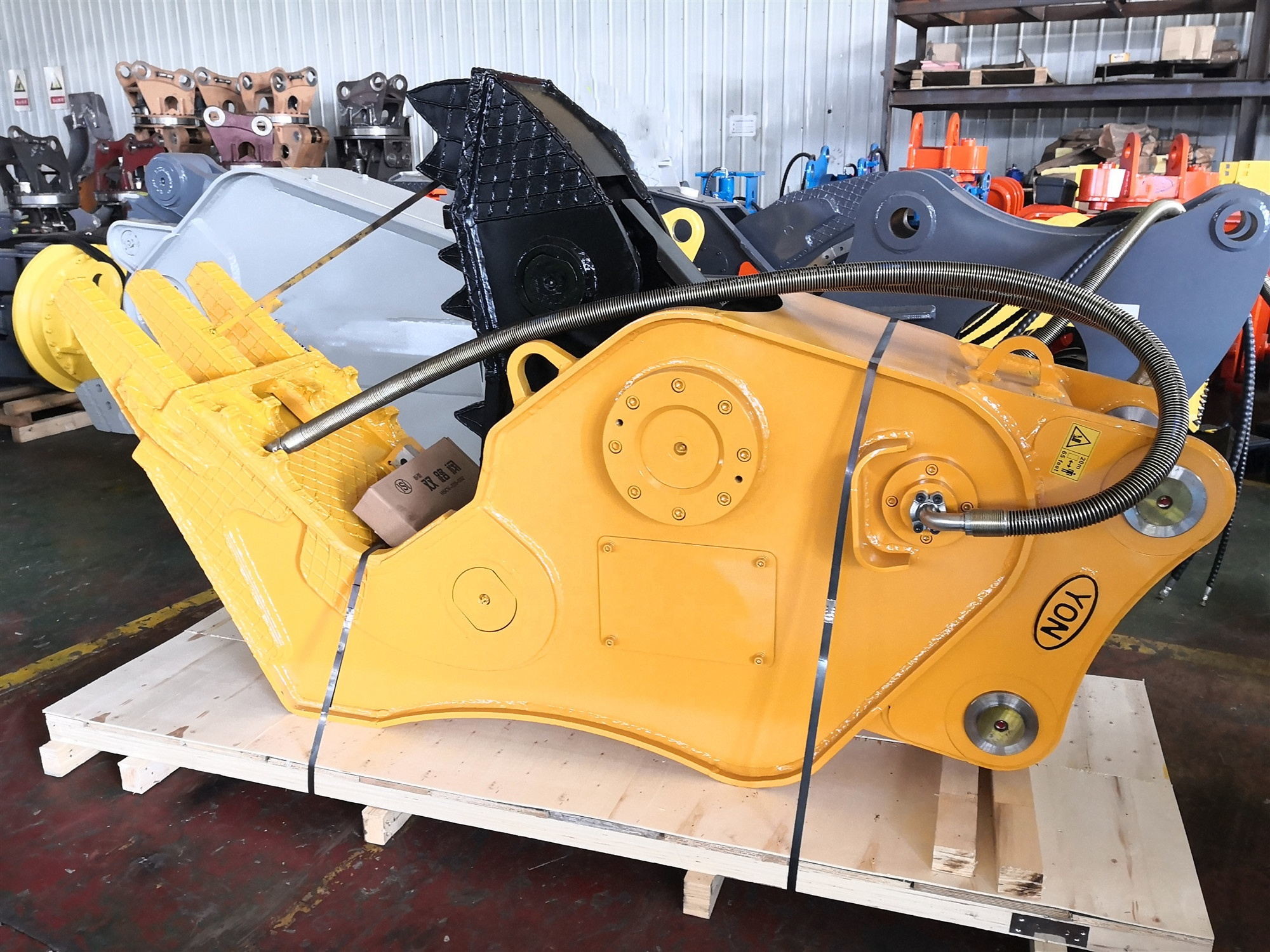

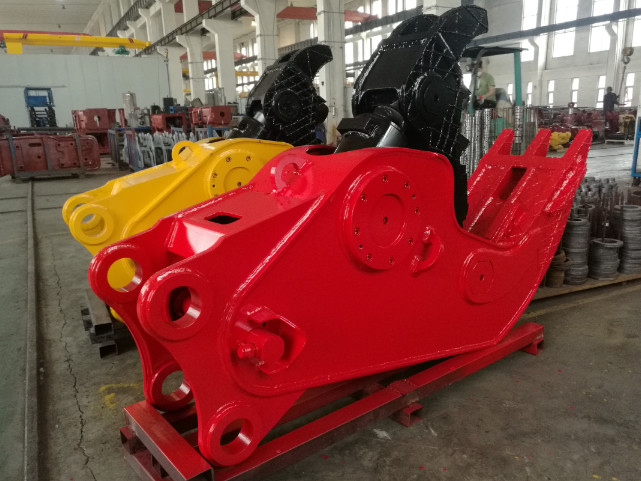

400mm Jaw Opening Hydraulic Demolition For Excavator Kato HD225 HD330
Production Descrption
Huitong Hydraulic pulverizer can be used to demolish concrete floors or low walls. It will provide the following benefits: low
noise and vibration, good fragmentation, good separation of steel wire from the concrete material, re-utilization of crushed
concrete as aggregate material, recycled steel can be sold to the steel mill industry.
The quick-release jaw pads are made of HARDOX 500 steel; A large hydraulic cylinder allows you to develop the maximum force in this class of equipment.Reliable construction made of wear-resistant steel Powerful hydraulic . The hydraulic pulverizer can be used to demolish concrete floors or low walls. It will provide the following benefits; low noise and vibration, good fragmentation, good separation of steel wire from the concrete material, re-utilization of crushed concrete as aggregate material, recycled steel can be sold to the steel mill industry.
|
Item/Model
|
Unit
|
HT 06
|
HT 08
|
HT 10
|
|
|
Suitable excavator
|
ton
|
10-15
|
18-24
|
25-35
|
|
|
Weight
|
kg
|
1400
|
1800
|
2200
|
|
|
Opening
|
mm
|
600
|
800
|
980
|
|
|
Depth
|
mm
|
700
|
1000
|
1210
|
|
|
Height
|
mm
|
1900
|
2500
|
3100
|
|
|
Width
|
mm
|
420
|
560
|
680
|
|
|
Length
|
mm
|
1200
|
1620
|
1960
|
|
|
Rated pressure
|
kg/cm³
|
300
|
320
|
320
|
|
|
Rated Flux
|
L/min
|
220
|
240
|
240
|
|
|
Crushing Force
|
Middle
|
ton
|
80
|
100
|
110
|
|
Tip
|
ton
|
65
|
80
|
90
|
|
|
Cycle time
|
open
|
sec
|
2.8
|
2.2
|
1.8
|
|
close
|
sec
|
3.2
|
2.5
|
2.2
|
|
Prodtion Details
