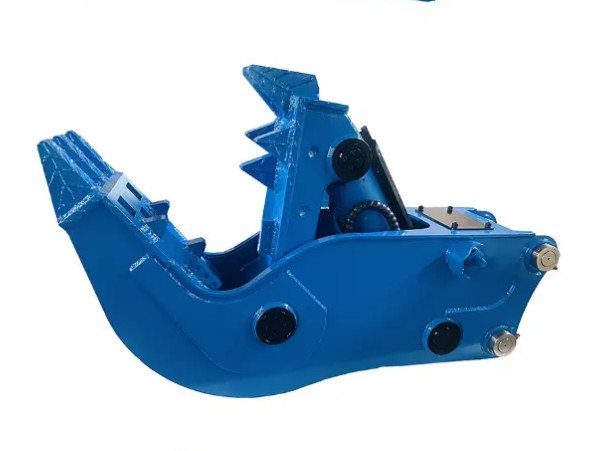

300-500mm Jaw Opening Excavator Demolition Pulverizer For Daewoo DH200 DH235
Production Descrption
Huitong Hydraulic Pulverizer s the perfect tool for secondary demolition and recycling of concrete. High grade steel with special seals keep dust and other debris from pins, ensuring long life and low maintenance. This design allows the operator to easily grab material on the ground or in a pile.
It will provide the following benefits; low noise and vibration, good fragmentation, good separation of steel wire from the concrete material, re-utilization of crushed concrete as aggregate material, recycled steel can be sold to the steel mill industry, lowering your cost or even boosting your profit sometime.
A high performance cylinder reduces the time needed to open and close jaws, increasing productivity while two replaceable steel bar cutters provide maximum efficiency in cutting rebar. The entire structure, excluding the top mounting bracket, is fabriPCed from a special steel to provide maximum strength and abrasion resistance. The crushing teeth can be easily built up and hard faced as required.
| Model | Unit | HT 15 | HT 20 | HT 25 |
| Applicable Excavator | ton | 12-16 | 18-24 | 25-35 |
| Weight | kg | 1320 | 1500 | 1750 |
| Opening | mm | 620 | 760 | 900 |
| Depth | mm | 700 | 830 | 1000 |
| Height | mm | 2060 | 2250 | 2620 |
| Width | mm | 450 | 530 | 620 |
| Length | mm | 1050 | 1340 | 1580 |
| Rated Pressure | kg/cm2 | 320 | 320 | 320 |
| Rated Flow | lpm | 230 | 240 | 260 |
| Crushing Force Middle | ton | 80 | 95 | 120 |
| Crushing Force Tip | ton | 40 | 50 | 65 |
| Cycle Time Open | sec | 2 | 2.5 | 2.8 |
| Cycle Time Close | sec | 2.1 | 2.2 | 2.5 |
