Excavator Concrete Hydraulic Pulverizer Durable Bucket Stone Crusher
Production Description
|

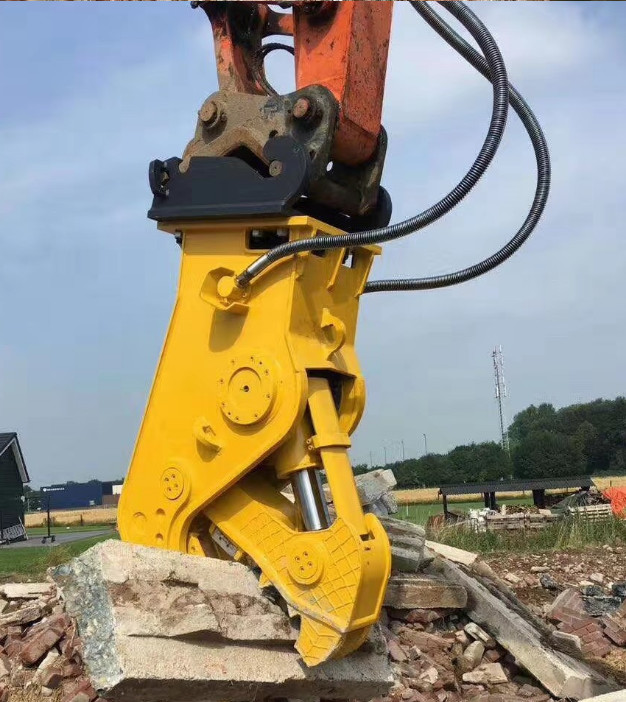

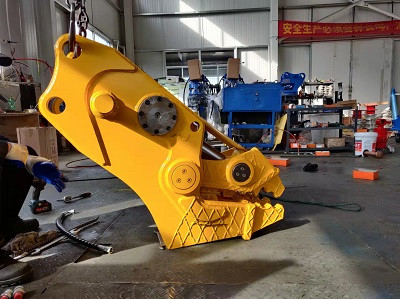

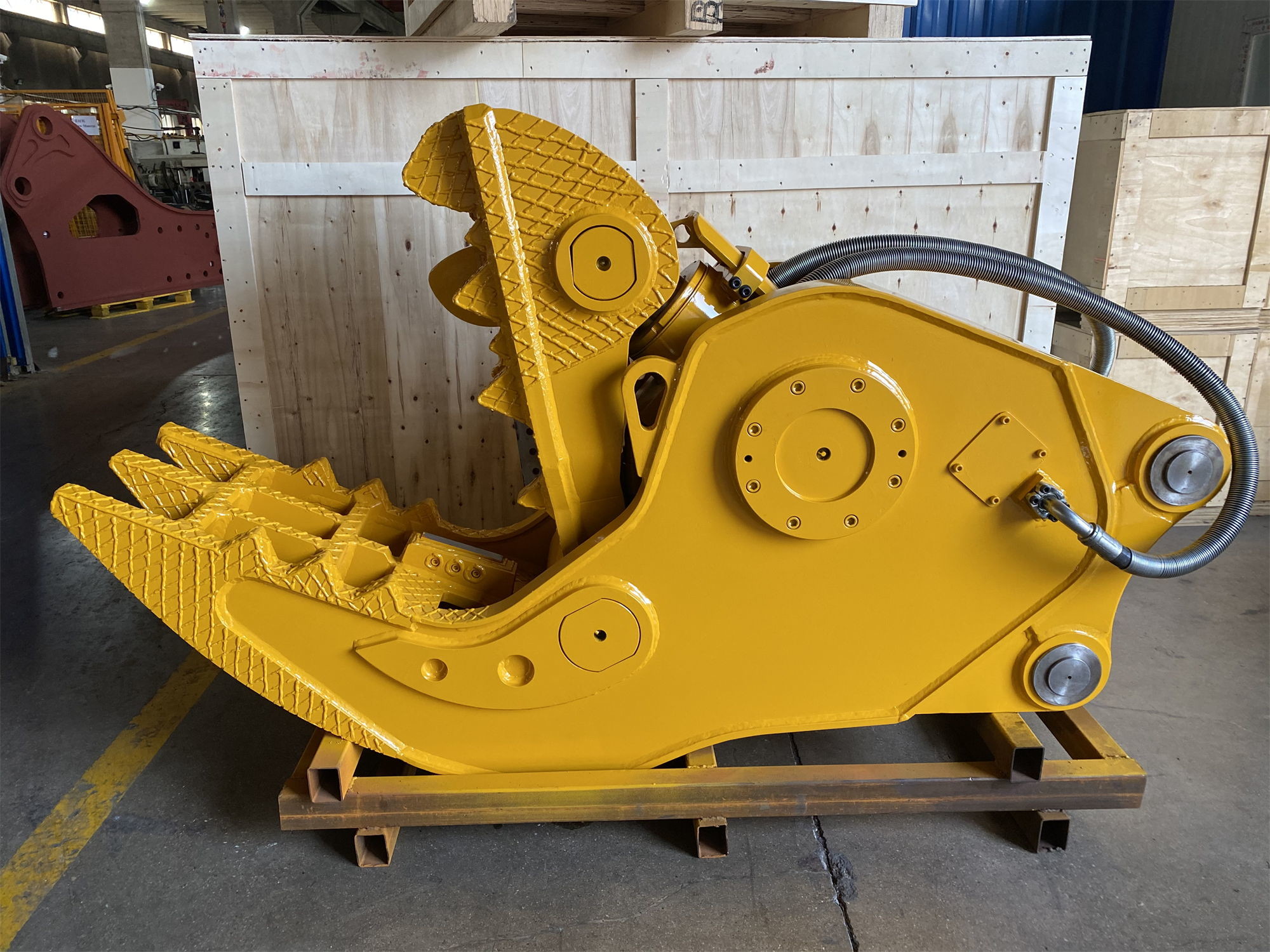

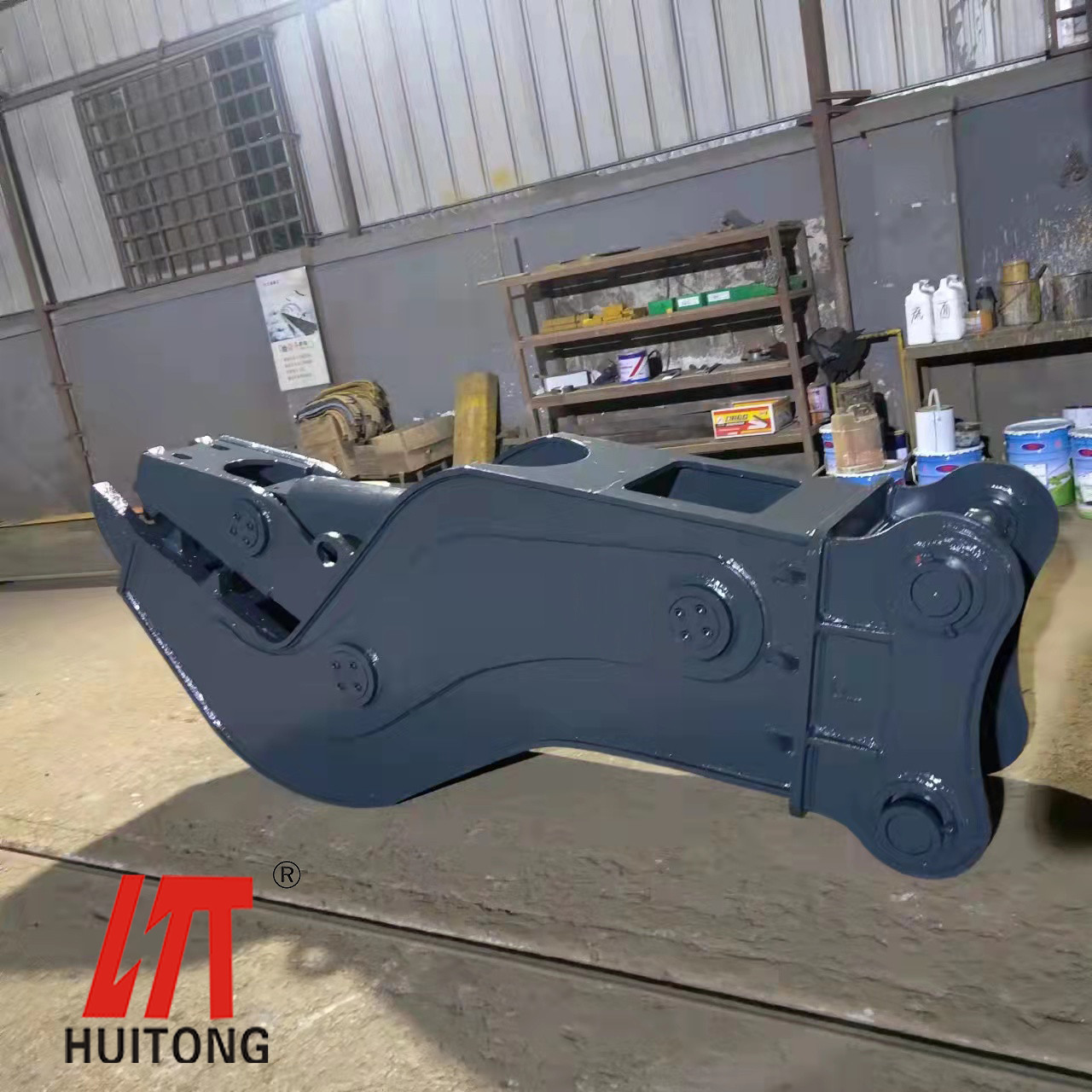

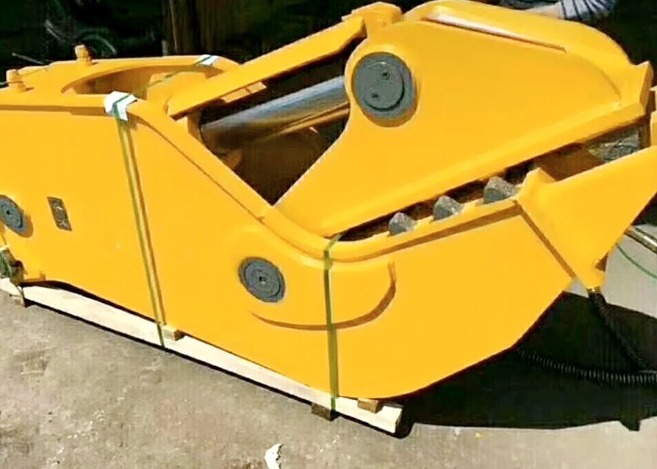

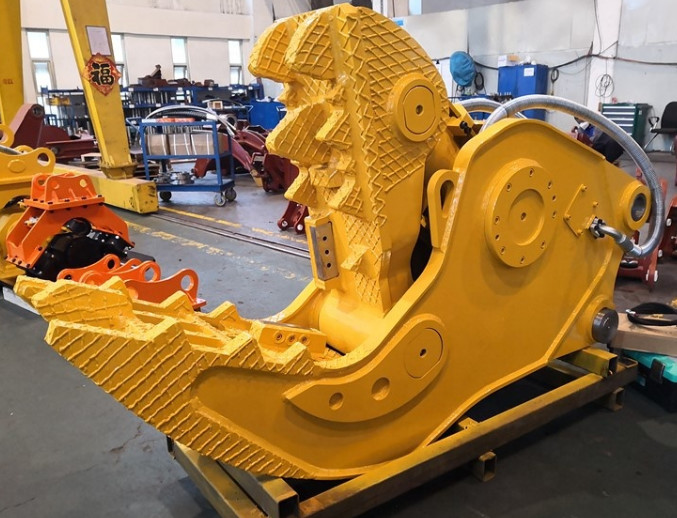

HUITONG Concrete Pulverizer
|
||||
|
Item/Model Unit
|
Unit
|
HTP04
|
HTP06
|
HTP08
|
|
Suitable excavator
|
Ton
|
5-9
|
10-15
|
18-24
|
|
Weight
|
kg
|
350
|
950
|
1600
|
|
Opening
|
mm
|
450
|
600
|
800
|
|
Depth
|
mm
|
500
|
700
|
900
|
|
Height
|
mm
|
850
|
1200
|
1400
|
|
Width
|
mm
|
420
|
600
|
750
|
|
Length
|
mm
|
1200
|
1800
|
2150
|
|
Rated Pressure
|
kg/c㎡
|
230
|
300
|
320
|
|
Rated Flux
|
L/min
|
220
|
220
|
240
|
|
Crushing Force (Middle)
|
ton
|
65
|
80
|
100
|
|
(Tip)
|
ton
|
50
|
65
|
80
|
|
Cycle Time (Open)
|
sec
|
2.8
|
2.8
|
2.2
|
|
(Close)
|
sec
|
3.2
|
3.2
|
2.5
|
|
Magnet Optional: The bottom is equipped with 24V electromagnet, which can be used for absorbing after cutting the steel bar. Directly connected to the excavator battery, no need to install the generator, simple installation and more effective.
|
||||
|
Quality is guaranteed |
Faster |
Safer |
|
1.12 month after-sales warranty 2. We have the profession team (Pre-sale service, Technical team, After-sales service.) and will solve all your problems. 3.13 years working experience in this filed. |
We are near Shanghai Port,
Ningbo Port.
Our hot sale products will
be deliveied within 7days.
|
1.We have joined the Trading Assurance
2. All products are packed by plastic paper with the wooden box. |
Advantages
1. The working efficiency is 3-5 times higher than the traditional hydraulic breaker;
2. Larger opening, larger bite force, smaller bite gap;
3. Adopt high strength, light and wear-resisting manganese plate, long working life;
4. Easy to disassemble and install, unique oil circuit design, fast cylinder speed;
5. Flexible and convenient operation, low noise and no vibration.
