20 Ton Demolition Tools Excavator Hydraulic Concrete Crusher / Pulverizer
Production Description
Hydraulic pulverizer is composed with body, hydraulic cylinder, movable jaw and fixed jaw. The external hydraulic system offer hydraulic pressure for the hydraulic cylinder to make the movable jaw and fixed jaw open and close to achieve the effect of crushing objects.
| MCP600 | MCP800 | MCP910 | MCP1000 | ||
| Jaw opening | A(mm) | 800 | 1050 | 1100 | 1350 |
| Height | B(mm) | 1800 | 2030 | 2200 | 280 |
| Width | C(mm) | 415 | 550 | 605 | 660 |
| Jaw depth | C(mm) | 730 | 810 | 900 | 1160 |
Tip 2: Makesure of the weight of excavator, the oil flow and the working pressure of your excavator.
| MCP600 | MCP800 | MCP910 | MCP1000 | ||
| Excavator weight | (t) | 10-18 | 18-25 | 25-35 | 35-45 |
| Tool weight* | (kg) | 1000 | 2050 | 2850 | 3800 |
| Cylinder force | (t) | 100 | 145 | 157 | 197 |
| Force at upper tips F1 (front teeth) |
(t) | 54 | 73 | 99 | 123 |
| Force in the middle F2 (middle of blade) |
(t) | 79 | 115 | 153 | 195 |
| Cutting force F3 | (t) | 155 | 196 | 276 | 348 |
| Hydraulic working pressure | (bar) | 280-320 | 280-320 | 280-320 | 280-320 |
| Oil flow | (l/min) | 100-180 | 180-220 | 220-280 | 280-320 |
| Rotation type | NO ROT. | NO ROT. | NO ROT. | NO ROT. | |
| Time of closing at max oil flow |
(s.) | 3,09 | 2,28 | 2,94 | 3,50 |
| Time of opening at max oil flow |
(s.) | 1,88 | 2,26 | 2,74 | 3,36 |
| N°of cycles per minute at max oil flow |
(cycles/min) | 12,1 | 13,2 | 10,6 | 8,7 |
| Hyd. ports size cylinder | / | 1’’ SAE 6000 p.s.i. |
1’’ SAE 6000 p.s.i. |
1’’1/4 SAE 6000 p.s.i. |
1’’1/4 SAE 6000 p.s.i. |
| Speed valve | / | Optional | Yes | Yes | Yes |
| Max diameter to be cut** | (mm) | 50 | 55 | 60 | 65 |
| Blade length | (mm) | 122 | 180 | 180 | 220 |
| Interchangeable wear parts | / | NO | Yes | Yes | Yes |
| Automatic grease system | / | NO | NO | NO | NO |
|
Quality is guaranteed |
Faster |
Safer |
|
1.12 month after-sales warranty 2. We have the profession team (Pre-sale service, Technical team, After-sales service.) and will solve all your problems. 3.13 years working experience in this filed. |
We are near Shanghai Port,
Ningbo Port.
Our hot sale products will
be deliveied within 7days.
|
1.We have joined the Trading Assurance

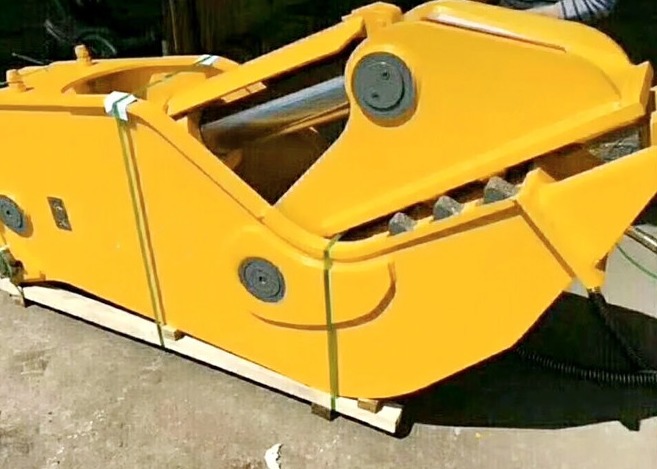

2. All products are packed by plastic paper with the wooden box. |
Advantages
1. The working efficiency is 3-5 times higher than the traditional hydraulic breaker;
2. Larger opening, larger bite force, smaller bite gap;
3. Adopt high strength, light and wear-resisting manganese plate, long working life;
4. Easy to disassemble and install, unique oil circuit design, fast cylinder speed;
5. Flexible and convenient operation, low noise and no vibration.
