Product Details:
Payment & Shipping Terms:
|
| Type: | Heavy | Step Width: | 600mm/ 800mm / 1000mm |
|---|---|---|---|
| Speed: | 0.5m/s Or 0.65m/s | Product Name: | Escalator Parts Aluminum Escalator Step |
| Item Name: | Escalator Step Chain | Handrail Color: | Client's Requirements |
| Usage: | Shopping Mall/Subway/Airport Escalator,public Transport Escaltor | Inclination: | 30/35 Degrees Escalator |
| High Light: | Huitong Excavator Bucket,Heavy Work Rock Excavator Bucket |
||

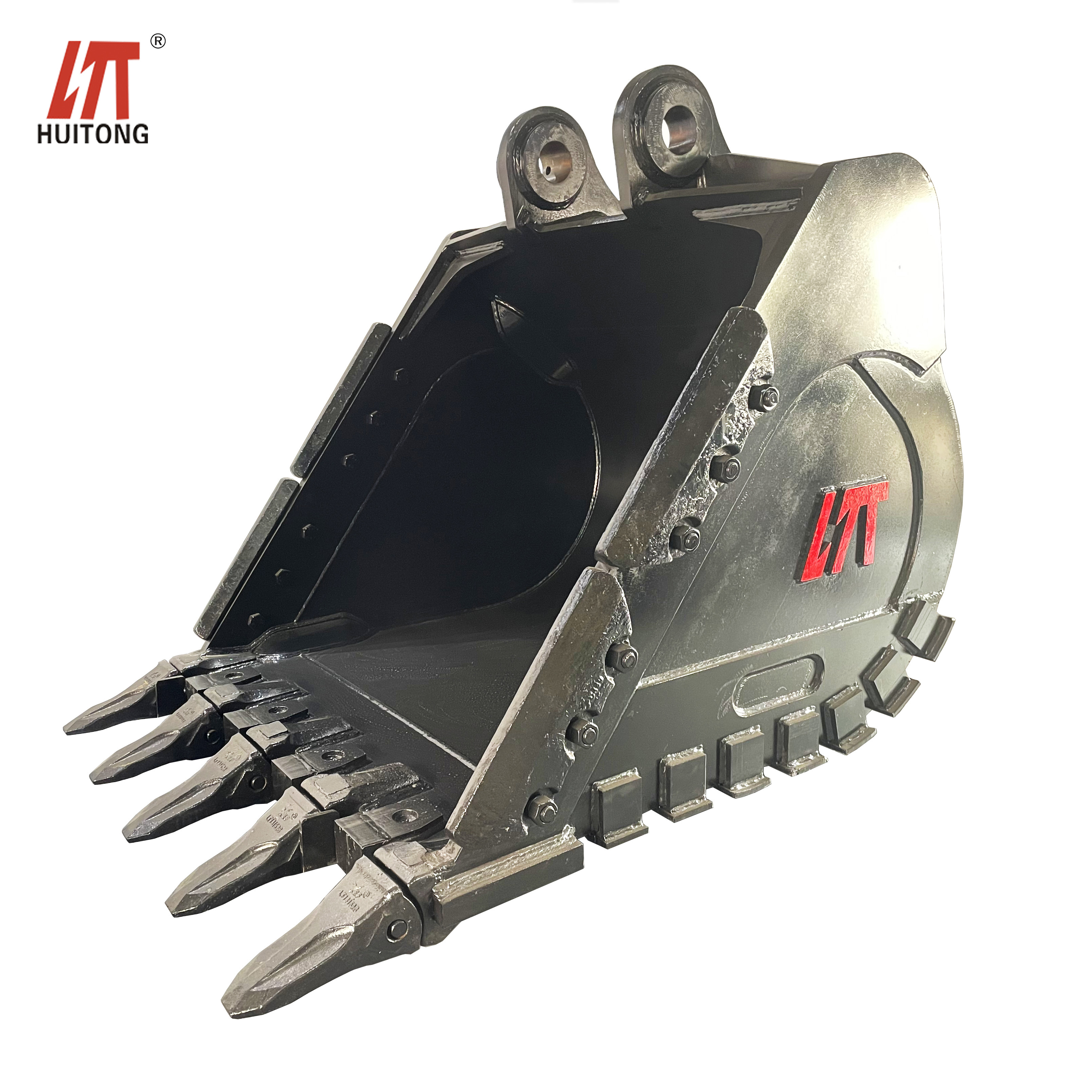

Huitong Customized Excavator Bucket for Heavy Work Rock Stone Brick Etc.
The Excavator Heavy Duty bucket is made of 16Mn steel, Chinese Q355b, with thicker plate and wearable parts( Bottom reinforced plates, side guard board, segments between bucket teeth. etc. ). It is available in a wide range of capacity and shape, according to customers' request. Our recommended appliPCion includes: volume loading for packed ground, tough clay, loose dirt and some mixture of rock (relevently harsh working condition).
Advantages
8. Buckets can be connected with either direct fit or quick coupling.
Difference among General Purpose Bucket, Heavy Duty Bucket and Severe Duty Bucket
| HT Bucket Series SpecifiPCion | ||
| Bucket Series | Description/AppliPCion | Features |
| General Purpose Bucket | HT GP Bucket are made light and aim for boosting your working efficiency. Recommended used for digging clay, loading sand and gravel, volume loading for packed ground, tough clay, loose dirt and some other light works |
1. Light weight 2. Relative tough material (16MN/Q355) 3. Large capacity 4. Boosting working efficiency |
| Heavy Duty Bucket | HT HD Bucket are designed to survive in the harsh working conditions. Recommended appliPCions: abrasive soils, compact or dense clay, loose rock and gravel |
1. Heavy duty with bottom wear plate 2. Vertical shrouds added 3. Thickening plate 4. Optional weld-on lip shrounds |
| Severe Duty Bucket (Rock Bucket) | HT SD Bucket (Rock Bucket) are the toughest series. Our SD Bucket are designed not only to survive but also to thrive the harsh working conditions that you faced. Recommended appliPCions: shot rocks, Stratified Materials, Quarry, dense clay, etc. |
1. Using Q355 for the body + Hardox 400/500/NM360 for all the wearable plate 2. Vertical shrounds added 3. Thickening plate 4. Weld-on lip shrounds added 5. Corner heel shrounds 6. Bottom wear strips added |
| SpecifiPCion For Bucket Size | |||||||||||
| GP/HD BUCKET | |||||||||||
| Capacity(m³) | 0.8 | 1 | 1.2 | 1.5 | 1.8 | 2 | 2.5 | 3 | 4 | 5 | 7 |
| Length(") | 42.5 | 46.5 | 46.5 | 51.2 | 51.2 | 53.1 | 59.1 | 66 | 67.3 | 73.6 | 82.7 |
| Width(") | 39.4 | 45.3 | 49.2 | 51.9 | 59.8 | 59.8 | 61 | 62.2 | 66.9 | 70.9 | 89.4 |
| High(") | 27.6 | 29.9 | 31.5 | 33.9 | 35.8 | 38.6 | 40.9 | 44.5 | 53.1 | 57.9 | 57.9 |
| Teeth(Optional) | PC200 | PC200 | PC200 | PC300 | PC400 | PC400 | PC400 | PC650 | PC650 | PC650 | PC1000 |
| Lip(") | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 |
Material
Steels are being called differently among different countries. Here is the data that might gave you a better understanding of the steel we used for manufacturing HT Heavy Duty Bucket.
General Arrangement Drawing
