Home /Products/Heavy Duty Excavator Bucket/Q355b R320 Excavator Severe Bucket Heavy Duty 1100mm Length

Q355b R320 Excavator Severe Bucket Heavy Duty 1100mm Length

1
MOQ
15850
Price
Q355b R320 Excavator Severe Bucket Heavy Duty 1100mm Length
Features Gallery Product Description Request A Quote
Features
Specifications
Quality: High Guarantee
Colour: Cunstomized
Machine Life: 50000 Trees
Suitable: 5-120t
Packing: Standard Packing
Length: 1100mm
Highlight:

R320 Excavator Severe Bucket

,

Q355b Excavator Severe Bucket

,

Heavy Duty Excavator Severe Bucket
Basic Infomation
Place of Origin: GUA
Brand Name: Huitong
Model Number: Huitong333
Payment & Shipping Terms
Delivery Time: 7-15days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 Set/Sets per Month
Product Description

Construction Machinery Parts R320 Excavator severe duty bucket manufacturer wholesale excavator heavy duty bucket

PRODUCT DESCRIPTIO

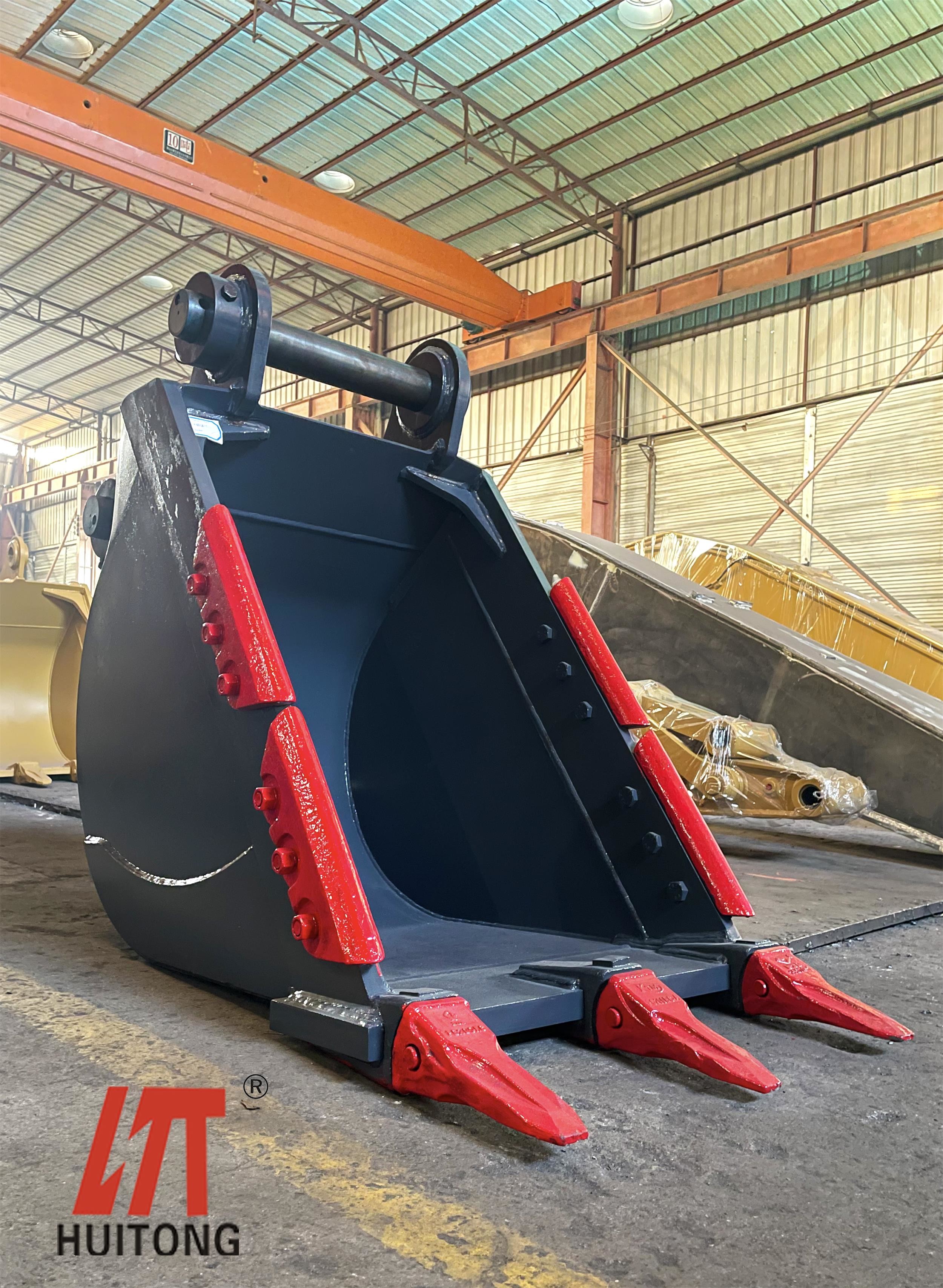

Excavator Heavy Duty Rock Bucket
The Excavator Heavy Duty bucket is made of 16Mn steel, Chinese Q355b, with thicker plate and wearable parts( Bottom reinforced plates, side guard board, segments between bucket teeth. etc. ). It is available in a wide range of capacity and shape, according to customers' request.
Our recommended appliPCion includes: volume loading for packed ground, tough clay, loose dirt and some mixture of rock (relevently harsh working condition).
Q355b R320 Excavator Severe Bucket Heavy Duty 1100mm Length 0Q355b R320 Excavator Severe Bucket Heavy Duty 1100mm Length 1
PRODUCT MATERIAL
Quality CertifiPCion of Steel, Q355B Steel for Structure:
We adopted qualified Q355B steel from top 3 Chinese steel maker. Q355B is the most common used material in the industrial, same as European S355JR, American A57.etc.
Moreover, we also offer options using high strength material such as:NM400, Hardox500 and HG785D.
All steels are adopted from CSG, top 3 steel maker in China.
Material
Code
Hardness(HB)
Extension(%)
Bend Intensity
Alloy Steel
Q355B
163-187
21
355(N/mm2)
Chinese High-Strength alloy
NM400
400
16
1020(N/mm2)
High-Strength alloy
HARDOX-500
470-500
8
1300(N/mm2)



PRODUCT PARAMETERS

Q355b R320 Excavator Severe Bucket Heavy Duty 1100mm Length 2

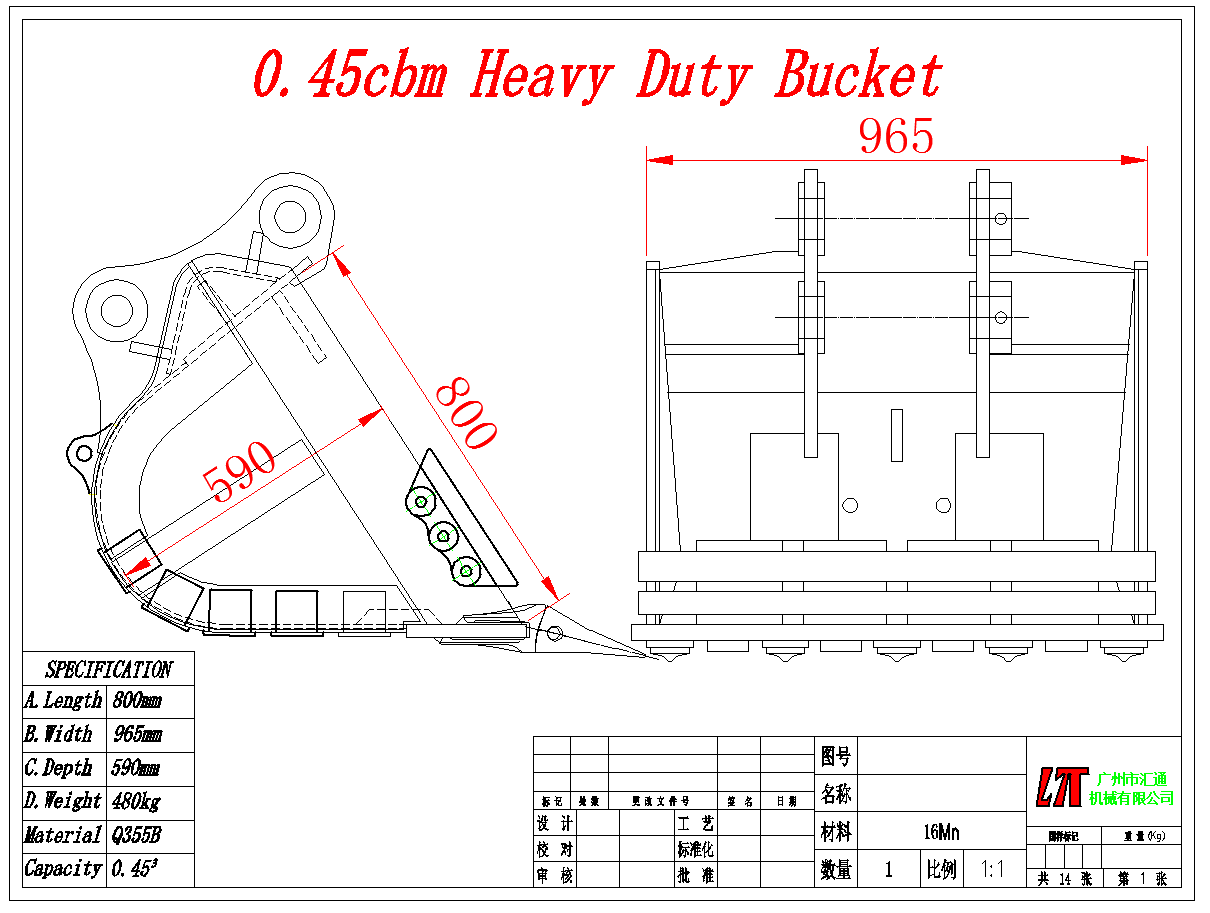

Reference General Arrangement Drawing

We will make the General Arrangement Drawing according to your needs. In order to ensure the perfect size, all products will be produced after you confirm the final drawing.
Q355b R320 Excavator Severe Bucket Heavy Duty 1100mm Length 3

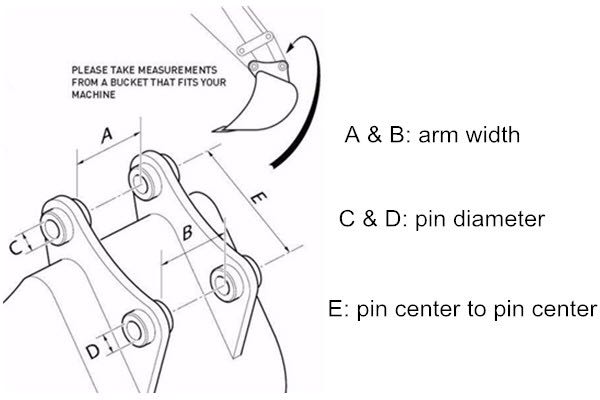

How to choose?

What is your excavator model?
Which type do you want?
The arm width, pin diameter and pin center to center.





Tag:

heavy equipment buckets

excavator grapple bucket

heavy duty rock bucket
