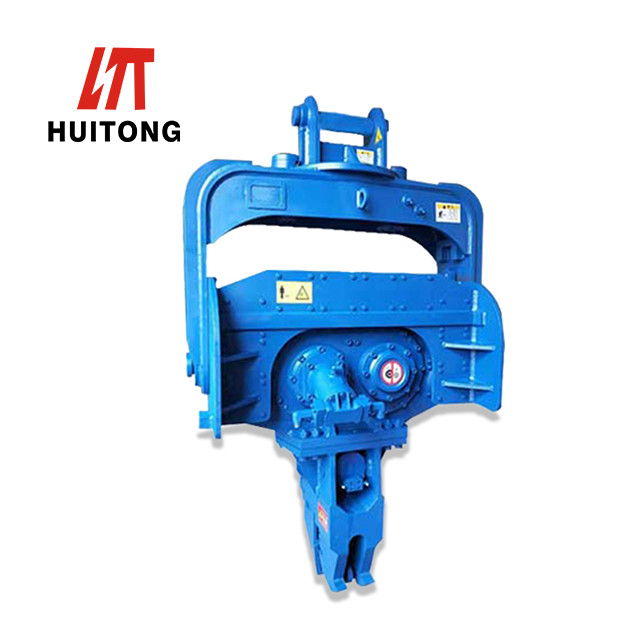

Compact Excavator Mounted Vibro Hammer , Hydraulic Piling Hammers For Excavators

China Compact Excavator Mounted Vibro Hammer , Hydraulic Piling Hammers For Excavators supplier
Compact Excavator Mounted Vibro Hammer , Hydraulic Piling Hammers For Excavators supplier

Large Image :  Compact Excavator Mounted Vibro Hammer , Hydraulic Piling Hammers For Excavators

Product Details:

Place of Origin: Guangzhou China
Brand Name: Huitong
Certification: ISO9001:2008
Model Number: Vibratory Hammer

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Package
Delivery Time: 10 -15 working day
Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 Piece/Month
Contact Now
Detailed Product Description
Material: Alloy Steel Color: Based On Your Machine
Package: Standard Delivery: Sea/As You Required
OEM: Accepted Application: Pilling Work
High Light:

hydraulic vibratory hammer

,

excavator vibro hammer

Excavator Pilling Hammer/ Vibratory Hammer, Competitive Price and high quality



Production Description:

Huitong Hydraulic vibratory hammers are widely used in many big projects, suitable for driving and extracting piles in different geological condition except the hard rock layer. The pile could be working with including: precast concrete pile, cast-in-place concrete pile, concrete expanded bore pile, lime pile, stone column. Beside, it's widely used in cofferdam, trestle work, offshore working platform, and also wind mill single pile or group pile. Clamp can be custom made.



Product Features



1) Heavy duty lifting section.
2) Using Eaton or Manuli hydraulic hose. Distribution manifold makes good arrangement of the hose.
3) Second stage vibration reducing system protects lifting equipment better, and also increases pile extracting force.
4) Hydraulic oil hose assembled in the top plate, avoid exposing in the outside and damage while operation.
5) FAG bearing ensures a longer life of the equipment.
6) Inserted motor mounting type design, makes the equipment more reliable and reduces collision.
7) Eccentric filled with heavy metal produce more amplitude.
8) Lubrication system adopted both forced lubrication and splashing lubrication, reduce the liquid temperature.
9) Small and compact structure of hammer makes it favorable for constructing in narrow working room.
10) Gear box is vibration proof, qualified gears and eccentrics create massive vibration.
11) The clamp is made of solid block, insert with locking cylinder to eliminate troublesome.



Customer Service

1. Before signing an official contract with our customers, we will help to analyze and provide professional solutions, recommdations based on the project information provided by customers.



2. An experienced tech-team are ready to meet your special requirements.



3. Your inquire related to our products or price will be replied in 24 hrs



4. Keeping our customers update about the orders' production process and arrange quality checking in the workshop is available if you want.



5. Online techinical supports are available for the whole product life. Oversea services are available with extra fees.





Delivery and Packing

1. We pack the products by simple pallet or case which is seaworthy.



2. Fast delivery time: 7-10 days for small quantity, and 20-30 days for container quantity.



3. We have a team specialized in packing and loading container, they have rich experience, and can load the max quantity products, which can help customer save the ocean freight.



Specifications

Factor Product and Technical Parameters
V-250D V-300E V-330E V-350E V-400D V-450E V-500A
Revolutions per min (Rpm) 2800 3000 3000 3000 2600 2600 2600
Exciting Force (T) 39.5 48 51 53.4 55.5 58 63
Hydraulic system working pressure (Bar) 300 300 300 300 300 300 300
Hydraulic system minium flow requirements (Lpm) 175 240 270 270 280 300 320
Main machine weight (T) 1.55 1.65 1.65 1.8 2 2.05 2.1
Suitable for excavator weight (T) 20-24 24-30 30-35 38-42 35-40 40-45 48Above
Clip mouth weight (Kg) C15: 455kg; C15E:530kg; C18E:578kg; C30B:455kg; C35B:530kg
Secondary arm weight (Kg) A200:500kg; A250:600kg; A350:900kg

Host Model Number External Dimensions of Main Engine
(Take C16E as Exampel)
  A B C
V-250D 2279 1245 737
V-300E 2279 1245 737
V-330E 2359 1255 880
V-350E 2359 1255 880
V-400D 2369 1460 980
V-450B 2369 1460 980
V-500A 2369 1460 980







FQA



1. ARE YOU A FACTORY OR TRADING COMPANY?

We are factory based in Guangzhou, China. And we've gained the export certification. Feel free to let our sales know ahead, if you planed for paying a visit to our factory.



2. DO YOU ACCPET OEM? WHAT'S YOUR MOQ? ANY EXPERIENCE FOR OEM?

We accept OEM for every product that we produce; There is no MOQ for any of our product if you wanted a OEM; We've been doing OEM ever since the year we established our factory, which is 2010



3. IS YOUR DELIVERY ALWAYS ON TIME?

We can't promise about the freight but what we can do is shortening our lead time while keep the same quality level. So there will not be any problem even if the sea freight delay for a couple days.



4. WHY DON'T YOU HAVE A CE CERTIFICATIONS?

Ce certification is for one product, not the whole factory, and we have way too many product lines to registered CE for, but our customers from Europe said it's easy to solve the CE problem. And we are working on the CE certifications registration process, in order to save our customers' time in the furture.



5. HOW AM I START ORDERING?

First, talk to our sales about your machine medel, working conditions, special needs, deadlines. Then, our sales will provide the details you need. All inquiry will be responed within 24 Hours.

6. CAN I ASK FOR A PRICE SHEET OF ALL YOUR PRODUCTS?
Unfortunately, no, the price sheet are only available for our sales team and our distributors. However, we will respond within 24 hours if you interested in any of our products

7. WHAT'S YOUR PRICING BE LIKE? LOW PRICE? ABOVE AVERAGE?
It depends, some of the products has the price above average. We're not salling the most expensive products in the market. Instead, we try to sale the products that could lower your maintenance cost and save your time spending on after-sales problems.
