Payment & Shipping Terms:
|After-sales Service Provided:||Field Maintenance And Repair Service, Video Technical Support, Online Support||Application:||Piling Construction Work|
hydraulic vibratory hammer,
excavator pile hammer

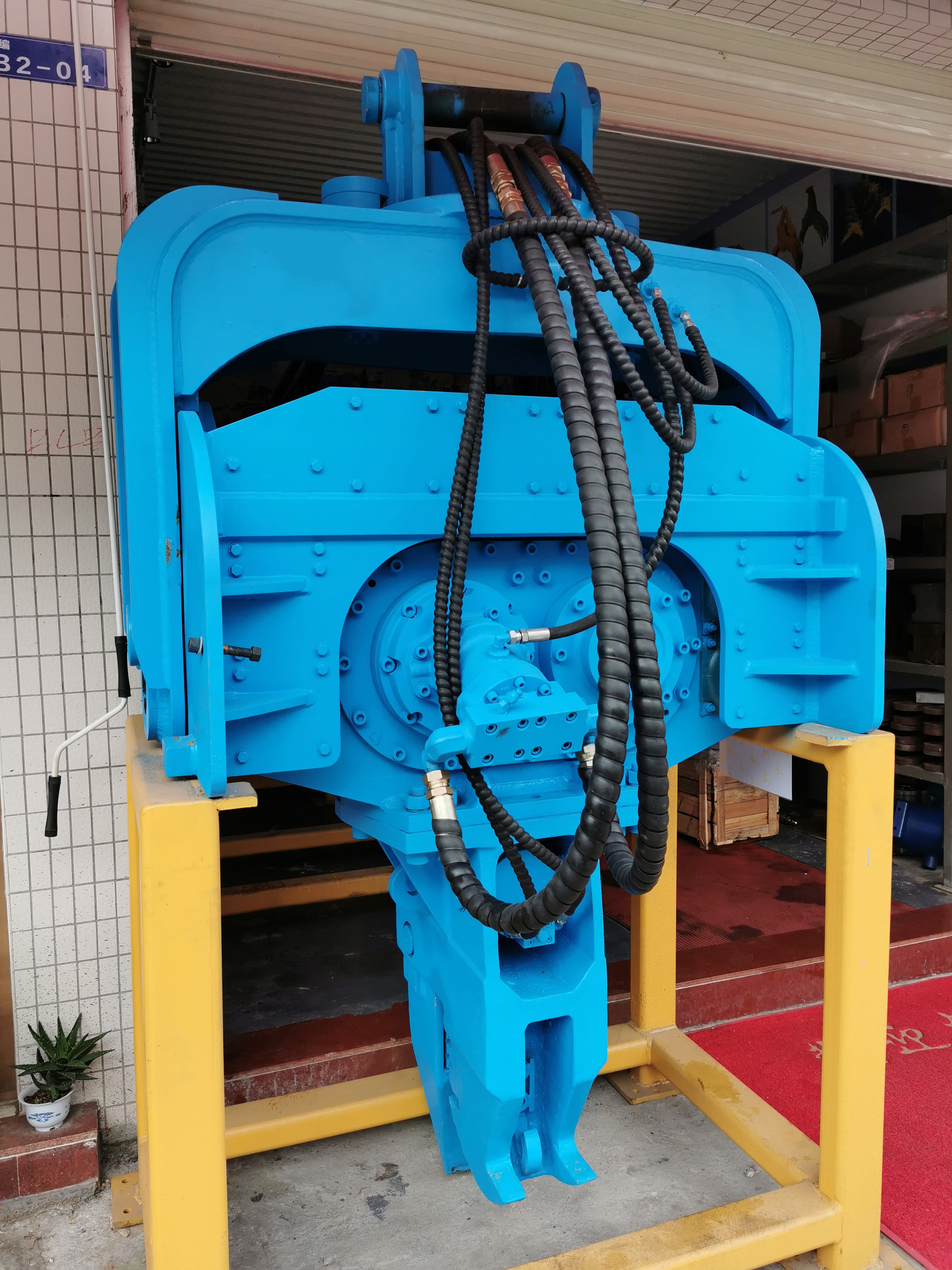

Huitong Hydraulic vibratory hammer is the vibratory driving piling equipment which is popular among a wide variety of foundation projects.
Apart from driving and pulling elements such as sheet piles and pipes, Huitong vibratory hammers are also used for soil densifying or vertical drainage, especially suitable for municipal, bridges, cofferdam, building foundation, etc.
With the advanced technology, huitong vibratory hammer has advantages of low noise, high efficiency, non-pollution and non-damage to piles, etc.
1. In the general piling wokr, it is faster than other system.
2. It saves time in the pile driving or pile pulling.
3. We adopt rubber pad to reduce noise and vibration on the outside.
4. The hydraulic oil motor is small in size and light, but generates high drive power and speed.
5. With the use of changeable pump, you may properly revision the vibration frequency.
1. Before signing an official contract with our customers, we will help to analyze and provide professional solutions, recommdations based on the project information provided by customers.
2. An experienced tech-team are ready to meet your special requirements.
3. Your inquire related to our products or price will be replied in 24 hrs
4. Keeping our customers update about the orders' production process and arrange quality checking in the workshop is available if you want.
5. Online techinical supports are available for the whole product life. Oversea services are available with extra fees.
1. We pack the products by simple pallet or case which is seaworthy.
2. Fast delivery time: 7-10 days for small quantity, and 20-30 days for container quantity.
3. We have a team specialized in packing and loading container, they have rich experience, and can load the max quantity products, which can help customer save the ocean freight.
|Factor||Product and Technical Parameters|
|Revolutions per min (Rpm)||2800||3000||3000||3000||2600||2600||2600|
|Exciting Force (T)||39.5||48||51||53.4||55.5||58||63|
|Hydraulic system working pressure (Bar)||300||300||300||300||300||300||300|
|Hydraulic system minium flow requirements (Lpm)||175||240||270||270||280||300||320|
|Main machine weight (T)||1.55||1.65||1.65||1.8||2||2.05||2.1|
|Suitable for excavator weight (T)||20-24||24-30||30-35||38-42||35-40||40-45||48Above|
|Clip mouth weight (Kg)||C15: 455kg; C15E:530kg; C18E:578kg; C30B:455kg; C35B:530kg|
|Secondary arm weight (Kg)||A200:500kg; A250:600kg; A350:900kg|
|Host Model Number||External Dimensions of Main Engine
(Take C16E as Exampel)
1. ARE YOU A FACTORY OR TRADING COMPANY?
We are factory based in Guangzhou, China. And we've gained the export certification. Feel free to let our sales know ahead, if you planed for paying a visit to our factory.
2. DO YOU ACCPET OEM? WHAT'S YOUR MOQ? ANY EXPERIENCE FOR OEM?
We accept OEM for every product that we produce; There is no MOQ for any of our product if you wanted a OEM; We've been doing OEM ever since the year we established our factory, which is 2010
3. IS YOUR DELIVERY ALWAYS ON TIME?
We can't promise about the freight but what we can do is shortening our lead time while keep the same quality level. So there will not be any problem even if the sea freight delay for a couple days.
4. WHY DON'T YOU HAVE A CE CERTIFICATIONS?
Ce certification is for one product, not the whole factory, and we have way too many product lines to registered CE for, but our customers from Europe said it's easy to solve the CE problem. And we are working on the CE certifications registration process, in order to save our customers' time in the furture.
5. HOW AM I START ORDERING?
Contact Person: Tang
