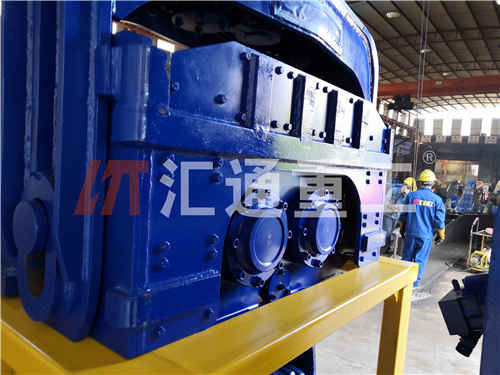

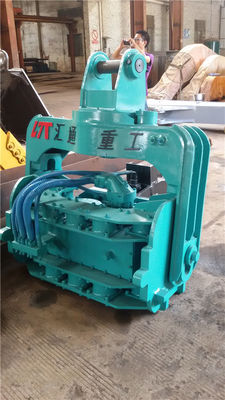

Huitong Hydraulic pilling hammer is using its high frequency vibration to vibrate pile body with high acceleration to pass the vertical vibration of mechanical produce to pile which leading to changes in the soil structure around the pile, strength decrease. Soil around the piles become liquefaction to reduce frictional resistance between side of the pile and the soil. Then using the excavator down force, vibrating pile hammer and pile body weight to sink pile into the soil. When extracting piles, in the condition of vibration to pull out the pile by using excavator lift force. Excitation force needed by pile driving machinery are comprehensive determined by site soil, soil condition, moisture content and type of pile, construction.
Our pile hammer is mounted on all brands of excavators, which is used for many kinds of piling works. It can drive steel sheet piles, steel pipe piles, concrete piles and so on. We use USA PARKER vibration motor, Germany FAG bearing, Taiwan EVERPADS rubber pads to make sure very high quality. Every pile hammer will be made welding test, rotating test, vibration test and clamping test.
1. Before signing an official contract with our customers, we will help to analyze and provide professional solutions, recommdations based on the project information provided by customers.
2. An experienced tech-team are ready to meet your special requirements.
3. Your inquire related to our products or price will be replied in 24 hrs
4. Keeping our customers update about the orders' production process and arrange quality checking in the workshop is available if you want.
5. Online techinical supports are available for the whole product life. Oversea services are available with extra fees.
6. 12 Month warranty for pile hammer, beyond the warranty period, all spare parts are available for you in our cost price.

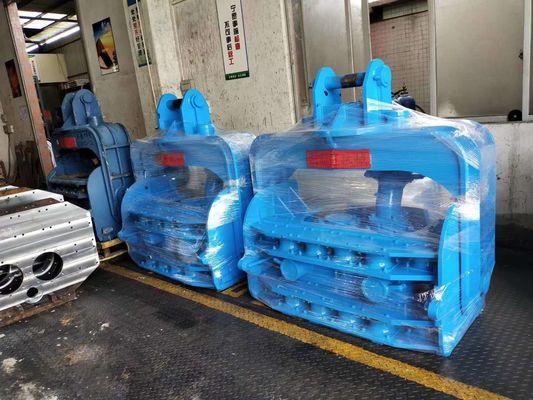

International standard pallet or wood case.
1. one 20GP can load about 12-14 pieces 1.0m3 or 1.2m3 buckets for 20ton excavator(Width less than 42 inches )
2. one 40HC can load about 26-28 pieces 1.0m3 or 1.2m3 buckets for 20ton excavator;
3. one 20GP can load about 8 pieces 1.6m3 buckets for 30ton excavator;
4. one 40HC can load about 16 pieces 1.6m3 buckets for 30ton excavator.
| PILE HAMMER | ||
|---|---|---|
| Item | HT-P30 | THT-P40 |
| Eccentric Moment | 40Nm | 85Nm |
| Centrifugal Force | 300kN | 570kN |
| Amplitude | 6.8mm | 14mm |
| Frequency | 2800rpm | 2800rpm |
| Pressure | 240-260kg/cm2 | 240-260kg/cm2 |
| Oil Flow | 155-200L/min | 200-255L/min |
| Turning Angle | 360degree | 360degree |
| Package Size | hammer with clamp:1450mm*1550mm*1650mm | hammer with clamp:1650mm*1700mm*1950mm |
| vice arm: 2700mm*800mm*1200mm | vice arm: 3350mm*850mm*1350mm | |
| Total: 7.41cube meters | Total: 8.81cube meters | |
| Net Weight | hammer with clamp: 2000kg | hammer with clamp: 2800kg |
| vice arm: 500kg | vice arm: 650kg | |
| Total: 2500kg | Total: 3450kg | |
| Suitable excavator | 20-35tons | 30-50tons |
| Host Model Number | External Dimensions of Main Engine (Take C16E as Exampel) |
||
|---|---|---|---|
| A | B | C | |
| V-250D | 2279 | 1245 | 737 |
| V-300E | 2279 | 1245 | 737 |
| V-330E | 2359 | 1255 | 880 |
| V-350E | 2359 | 1255 | 880 |
| V-400D | 2369 | 1460 | 980 |
| V-450B | 2369 | 1460 | 980 |
| V-500A | 2369 | 1460 | 980 |
1.What color can you produce ?
Yellow.If you need special, please advise.
2.How about the delivery time ?
Within 7-10 working days after receiving T/T payment.
3.What’s the MOQ and payment ?
MOQ is 1 set.
T/T, L/C, Escrow, west union is accepted. and other terms can also be negotiated.
4.Are you a manufacture?
Yes, our factory was established in 2008.
5.Can you produce according to customers’ design?
Sure,we are professional manufacturer,OEM is available.
6.Which country have you exported?
America,Brazil,Mexico,Canada, Australia, Peru,Spain,Egypt,Pakistan, South Africa,etc.
7.How to buy my wanted products quickly?
Show me the model or the weight of your excavator, and we can give you best solution.
If you want to know the ocean freight,please also suggest your nearest port.
8.How about the package?
Standard wooden cases, or as customers' demands.
