Huitong General-Purpose Bucket are mainly used for excavation and sand, gravel and soil and other light load operating environment.

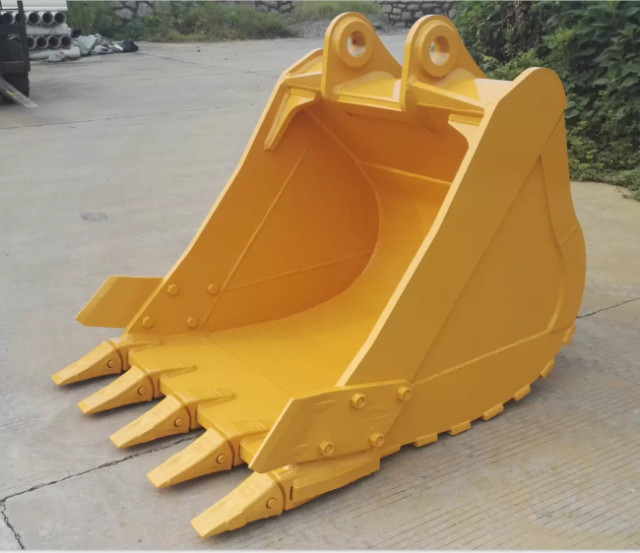

China supplier excavator buckets rock bucket GP bucket PC400 Excavator bucket
|
Name
|
gp bucket |
|---|---|
| Material | Q345B/Q460/NM400 and other brand wear materials |
|
Warranty
|
6months |
| Color | As customer's request |
| Capacity | 0.1-15m3 |
|
Place of origin
|
China |
|
MOQ
|
1Piece |
| Advantage | Long life and strong bearing capacity |
We can supply these goods with high quality, competitive price and prompt delivery. If you are interested in it, just tell me your machine name and type, part name , part number. According to the drawing,We can supply all kinds of excavators bucket, loader bucket, Skid steer loader bucket with Cheaper price and fine quality.
3. All bucket made of top quality structural and high strength steel, it can save work time and improve work efficiency.
| The chemical ingredients and Mechanical Performance comparison of three materials: KM | |||
| MaterialsItems | Q345B | Standard thickness plate and high quality tooth plate | For digging clay, or loading the sand, mud and gravel |
| Manganese | Q345B | Thicker plate, higher quality tooth plate which can lasting the using time | For digging the tough mud, clay with soft stone or loading the secondary tough stone and rock. |
| Steel plate | NM360+Q345B | Adaptor plate and side plate are made of material NM360, material Q345B for high quality tooth plate, so that it can resist grinding and bending | For digging the rubble, gravel and clay with tough stone, or loading the secondary tough stone and rock. |
| Wear-resistant steel plate homemade | HARDOX500+Q345B or NM360+Q345B |
Consolidated plate on the base, enhance the thickness of side plate, and install protective board, the tooth plate is made of SBIC from Korea which is specialized for rock, so that it can resist grinding and bending efficiently. | For loading the tough rock and the mineral fromthe explosions |
1. Before signing an official contract with our customers, we will help to analyze and provide professional solutions, recommdations based on the project information provided by customers.
2. An experienced tech-team are ready to meet your special requirements.
3. Your inquire related to our products or price will be replied in 24 hrs
4. Keeping our customers update about the orders' production process and arrange quality checking in the workshop is available if you want.
5. Online techinical supports are available for the whole product life. Oversea services are available with extra fees.
| Type | Material | AppliPCion |
|---|---|---|
| Standard bucket | Q345B | Apply to light operation task, such as digging and loading hard soil or stones nixed with the soft soil. |
| Heavy duty bucket | Q345B+Q460B | Suitable for digging hard soil, soil mixed with soft stone, loading gravel, broken stone and so on |
| Rock bucket | Q345B+Q460B+NM400 | Suitable for digging earth with hard rock, sub-hard stone and weathered stone, it also can do heavy work, such as digging and loading solid rock, blasted ore |
| Heavy duty rock bucket | Q345B,NM400,NM500, HARDOX400,HARDOX500 | Used for mining hard grave mixed with hard soil,sub-hard stone or flint,after blasting or loading,and heavy-loading |
| Skeleton bucket | Q345B+NM400 | It can be used for underwater work |
| Rotary skeleton bucket | Q345B+NM400 | Suitable for screening gravel in watercourses and cleaning beaches, and is a powerful assistant for screening fine debris |
| SpecifiPCion For Bucket Size | |||||||||||
| GP/HD BUCKET | |||||||||||
| Capacity(m³) | 0.8 | 1 | 1.2 | 1.5 | 1.8 | 2 | 2.5 | 3 | 4 | 5 | 7 |
| Length(") | 42.5 | 46.5 | 46.5 | 51.2 | 51.2 | 53.1 | 59.1 | 66 | 67.3 | 73.6 | 82.7 |
| Width(") | 39.4 | 45.3 | 49.2 | 51.9 | 59.8 | 59.8 | 61 | 62.2 | 66.9 | 70.9 | 89.4 |
| High(") | 27.6 | 29.9 | 31.5 | 33.9 | 35.8 | 38.6 | 40.9 | 44.5 | 53.1 | 57.9 | 57.9 |
| Teeth(Optional) | PC200 | PC200 | PC200 | PC300 | PC400 | PC400 | PC400 | PC650 | PC650 | PC650 | PC1000 |
| Lip(") | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 |
welcome you enquiry according to the following:
1.Model of excavator
2.Capacity of bucket
3.Type of bucket
4.Size of the A.B.C.D.E of drawing
