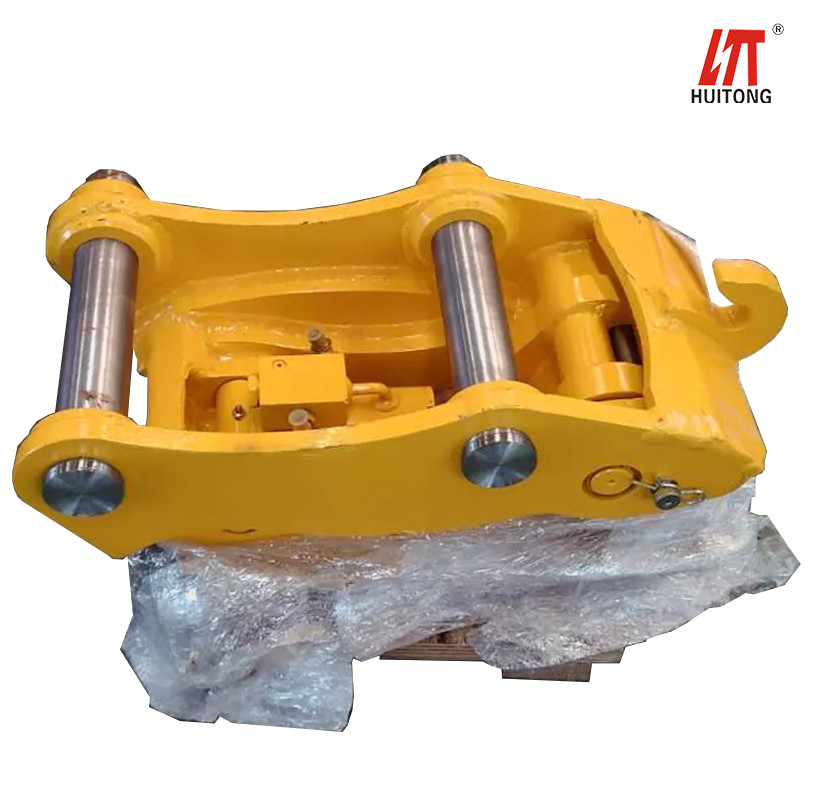

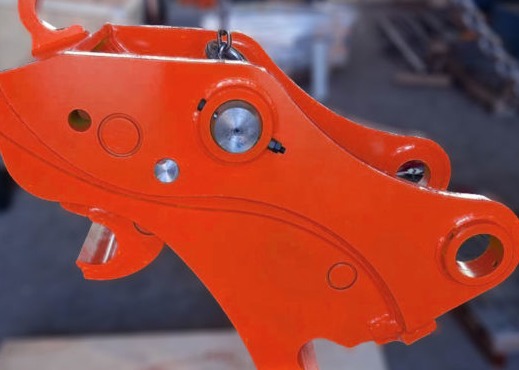

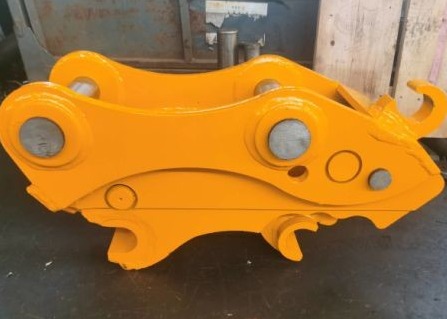

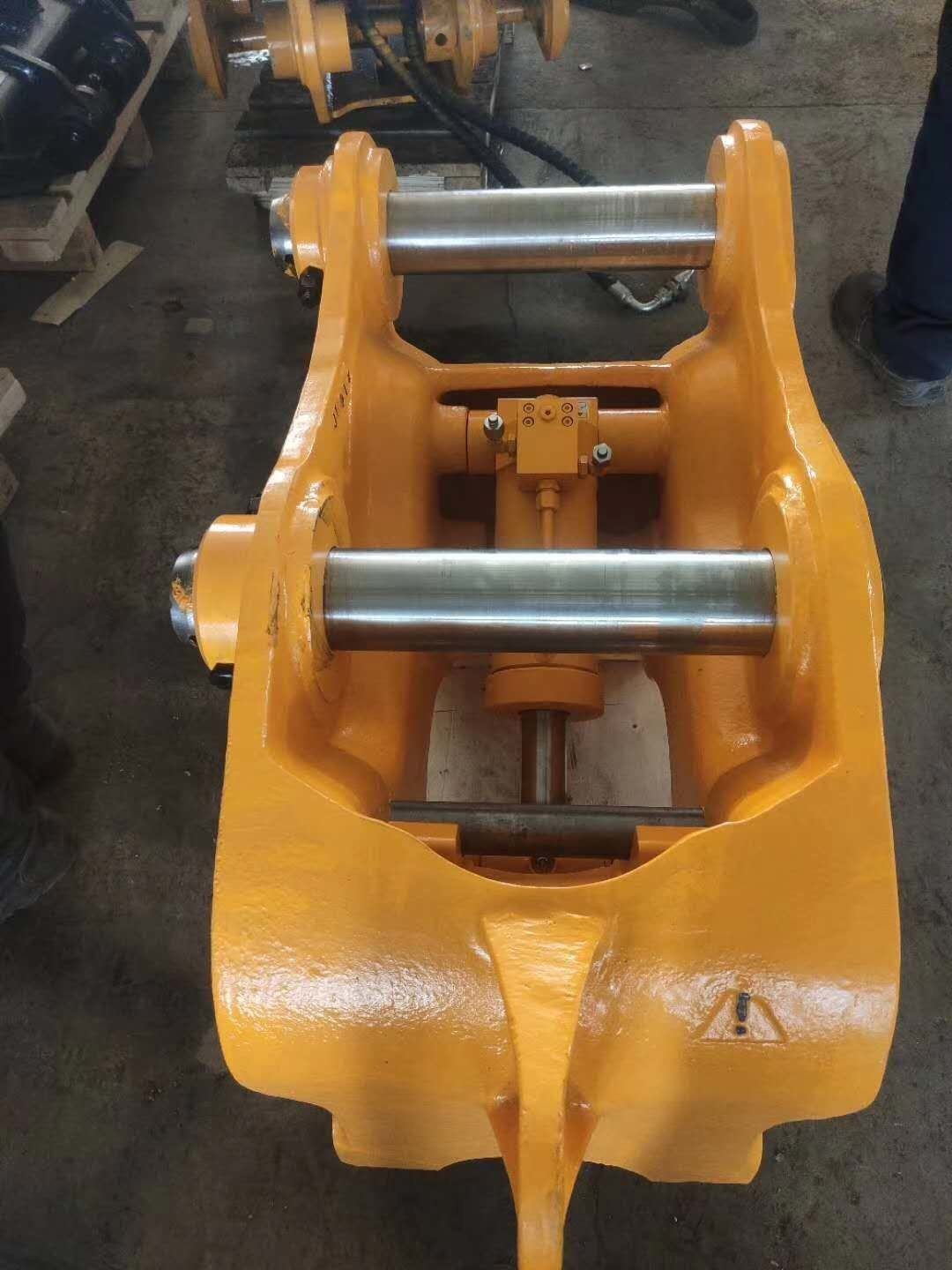

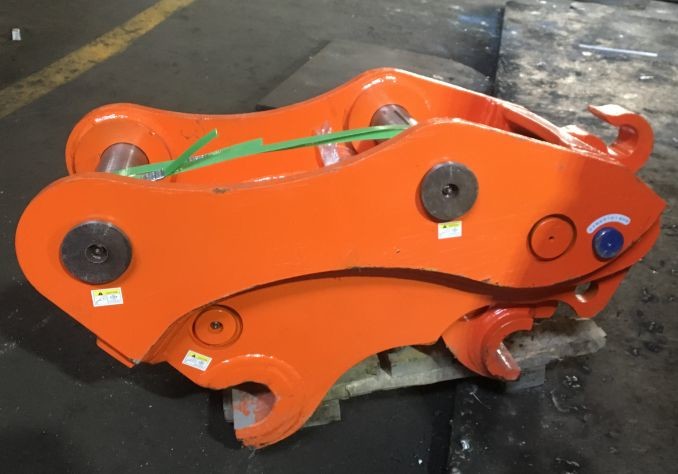

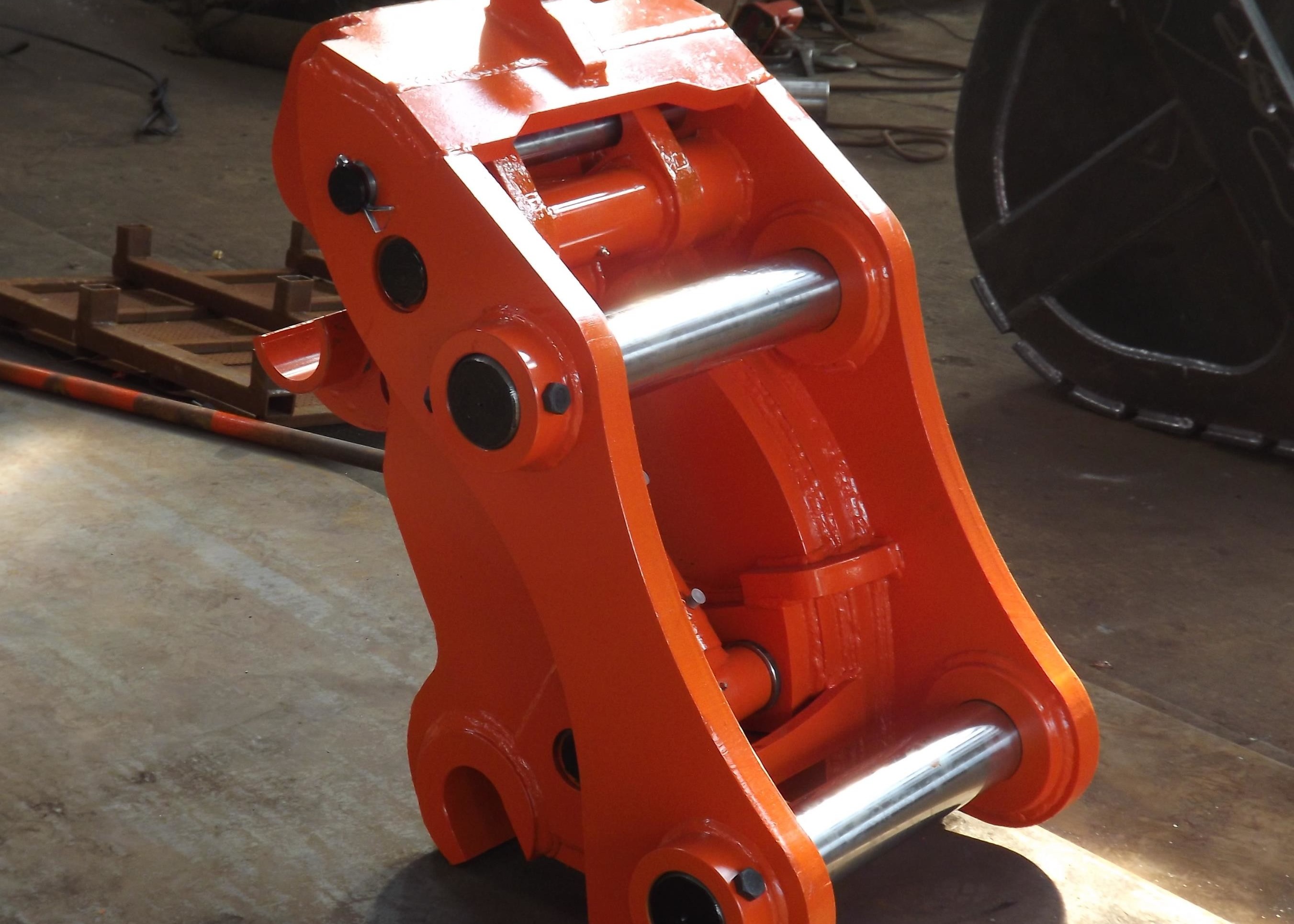

Excavator Hydraulic Quick Hitch / Double Lock System Quick Coupler For 10-30 Tons Excavator
Production Description
Huitong Excavator quick connector, also known as quick connector, quick connector.
The quick connector can quickly install and switch various configuration parts (bucket, scarifier, crushing hammer, hydraulic shear, etc.) on the excavator, which can expand the scope of use of excavator, save time and improve work efficiency..
Huitong Excavator quick Hitch High quality material (Q345b) provide high steel toughness and good abrasive resistance.Compact in design, virtually maintenance free,,Electric control system installed in cab , easy for operating.It use security device of hydraulic control valve to ensure the safety.
Production Details
|
Model
|
Unit
|
HT 02
|
HT 04
|
HT 06
|
HT 08
|
HT 10
|
HT 7
|
HT 20
|
|
Weight
|
kg
|
50-75
|
80-110
|
170-210
|
350-390
|
410-520
|
550-750
|
700-1000
|
|
Length
(C)
|
mm
|
520-542
|
581-610
|
760
|
920-955
|
965-1100
|
1005-1150
|
1250-1400
|
|
Height (G)
|
mm
|
312
|
318
|
400
|
512
|
585
|
560-615
|
685-780
|
|
Width (B)
|
mm
|
260-266
|
265-283
|
351-454
|
450-483
|
543-572
|
602-666
|
650-760
|
|
Arm With (A)
|
mm
|
155-172
|
180-205
|
230-317
|
290-345
|
345-425
|
380-480
|
420-520
|
|
Cylinder Distance (E)
|
mm
|
200-300
|
300-350
|
340-440
|
420-510
|
460-560
|
560-650
|
640-700
|
|
Pin Diameter
|
mm
|
40-45
|
45-55
|
50-70
|
70-90
|
90-100
|
100-110
|
100-140
|
|
Pin Distance (F)
|
mm
|
200-210
|
205-220
|
240-255
|
300
|
350-370
|
370-380
|
400-500
|
|
Centre distance (D)
|
mm
|
220-275
|
290-350
|
350-400
|
430-480
|
485-530
|
520-630
|
620-750
|
|
Working Pressure
|
Kg/cm²
|
30-400
|
30-400
|
30-400
|
30-400
|
30-400
|
30-400
|
30-400
|
|
Oil Flow
|
L/min
|
10-20
|
10-20
|
10-20
|
10-20
|
10-20
|
10-20
|
10-20
|
|
Carrier Weight
|
Ton
|
4-6
|
6-8
|
9-16
|
17-25
|
25-33
|
33-45
|
40-90
|
