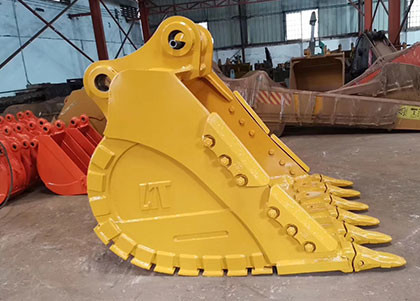

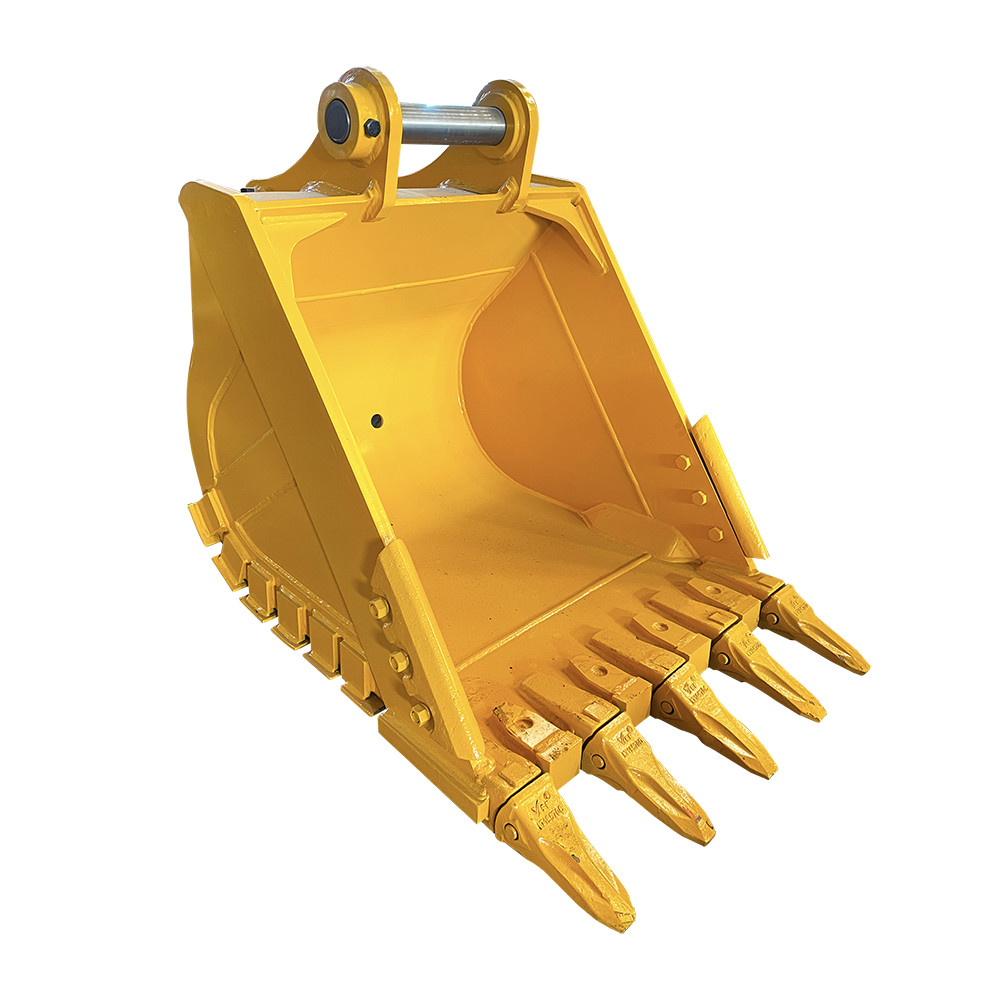

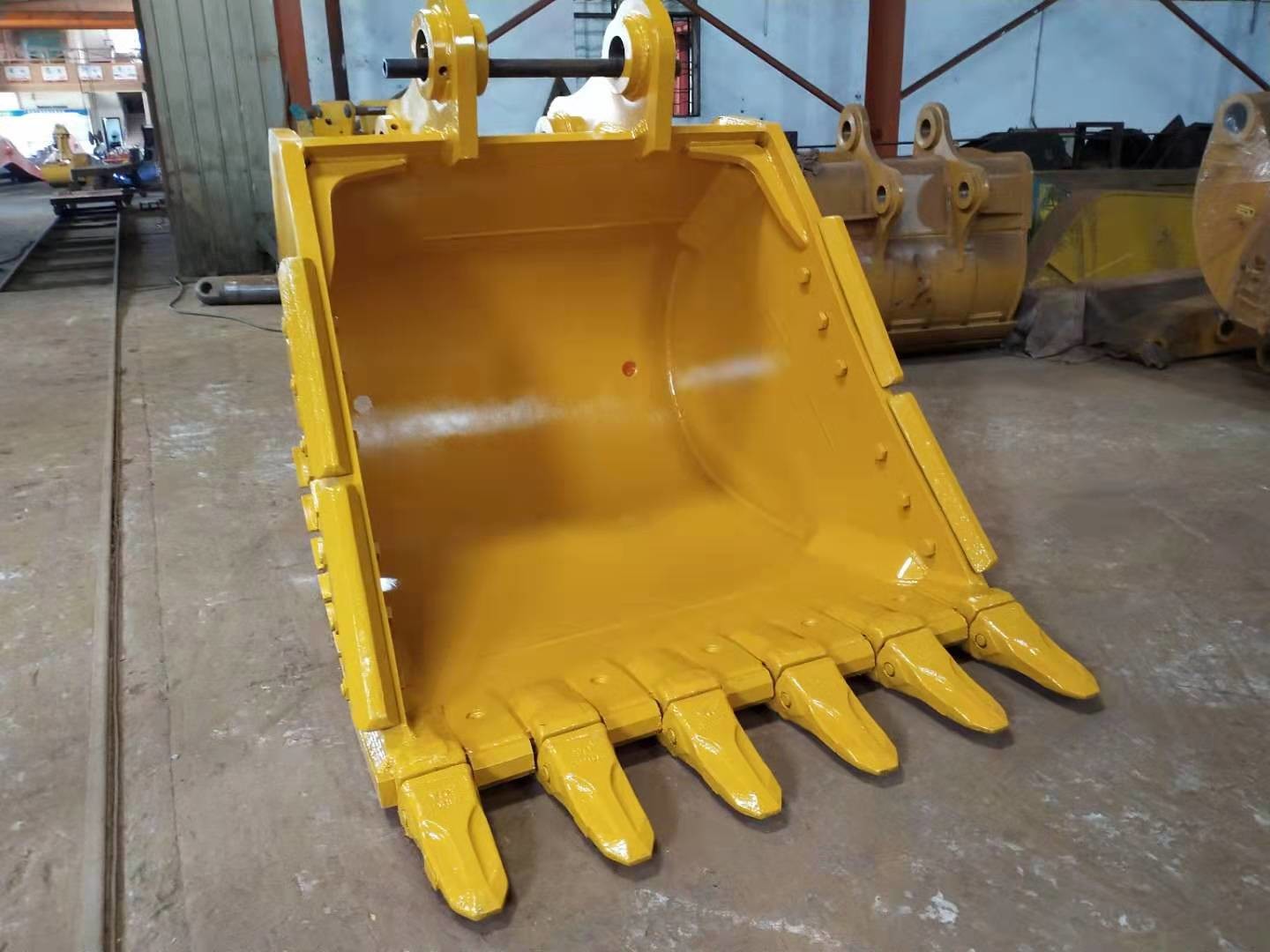

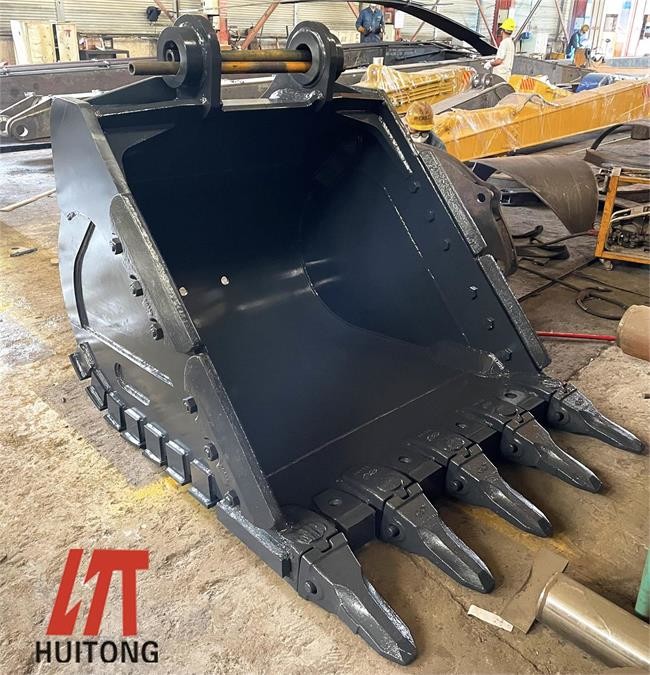

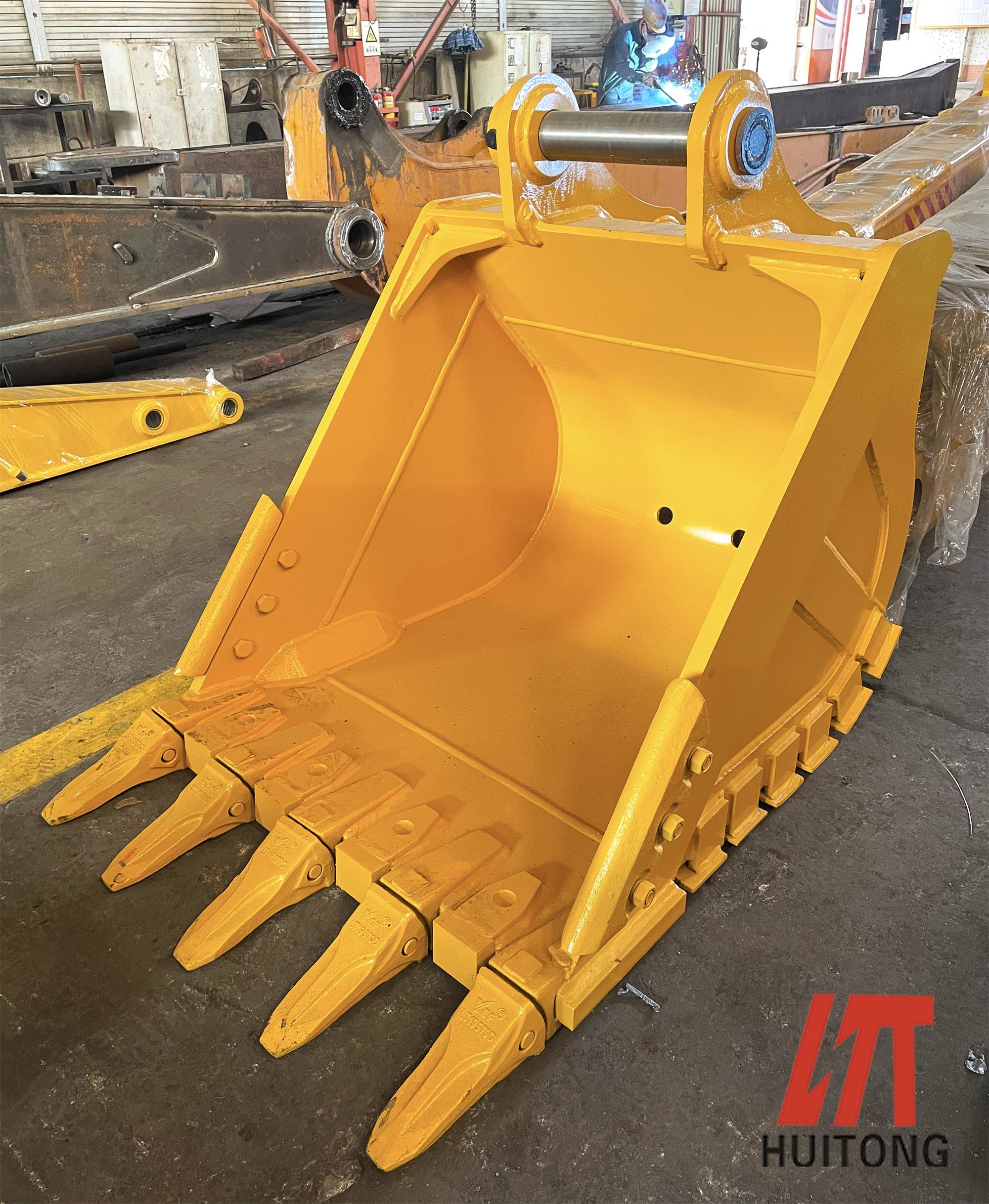

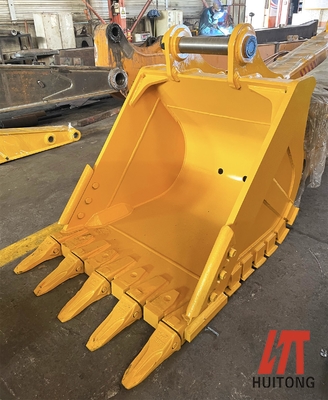

KOMATSU PC210 Q355B Excavator Heavy Duty Bucket For Construction
Product Material | ||||||||||
Material | Code | Related Chemical Composition | Hardness(HB) | Extension(%) | Drag and extension intensity (N/mm2) | Bend Intensity (N/mm2) | ||||
C | Si | Mn | P | S | ||||||
Alloy | Q355B | 0.18 | 0.55 | 1.4 | 0.03 | 0.03 | 163-187 | 21 | 470-660 | 355 |
Chinese High-Strength alloy | NM360 | 0.2 | 0.3 | 1.3 | 0.02 | 0.006 | 360 | 16 | 1200 | 1020 |
High-Strength alloy | HARDOX-500 | 0.2 | 0.7 | 1.7 | 0.025 | 0.01 | 470-500 | 8 | 1550 | 1300 |
Description
Thicker plate, domestic high quality tooth plate which can extend the using time.
Adaptor plate and side plate are made of Chinese material NM400, domestic material high quality tooth plate, so that it can resist grinding and bending.
Heavy duty flat floor design with outside bottom wear strips, upper and lower side kick plates.
AppliPCion
Applicable to slope-surface trimming,waterways dredging,water ditching,etc.
Designed for a wide variety of appliPCions and materials.
Kindly recommended for dirt, loam, gravel, loose clay, non-abrasive soils with limited rock.
