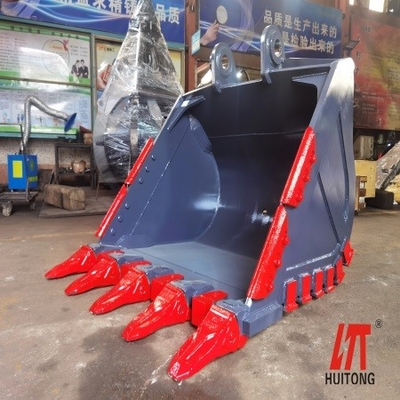

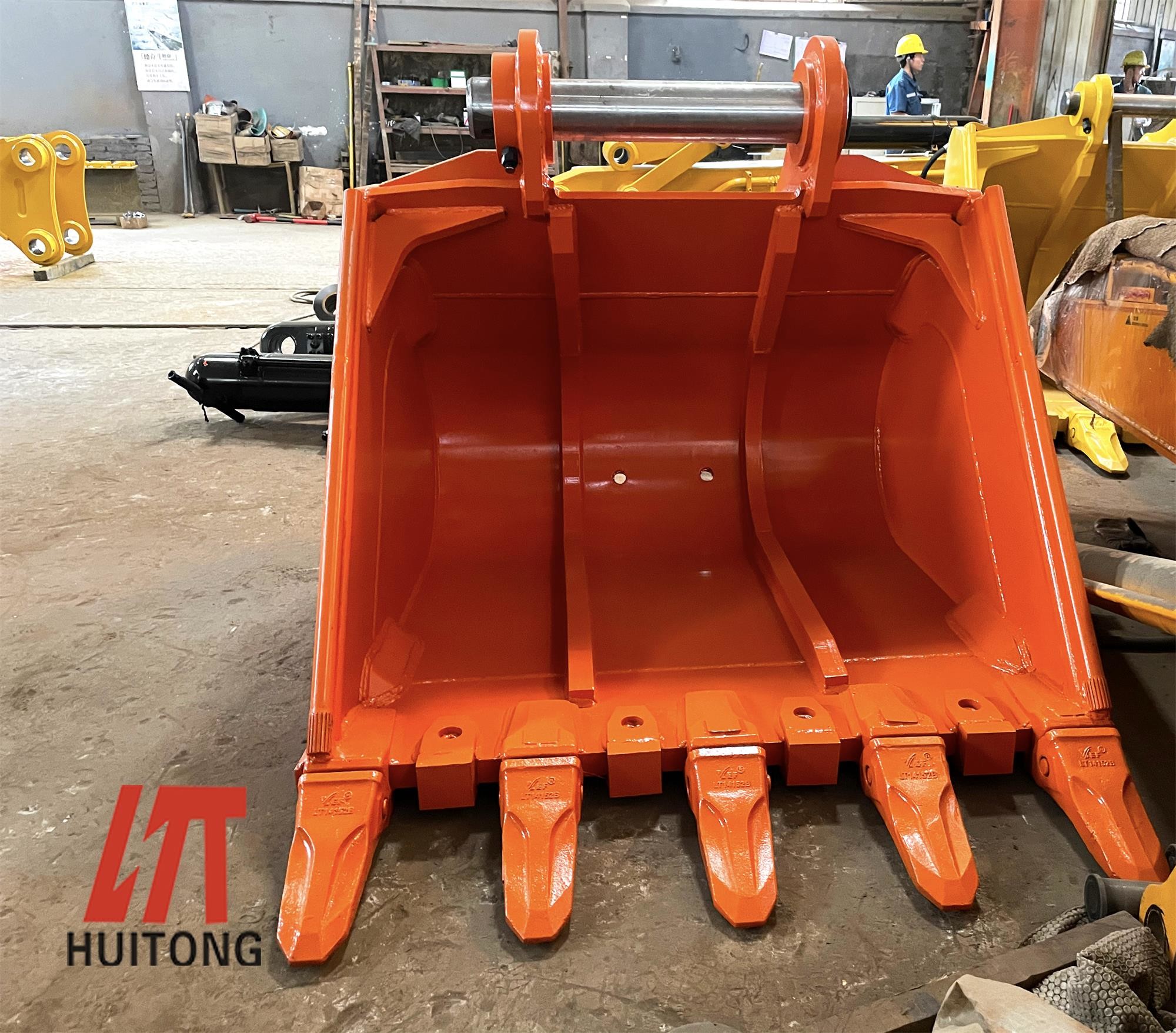

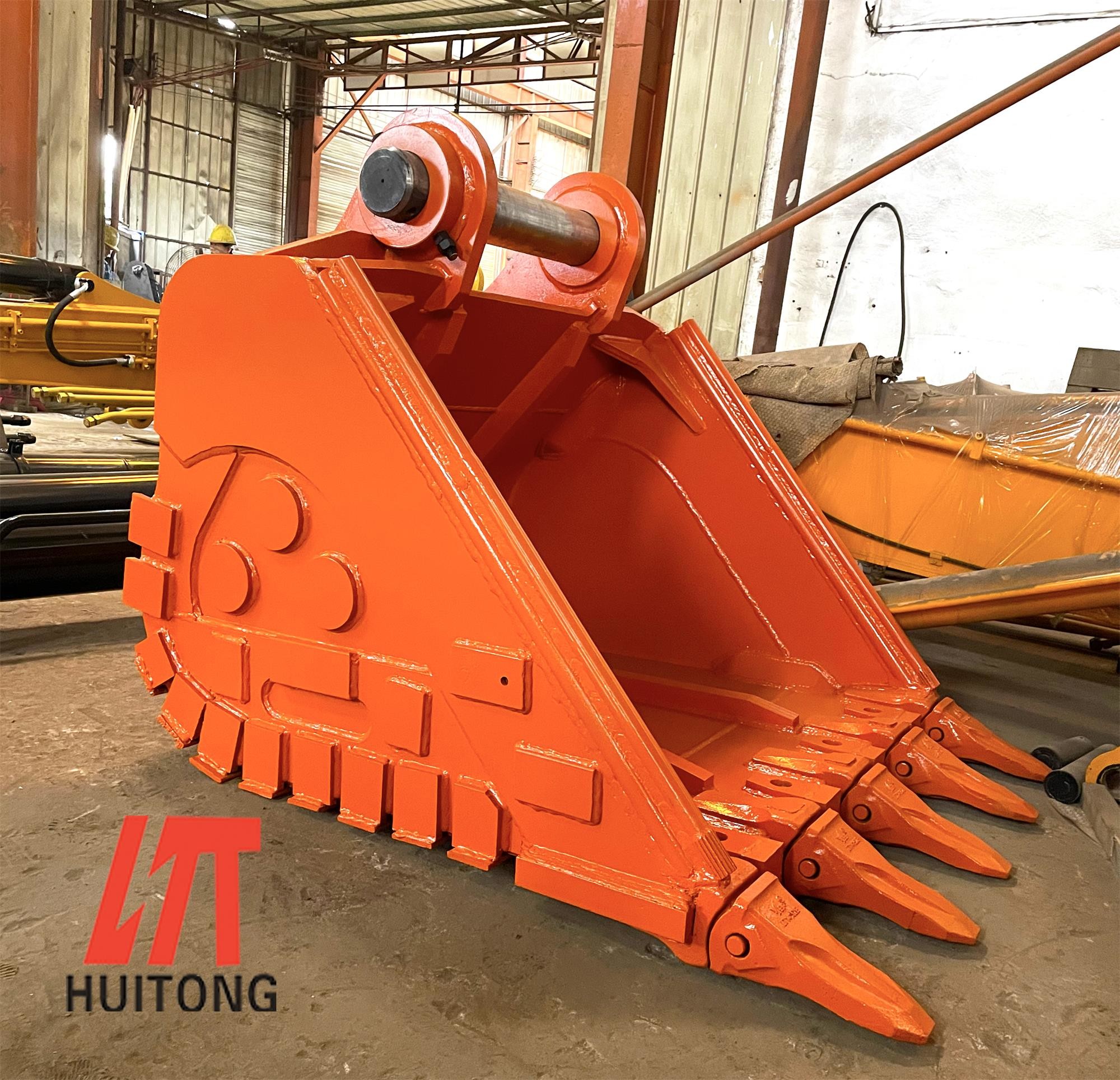

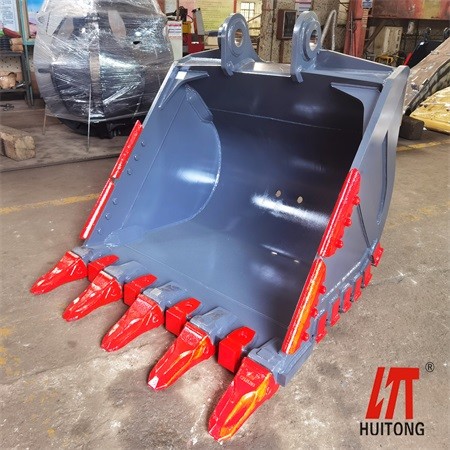

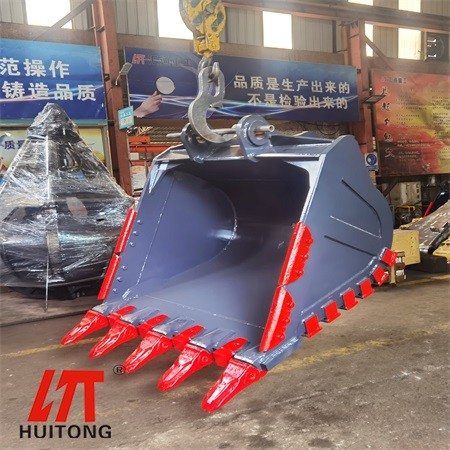

KOBELCO 22 Ton Excavator Heavy Duty Bucket 1.0m³ Large Capacity
Product Material | ||||||||||
Material | Code | Related Chemical Composition | Hardness(HB) | Extension(%) | Drag and extension intensity (N/mm2) | Bend Intensity (N/mm2) | ||||
C | Si | Mn | P | S | ||||||
Alloy | Q355B | 0.18 | 0.55 | 1.4 | 0.03 | 0.03 | 163-187 | 21 | 470-660 | 355 |
Chinese High-Strength alloy | NM360 | 0.2 | 0.3 | 1.3 | 0.02 | 0.006 | 360 | 16 | 1200 | 1020 |
High-Strength alloy | HARDOX-500 | 0.2 | 0.7 | 1.7 | 0.025 | 0.01 | 470-500 | 8 | 1550 | 1300 |
Product AppliPCion
Applicable to slope-surface trimming,waterways dredging,water ditching,etc.
Designed for a wide variety of appliPCions and materials. Kindly recommended
for dirt, loam, gravel, loose clay, non-abrasive soils with limited rock.
Heavy duty flat floor design with outside bottom wear strips, upper and lower
side kick plates.
The products we offer are fitted for all of the world famous excavator brands
