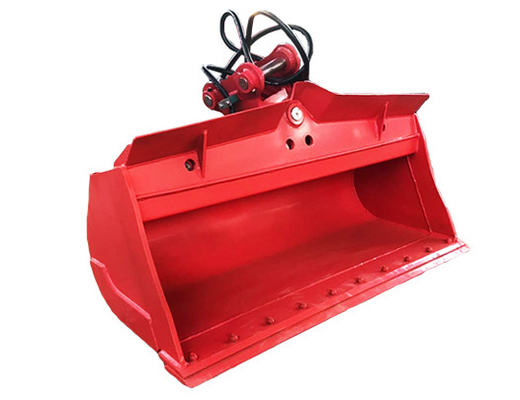

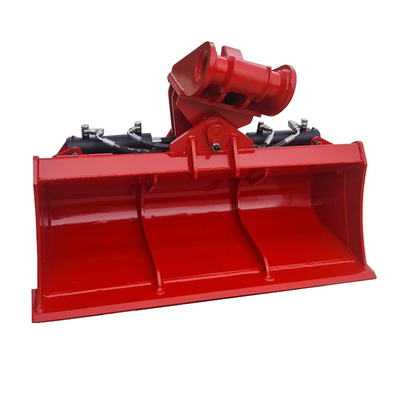

0.1-0.8m3 Excavator Hydraulic Tilting Bucket For Hyundai R55 R80 R120 R150
Production Descrption
Tilting bucket can change the angle of the bucket without changing the position of the excavator to operate, thus reduce the wear loss and oil cost and improves the work efficiency. Tilt buckets are easy to install, safe, silent to operate and are available in quick coupler and pin grabber versions.Performs light to moderate duty ditch cleaning, grading and brush clearing appliPCions. Variable angle from 45° Left to 45° Right (90° total)
Make your earthmoving work truly versatile with Tilt Bucket for Excavators. Manoeuvre this excavator attachment to the precise angle you need with hydraulic 45-degree tilt in both directions. Perfect for grading and levelling work, allowing you to be more efficient when tackling the job and saving you from having to constantly reposition your excavator.
Excavator Weight (Tons) |
Model | Width mm (in) |
Heaped Capacity m³ (yd³) |
Weight kg (lbs) |
---|---|---|---|---|
2-4 | HT 04 | 1200 (48) | 0.18 (0.24) | 176 (388) |
4-6 | HT 06 | 1200 (48) | 0.22 (0.29) | 220 (485) |
6 - 11 | HT11 | 1200 (48) | 0.28 (0.37) | 377 (831) |
11 - 14 | HT 14 | 1500 (60) | 0.55 (0.72) | 785 (1730) |
14 - 18 | HT 18 | 1500 (60) | 0.63 (0.82) | 705 (1553) |
18 - 25 | HT 25 | 1500 (60) | 0.85 (1.11) | 743 (1637) |
25 - 29 | HT 29 | 1800 (72) | 1.31 (1.71) | 923 (2034) |
